Description

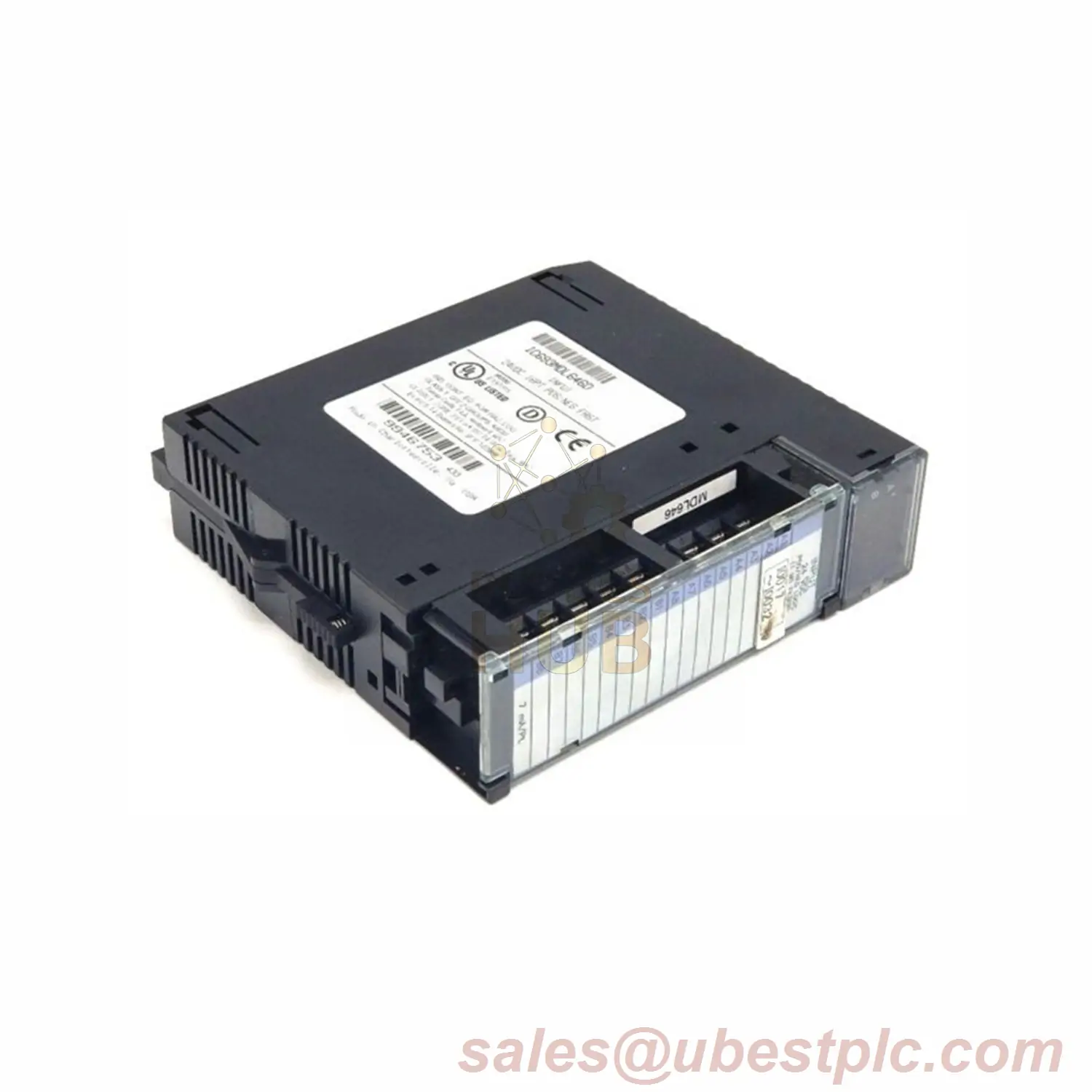

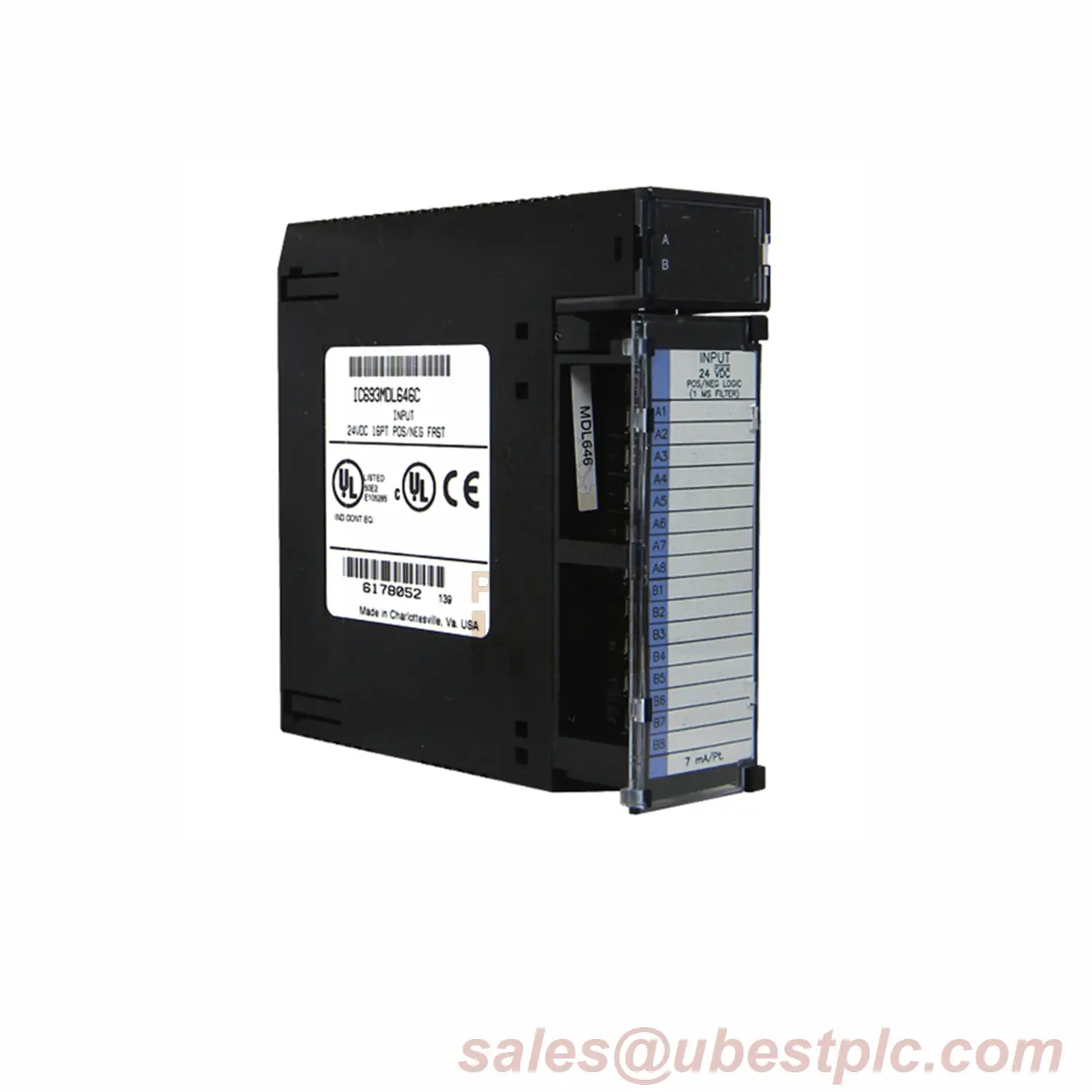

IC693MDL646: 16-Channel 24VDC PLC Input Module
Quick Overview
This 16-input module connects sensors and switches to GE Fanuc Series 90-30 PLCs. Works with 24VDC devices like push buttons and proximity sensors. Fast 1ms response for real-time control.
Key Specifications
| Brand | GE Fanuc / Emerson |
| Model | IC693MDL646 |
| Input Channels | 16 |
| Voltage Range | 0-30VDC |
| On/Off Response | 1ms |
| Input Current | 7mA per channel |
| Power Consumption | 80mA @5VDC 125mA @24VDC |
| Isolation | 1500V field/logic |
Installation Notes
- Mount in any Series 90-30 baseplate slot

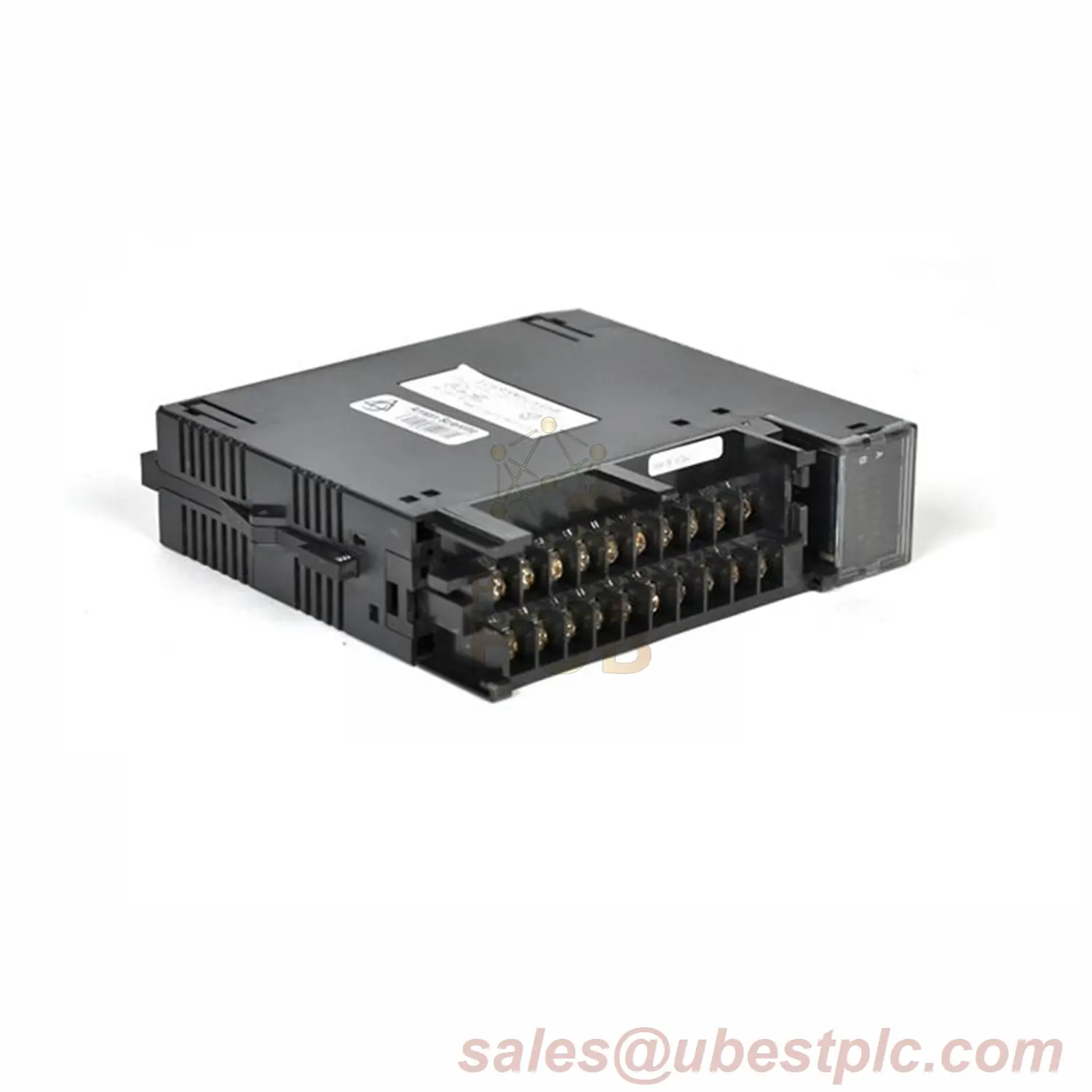

- 20-terminal connector with swing-door cover
- Color-coded for low-voltage wiring
- LED indicators per channel
Included in Box
- 1x IC693MDL646 Module
- Installation documentation
Warranty & Shipping
- 12-month product warranty
- FedEx, UPS, DHL shipping options
Common Questions
Q: What voltage sensors work with this?
A: Any 0-30VDC device like switches or proximity sensors.
Q: How fast does it react to signals?
A: 1ms response time for instant control.
Q: Can I mix wiring types?
A: Yes, supports both positive and negative logic wiring.
Q: Is this still in production?
A: Discontinued but fully tested and guaranteed.
