Description

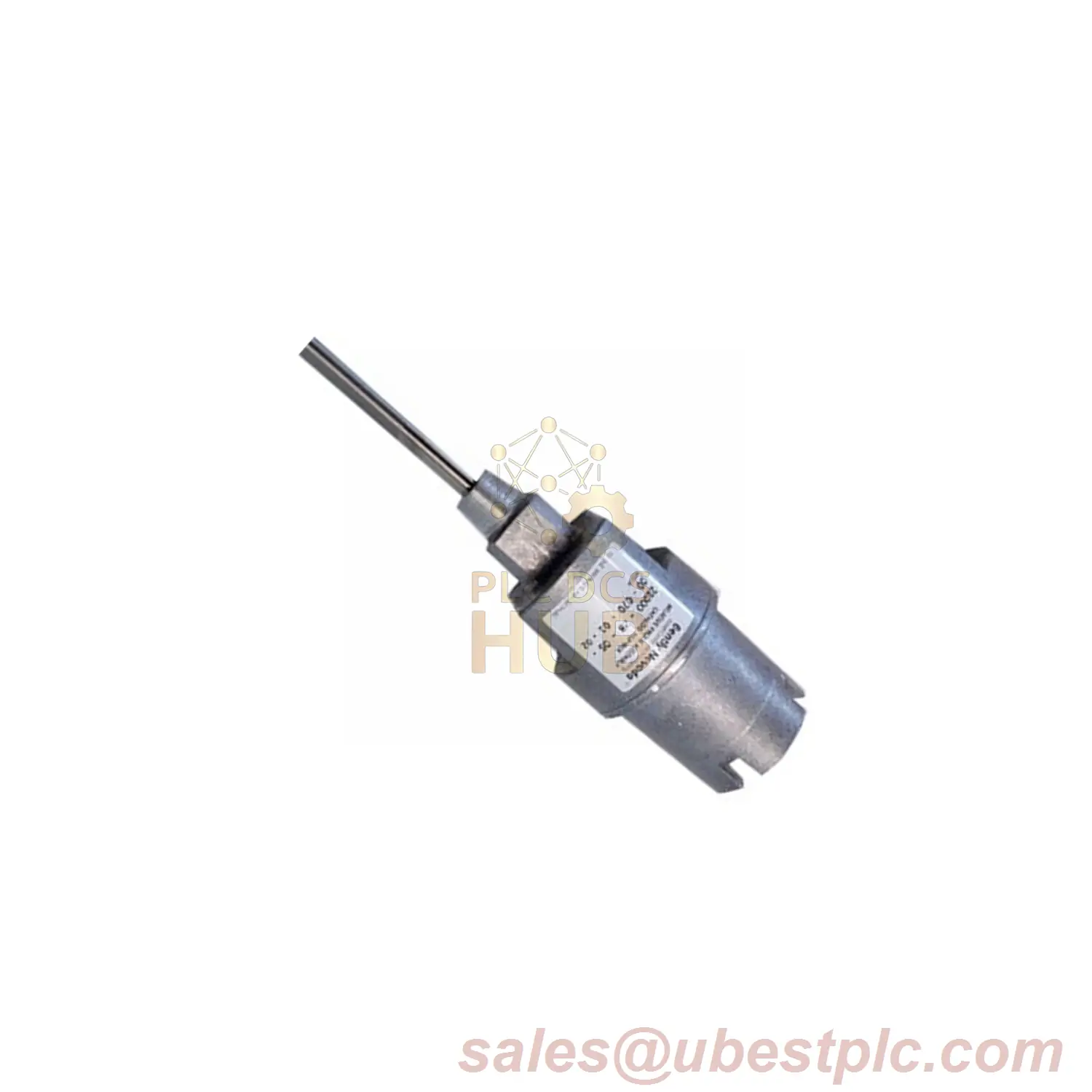

Bently Nevada 21000 Proximity Probe Housing Assembly
The Bently Nevada 21000-16-10-00-072-03-02 Proximity Probe Housing Assembly delivers robust performance in hazardous environments with CSA Type 4 and API 670 certifications. Designed for intrinsic safety, it features a 7.2″ probe penetration depth and explosion-proof construction. Ideal for critical machinery monitoring in industrial applications.
Technical Specifications
- Brand: Bently Nevada
- Part Number: 21000-16-10-00-072-03-02
- Probe Range: 8 mm (3300 XL Series)
- Cable Length: 1.0 m (39 in) shielded cable
- Operating Temperature: -40°C to +120°C (-40°F to +248°F)
- Output Signal: -2 V to -18 V DC linear voltage
- Mounting: 3/4-14 NPT thread (Explosion-proof rated)
- Weight: 1.15 kg (2.53 lb) without fittings
Suffix Code Configuration
16: 3300 XL 8 mm probe w/ Mil-C-5015 connector
10: 1.0 m (39 in) high-temp cable
00: Direct mount (no standoff)
072: 7.2 in (183 mm) probe extension
03: Conduit kit with NPT plugs & multi-size seals
02: 3/4-14 NPT explosion-proof threading
Certifications & Compliance
- CSA Class I, II, III Division 1 approved
- ATEX/IECEx Zone 1 compatibility
- API 670 5th Edition compliant
- NEMA 4X corrosion-resistant enclosure
Industrial Use Cases
- Gas Compressor Stations: Monitor shaft displacement in natural gas transmission units
- Pharmaceutical Mixers: Track bearing wear in explosion-prone cleanrooms
- Marine Turbines: Vibration analysis on offshore LNG carrier engines
Package Contents
- Reverse-mount proximity probe
- 304 stainless steel probe sleeve
- (3) Cable grommets (1/8″ to 3/8″)
- NPT thread sealant
- 12-month defect warranty
Contact Technical Team: sales@ubestplc.com for custom configurations.
