Description

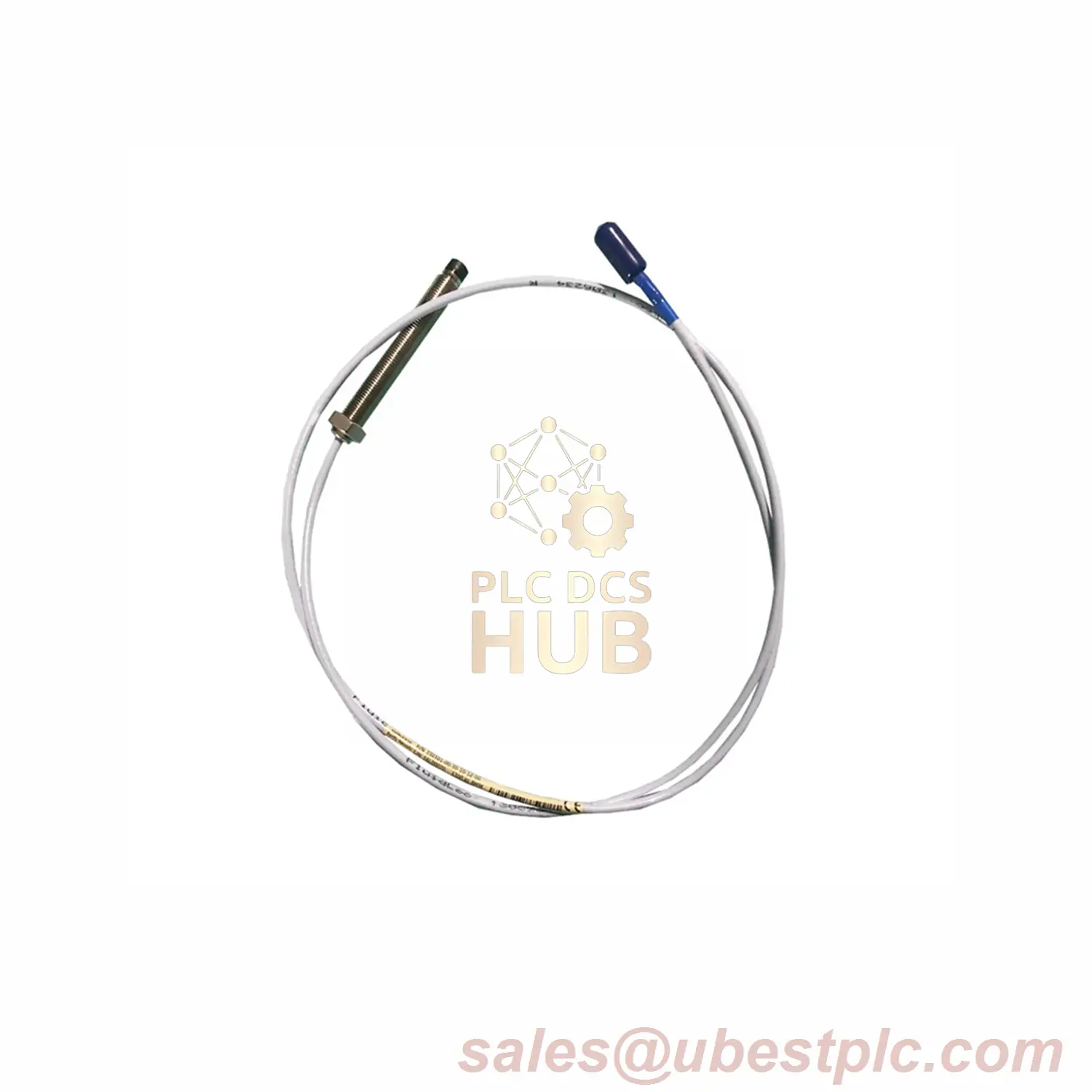

Bently Nevada 330702-00-10-90-02-05 – Precision 11mm Vibration Probe

New U.S.-manufactured sensor with 12-month warranty. Ships worldwide via FedEx/UPS/DHL.

Part Number Breakdown

[330702] → Base (11mm Probe)
├── 00 → 0" Unthreaded
├── 10 → 1.0" Case Length
├── 90 → 9m Cable
├── 02 → Mini ClickLoc®
└── 05 → Multiple Approvals

Technical Specifications

• Resistance: 8.5Ω ±1.1Ω
• Cable: 75Ω triaxial FEP
• Bend Radius: 25.4mm (1 inch)
• Max Torque: 45.2 N•m
• Seal: Viton® O-ring
• Weight: 0.17kg (0.37 lbs)

Professional Insights

• Q: Why 1-inch case length?
  A: Fits extremely tight installation spaces
• Q: Cable replacement possible?
  A: No – cable is permanently sealed
• Q: Approval certifications?
  A: ATEX, IECEx, and others (contact for full list)
• Q: Minimum installation temp?
  A> Above -34°C (-30°F) for seal protection
• Q: Vibration measurement range?
  A: Designed for 0-10kHz machinery

Package Includes

• 11mm probe with 9m cable
• Miniature ClickLoc® connector
• Protective end caps
• Factory documentation

Important: All purchases include 12-month warranty.
