Product Summary

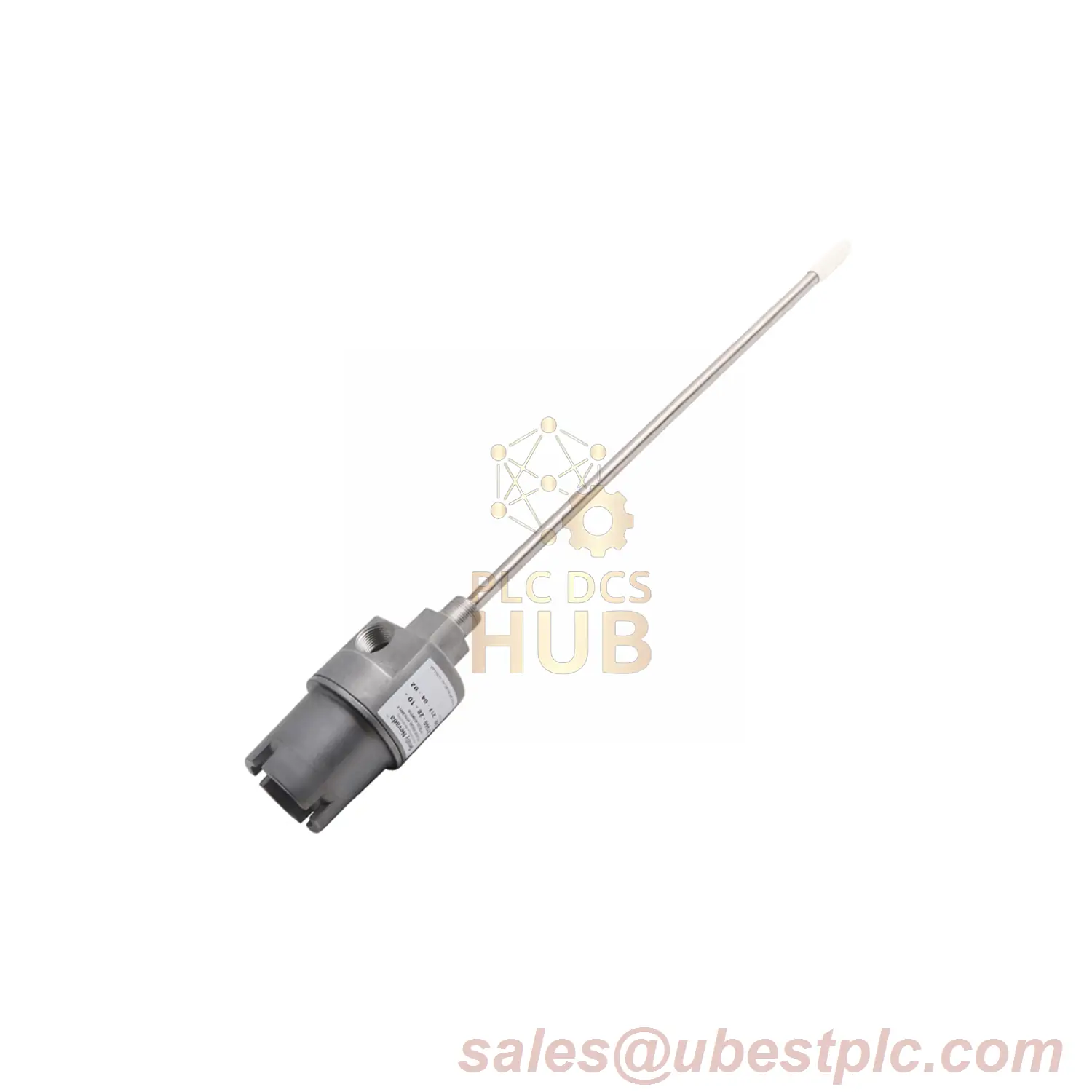

The Bently Nevada 21000-16-10-00-037-03-02 Proximity Probe Housing Assembly delivers explosion-proof monitoring with a compact 3.7 in penetration depth. Featuring an aluminum-stainless steel hybrid construction, it meets API 670 requirements for critical equipment protection in Class I/II hazardous zones.
Technical Parameters
- Manufacturer: Bently Nevada
- Full Model: 21000-16-10-00-037-03-02
- Probe Range: 3.7 in (94 mm) optimized for tight spaces
- Measurement Accuracy: ±0.8% FS at 25°C
- Signal Type: DC voltage/current (LVDT-compatible)
- Temp Resilience: -40°C to +120°C (-40°F to 248°F)
- Shock Resistance: 50g peak (11 ms duration)
- Cable Specs: 1.0 m (39 in) double-shielded Teflon®
- Gross Weight: 1.05 kg (2.3 lb) base unit
Suffix Decoding
16 – 3300 XL 8mm high-temperature probe (±1% linearity)
10 – 1.0 m (39 in) oil-resistant cable
00 – Direct mount (no standoff)
037 – 3.7 in (94 mm) shallow penetration design
03 – 3/4-14 NPT plug + reducer + 3-size cable seals
02 – 3/4-14 NPT female threads (API 670 compliant)
Mounting & Integration
Ideal for space-constrained installations, this assembly supports 1/8″-3/8″ cables via adjustable seals. Compatible with GE Bently Nevada 3500/42M monitors and third-party systems using IEEE C37.92 signal protocols.
Certification Details
- CSA C22.2 No. 30 Explosion Protection
- IECEx Ex d IIC T6 Gb Certification
- Compliant with API 670 5th Ed. Annex F
Package Contents
- Pre-calibrated 8mm proximity probe (P/N visible)
- Explosion-proof conduit fittings kit
- High-temperature Viton® O-rings (3-piece set)
- Anti-corrosion thread sealant
Warranty Terms
12-month performance guarantee covers all components against defects. Extended service plans available.
Industry Application
Implemented in refinery high-temperature charge pumps for continuous shaft position monitoring, operating reliably in H2S-containing environments up to 110°C (230°F).
Technical Support
Contact sales@ubestplc.com for hazardous area installation schematics.
