Bently Nevada Armored Proximity Probe: Industrial-Grade Vibration Sensing
Product Overview

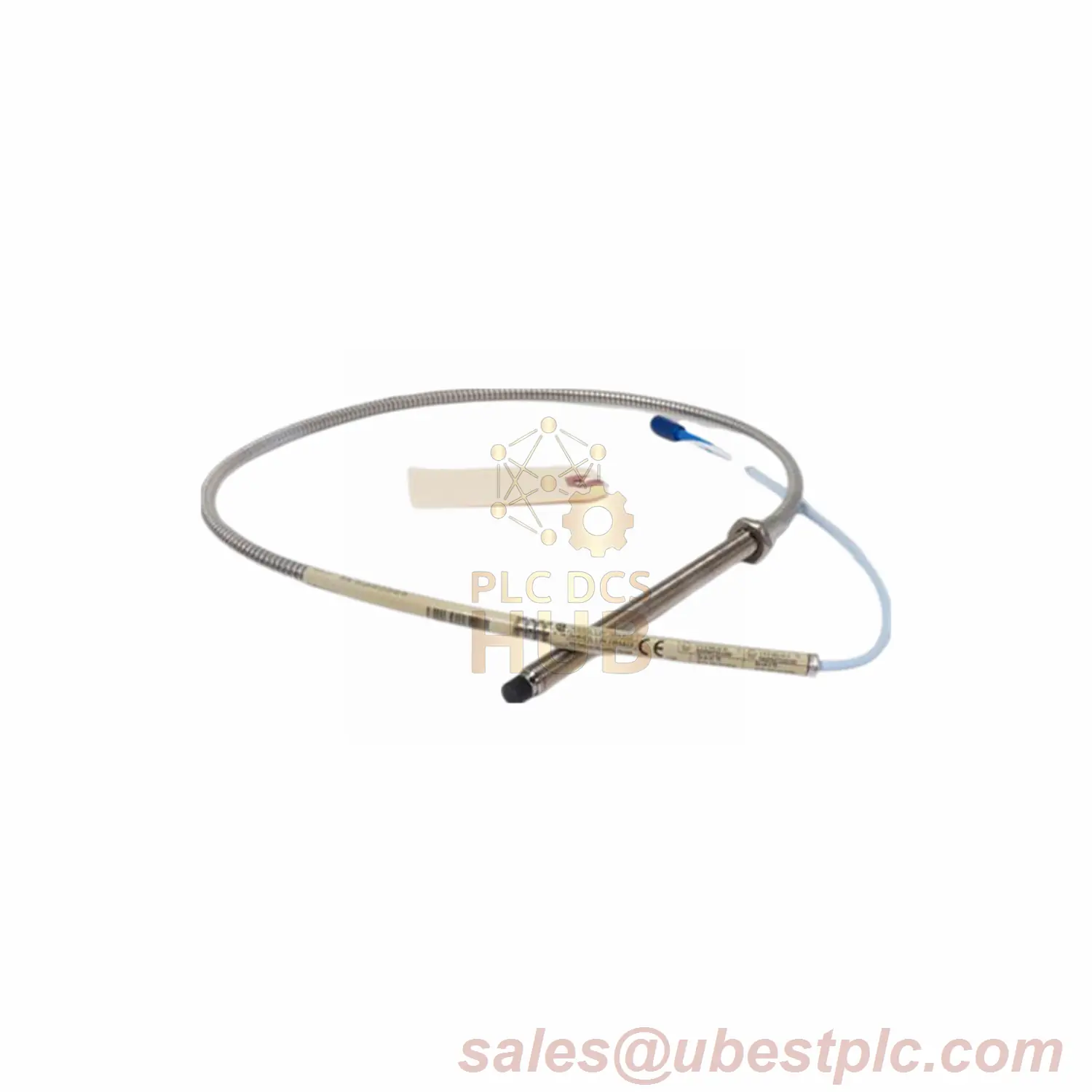

Premium armored 8mm proximity probe with M10x1 threading for harsh industrial environments. Features triple safety certifications and extended temperature resilience. Essential for predictive maintenance in energy, manufacturing, and heavy machinery sectors.
Complete Model Breakdown
Full Product Code: 330104-03-09-05-02-05
- ├── 330104: 8mm Probe with Armor (M10x1 thread)
- ├── 03: 30mm unthreaded length
- ├── 09: 90mm overall case length
- ├── 05: 0.5 meter cable (1.6 feet)
- ├── 02: ClickLoc coaxial connector
- └── 05: CSA/ATEX/IECEx approvals
Technical Specifications
| Brand | Bently Nevada |
| Measurement Range | 0.25mm to 2.3mm (10-90 mils) |
| Optimal Gap Setting | 1.27mm @ -9Vdc |
| Output Signal | -1 to -17 Vdc linear output |
| DC Resistance | 7.45Ω ±0.50 (per meter) |
| Temperature Limits |
|
| Weight | 323 g/m (armored version) |
Installation Guide
- Max wiring distance: 305 meters
- Cable specification: 3-conductor shielded triad (0.2-1.5mm²)
- Critical: Maintain >0.25mm gap from target surface
- Avoid temperatures below -34°C to preserve seals
Compatibility Information
- Designed for 3300 XL Proximitor systems
- Approved for Zone 0 hazardous locations
- Works with intrinsic safety barriers (Drawing 141092)
- Compatible with nonincendive circuits (Drawing 140979)
Expert FAQs
Q: Difference between armored vs standard probes?
A: Armored version adds stainless steel braiding for impact/crush protection
Q: Can this monitor thrust position?
A: Yes – linear range covers typical thrust applications
Q: Humidity tolerance?
A: <3% ASF change at 93% humidity for 56 days
Q: Pressure testing available?
A: Custom testing through our design department only
Shipping & Support
- Unit weight: 0.48kg (with 0.5m cable)
- Packaging: Industrial protective casing
- Warranty: 12 months manufacturing defects
- Global delivery: FedEx/UPS/DHL (2-5 business days)
