Description

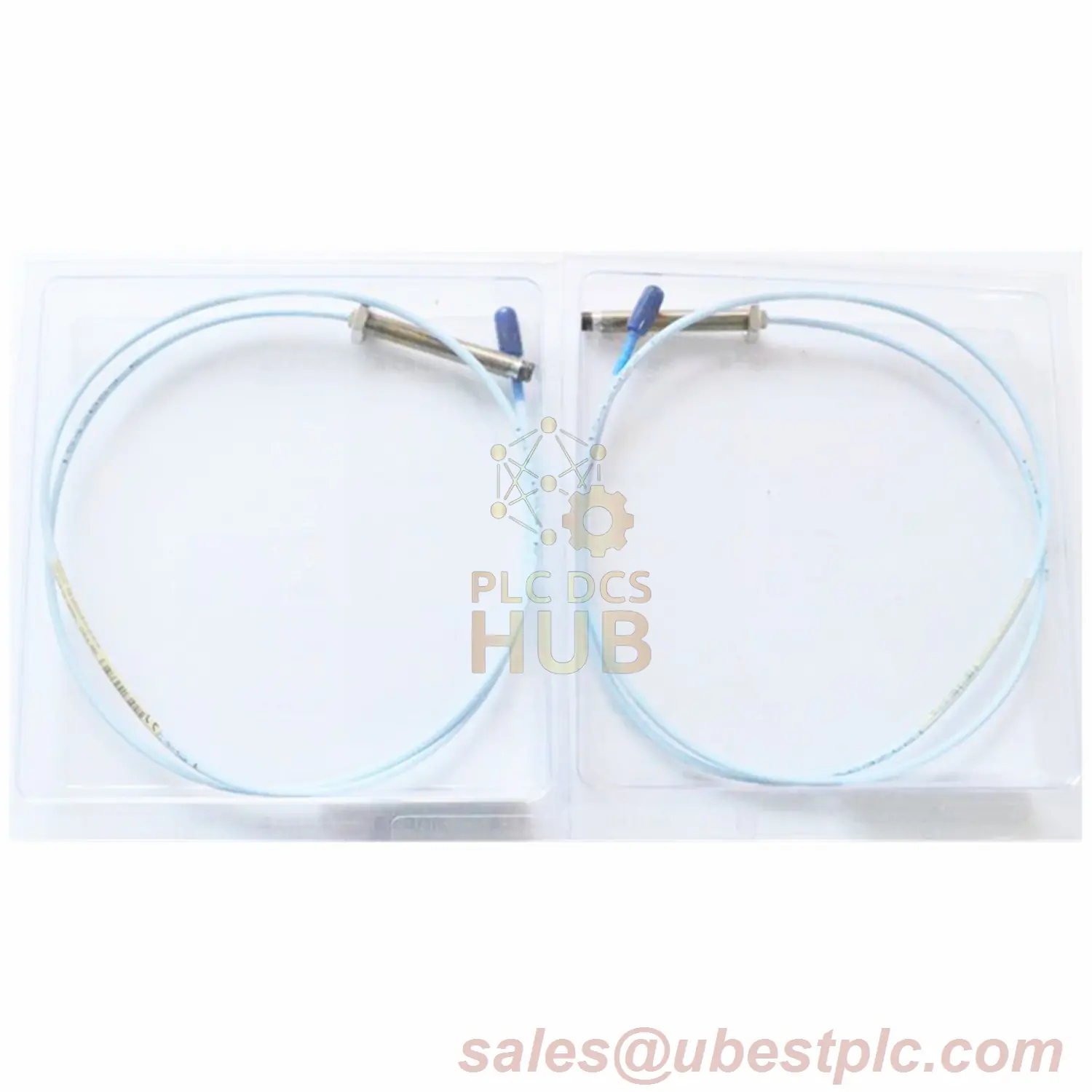

Bently Nevada Armored Sentinel: 330104-00-07-10-02-05
Industrial-Grade Protected Proximity Sensing
????️ Armor Advantage
Heavy-duty armored casing protects against:
• Physical impacts in mining/conveyor systems
• Cable abrasion in rotating equipment
• Chemical corrosion in processing plants
⚙️ Configuration DNA
| Code Segment | Meaning | Value |
|---|---|---|
| 330104 | Armored 8mm Probe | M10x1 thread |
| 00 | Unthreaded Length | 0mm |
| 07 | Case Length | 70mm |
| 10 | Cable Length | 1.0 meter |
| 02 | Connector | ClickLoc coaxial |
| 05 | Certifications | ATEX/IECEx/CSA |
???? Precision Technical Specifications
Electrical Performance
• Resistance: 7.59Ω ±0.5Ω
• Linear Range: 0.25-2.3mm
• Optimal Gap: 1.27mm/-9V DC
• Signal Stability: ±0.5%
Mechanical Strength
• Armor Thickness: 1.2mm SST
• Impact Resistance: 50J
• Vibration Tolerance: 20g @ 2kHz
• Cable Pull Strength: 150N
Installation Mastery
Mounting
• Torque: 7-9 Nm
• Anti-seize compound required
• Max thread engagement: 15mm
Wiring
• 1.0m factory cable
• Extend with shielded triad
• Max run: 305 meters
Critical Performance Notes
- Armor adds 15% mass vs non-armored models
- Maintain gap setting at -9V DC ±0.5V
- Test resistance quarterly: 7.59Ω ±0.5Ω
- Replace if drift exceeds ±1.0Ω
Technical FAQ
Q: Armor vs standard probe difference?
A: 1.2mm stainless steel overlay + reinforced cable entry. 50% higher impact resistance.
Q: Minimum bend radius for armored cable?
A: 50mm during installation. 30mm permanent.
Q: ATEX certification details?
A: Zone 0/1/2 compliant. Groups IIC T1-T5. Drawing 141092 compliance.
Q: High-temperature limitations?
A: Standard: 177°C. Extended tip: 218°C. Cable: 260°C.
???? Global Delivery
FedEx/UPS/DHL express. Ships with:
• Armored probe assembly
• ClickLoc connector
12-month performance warranty
