Product Overview

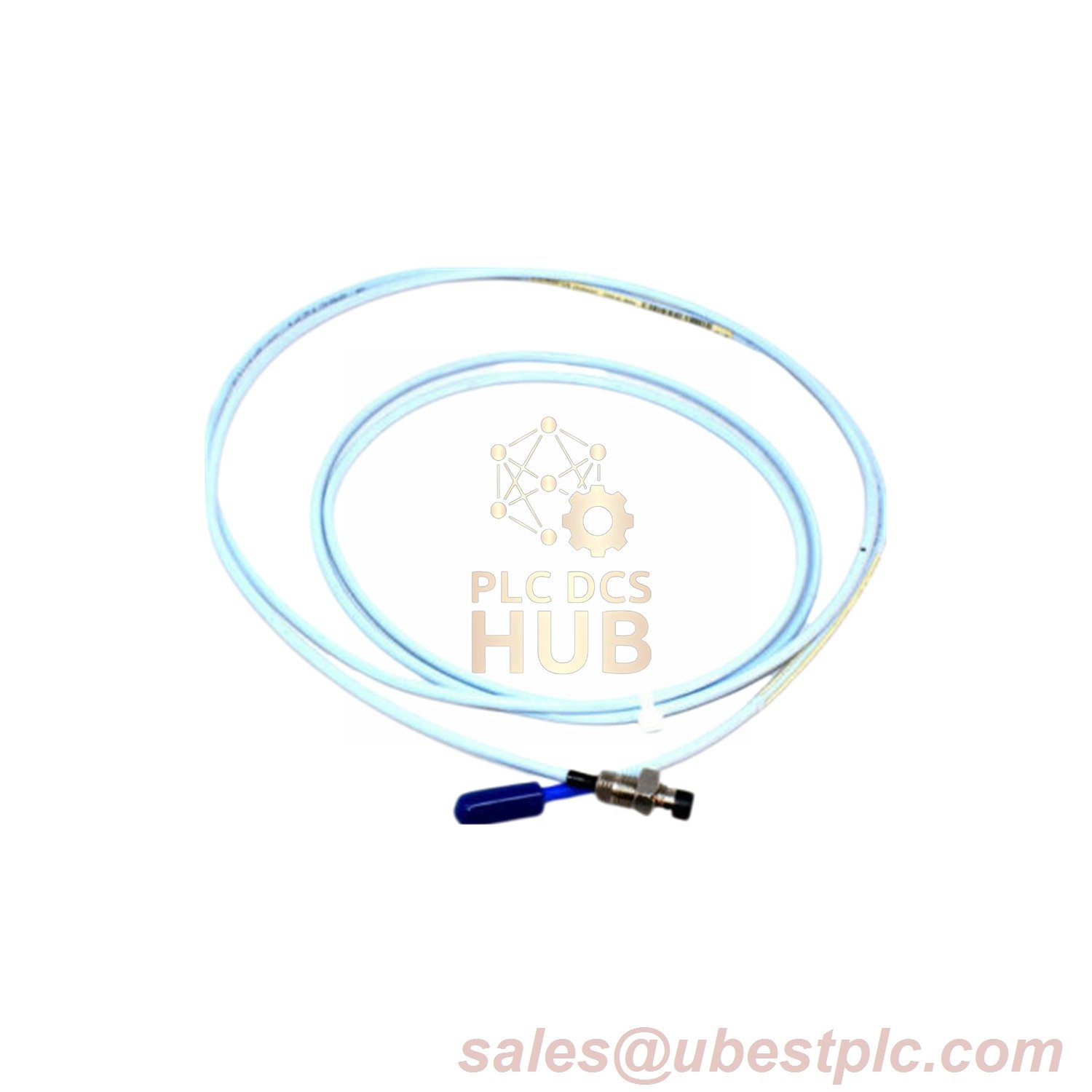

The Bently Nevada 330103-08-13-10-02-05 is an 8 mm proximity probe designed for industrial vibration monitoring in hazardous and high-temperature environments. Certified for CSA, ATEX, and IECEx, it combines robust construction with precision sensing for critical machinery protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-08-13-10-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe (Unarmored) |
| Unthreaded Length | 80 mm |
| Case Length | 130 mm |
| Cable Length | 1.0 m (3.3 ft) with standard cable |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Agency Approvals | CSA, ATEX, IECEx (Class I/II/III, Zones 0/2) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| DC Resistance (RPROBE) | 7.59 ± 0.50 Ω (center to outer conductor, 1.0 m cable) |
| Linear Range | 0.25 mm to 2.3 mm (10–90 mils), output: -1 to -17 Vdc |
| Optimal Gap Setting | 1.27 mm (50 mils) at -9 Vdc for radial vibration |
| Thread Specifications | M10 x 1 (max engagement: 15 mm) |
| Weight | 323 g/m (11.4 oz/ft) |
| Operating Temperature | Standard: -52°C to +177°C Extended: Tip: -52°C to +218°C; Cable: -51°C to +260°C |
| Humidity Resistance | <3% ASF change after 56 days at 93% RH (IEC 68-2-3) |
| Field Wiring | 3-conductor shielded triad cable (max length: 305 m/1,000 ft) |
