Pulse Interface – 4-20mA Analog Output MTL4532 | Large Stock

Description

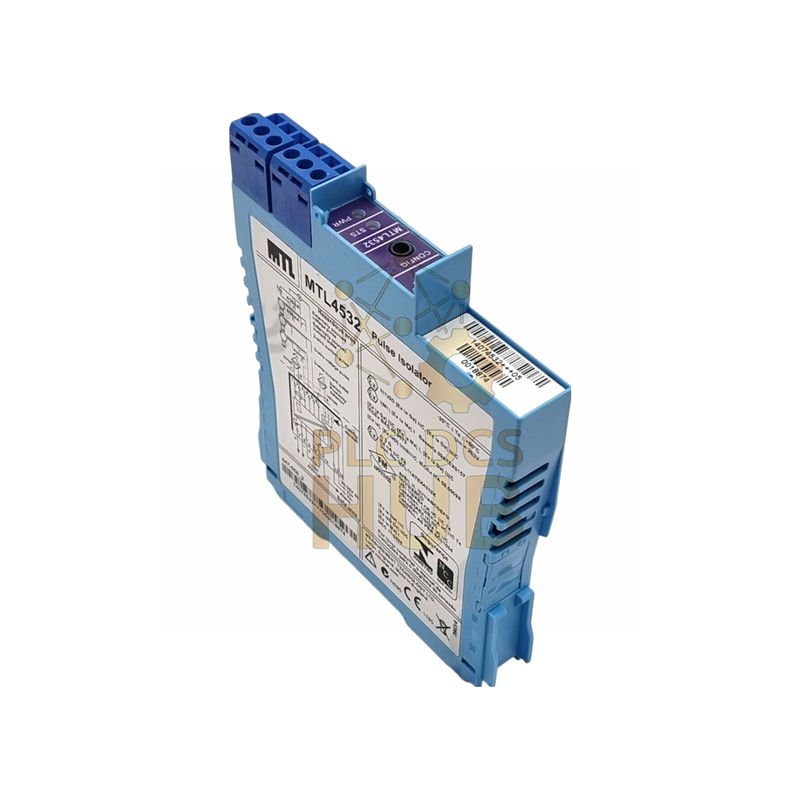

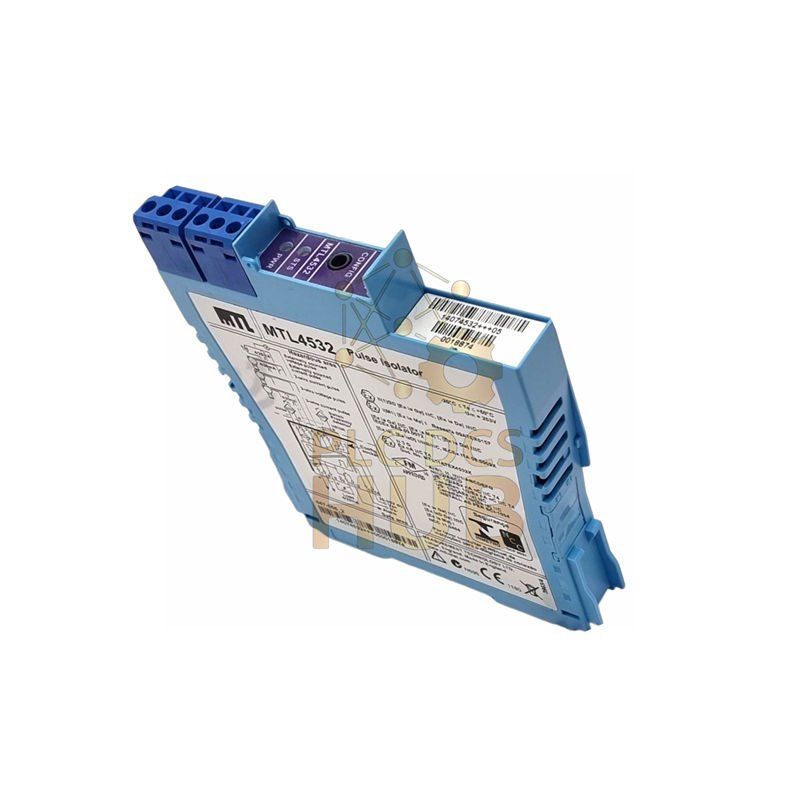

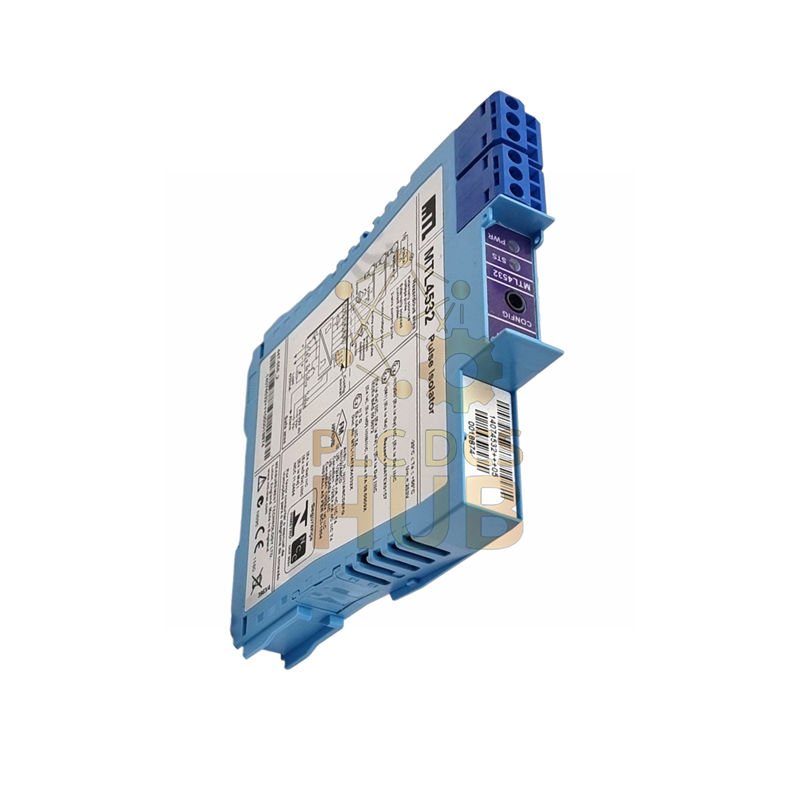

MTL4532: Advanced Pulse Interface with Analog Output

The MTL4532 safely transfers pulse signals from hazardous areas while providing both digital pulses and a proportional 4-20mA analog output. This versatile interface supports high-speed operation up to 50kHz and includes configurable alarm relay outputs for complete process monitoring.

Technical Specifications

• Brand: MTL
• Model: MTL4532
• Channels: 1 (fully floating)
• Pulse Frequency: 0-50kHz (digital), 0-10kHz (analog)
• Analog Output: 4-20mA proportional to frequency
• Output Accuracy: Better than 20μA
• Response Time: 60ms (10%-90% step change)
• Relay Contact: 0.5A @ 35V DC maximum
• Power Supply: 20-35V DC
• Current Consumption: 65mA @ 24V DC
• Voltage Settings: 3V, 6V, or 12V (user-selectable)
• LED Indicators: Power (Green), Output (Yellow), Fault (Red)
• Configuration: PC software configurable

Frequently Asked Questions

• Q1: What makes the MTL4532 different from basic pulse interfaces?
  A1: It provides both pulse repetition and a proportional 4-20mA output plus configurable alarm relays.
• Q2: How do I configure the MTL4532 settings?
  A2: It uses PC software (MTL PCS45) with a USB interface for easy configuration.
• Q3: What types of inputs does it accept?
  A3: It works with switches, NAMUR proximity sensors, and 2- or 3-wire voltage/current transmitters.
• Q4: What is the maximum frequency for the analog output?
  A4: The 4-20mA analog output supports frequencies up to 10kHz.
• Q5: What do the different LED colors indicate?
  A5: Green = power, Yellow = output active, Red = fault condition (flashing).

Safety Certification

Approved for Zone 0, IIC, T4-T6 and Division 1, Group A hazardous locations.

Package Contents

One MTL4532 Advanced Pulse Interface module.

Warranty

Your purchase is protected by a 12-month warranty.
