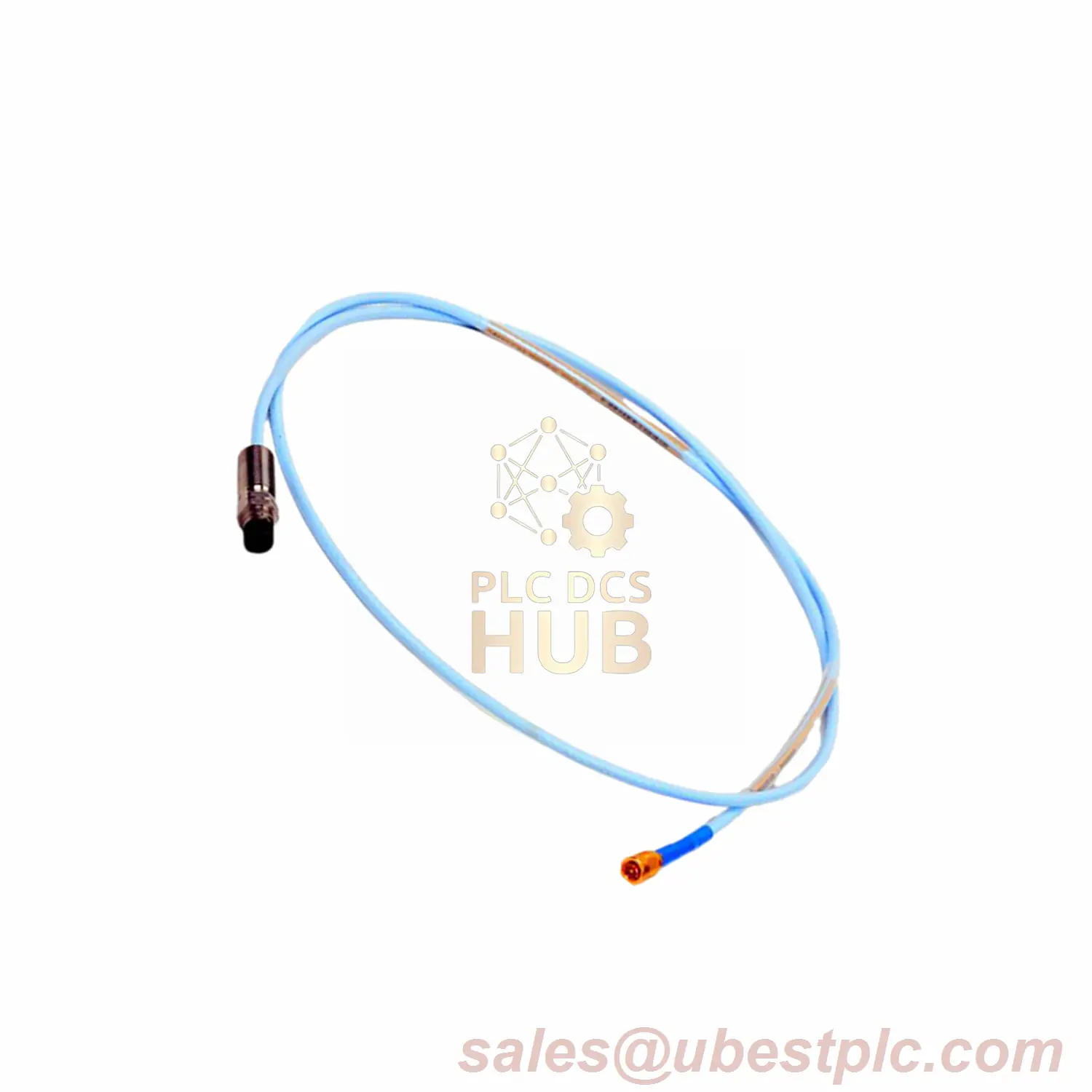

Reverse Mount Probe Bently Nevada – 330106-05-30-90-02-05

Description

Bently Nevada 330106-05-30-90-02-05 – Long-Reach Vibration Sensor

Full Model Identification

• Base Platform: 3300 XL 8mm Reverse Mount
• Mount Code: -05 (Reverse orientation)
• Length Variant: -90 (9.0 meter cable)
• Connection System: -02 (ClickLoc connector)
• Certification: -05 (CSA/ATEX/IECEx)

Performance Specifications

• Electrical Characteristics
  • DC Resistance: 9.87Ω ±0.5
  • Cable Type: 75Ω triaxial
  • Insulation: FEP material
  • Signal Integrity: Maintained over 9m length
• Environmental Resilience
  • Temp Range: -52°C to +177°C
  • Humidity Tolerance: <3% ASF change at 93% RH
  • Seal Material: Viton O-ring
• Mechanical Properties
  • Case Material: Stainless steel (AISI 303/304)
  • Probe Tip: PPS thermoplastic
  • Thread: M10x1 metric
  • Max Engagement: 15mm
  • Tensile Strength: 330N
  • Cable Weight: 323 g/m

Installation Features

• Max thread engagement: 15mm
• Seal type: Viton O-ring
• Cable strain relief: 330N rating
• Gold-plated connectors for reliable signal

Certifications

• ATEX approved for Zone 1/2
• IECEx certified
• CSA compliant
• Hazardous location rated

Shipping & Warranty

• 12-month manufacturer warranty
• Global delivery: FedEx, UPS, DHL
• Tracking information provided
• Hazardous material certified shipping
