Product Description

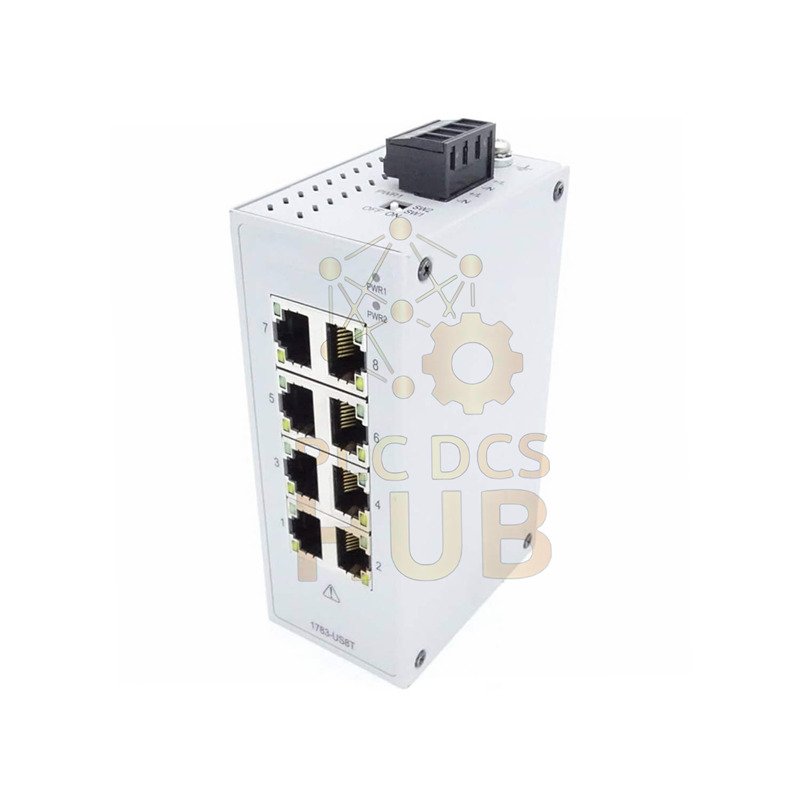

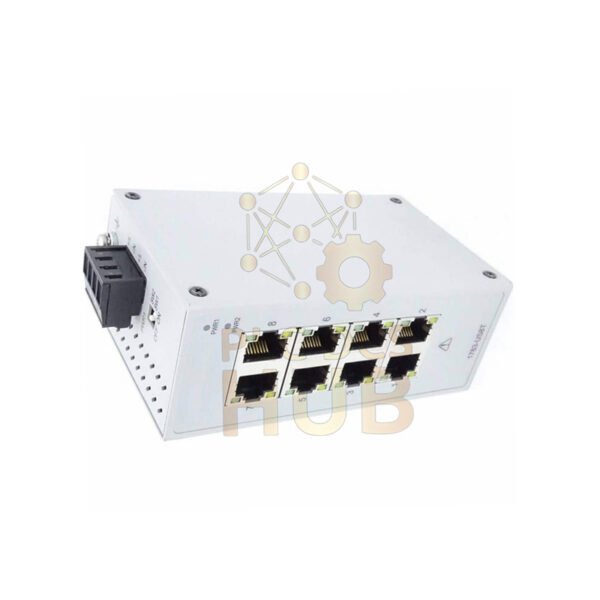

The Allen-Bradley 1783-US8T is a compact unmanaged Ethernet switch.
It belongs to the Stratix industrial networking series.
It delivers stable data flow for control and monitoring systems.
The design fits harsh industrial environments.
Installation is simple and fast. This switch supports real-time communication.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: 1783-US8T
- Product Type: Unmanaged industrial Ethernet switch
- Total Ports: 8 Ethernet ports
- Port Type: RJ45 Fast Ethernet
- SFP Slots: None
- Data Rate: 10/100 Mbps auto-negotiation
- Power Input: 12…48 V DC or 18…30 V AC
- Nominal Current: 250 mA DC / 500 mA AC
- Maximum Current: 510 mA DC / 1100 mA AC
- Inrush Current: 1.31 A maximum
- Power Consumption: 4.6 W maximum
- Electrical Safety: SELV compliant
- Operating Temperature: Industrial-grade range
- EMC Immunity: High resistance to electrical noise
- Environmental Tolerance: Suitable for factory floors
Installation Guide
- Mount on DIN rail or flat surface
- Connect power before Ethernet cables
- Use shielded cables in noisy areas
- Ensure proper grounding
Commissioning and Maintenance
- No configuration software required
- Plug-and-play operation
- Status LEDs support quick checks
- Minimal maintenance effort
Compatibility
- Compatible with Allen-Bradley PLC networks
- Supports standard Ethernet devices
- Works with HMI, drives, and I/O modules
Diagnostics Capability
- Port status LED indication
- Link and activity monitoring
- Fast fault location on site
Certifications and Compliance
- Industrial Ethernet compliance
- SELV power design
- Meets global industrial standards
Packaging and Warranty
- 1 × 1783-US8T Ethernet switch
- Standard factory packaging
- Warranty: 12 months
Shipping Methods
- FedEx international express
- UPS worldwide shipping
- DHL fast delivery
Typical Applications
- Industrial automation networks
- Machine control panels
- Manufacturing production lines
- Process monitoring systems
FAQ
- Is configuration required?
- No configuration is needed. The switch works immediately.
- Can it handle factory noise?
- Yes. It offers strong resistance to electrical interference.
- Is it suitable for small systems?
- Yes. It is ideal for compact automation cells.
- What should I check during selection?
- Confirm port count, voltage range, and environment.
- Does it support long-term operation?
- Yes. It is designed for continuous industrial use.
