Product Description

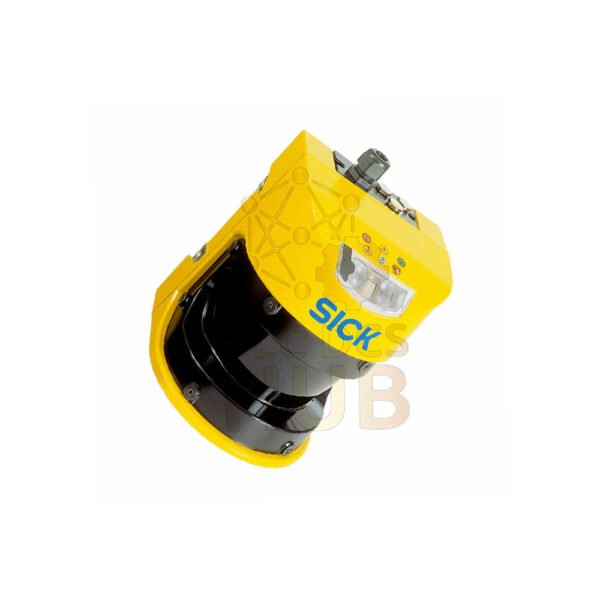

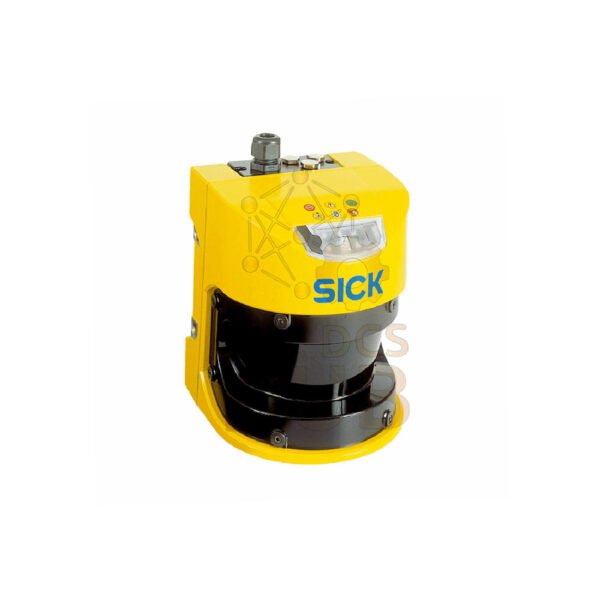

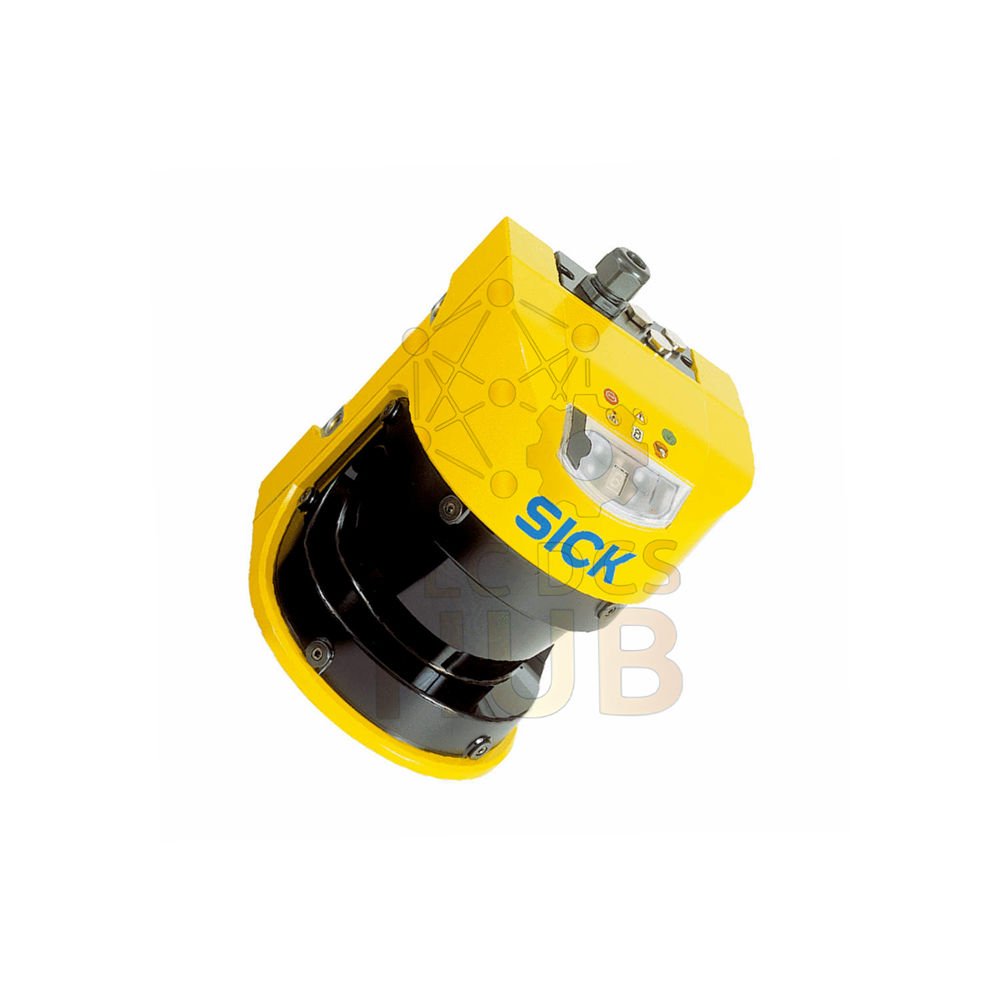

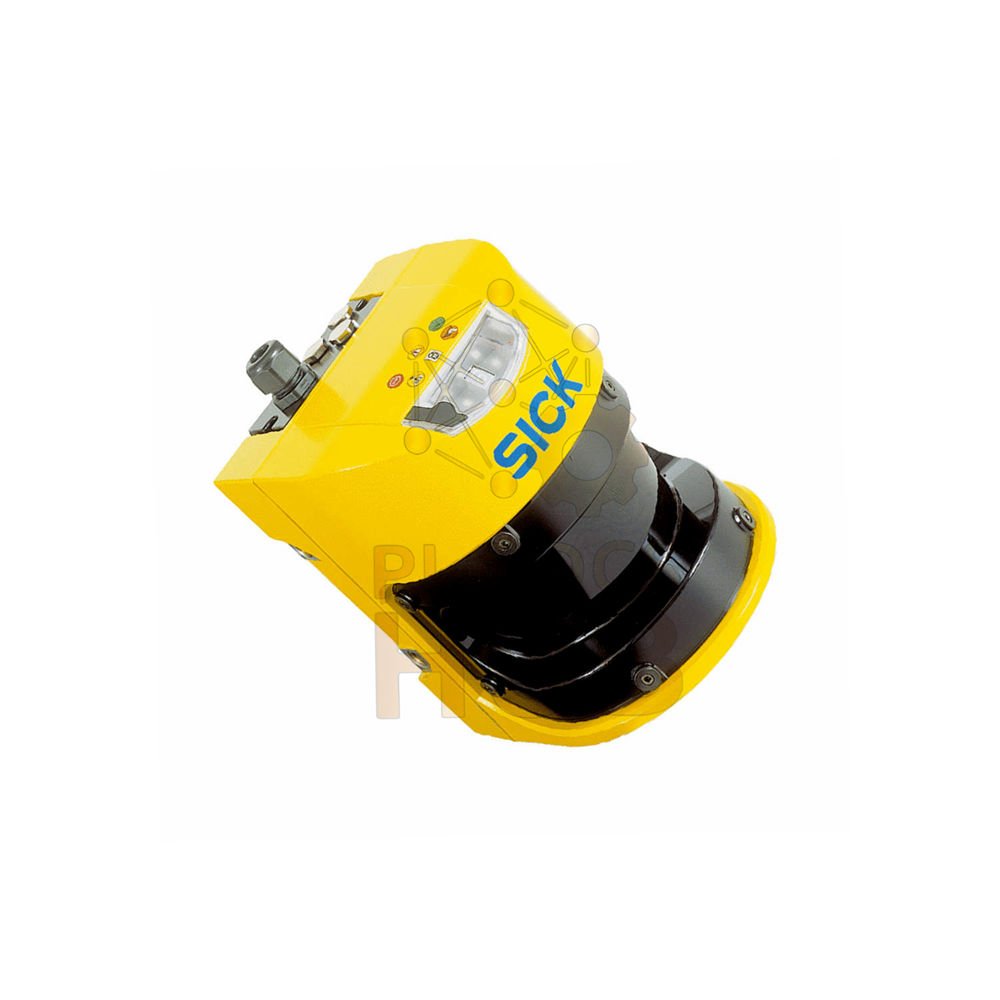

The SICK S30B-2011CA is an S300 Advanced safety laser scanner. It protects personnel near industrial machinery. The scanner covers a 270 degree scanning angle for wide coverage. Protective field range is 2 meters. Warning field extends to 8 meters. This device meets Type 3 (IEC 61496) and PL d (EN ISO 13849) safety standards. Each unit ships with a 12-month warranty.
Model & Part Information
- Brand: SICK
- Model: S30B-2011CA
- Series: S300 Advanced
- Product version: S300 Advanced
- Model type: Sensor without system plug
- Application: Indoor use
Safety Ratings & Certifications
- Type: Type 3 (IEC 61496)
- SIL: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10⁻⁸ (mean probability of dangerous failure per hour)
- Mission time (TM): 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD turns OFF
Scanning & Field Data
- Protective field range: 2 meters
- Warning field range: 8 meters (at 15% reflectivity)
- Distance measuring range: 30 meters
- Scanning angle: 270°
- Angular resolution: 0.5°
- Resolution (configurable): 30, 40, 50, or 70 mm
- Response time: 80 ms
- Protective field supplement: 100 mm
Field Configuration
- Type of field set: Triple field sets
- Number of field sets: 4
- Number of fields: 12
- Number of monitoring cases: 4
- Multiple samplings: 2 to 16 (configurable)
- Automatic reset delay: 2 to 60 seconds (configurable)
Electrical Specifications
- Supply voltage: 24 V DC (range 16.8 to 30 V DC)
- Protection class: II (EN 50178, EN 60950)
- Power consumption: 0.33 A typical, 1.7 A max
- OSSD outputs: 2 x 250 mA each
- Application diagnostic outputs: 3 x 100 mA each
Inputs & Outputs
- Universal I/Os: 5
- External device monitoring (EDM): 1 input
- Reset/restart: 1 input
- Static control inputs: 2
- Static control inputs with EFI: 5
- Standby: 1 input
- OSSD pairs: 1 output pair
- Application diagnostic outputs: 3
Interfaces & Communication
- Configuration method: PC with CDS software
- Configuration interface: RS-232 at 38.4 kBaud
- Data interface: RS-422 up to 500 kBaud
- EFI (Safe SICK device communication): Up to 500 kBaud
- Max cable length: 50 meters
- Conductor cross section: 0.22 mm²
Mechanical Specifications
- Dimensions (W x H x D): 102 x 152 x 106 mm
- Weight: 1.2 kg
- Housing material: Aluminum die cast
- Housing color: RAL 1021 (yellow)
- Optics cover: Polycarbonate with scratch-resistant coating
- Connection type: System plug (M12 5-pin, not included)
Environmental Ratings
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Vibration resistance: Class 5M1 (IEC 60721-3-5)
- Shock resistance: Class 5M1 (IEC 60721-3-5)
- Continuous shock: 50 m/s² at 11 ms, 100 m/s² at 16 ms
Laser & Optics
- Light type: Pulsed laser diode
- Wavelength: 905 nm
- Laser class: 1 (eye safe)
- Detectable remission: 1.8% to >1000% (reflectors)
Installation Guide
- Mount on stable surface near hazardous zone
- Order and connect M12 5-pin system plug separately
- Supply 24V DC power (16.8 to 30V range)
- Configure fields using SICK CDS software on PC
- Connect RS-232 for initial setup and diagnostics
- Test all safety functions before operation
Typical Applications
- Machine guarding for smaller robots and work cells
- AGV safety for vehicles in tight spaces
- Packaging machine access protection
- Stationary hazardous area monitoring (2m zone)
- Mobile platform collision avoidance
Warranty & Shipping
- Warranty: 12 months from shipment date
- Condition: New & original factory packing
- FedEx – Priority shipping available
- UPS – Express worldwide
- DHL – International freight
Package Contents
- 1 x S30B-2011CA safety laser scanner
- System plug not included (order separately)
- No mounting bracket included
- No cable included
- CDS software available free from SICK website
Professional FAQ
- What is the difference between S30B-2011CA and S30B-3011CA? Protective field range is different. S30B-2011CA has 2m protective field. S30B-3011CA has 3m protective field. Choose based on your stopping distance.
- Can I use this scanner with a 3m protective field instead of 2m? No. The hardware limits protective field to 2m maximum. For 3m range, order S30B-3011CA model.
- What does protection class II mean for power supply? Protection class II means double insulation. No ground connection needed. Use a Class II power supply or isolate the 24V DC source properly.
- Why is resolution limited to 70mm maximum on this model? S30B-2011CA does not support 150mm resolution like some other S300 models. Maximum configurable resolution is 70mm for this version.
- How do I know if 2m protective field is enough for my machine? Calculate stopping distance plus safety margin. Add 100mm supplement automatically. If total stopping distance exceeds 2m, you need S30B-3011CA (3m).
Buying Guide – Selection Advice
- Need 2m protective field? This is the correct model
- Need 3m protective field? Order S30B-3011CA instead
- Warning field up to 8m at 15% reflectivity
- 270° scanning angle covers most machine access points
- Order M12 5-pin system plug separately (not included)
- Use SICK CDS software for configuration (free download)
- Add mounting bracket for easy installation
- Keep spare scanner for critical safety applications
- Operating temperature range: -10°C to +50°C only
- Verify resolution needs: 30mm to 70mm configurable
