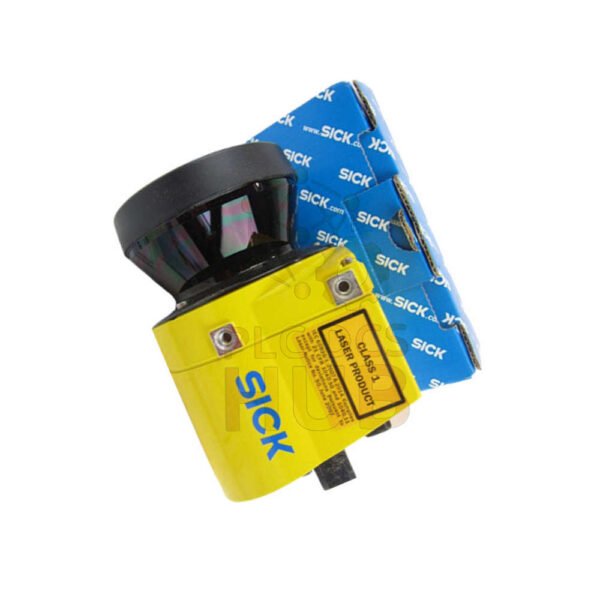

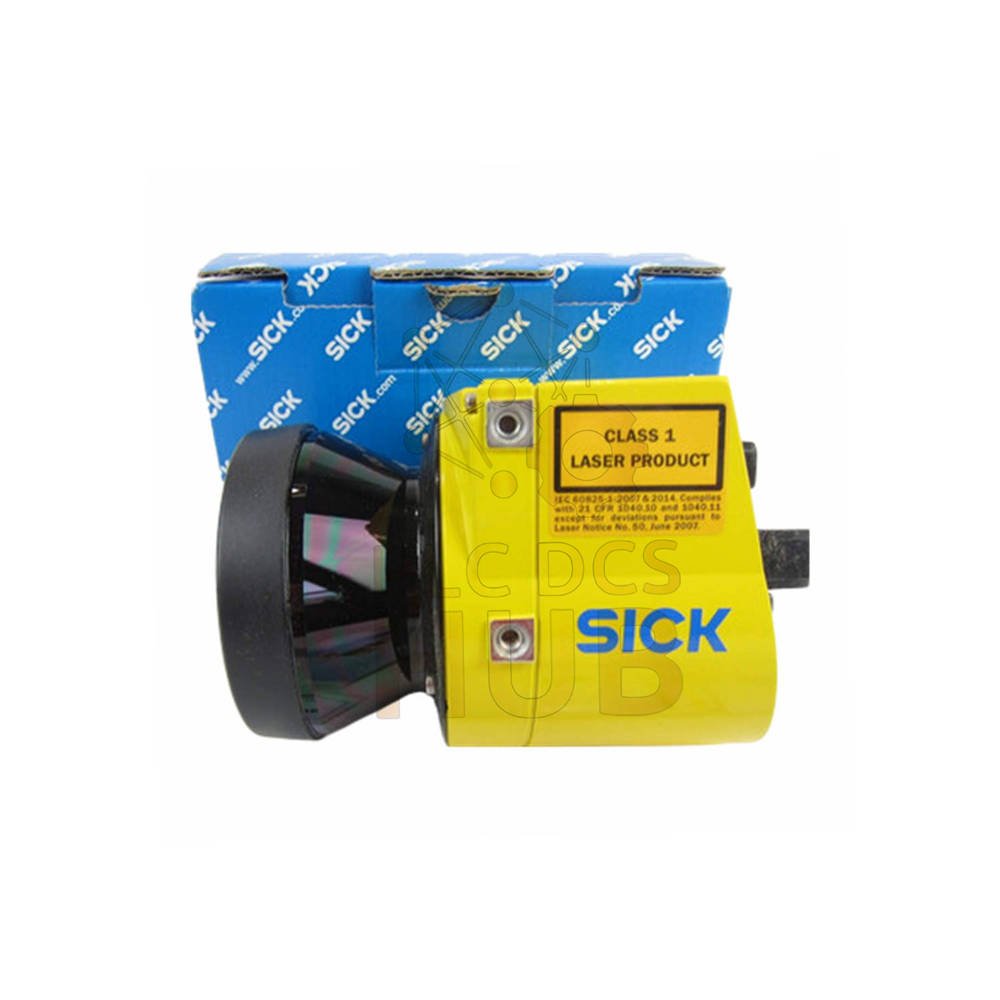

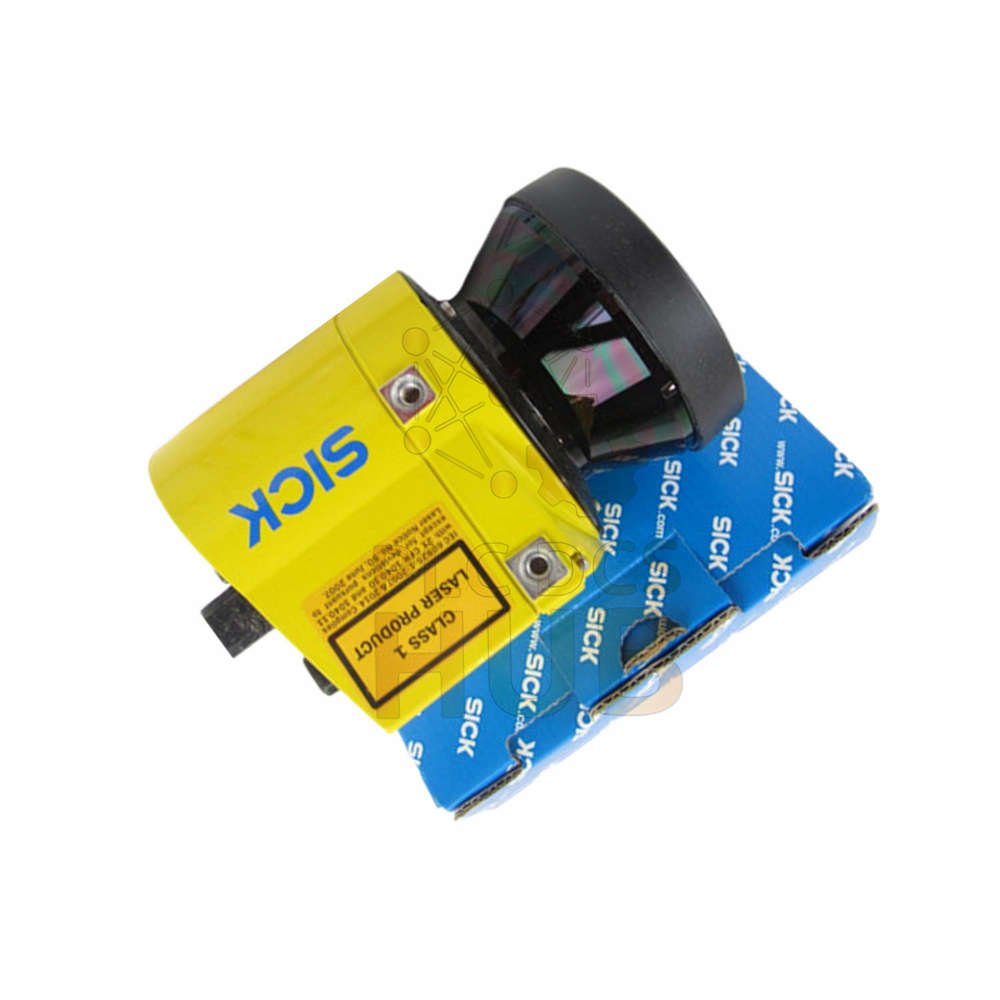

SICK S30B-2011BA | S300 Standard Laser Scanner S30B-2011BA Safety

Description

Product Overview

• SICK S30B-2011BA belongs to the S300 Standard safety laser scanner family.
• It is designed for indoor use to protect people and equipment.
• This model comes without a system plug (sold separately).
• It uses a M12 5-pin male connector for electrical connection.
• The maximum measuring distance reaches 30 meters.

Core Safety Ratings

• Type: Type 3 (IEC 61496)
• SIL: SIL 2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance Level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸ (probability of dangerous failure per hour)
• Mission Time (TM): 20 years (EN ISO 13849)
• Safe State on Fault: At least one OSSD output turns OFF.

Detailed Technical Specifications

• Brand: SICK
• Model: S30B-2011BA
• Product Version: S300 Standard
• Application: Indoor
• Protective Field Range: 2 meters
• Warning Field Range: 8 meters (at 15% reflectivity)
• Distance Measuring Range: 30 meters
• Scanning Angle: 270°
• Configurable Resolution: 30, 40, 50, 70 mm
• Angular Resolution: 0.5°
• Response Time: 80 ms
• Protective Field Supplement: 100 mm
• Multiple Sampling Count: 2 to 16 (configurable)
• Auto Reset Delay: 2 to 60 seconds (configurable)
• Enclosure Rating (IP): IP65 (EN 60529)
• Operating Temperature: –10°C to +50°C
• Supply Voltage (Vs): 24 V DC (16.8 V to 30 V)
• Power Consumption: 0.33 A (typical), 1.7 A (max)
• OSSD Outputs: 2 x 250 mA
• Application Diagnostic Outputs: 3 x 100 mA
• Housing Material: Aluminum die cast
• Housing Color: RAL 1021 (yellow)
• Optics Cover Material: Polycarbonate (scratch-resistant coating)
• Dimensions (W x H x D): 102 mm x 152 mm x 106 mm
• Weight: 1.2 kg

Model Suffix Breakdown (Tree Structure)

• S30B-2011BA : Complete model code
  • S30B : Product series (S300 Standard)
    • 2 : 2m protective field
    • 0 : Standard warning field
    • 1 : 1 monitoring case
    • 1 : 1 field set
    • B : Indoor application, without system plug
    • A : M12 5-pin male connector

Interfaces & Connections

• Connection Type: System plug (with or without cable)
• Universal I/Os: 5 units
• EDM Input: 1 unit
• Reset/Restart Input: 1 unit
• Standby Input: 1 unit
• OSSD Pairs: 1 pair (2 outputs)
• Application Diagnostic Outputs: 3 units
• Configuration Interface: RS-232 (38.4 kBaud)
• Data Interface: RS-422 (≤ 500 kBaud)
• EFI (Safe SICK Device Communication): Supported (≤ 500 kBaud, cable ≤ 50m)
• Configuration Software: CDS (Configuration and Diagnostic Software)

Key Functions

• ✔ Restart interlock
• ✔ External device monitoring (EDM)
• ✔ Multiple sampling
• ✔ Contour as a reference
• ✔ Integrated configuration memory
• ✔ Measured data output via RS-422
• ✔ Safe SICK device communication via EFI

Installation, Setup & Maintenance

• Installation Guide: Keep the scan plane free of obstacles. Mount horizontally or vertically. Compatible with Versamax controllers.
• Setup Ease: Use CDS software via RS-232 for fast configuration. Set 2-16 multiple sampling to reduce false trips.
• Maintenance: Clean the optics cover regularly. Use a soft cloth to avoid scratching the coating.
• Environmental Tolerance:
  • Vibration: Meets IEC 60068-2-6, Class 5M1
  • Shock: 50 m/s² (11ms) or 100 m/s² (16ms)
  • Laser Class: Class 1 (eye-safe, 905nm)

Certifications & Compliance

• IEC 61496 (Type 3)
• IEC 61508 (SIL 2)
• EN ISO 13849 (Category 3, PL d)
• IEC 60825-1 (Laser Class 1)
• EN 60529 (IP65)

Package Contents & After-Sales

• Package Includes: 1 x S30B-2011BA scanner (without system plug), quick guide.
• Warranty Terms: 12 months factory warranty from delivery date.
• Shipping Methods: FedEx, UPS, DHL for global delivery.

Professional FAQ (5 Questions)

• What is the protective distance of S30B-2011BA? The protective field is 2 meters. The warning field is 8 meters (at 15% reflectivity). Measuring distance reaches 30 meters.
• Does this scanner come with a system plug? No. S30B-2011BA is the “without system plug” version. You need to buy a system plug separately.
• How do I configure this device? Use CDS software via the RS-232 interface to connect to a computer.
• Experience tip: How to choose resolution? Use 30mm for body part protection (e.g., finger detection). Use 50mm or 70mm for body detection to reduce nuisance trips.
• Buying guide: Do I need EFI function? Yes if you need to connect multiple SICK safety devices (e.g., safety PLC). No if you use it alone.
