Schneider 170ADO35000 | 32 Output Module Modicon Momentum

Description

What Is This Module?

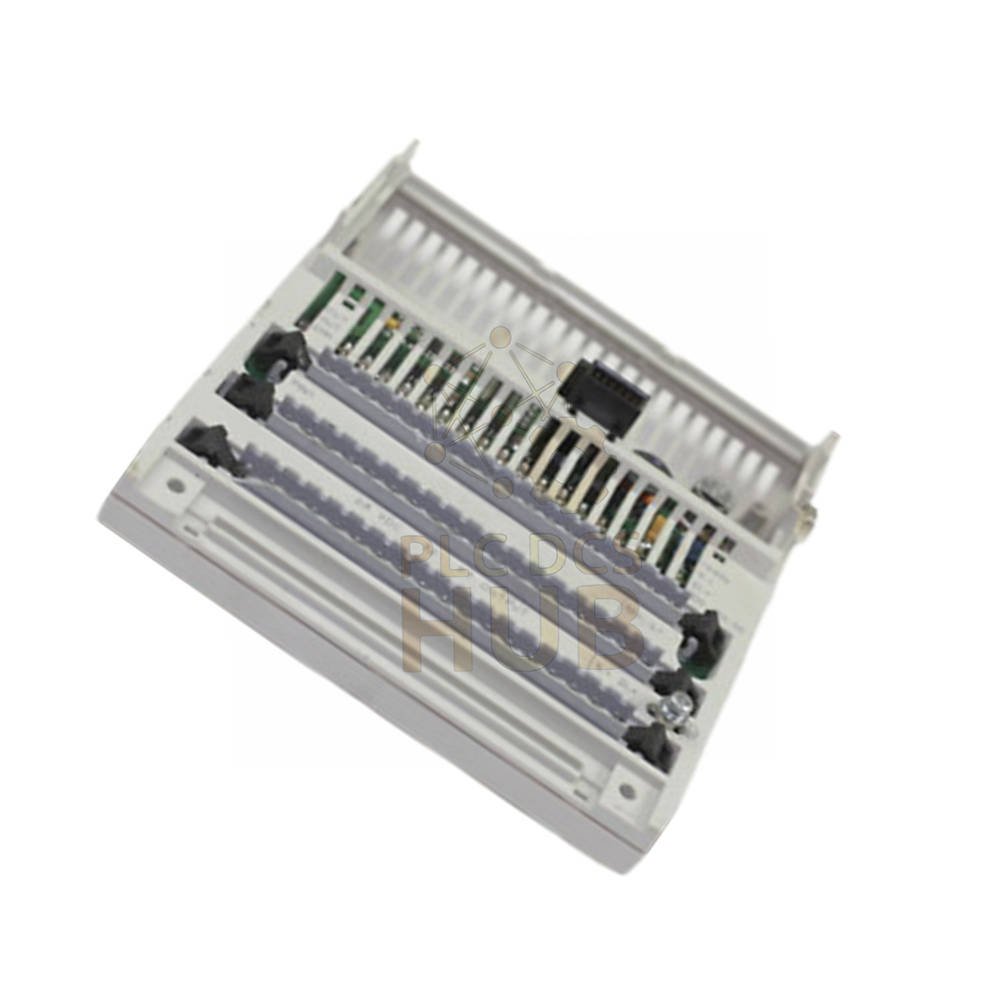

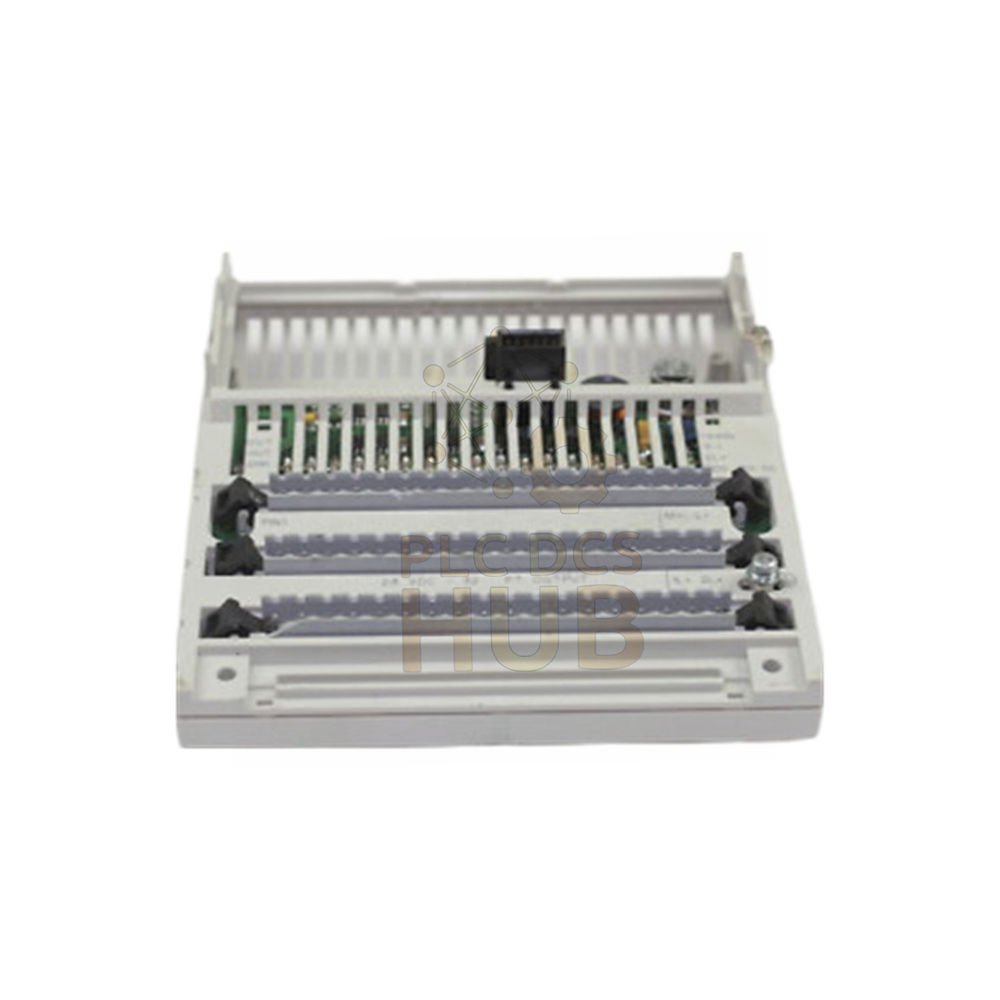

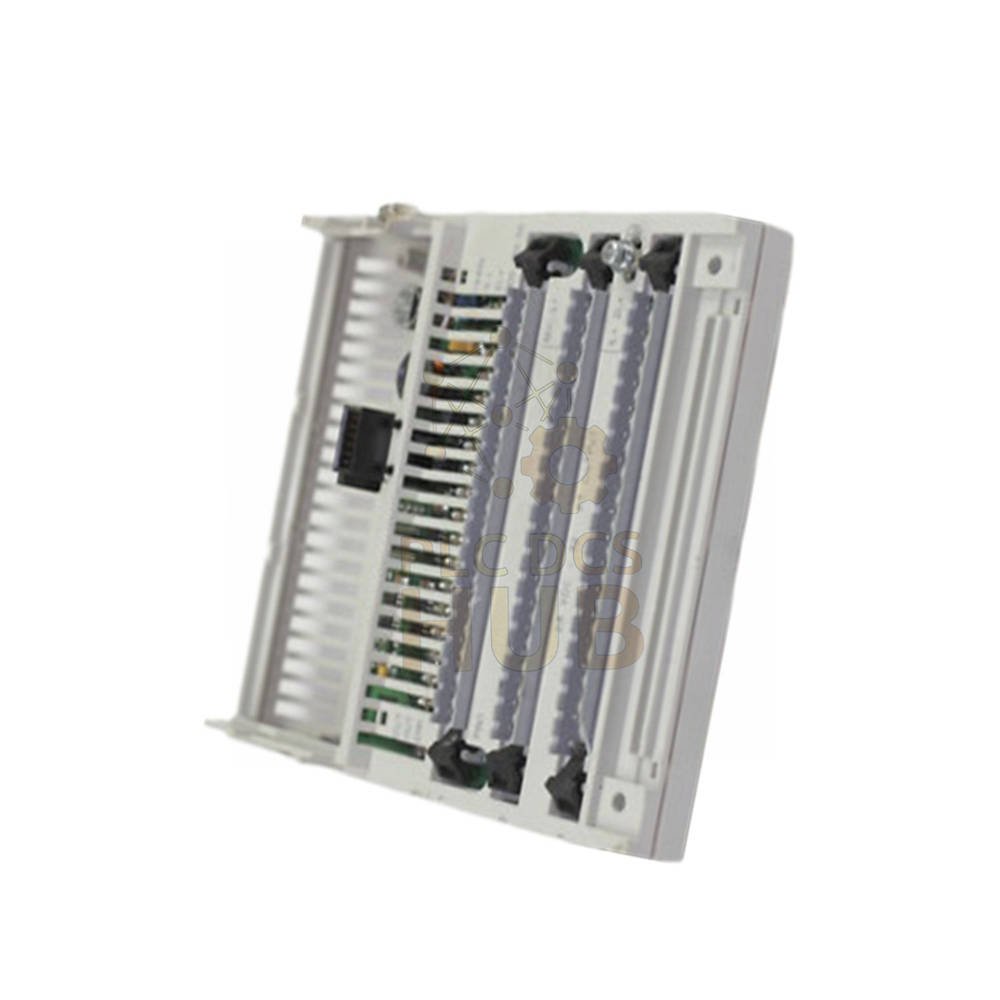

The Schneider Electric 170ADO35000 is a discrete output module from the Modicon Momentum series. It sends on/off signals to devices like lights, relays, or small valves. This module has 32 solid-state outputs. It works fast and lasts long because it has no moving parts.

Why Use This Output Module?

• High density – 32 outputs in one slim block
• Tough against electrical noise – 10 V/m radiated immunity
• Safe for people and machines – 4 kV insulation voltage
• Easy to find and replace – part of the popular Modicon Momentum family
• Works worldwide – CE and RoHS compliant

Technical Data (Tree View)

• Basic Info
  • Brand: Schneider Electric
  • Model: 170ADO35000
  • Series: Modicon Momentum
  • Type: Discrete output module
  • UPC: 785901308003
• Output Specs
  • Number of outputs: 32
  • Type: Solid state (no relay clicks)
  • Voltage range: 0 to 24 V DC rated
  • Max frequency: 1 kHz
  • Surge current: 5 A for 1 ms
  • Voltage drop: Less than 0.5 V at 0.5 A
• Protection & Safety
  • Overload: Electronic self-protection
  • Insulation voltage: 4 kV (IEC 801-2)
  • Air discharge: Up to 8 kV (IEC 801-2)
  • Radiated immunity: 10 V/m, 80-1000 MHz
• Environment & Weight
  • Operating temp: 0 to 60°C
  • Storage temp: -40 to 85°C
  • Pollution degree: 2 (clean indoor)
  • Weight: 0.56 lbs (0.26 kg)
• Approvals
  • CSA, UL approved
  • CE, RoHS compliant

Quick Spec Table

• Outputs: 32 solid state
• Voltage: 0-24 V DC
• Surge current: 5 A (1 ms)
• Voltage drop: <0.5 V @ 0.5 A
• Protection: Electronic overload
• Insulation: 4 kV
• Air discharge: 8 kV
• Noise immunity: 10 V/m (80-1000 MHz)
• Work temp: 0 to 60°C
• Storage temp: -40 to 85°C
• Max speed: 1 kHz
• Weight: 0.56 lbs
• Certifications: CSA, UL, CE, RoHS

5 Pro FAQs

• Can this module drive a small motor directly?
  Yes, but only if the motor draws less than 0.5 A continuous. For larger motors, add a relay between output and motor.
• My output stays on even when PLC says off. What to check?
  First, look at wiring for a short. Then test the output with no load. If still stuck on, the solid state switch may have failed from a surge. Replace that output channel.
• Buying guide: 170ADO35000 vs other 32-output modules?
  This one has better electrical noise protection (10 V/m) and higher isolation (4 kV). Choose it for factories with welding machines or VFD drives nearby.
• Experience: I see false triggers on outputs.
  Your cable is too long or near power wires. Keep output wires separate from high voltage AC lines. Use shielded cable if needed.
• Warranty & shipping: what do I get?
  12-month warranty against defects. We ship fast via FedEx, UPS, or DHL with online tracking.

Where to Use This Module

• Factory assembly line stations
• Packaging machine output control
• Light tower or alarm signaling
• Small solenoid valve switching
• PLC training panels

Installation Note

• Use in Pollution Degree 2 areas (indoor, non-condensing)
• Keep ambient temp between 0 and 60°C
• Do not touch outputs during surge (5 A for 1 ms only)
• Check compatibility with Modicon Quantum racks using adapter cables

What’s in the Box

• 1x Schneider 170ADO35000 output module
• No wiring connector (sold separately)
• Quick reference card
