Schneider 170BAM09600 I/O Module | Momentum Analog

Description

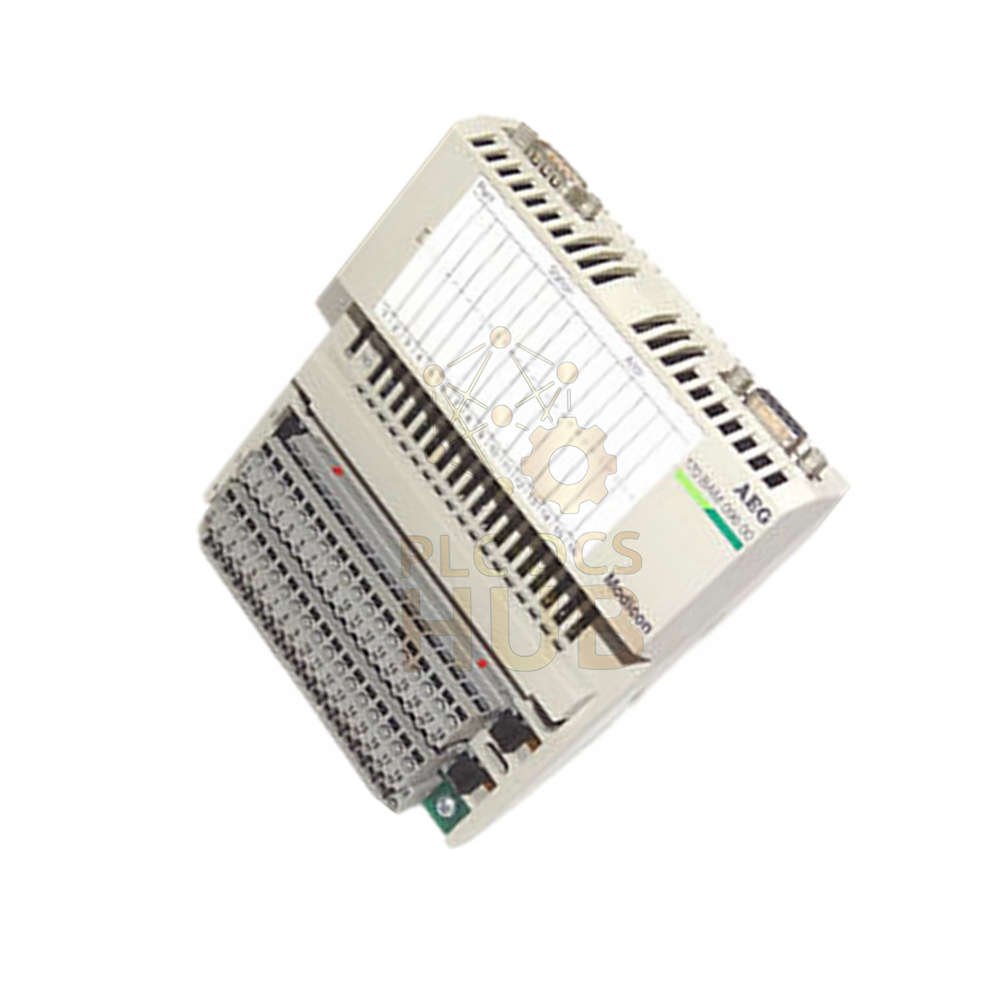

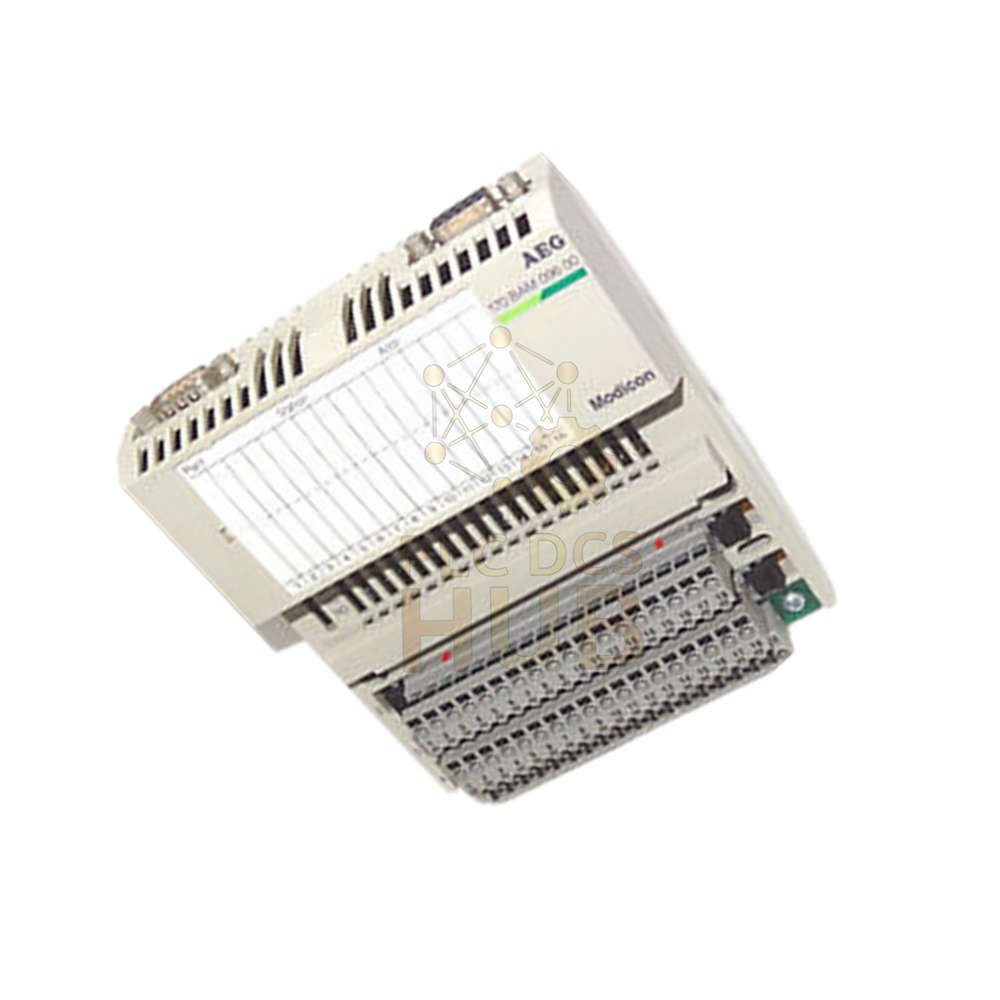

Schneider Electric 170BAM09600 Analog I/O Module – Momentum Series

This Schneider Electric 170BAM09600 module handles analog signals for PLC systems. It belongs to the Modicon Momentum product line. Use it for data interfacing in industrial automation. Notably, the module works with both current and voltage signals, offering great flexibility.

Why Choose This I/O Module

• Versatile signal range: Accepts 4-20 mA and 0-10 V DC.
• Four inputs + two outputs: Perfect for small to medium analog tasks.
• Lightweight design: Weighs only 0.23 kg (0.50 lbs).
• Reliable environment specs: Works from 0 to 40 °C with 80% humidity.
• Easy integration: Simple wiring and compact form factor.

Technical Data (Hierarchical View)

◆ Brand & Series
• Manufacturer: Schneider Electric
• Product Line: Modicon Momentum
• Part Number: 170BAM09600
• Product Type: I/O Module (Analog)

◆ Analog Signal Specifications
• Current Rating: 4 to 20 mA
• Voltage Rating: 0 to 10 V DC
• Number of Inputs: 4 (active channels)
• Number of Outputs: 2 (efficient analog outs)

◆ Environmental & Operating Limits
• Ambient Temp Range: 0 to 40 °C (32 to 104 °F)
• Operating Humidity: Up to 80% RH (non-condensing)
• Storage Humidity: Up to 80% RH (non-condensing)
• Max Operating Altitude: 1000 meters above sea level (no derating)

◆ Physical & Weight
• Net Weight: 0.23 kg (0.50 lbs)
• Compact size – fits standard Momentum racks

Installation & Compatibility Notes

• Mount the 170BAM09600 on a Momentum backplane or adapter.
• For best results, use shielded cables for 4-20 mA loops to avoid noise.
• Keep the module within 0-40°C ambient for full accuracy. Otherwise, performance may degrade.
• Do not install above 1000m altitude without checking derating. Consequently, high-altitude plants need extra review.
• This module works with Schneider PLCs including Modicon Momentum. Furthermore, it supports Modicon Quantum via dedicated adapters.

Typical Applications & Use Cases

• Analog signal monitoring from pressure transmitters (4-20 mA). Similarly, it handles flow and level sensors.
• Controlling valve positioners with 0-10 V output. In addition, it manages damper actuators.
• Temperature measurement using RTD/thermocouple converters. Thus, it suits HVAC and process control.
• Small scale PID control loops in packaging machines. Likewise, it works for basic batch processes.
• Retrofitting old analog I/O points in existing Momentum systems. As a result, you can upgrade without rewiring everything.

Diagnostic Capabilities & Troubleshooting

• Check LED status on module front for power and communication. Meanwhile, the PLC logic can read diagnostic bits.
• Use PLC software to read raw counts – verify 4-20 mA loops. For deeper analysis, compare live values against expected signals.
• Measure voltage across input terminals: 0-10V should match field signal. Conversely, any deviation indicates wiring or sensor issues.
• Common issue: open loop causes under-range (3.8 mA) reading. Therefore, always check field connections first.
• Test outputs by forcing a value from the PLC program. After that, measure at the terminal block to confirm output stage health.

Packaging, Warranty & Shipping

• Package includes: One 170BAM09600 module, user manual, and terminal block (if ordered separately).
• Warranty: 12 months against manufacturing defects from date of purchase.
• Shipping carriers: FedEx, UPS, DHL worldwide tracking. Moreover, express shipping takes only 2-5 business days.
• Modules ship in anti-static packaging to prevent damage. Additionally, each box includes a handling guide.

Selection & Purchasing Guide (Expert Advice)

• Choose the 170BAM09600 when you need 4 analog inputs and 2 outputs. For more outputs, consider the 170AAO12000 instead.
• For high density analog I/O, consider Momentum 170 series with 8 inputs. However, that model lacks built-in outputs.
• Always verify your PLC backplane supports the Momentum I/O module. Otherwise, you may need an adapter from the Quantum lineup.
• Order spare modules for critical lines to avoid downtime. As a rule, keep one spare per 10 active modules.
• Ask for bulk discount if ordering 5+ pieces of 170BAM09600. Usually, larger orders receive better pricing and faster support.

Frequently Asked Questions (Professional & Practical)

• Q: Can the 170BAM09600 accept both current and voltage at same time?
  A: No, each input is configurable per channel. You must choose 4-20mA or 0-10V per point in software. Consequently, mixed signals require careful planning.
• Q: What is the resolution of the analog inputs on this module?
  A: The 170BAM09600 provides 12-bit resolution for both current and voltage signals. Therefore, you get 4096 counts over the full range.
• Q: Does this module work with non-Schneider PLCs?
  A: Only with Modicon Momentum or Modicon Quantum using an adapter. It is not a generic Modbus module. However, you can use a gateway from third-party brands.
• Q: What happens if I apply 24V to a 0-10V input?
  A: That will damage the input circuit. Always double-check signal levels before wiring. For safety, use a signal isolator if uncertain.
• Q: How do I extend the cable length for a 4-20mA sensor?
  A: Keep total loop resistance below 600 ohms for accurate 4-20mA reading with 170BAM09600. Thus, use thicker wire for runs over 300 meters.
• Q: Is the 170BAM09600 suitable for outdoor use?
  A: No, the temperature range is 0 to 40°C. Install inside a climate-controlled cabinet. Otherwise, consider a ruggedized remote I/O solution.
• Q: Do you offer technical support for configuration?
  A: Yes, contact our engineers via WhatsApp for help with Momentum I/O mapping. Additionally, we provide wiring diagrams and sample code on request.

Compliance & Safety Reminder

• Use only within specified current/voltage ranges. Meanwhile, never exceed isolation ratings.
• Disconnect power before removing or installing the module. After installation, verify all connections are tight.
• The module meets RoHS and CE standards for industrial control equipment. As a result, it is compliant for most global markets.

Note: Always verify your Momentum backplane part number before ordering the 170BAM09600. Some older racks require a specific adapter. For example, the 170XTS00200 is often needed for Quantum compatibility.
