Description
Product Overview

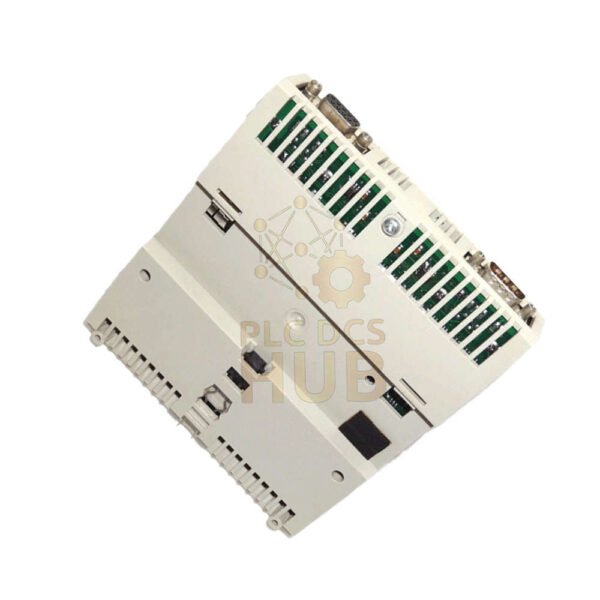

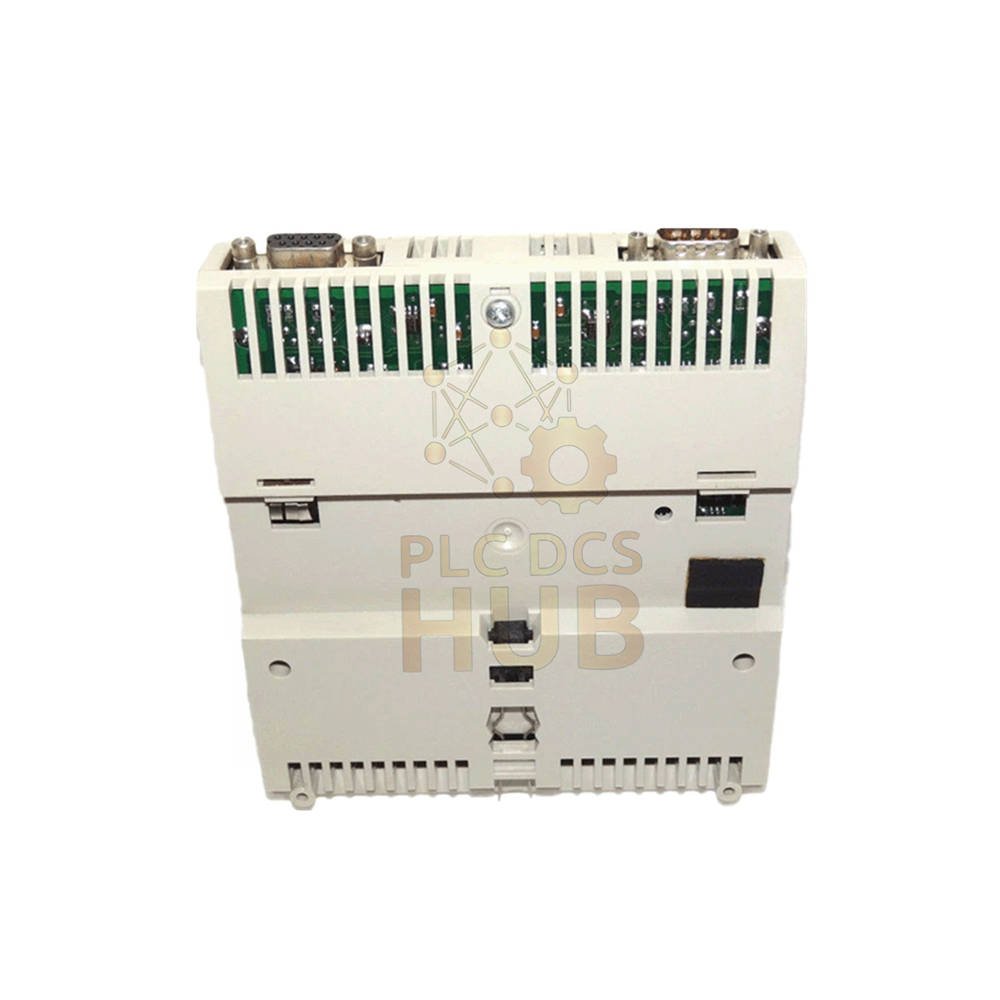

The Schneider Electric 170BAI03600 is an analog input module. It belongs to the Modicon Momentum product line. This module has eight channels for multiple signal inputs. It helps you measure analog values with good accuracy. Use it for pressure, temperature, or flow monitoring.
Key Features at a Glance
- ▸ 8 analog input channels – read many signals at once
- ▸ 24V DC power – fits most industrial control panels
- ▸ 1A current rating – reliable for continuous use
- ▸ Wide temperature range – works from 0°C to 60°C
- ▸ 80% humidity tolerance – suitable for damp environments
- ▸ 1000m altitude rating – good for highland installations
Technical Specifications
- Brand: Schneider Electric
- Model Number: 170BAI03600
- Product Series: Modicon Momentum
- Product Type: Analog Input Module
- Number of Channels: 8
- Supply Voltage: 24V DC
- Current Draw: 1A maximum
- Weight: 0.75 lbs (0.34 kg)
Environmental & Installation Conditions
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: Same as operating range
- Operating Humidity: Up to 80% RH, non-condensing
- Storage Humidity: Up to 80% RH, non-condensing
- Maximum Altitude: 1000 meters above sea level
- Mounting: DIN rail or panel (standard Momentum base)
Installation Guide (Simple Steps)
- 1. Turn off all power to the Momentum rack.
- 2. Insert the 170BAI03600 into the correct slot.
- 3. Push firmly until the module locks in place.
- 4. Connect 24V DC power to the dedicated terminals.
- 5. Wire analog sensors (4-20mA or 0-10V) to channels 1 to 8.
- 6. Turn power on and check the LED status indicators.
Diagnostic & Maintenance Tips
Check the module LED for power and communication status. A dark LED means no 24V DC supply. Use a multimeter to verify voltage at the terminals. Clean the module with dry compressed air every 6 months. Do not remove the 170BAI03600 while power is on unless the system allows hot swapping.
Typical Applications
- ✓ Temperature monitoring in HVAC systems
- ✓ Pressure measurement in hydraulic presses
- ✓ Flow rate reading in water treatment plants
- ✓ Level sensing in storage tanks
- ✓ Analog signal conversion for PLC control loops
Compatibility Notes
The Schneider Electric 170BAI03600 fits any Modicon Momentum base. It works with Momentum CPUs and communication adapters. Do not use this module with non-Momentum racks. Always check the user manual for slot restrictions.
Package Contents
- 📦 1 x 170BAI03600 Analog Input Module
- 📦 1 x Product label with serial number
- 📦 1 x Quick start guide (paper copy)
- 📦 1 x Warranty registration card
Warranty & Shipping Policy
We offer a 12-month warranty on the 170BAI03600 from the invoice date. This warranty covers factory defects only. Damage from wrong wiring or overvoltage is not included. We ship worldwide using FedEx, UPS, and DHL. Express delivery usually takes 3 to 7 business days.
Frequently Asked Questions (FAQ)
- Q1: What type of analog signals can the 170BAI03600 read?
A: It reads voltage signals (0-10V) or current signals (4-20mA). You must configure this via software. - Q2: Can I mix this module with 120V AC modules on the same rack?
A: Yes, the Modicon Momentum rack accepts both DC and AC modules. Just keep the 24V DC supply separate. - Q3: How do I know if the 170BAI03600 is working correctly?
A: Look at the green “Active” LED on the module face. A steady green light means normal operation. - Q4: What altitude limit applies to this module?
A: The 170BAI03600 works up to 1000 meters above sea level. Above that, you need to derate the temperature. - Q5: Does this module support hot swapping?
A: No, the Modicon Momentum series does not support hot swapping. Always disconnect power before removing the module.
Expert Buying Guide
Choose the Schneider Electric 170BAI03600 when you need 8 analog inputs in a small space. Do not buy this if you need high-speed sampling (use a dedicated fast analog module instead). Order a spare module for critical machines to avoid long downtime. Check your base model number before buying – some old Momentum bases need an adapter. For high vibration areas, add locking clips to secure the module.
