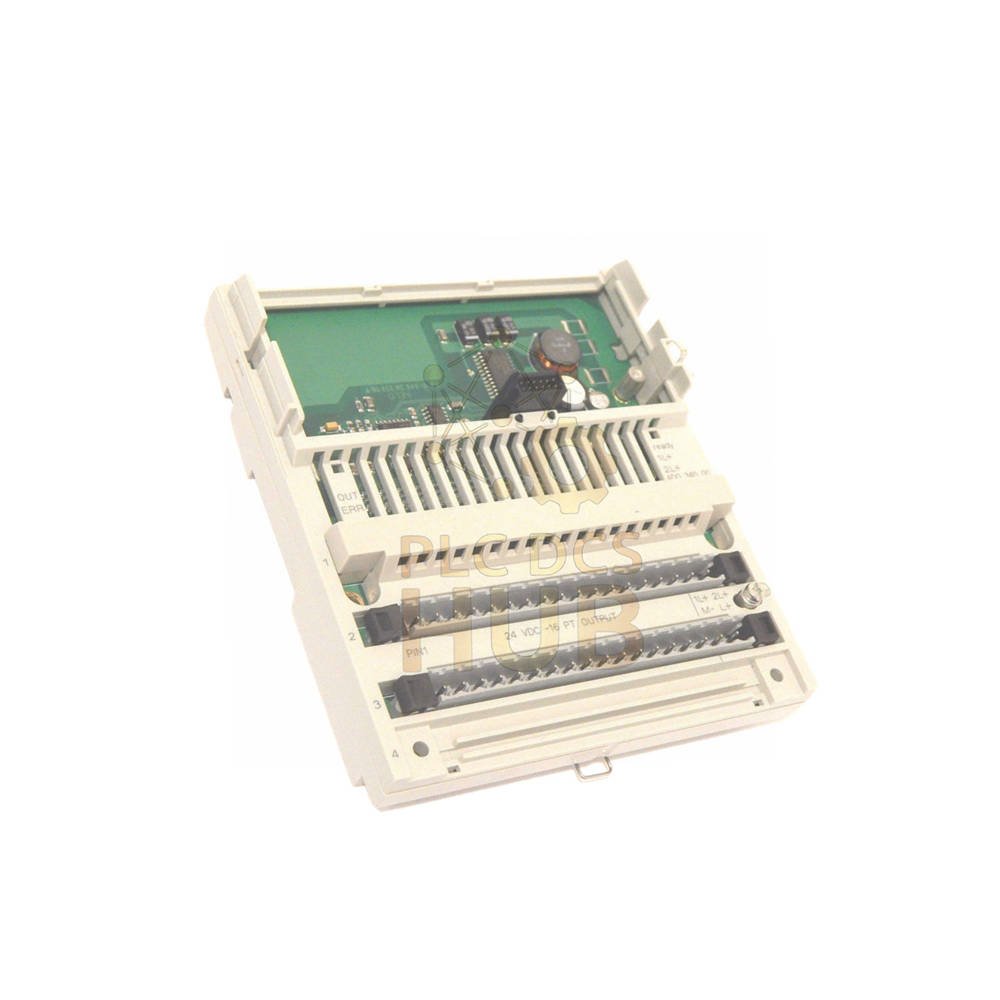

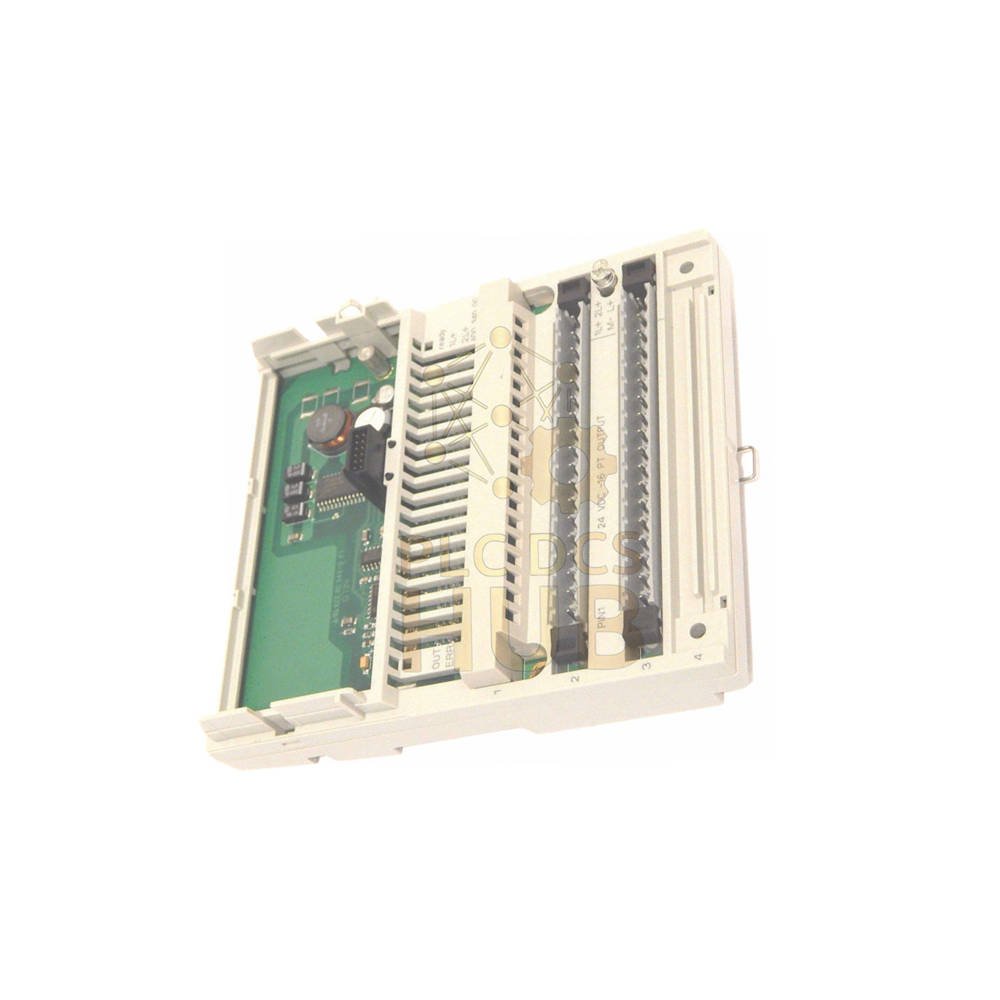

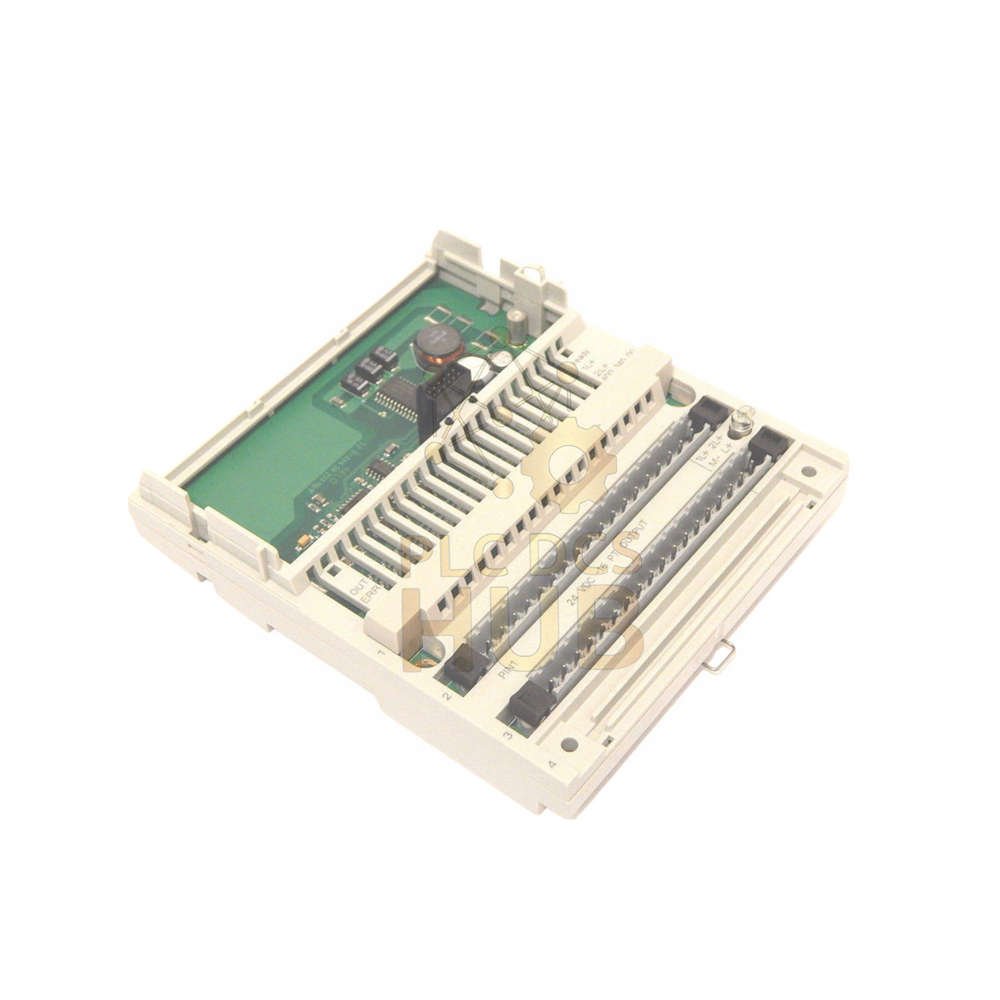

Schneider Electric 170ADO34000 Discrete Output Module
This Schneider Electric 170ADO34000 belongs to the Modicon Quantum series. It gives you 16 solid-state outputs at 24V DC. Each output handles up to 0.5 Amps. A reliable choice for clean industrial environments.
Key Specs at a Glance
- Brand: Schneider Electric
- Series: Modicon Quantum
- Type: Discrete Output Module
- Outputs: 16 channels
- Voltage: 24V DC
- Current per output: 0.5 Amps
- Technology: Solid-state (no moving parts)
Environmental Limits
- Work temperature: 0 to 40°C
- Store temperature: 0 to 50°C
- Work humidity: Up to 80% (no water drops)
- Store humidity: Up to 80% (no water drops)
- Work altitude: Up to 1000 meters
- Store altitude: Up to 1000 meters
- Environment: Clean rooms only. No corrosive chemicals.
Installation & Compatibility
- Mounts on a standard DIN rail inside a control cabinet.
- Use with any Modicon Quantum CPU or adapter.
- Keep away from heat sources and heavy dust.
- Leave 50mm space around the module for cooling.
- Wire with 0.5mm² to 1.5mm² copper cable.
What’s in the Box & Warranty
- One 170ADO34000 output module.
- Quick start guide (printed).
- Warranty: 12 months against defects.
- Shipping: FedEx, UPS, or DHL express.
Selection Guide (Buying Tips)
- Need more outputs per module? The 170ADO34000 already gives 16 points.
- Need relay outputs for AC loads? This 170ADO34000 is DC only.
- Need higher temperature rating? This model works only up to 40°C. Pick another series for hot areas.
- Need chemical resistance? This unit needs clean air. Use an enclosure if near mild chemicals.
Frequently Asked Questions (FAQ)
- Q: Can I use the 170ADO34000 with a 12V DC system?
A: No. The Schneider Electric 170ADO34000 needs exactly 24V DC. Lower voltage may not turn outputs ON.
- Q: What happens if one output shorts?
A: The module has no per-channel fuse. The whole module may fail. Use external fast-blow fuses (0.5A) for each output.
- Q: How do I know if the module is working?
A: Look at the green “OK” LED on the front panel. A flashing LED means a bus error.
- Q: Can I replace this module while power is ON?
A: No. Modicon Quantum modules are not hot-swappable. Always turn off the 24V supply before removal.
- Q: My output stays ON even after the PLC tells it OFF.
A: The solid-state output may have failed “shorted”. Swap the module with a spare to test.
