Schneider 170FNT11000 Fipio Adapter | Modicon Momentum 1 Mbps

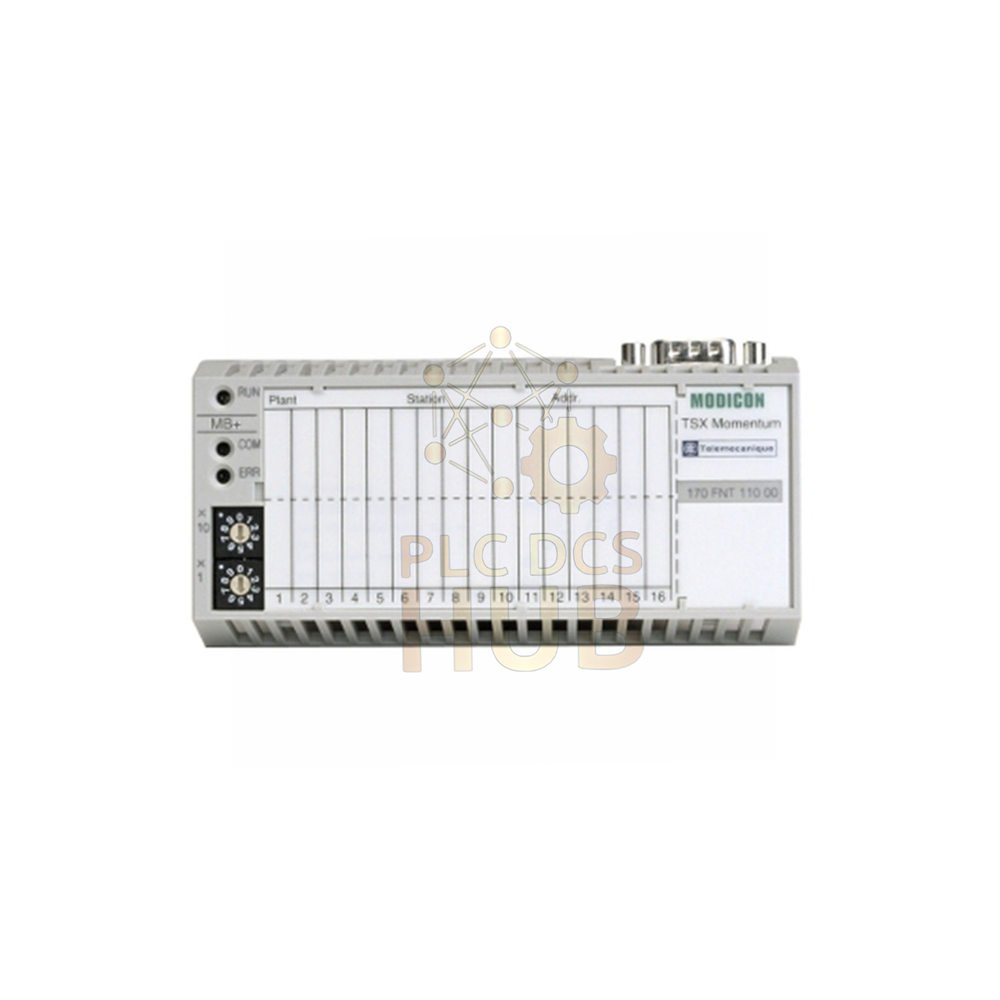

Schneider Electric 170FNT11000 Fipio Communication Adapter

Modicon Momentum series | 1 Mbps Fipio protocol | 5 km fiber distance

📞 Need expert advice or bulk pricing?
Message us on WhatsApp: +86 158 8020 0923

Short Description

The Schneider Electric 170FNT11000 is a Fipio communication adapter. It belongs to the Modicon Momentum series. This module connects industrial devices over long distances. It uses fiber optic cables up to 5 km. The speed is 1 Mbps for reliable data flow.

Technical Specifications – Tree View

• ▶ General Info
  • Brand: Schneider Electric
  • Model: 170FNT11000
  • Series: Modicon Momentum
  • Product Type: Fipio communication adapter
  • EAN: 3595861147447
• ▶ Communication Features
  • Protocol: Fipio (open industrial standard)
  • Data rate: 1 Mbps
  • Optical fiber types: 62.5/125 and 50/125
  • Connector: Male Sub-D 9 (for electrical connection)
  • Max devices per segment without repeater: 31
  • Max devices with repeater: 61
  • Max inter-device cable length: 5 km (5000 meters)
• ▶ Power & Physical
  • Power supply: From I/O base (no external needed)
  • Weight: 0.19 lbs (0.09 kg) – very lightweight
  • Electrical connection: Male Sub-D 9 pin
• ▶ Environment & Safety
  • Ambient temperature: 0 to 60 °C
  • Approvals: UL, CE, CSA
  • Structure: Open industrial environment

Installation & Compatibility

• Mount the adapter onto the Modicon Momentum I/O base. Power comes directly from the base.
• Use 62.5/125 or 50/125 fiber optic cables for long distance links.
• Connect the Fipio network via the Male Sub-D 9 connector.
• Works with all Modicon Quantum and Momentum controllers that support Fipio.
• Keep fiber cables away from high voltage lines to avoid interference.
• Do not exceed 31 devices per segment without a repeater.

Troubleshooting Tips

• Check the Sub-D 9 connector for bent pins. A loose connection stops communication.
• Use a fiber power meter to verify optical signal strength.
• If devices are not detected, reduce segment length or add a repeater.
• Monitor LED status on the I/O base (if available) for network activity.
• Replace damaged fiber cables only with same type (62.5/125 or 50/125).

What’s Inside & Shipping

• 1 x Schneider 170FNT11000 Fipio adapter module
• No cables included – order fiber optic cables separately
• Quick start guide with wiring diagram
• 12-month warranty against manufacturing defects
• We ship worldwide via FedEx, UPS, DHL – tracking provided
• Typical delivery: 3-5 business days for stocked items

Typical Use Cases

• Large factory floor networks with remote I/O stations
• Water treatment plants needing long distance fiber links
• Automated warehouses with distributed controllers
• Oil and gas sites where electrical noise is high
• Retrofit projects replacing old Fipio adapters

Frequently Asked Questions (FAQ)

• Q1: Can the 170FNT11000 work with plastic optical fiber?
  A: No, this adapter needs glass fiber types 62.5/125 or 50/125. Plastic fiber will not work reliably.
• Q2: What is the real-world max distance without signal loss?
  A: Up to 5 km is possible. But use high-quality fiber and clean connectors. For very dirty environments, limit to 4 km.
• Q3: Does this adapter replace the older 170FNT11000 version?
  A: Yes, this is the current part number. It is fully backward compatible with existing Momentum Fipio networks.
• Q4: I have a Modicon Quantum PLC – will it connect?
  A: Yes, Quantum PLCs with a Fipio port work perfectly. Just configure the same baud rate (1 Mbps).
• Q5: How do I know if my repeater is needed?
  A: If your cable length exceeds 5 km or you have more than 31 devices, add a repeater. Also add one if signal weak.

Buying Advice from Our Engineers

• Check your existing fiber type: 62.5/125 is common in older plants. 50/125 works for longer runs.
• Count your devices: If you have 30+ nodes, plan for a repeater early.
• Temperature matters: This adapter runs from 0 to 60°C. Keep it out of freezing areas.
• Warranty coverage: Our 12-month protection includes free replacement for failed units. Keep proof of purchase.
• Shipping choice: FedEx for fastest, UPS for customs clearance help, DHL for Europe.
• Spare strategy: Keep one 170FNT11000 as backup. It avoids long downtime if a unit fails.
