Description

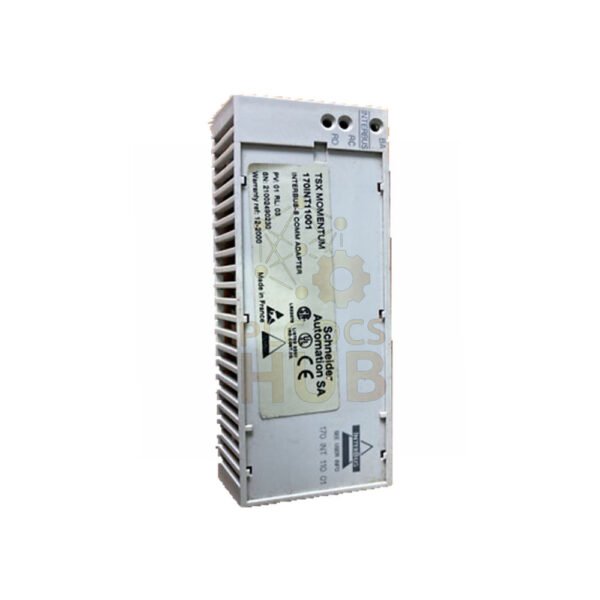

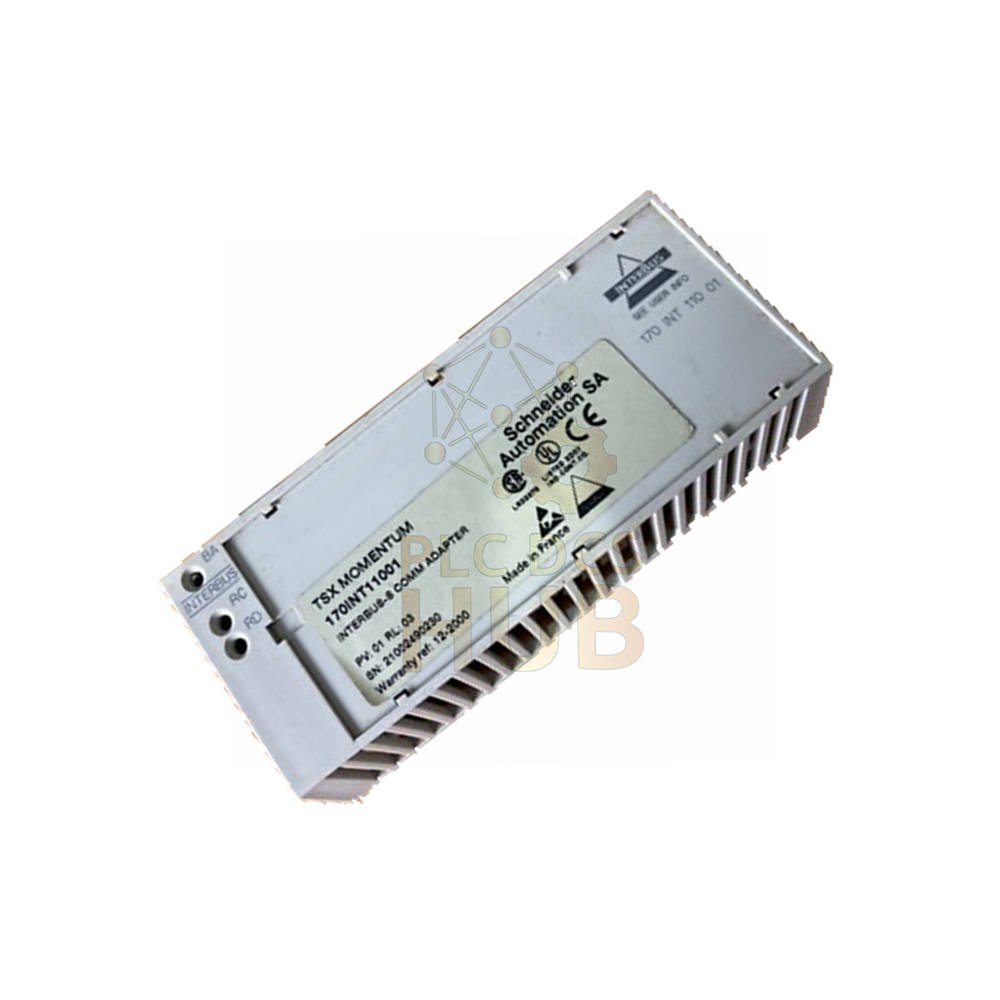

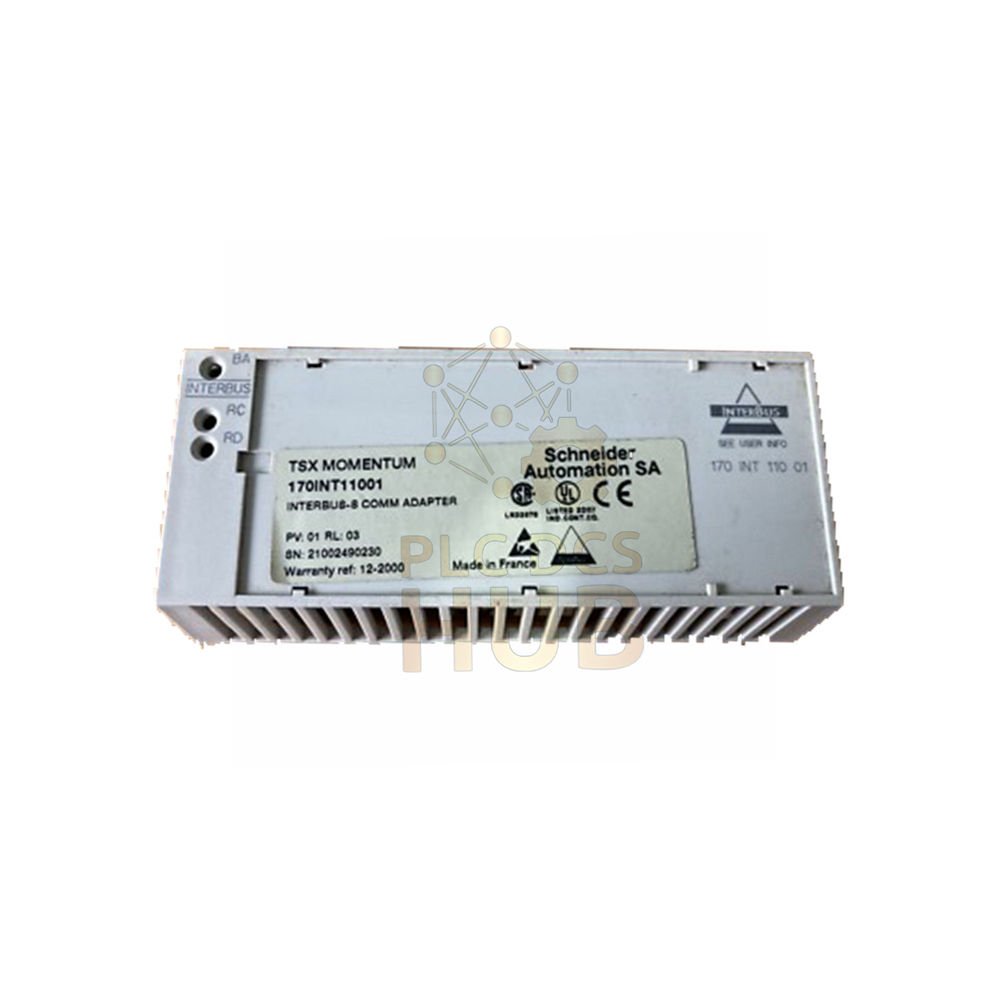

Schneider Electric 170INT11001 – INTERBUS Adapter for Modicon Momentum
The 170INT11001 is a communication adapter from Schneider Electric. It belongs to the Modicon Momentum series. This adapter uses the INTERBUS-S protocol. It connects perfectly with Momentum I/O bases. For larger systems, you can also use Modicon Quantum controllers for higher scalability.
📋 Product Overview – Simple Words
This small adapter helps your Momentum I/O talk to a network. It uses INTERBUS-S, a fast industrial protocol. The 170INT11001 supports a ring topology. This makes the network reliable. Data travels at 500 kbps over twisted pair cables.
🔌 Key Features – Quick Look
- Brand: Schneider Electric
- Model: 170INT11001
- Series: Modicon Momentum
- Product Type: Communication Adapter
- Protocol: INTERBUS-S
- Compatible with: Momentum I/O bases
- Topology: Ring topology
- Cable: Twisted pair
- Speed: 500 kbps
- Weight: 0.45 kg (1 lb)
- Operating Temp: 0°C to 55°C
- Storage Temp: -20°C to 60°C
- Max Altitude: 2000 meters
- Environment: No corrosive gases
📁 Technical Data – Tree Structure (Easy to Read)
- ▪️ Network & Communication
- Protocol: INTERBUS-S
- Speed: 500 kbps
- Topology: Ring
- Cable type: Twisted pair
- ▪️ Compatibility
- Works with: Momentum I/O bases
- Part of Modicon Momentum series
- ▪️ Environmental Limits
- Operation temp: 0°C to 55°C
- Storage temp: -20°C to 60°C
- Max altitude: 2000 meters
- No corrosive gases allowed
- ▪️ Physical
- Weight: 0.45 kg (1 lb)
- Easy to install
⚙️ Installation & Compatibility
- Mount the 170INT11001 directly onto a Momentum I/O base.
- Use standard twisted pair cables for INTERBUS-S network.
- Follow ring topology wiring rules – close the loop properly.
- Keep temperature between 0°C and 55°C during operation.
- Do not use in areas with corrosive gases (e.g. chlorine, ammonia).
- For advanced control needs, upgrade to Modicon Quantum platform.
🛠️ Simple Maintenance & Debugging
- Check LED status on the adapter (if available on base).
- Verify ring integrity – a broken wire stops all communication.
- Use an INTERBUS diagnostic tool to find faulty nodes.
- Keep cable length within INTERBUS-S limits (consult manual).
- Store spare 170INT11001 units between -20°C and 60°C.
📦 Package Contents & Shipping
- One Schneider Electric 170INT11001 adapter
- Quick installation guide
- No power supply included – draws from I/O base
- Warranty: 12 months against manufacturing defects
- Shipping methods: FedEx, UPS, DHL express worldwide
- Typical delivery: 3-5 business days
❓ Frequently Asked Questions (FAQ) – Practical Answers
- Can I use 170INT11001 with non-Momentum I/O?
No. This adapter only works with Modicon Momentum I/O bases. For Quantum series, check Modicon Quantum adapters.
- What happens if one cable breaks in a ring topology?
The entire ring stops communicating. INTERBUS-S has no automatic bypass. You must repair the broken link.
- Why choose 500 kbps over faster Ethernet?
INTERBUS-S is very deterministic. It suits real-time I/O control. 500 kbps is stable for most factory automation.
- Does the 170INT11001 work at high altitudes?
Yes, up to 2000 meters. Above that, de-rating may apply. Contact support for details.
- What is the 12-month warranty coverage?
It covers factory defects only. Damage from wrong wiring or corrosive gases is not included. Keep proof of purchase.
📌 Buying Guide & Selection Tips
- Choose 170INT11001 if you already have an INTERBUS-S network.
- Make sure your Momentum I/O base has a free slot for this adapter.
- Check that your environment has no corrosive gases – otherwise choose a coated version.
- For new systems, consider Ethernet-based adapters for higher speed.
- Ask for bulk discounts when ordering 5+ units.
- Always request FedEx, UPS or DHL for fast tracked shipping.
- If you need redundancy or hot standby, explore Modicon Quantum solutions.
