Description
Product Overview

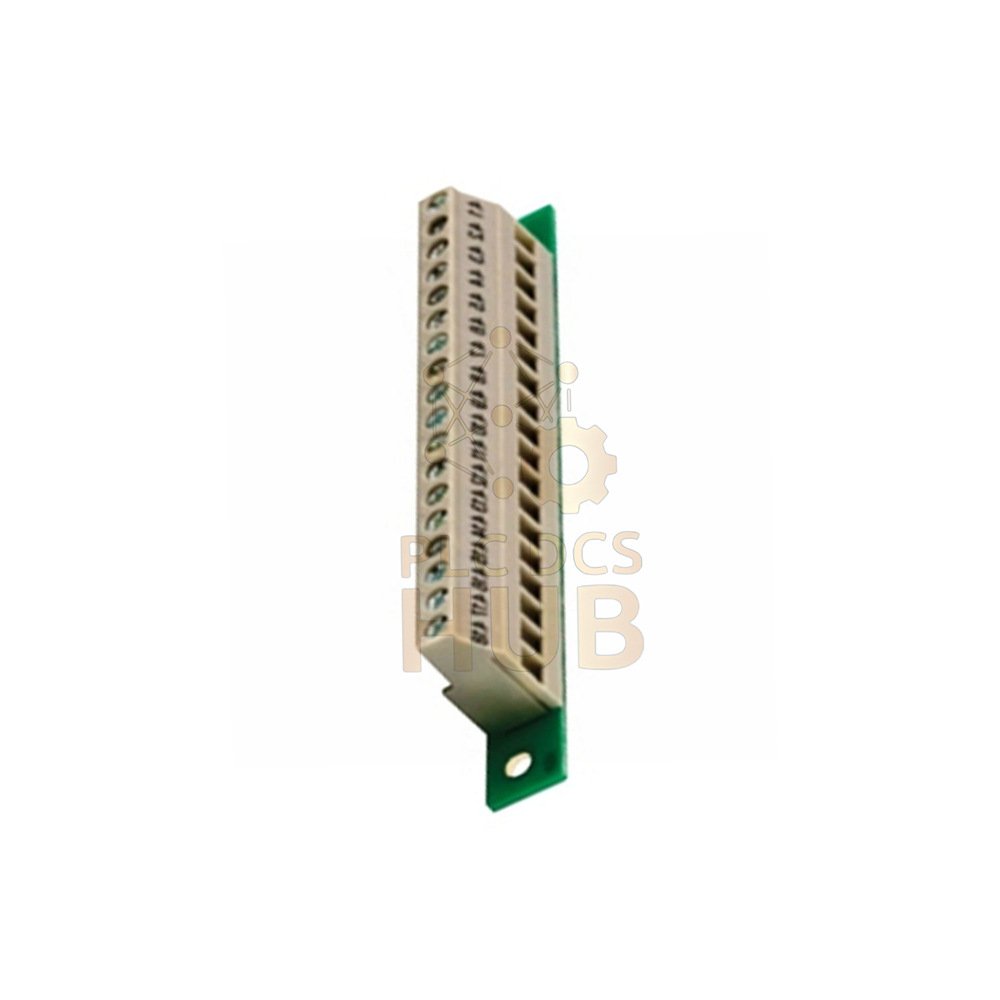

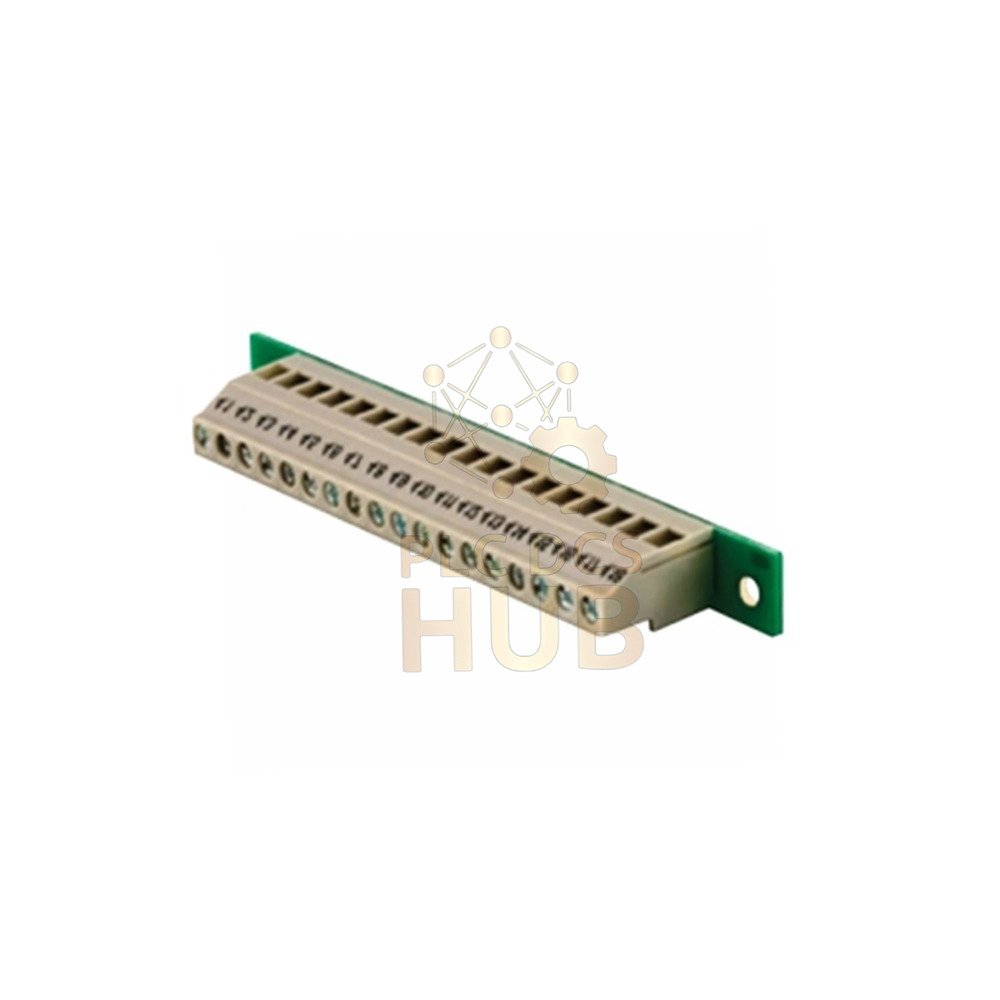

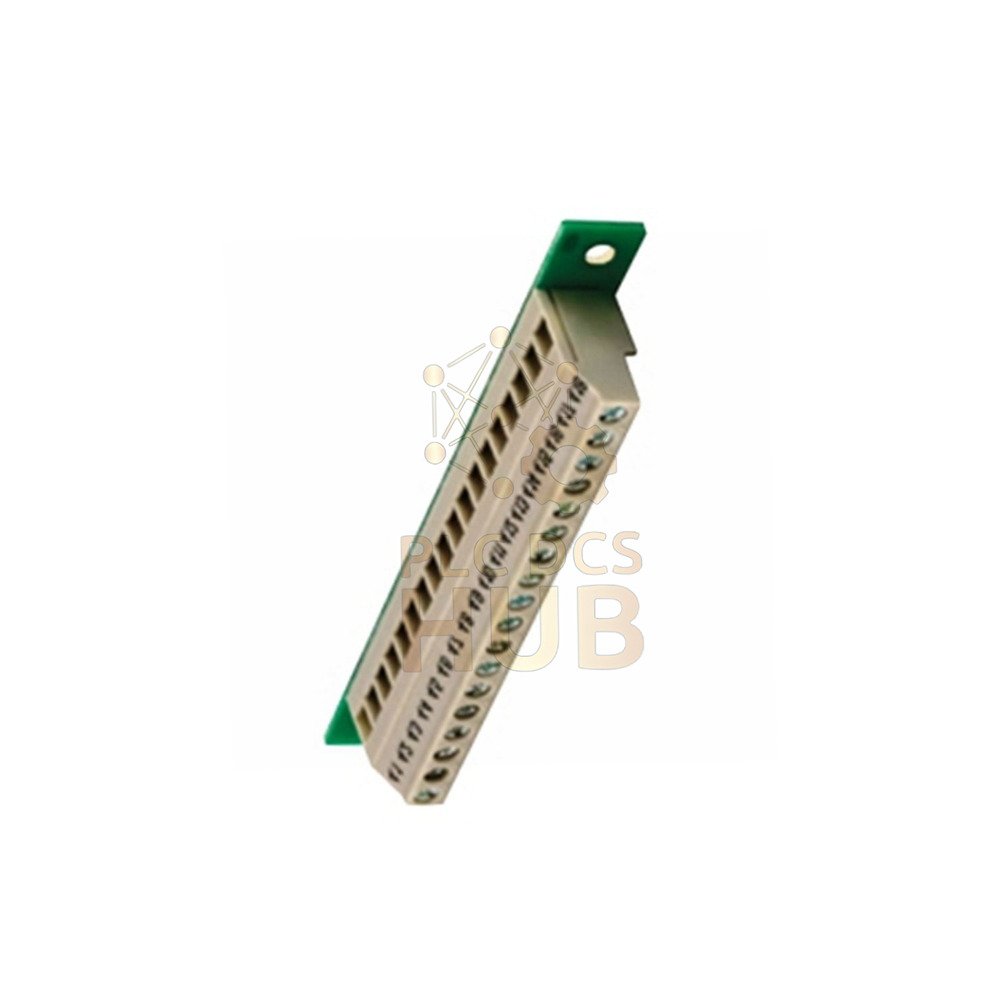

The Schneider Electric 170XTS00701 is a busbar connector. It works with the Modicon Momentum series. This part links discrete and analog I/O bases. It creates reliable electrical connections between modules.
Key Features
- ► Single row horizontal layout – saves panel space
- ► Spring-type terminals – no screw tightening needed
- ► Plug-in design – quick and easy installation
- ► High-conductivity metal – low resistance power transfer
- ► Vibration resistant – stays tight in moving machines
- ► Wide temperature range – works from -25°C to +70°C
Technical Specifications
- Brand: Schneider Electric
- Model Number: 170XTS00701
- Product Series: Modicon Momentum
- Product Type: 1-Row Busbar Connector
- EAN: 3595861147881
- Compatible Modules: Discrete and analog I/O bases
- Terminal Type: Spring-type terminals
- Row Configuration: Single horizontal row
- Mounting: Plug-in design
- Material: High-conductivity metal
- Electrical Continuity: Low-resistance connections
- Mechanical Feature: Vibration-resistant construction
Environmental Limits
- Operating Temperature: -25°C to +70°C (-13°F to 158°F)
- Storage Temperature: Same as operating range
- Humidity Tolerance: Standard industrial humidity (non-condensing)
- Vibration Resistance: Designed for dynamic industrial environments
Installation Guide
- 1. Turn off power to the Momentum rack.
- 2. Align the 170XTS00701 with the I/O base slot.
- 3. Push the connector straight down until it clicks.
- 4. The spring terminals will grip wires automatically.
- 5. Insert wires into each spring terminal opening.
- 6. Use a small screwdriver to press the spring for wire removal.
Compatibility Information
The Schneider Electric 170XTS00701 fits all Modicon Momentum discrete I/O bases. It also works with analog I/O bases. Do not use this busbar with other PLC families. Always check that your base has a single row connector slot.
Package Contents
- 📦 1 x 170XTS00701 Busbar Connector
- 📦 1 x Installation instruction sheet
- 📦 1 x Product identification label
Warranty & Shipping
We provide a 12-month warranty on the 170XTS00701 from the purchase date. This warranty covers material and factory defects only. Wrong installation or physical damage is not covered. We ship worldwide using FedEx, UPS, and DHL. Express delivery takes 3 to 7 business days.
Frequently Asked Questions (FAQ)
- Q1: What is the main job of the 170XTS00701?
A: It connects power and signals between Momentum I/O bases. This eliminates separate jumper wires. - Q2: Do I need tools to install this busbar connector?
A: No tools are needed for the connector body. You only need a small screwdriver to open the spring terminals for wires. - Q3: Can the 170XTS00701 handle high vibration?
A: Yes, it has vibration-resistant construction. It suits machines with constant motion or shocks. - Q4: What wire size fits the spring terminals?
A: The terminals accept solid or stranded wire from 0.2mm² to 1.5mm² (24 to 16 AWG). - Q5: Is the 170XTS00701 the same as a standard power jumper?
A: No, it is a dedicated busbar for Momentum systems. Standard jumpers may not fit or provide proper contact.
Expert Buying Guide
Buy the Schneider Electric 170XTS00701 when you have multiple I/O bases side by side. One busbar replaces many short jumper wires. Order one busbar for each row of bases you connect. Keep a spare unit in your parts cabinet for quick replacement. Do not use this part if your bases have different voltage ratings. Always check the total current load before adding many modules.
