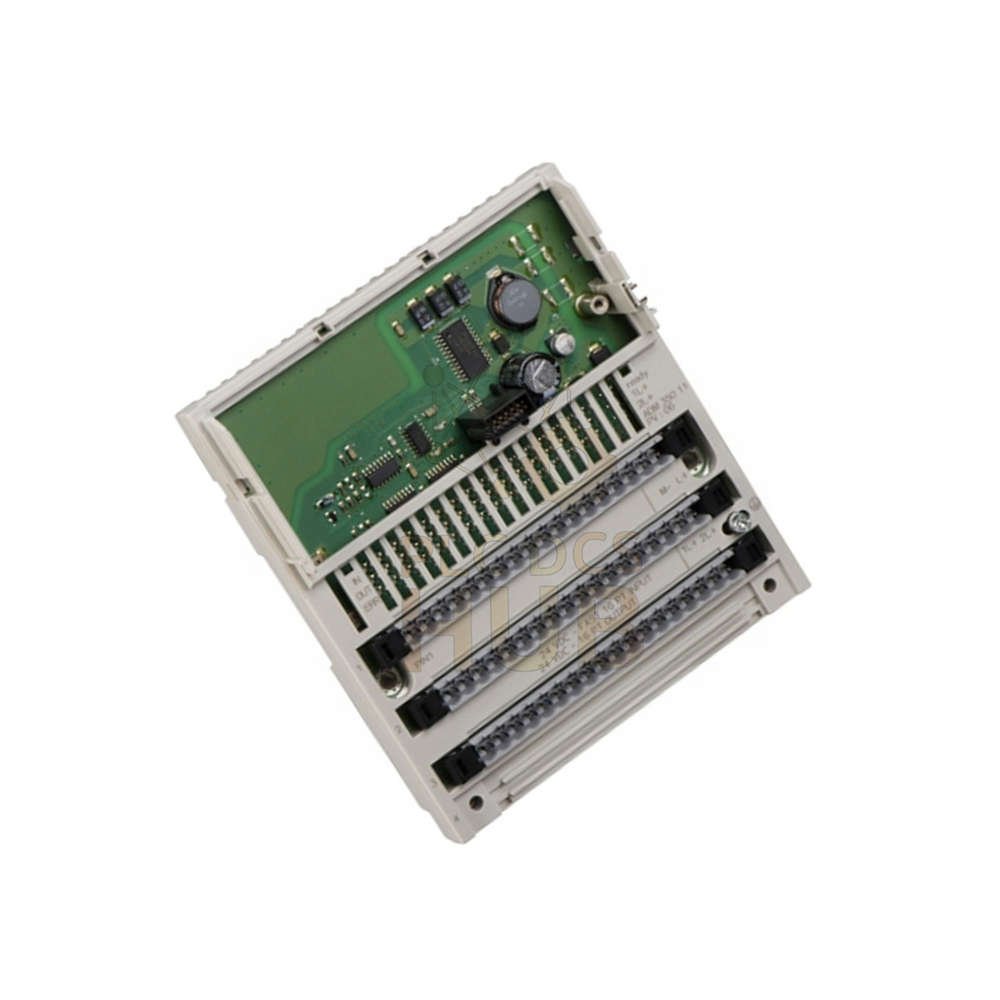

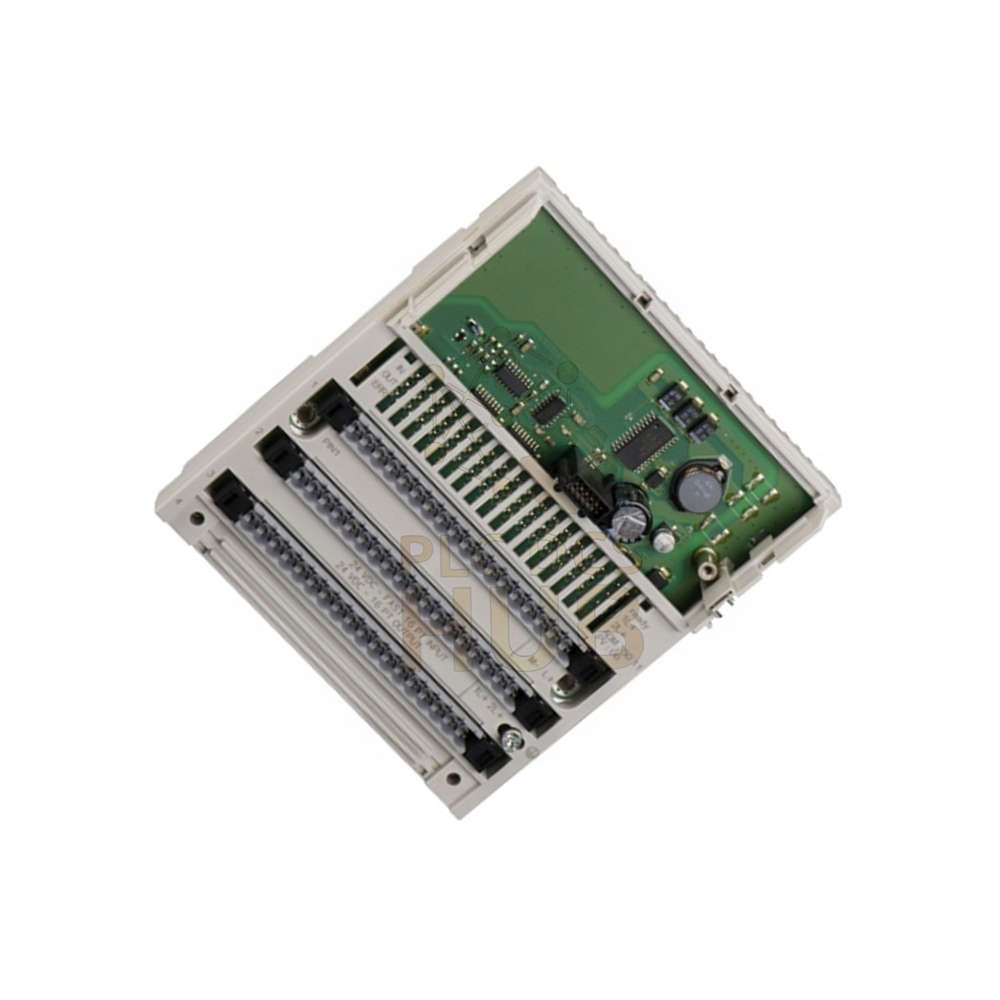

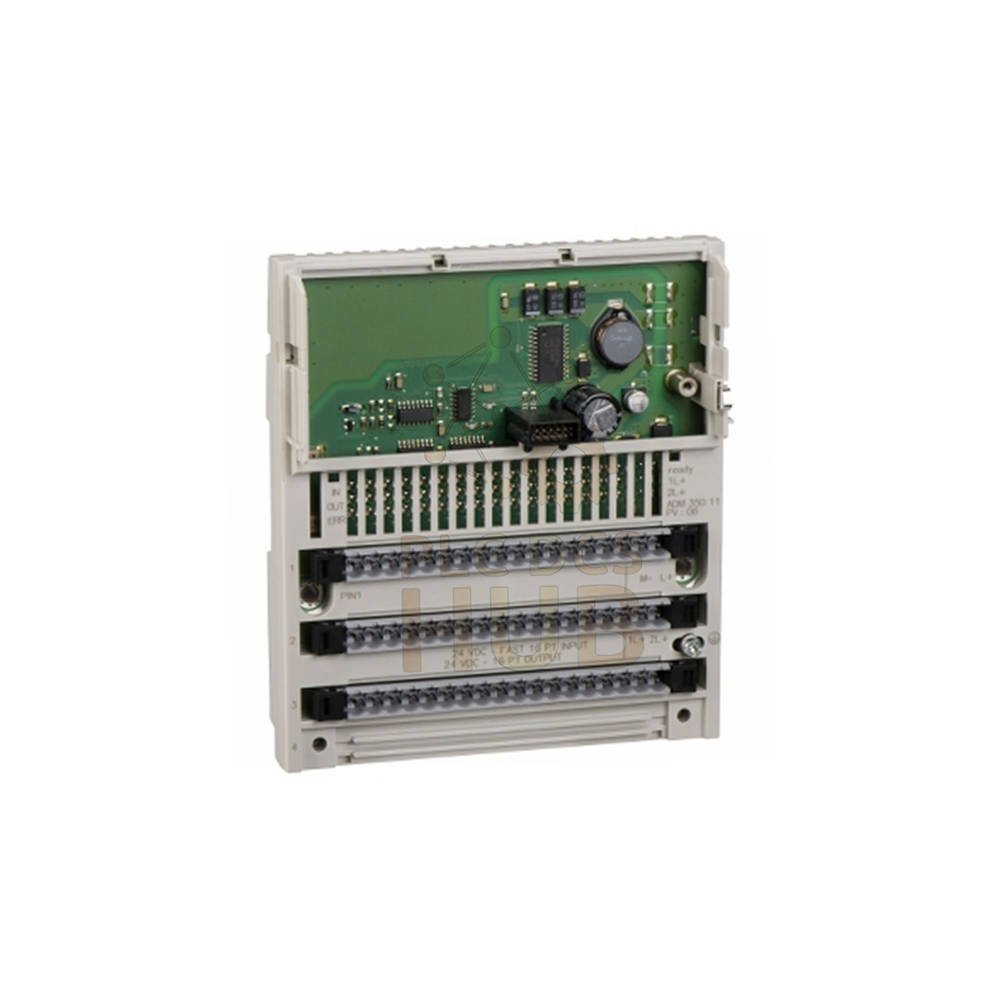

Schneider Electric 170ADM85010 I/O Module
This Schneider Electric 170ADM85010 belongs to the Modicon Quantum series. It mixes 16 inputs and 16 outputs in one unit. Each channel handles 0.5 Amps at 10-60V DC. A flexible choice for many control jobs.
Main Features
- Brand: Schneider Electric
- Series: Modicon Quantum
- Type: I/O Module (mixed)
- Inputs: 16 channels
- Outputs: 16 channels
- Voltage range: 10 to 60V DC
- Nominal supply: 24V DC
- Current per channel: 0.5 Amps
- Power factor: 0.987
Environment & Protection
- Work temperature: -20°C to +60°C
- Enclosure rating: IP20 (indoor use only)
- Mounting: DIN rail
- Weight: 0.45 kg (1.00 lbs)
Installation & Compatibility
- Snap the module onto a standard DIN rail.
- Use with any Modicon Quantum CPU or bus adapter.
- Keep the module away from water and dust (IP20 is not waterproof).
- Leave 50mm free space around for cooling.
- Wire with copper cable sized 0.5 to 1.5 mm².
What’s in the Box & Warranty
- One 170ADM85010 I/O module.
- Printed quick start guide.
- Warranty: 12 months against defects.
- Shipping: FedEx, UPS, or DHL express.
Selection Guide (Buying Tips)
- Need both inputs and outputs in one module? The 170ADM85010 gives you 16+16.
- Need wider voltage like 120V AC? This 170ADM85010 works only on 10-60V DC.
- Need a module for freezing areas? This model works down to -20°C. Good for cold storage.
- Need higher IP rating for washdown areas? Choose a different series with IP67 enclosure.
Frequently Asked Questions (FAQ)
- Q: Can I run the 170ADM85010 on 48V DC?
A: Yes. The Schneider Electric 170ADM85010 accepts any voltage from 10V to 60V DC. 48V is fine.
- Q: What happens if I connect a 24V AC supply?
A: Do not do it. The module expects DC voltage only. AC input will damage the unit.
- Q: How do I check if the module is working?
A: Look at the green “RUN” LED. A steady light means normal operation. No light means no power.
- Q: Can I replace this module while the system is ON?
A: No. Modicon Quantum I/O modules are not hot-swappable. Turn off power first.
- Q: One output channel stopped working. What do I do?
A: Move the load to a spare channel if available. Or replace the whole 170ADM85010 module. The outputs share common circuitry.
Contact & Support
Need a quote or fast delivery? Reach us on WhatsApp: +86 158 8020 0923. We ship worldwide via FedEx, UPS, and DHL.
