Description

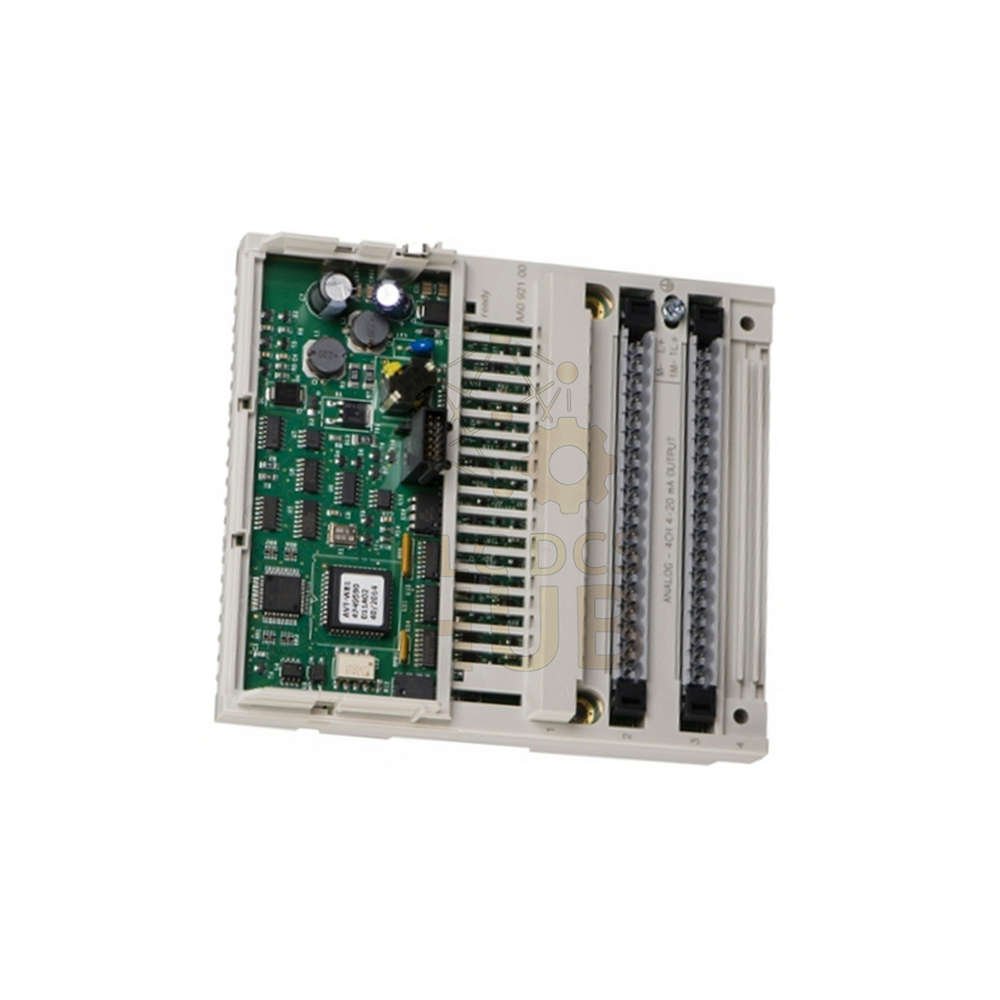

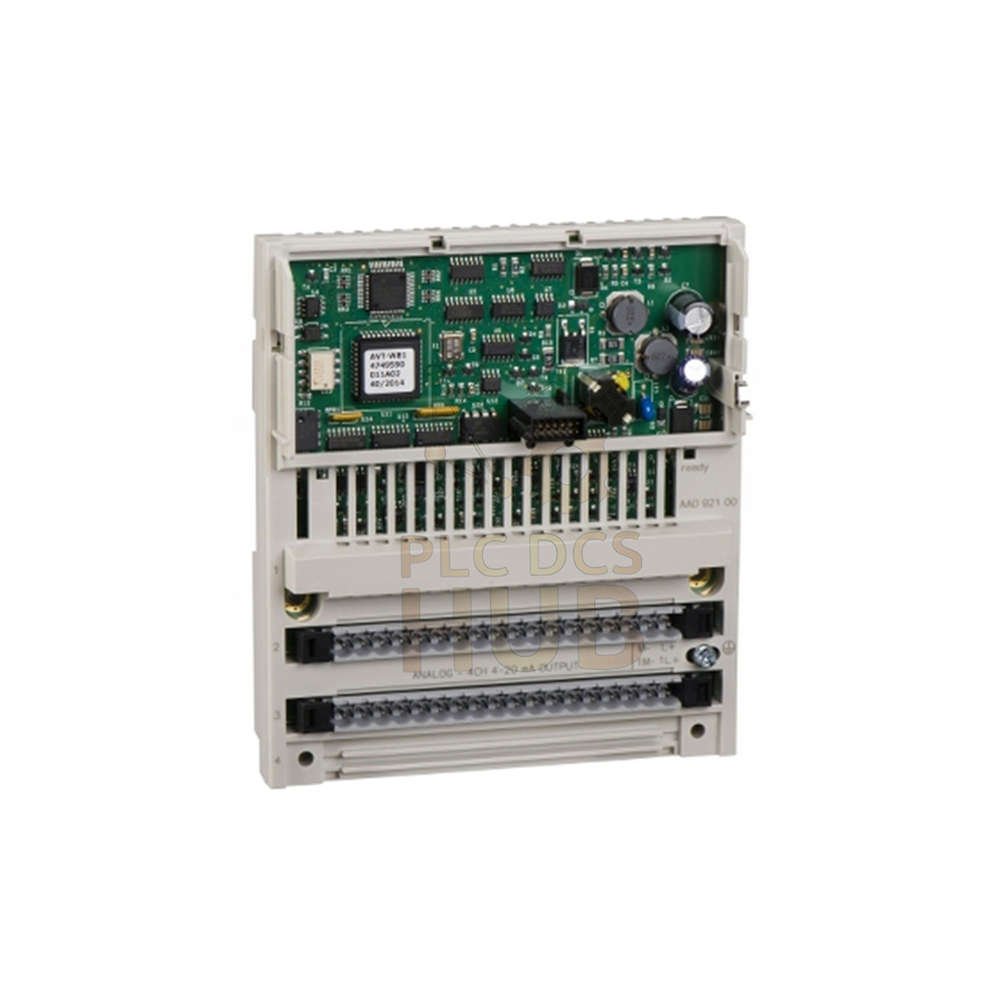

Schneider Electric 170AAO12000 Modicon Momentum Analog Output Module
The 170AAO12000 is an analog output module from Schneider Electric. It belongs to the Modicon Momentum series. This module gives you four flexible analog outputs for precise control.
Product Overview
The Schneider Electric 170AAO12000 handles both current and voltage signals. Current outputs range from 0 to 20 mA. Voltage outputs range from -10V to +10V. This makes the module useful for many field devices. For larger systems, the Modicon Quantum platform offers higher channel counts.
Technical Specifications
- Brand: Schneider Electric
- Model: 170AAO12000
- Series: Modicon Momentum
- Type: Analog Output Module
- Number of Outputs: 4 channels
- Current Signal: 0 to 20 mA
- Voltage Signal: -10V to +10V
- Data Format: 16-bit
- Output Resolution: 12 bits + sign
- Update Time: 2 ms
- Power Supply: 24 VDC
- Weight: 0.215 kg (0.474 lbs)
- EAN: 3595861147713
Load & Power Details
- Max Load Capacitance: 1 µF for signal stability
- Max Power Dissipation: 8.5 W
- Actuator Current: 150 mA at 24 V DC
- Base Current: 530 mA at 24 V DC
- Resolution Note: 12 bits + sign for voltage at ≥1 kΩ load
- Resolution Note: 12 bits + sign for current at ≤0.6 kΩ load
LED Indicators
- Four green LEDs show each channel status
- One LED lights when the channel is active
- LED turns off when the output is deactivated
- Helps operators find problems quickly
Installation Guide
- Turn off all power before installing the 170AAO12000.
- Mount the module on a standard DIN rail.
- Connect the 24 VDC power supply to the base.
- Wire analog outputs to your field devices.
- Use shielded cables for voltage outputs over 1 meter.
- Apply power and check the LED status indicators.
Compatibility & Network Use
- Works with all Modicon Momentum communication adaptors.
- Connects to PLCs via Modbus Plus or Modbus TCP networks.
- For large distributed systems, use with Modicon Quantum controllers over a network.
- The 170AAO12000 updates all four outputs every 2 milliseconds.
Typical Applications
- Proportional valve control
- Variable speed drive speed reference
- Chart recorder signal output
- Actuator position control
- Analog meter driving
- Process control loops (PID)
Package Contents
- One Schneider Electric 170AAO12000 analog output module
- One product documentation sheet
- No terminal base or cables included
Warranty & Shipping
- 12-month warranty covers manufacturing defects.
- We ship worldwide via FedEx, UPS, or DHL.
- Tracking number provided for every order.
Frequently Asked Questions (FAQ)
- What signal types does the 170AAO12000 support?
The 170AAO12000 supports 0-20 mA current and -10V to +10V voltage. You set each channel individually. - Can I mix current and voltage outputs on the same module?
Yes. Each of the four channels on the 170AAO12000 works independently. You can mix signal types freely. - What happens if I overload an output?
The Schneider Electric 170AAO12000 has no internal fuse. Overload may damage the channel. Use external protection for safety. - My output reading is not accurate. What should I check?
First verify the load resistance matches the specification. Voltage needs ≥1 kΩ. Current needs ≤0.6 kΩ. Then check your wiring and ground connections. - Is the 170AAO12000 compatible with Modicon Quantum?
Yes. The 170AAO12000 works as remote I/O with Modicon Quantum PLCs. Use a Momentum communication adaptor on the same network.
Buyer Guide & Selection Advice
- Choose the 170AAO12000 when you need four analog outputs in a small space.
- For voltage outputs, keep the load resistance above 1 kΩ. Lower loads will reduce accuracy.
- For current outputs, keep the load resistance below 0.6 kΩ. Higher loads will limit the output.
- Use shielded twisted pair cables for voltage signals longer than 1 meter. This reduces electrical noise.
- Buy a spare 170AAO12000 for critical processes. Quick replacement reduces downtime.
- For more than four analog outputs, consider a Modicon Quantum analog output module with higher density.
