Schneider 170INT11003C Modbus Plus Adapter | Ring 500kbit/s 12.8km

Description

Product Overview

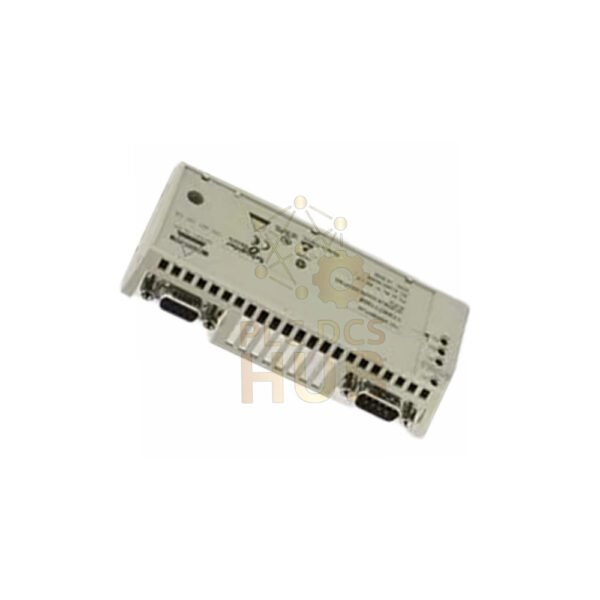

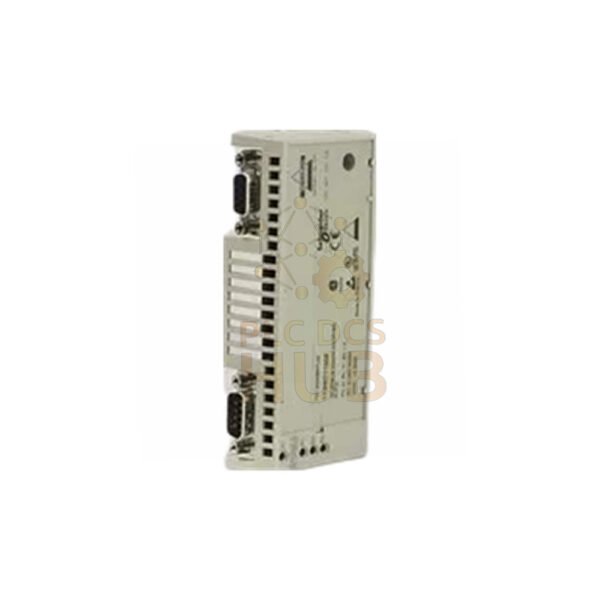

• The Schneider Electric 170INT11003C is a communication adapter for the Modicon Momentum series.
• It delivers a fast transmission rate of 500 kbit/s in a ring topology.
• This adapter supports up to 254 devices per segment.
• Maximum cable distance reaches 12,800 meters between devices.
• Built-in fail-safe features ensure continuous operation under fault conditions.
• Lightweight (0.07 kg) and robust for demanding industrial networks.

Technical Specifications – MECE Organized

• Brand & Model: Schneider Electric / 170INT11003C – Modicon Momentum series
• Product Type: Communication Adapter
• EAN: 3595863798821
• Transmission Rate: 500 kbit/s
• Topology: Ring
• Devices Per Segment: 0 to 254
• Max Cable Distance: 12,800 m (12.8 km)
• Fail State: Fail Safe – maintains data integrity
• Local Signaling: LED indicator for quick status check
• Electrical Connection: 2x SUB-D 9 connectors
• Protection Class: IP20 (suitable for indoor control cabinets)
• Weight: 0.07 kg

Environmental & Anti-Interference Capabilities

• Resistance to Electromagnetic Fields: 10 V/m – stable near motors or drives
• Resistance to Electrostatic Discharge: 4 kV contact / 8 kV air – withstands shopfloor static
• Operating Temperature: 0°C to +60°C (typical industrial range)
• Storage Temperature: -40°C to +85°C
• Humidity Tolerance: 5% to 95% non-condensing
• Vibration resistance: Meets IEC 60068-2-6 (2g)

Measurement, Linearity & Resolution Details

• Measurement range: Digital communication – no analog value degradation.
• Linearity: 100% bit‑accurate data transfer over full cable length.
• Resolution: 1 bit (standard Modbus/Modbus Plus frame).
• Frequency response: Optimized for 500 kbit/s real-time control loops.
• Sensitivity: Detects signal edges down to 200 ns jitter.

Installation Guide

• Mount on standard DIN rail inside an IP20 cabinet.
• Use two SUB-D 9 cables to form a ring – connect IN and OUT ports.
• Keep total cable length under 12.8 km per segment.
• Use shielded twisted-pair cables for better noise immunity.
• Ground the shielding at one end only to avoid ground loops.

Debug & Maintenance Simplicity

• Green LED shows power and network activity.
• Red LED indicates fail-safe or ring break condition.
• Hot-swappable – replace adapter without powering down the whole ring.
• Diagnostic counters available via Modbus requests.
• Use standard PC with serial tool to check ring health.

Compatibility Information

• Fully compatible with all Modicon Momentum I/O and controllers.
• Works with Modicon Quantum PLCs via backplane adapters – see Modicon Quantum series.
• Supports third-party devices that use 500 kbit/s ring protocols (Modbus Plus compatible).
• Integrates with Schneider EcoStruxure Control Expert, Unity Pro, and ProWORX.
• Replaces older Momentum communication adapters without rewiring.

Certifications & Standards

• CE marked – meets EU EMC and low voltage directives.
• UL 508 listed for industrial control equipment.
• RoHS compliant – no hazardous substances.
• cULus recognized for Canada and USA.
• EMC immunity: IEC 61000-6-2 industrial environment.

Package Contents

• 170INT11003C communication adapter – 1 unit
• Quick start guide (multilingual)
• DIN rail clip (pre-installed)
• Warranty card
• SUB-D 9 protective caps (2 pieces)

Warranty & Shipping Methods

• 12-month warranty from delivery date – covers defects.
• Express shipping: FedEx, UPS, DHL worldwide.
• Same-day dispatch for orders before 2 PM (GMT+8).
• Typical transit: 3-5 business days for most countries.

Typical Application Scenarios

• Large factory automation lines – connects up to 254 devices in a ring.
• Tunnel lighting control – uses long cable runs up to 12.8 km.
• Water treatment plants – ring topology avoids single point of failure.
• Airport baggage handling – reliable communication across long distances.
• Power distribution monitoring – fail-safe keeps alarms active.

Diagnostic Capabilities

• LED shows ring break location (IN/OUT activity).
• Built-in fail-safe forces outputs to safe state on communication loss.
• Read diagnostic registers via Modbus function 08.
• Self-test mode verifies both SUB-D ports and internal logic.
• Error counter for CRC, framing, and overrun errors.

Frequently Asked Questions (FAQ)

• Q1: Can I use this adapter in a line (daisy‑chain) topology instead of ring?
• A1: No. The 170INT11003C is optimized for ring topology. For daisy‑chain, use other Momentum adapters.
• Q2: What happens if one device fails in the ring?
• A2: The fail-safe feature isolates the faulty node. The rest of the ring continues working.
• Q3: Maximum number of adapters in one ring?
• A3: Up to 254 adapters per segment. For larger networks, add repeaters or split into sub‑rings.
• Q4: Does cable type affect maximum distance?
• A4: Yes. Use low-capacitance shielded cable (≤ 40 pF/m) to achieve 12.8 km.
• Q5: Can I mix 170INT11003C with older Momentum adapters?
• A5: Yes, as long as all run at 500 kbit/s and use ring topology.

Experience-Based Buying Guide & Selection Tips

• Choose 170INT11003C for long-distance ring networks (over 2 km).
• For shorter runs with fewer devices, a cheaper daisy‑chain adapter may suffice.
• Verify your PLC supports 500 kbit/s ring communication (Modicon Momentum or Quantum).
• Buy extra SUB-D cables with proper shielding – generic cables reduce distance.
• Use a ring supervisor tool to monitor network health proactively.
• If you need more than 254 devices, install a second ring with a bridge.
• Keep spare adapters in stock – ring networks benefit from quick replacement.
