Schneider 170XCP10000 Cable Coding Kit | Momentum I/O Base Labeling

Description

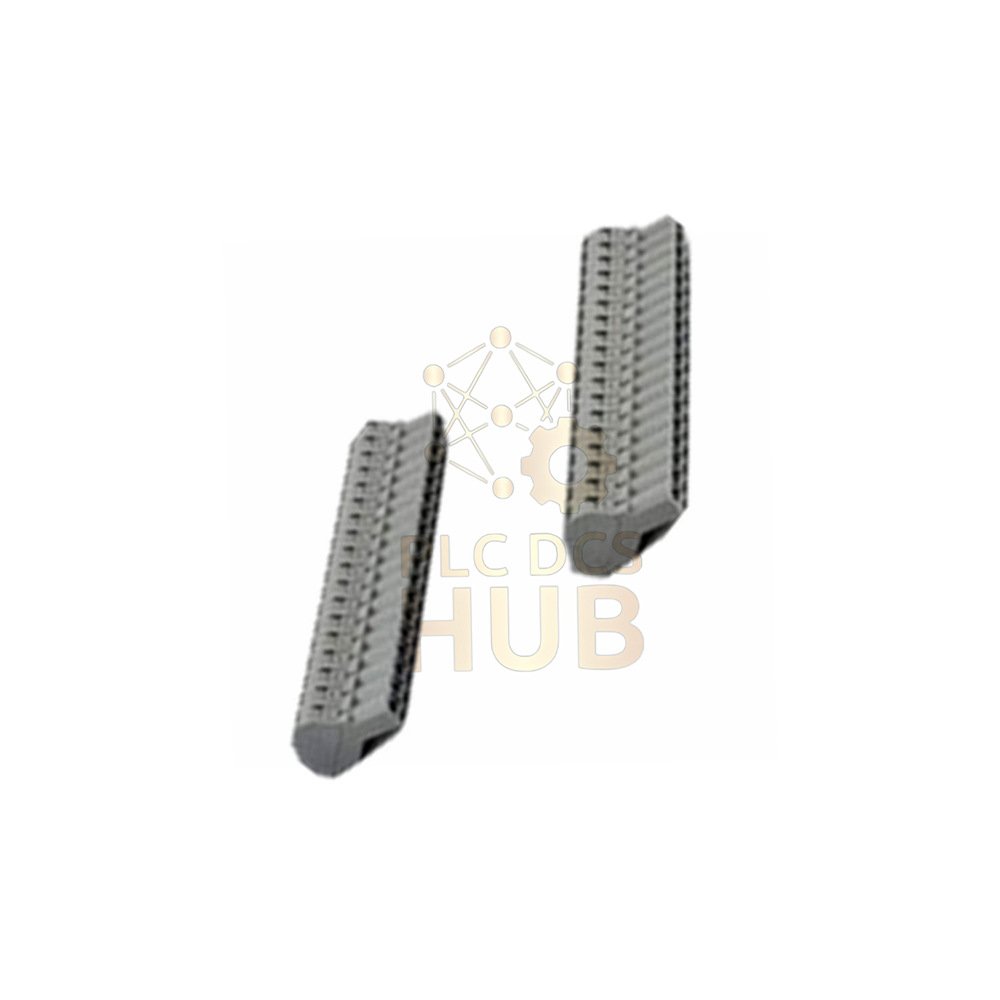

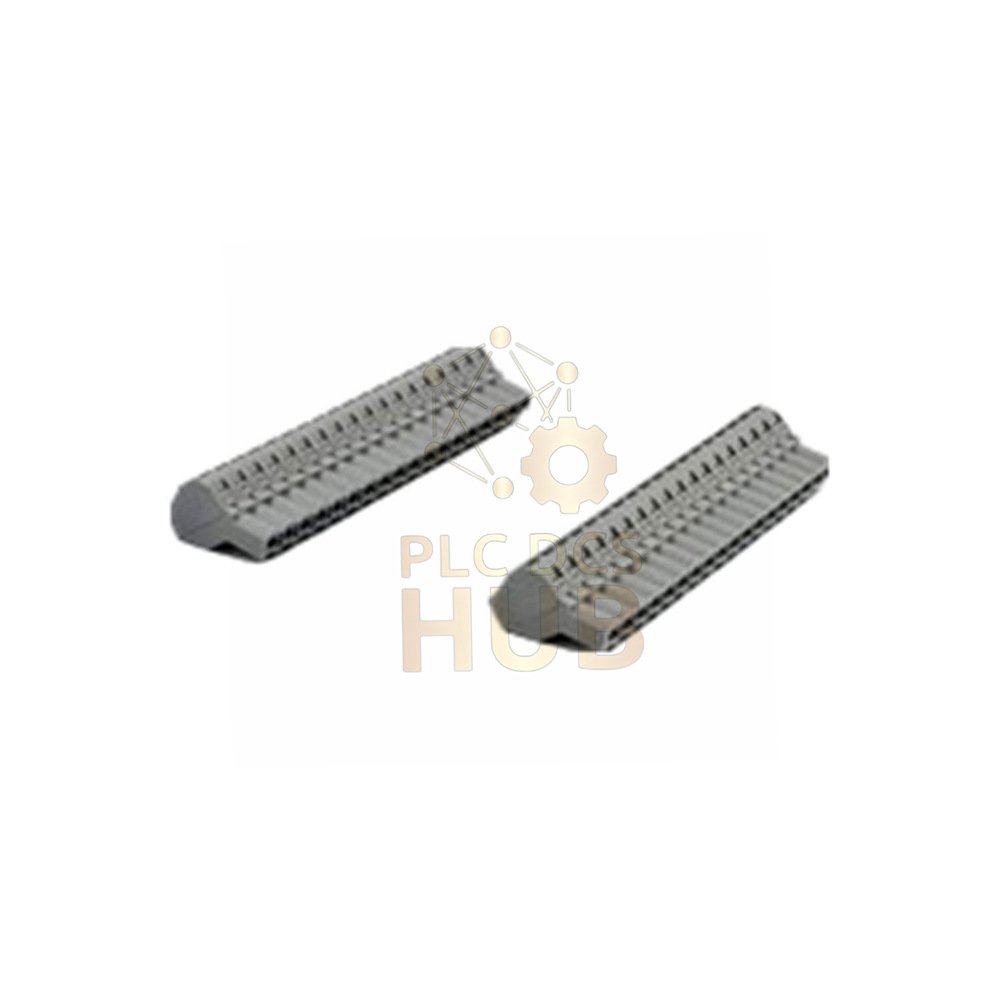

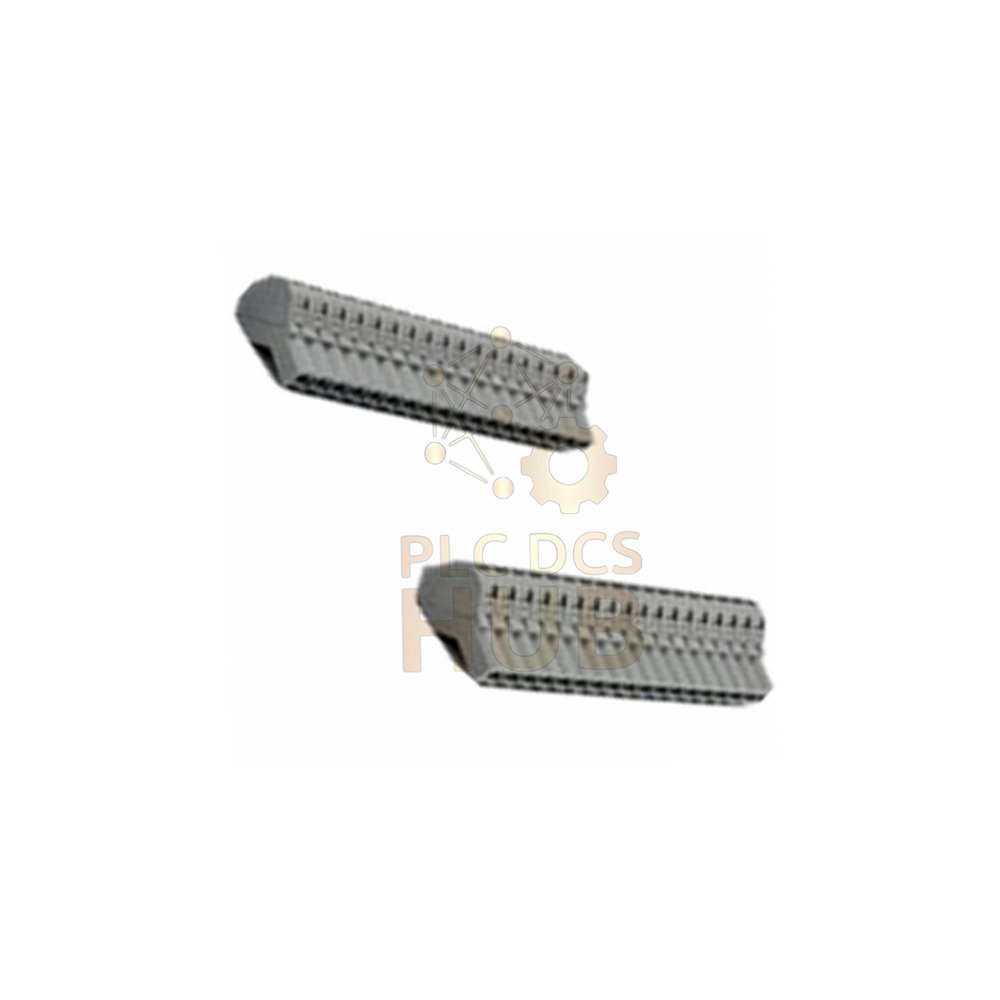

Schneider Electric 170XCP10000 – Cable Coding Kit for Modicon Momentum I/O Bases

The Schneider Electric 170XCP10000 is a cable coding kit. It belongs to the Modicon Momentum series. Use this kit to label and organize I/O base cables. Consequently, it simplifies maintenance and troubleshooting in control cabinets.

Why Choose This Cable Coding Kit

• Perfect for Momentum I/O bases: Designed specifically for this popular PLC family.
• Compact and lightweight: Weighs only 53 grams (1.87 oz).
• Wide environmental tolerance: Works from 0°C to 60°C with 95% humidity.
• CE certified: Meets European safety and performance standards.
• Natural cooling: No fan or external cooling required.

Technical Data (MECE Hierarchical View)

 Brand & Product Identity
• Manufacturer: Schneider Electric
• Product Line: Modicon Momentum
• Part Number: 170XCP10000
• Product Type: Cable Coding Kit for I/O Bases

Physical Dimensions & Weight
• Height: 1.18 inches (30 mm)
• Width: 4.33 inches (110 mm)
• Length: 9.84 inches (250 mm)
• Net Weight: 53 grams (0.053 kg)

 Environmental Specifications
• Min Ambient Temperature: 0°C (32°F)
• Max Ambient Temperature: 60°C (140°F)
• Max Operating Humidity: 95% non-condensing
• Max Storage Humidity: 95% non-condensing
• Max Operating Altitude: 1000 meters above sea level

 Cooling & Compliance
• Cooling Method: Natural (convection)
• Standard Compliance: CE certified

Installation & Compatibility Notes

• Mount the coding clips directly onto your Momentum I/O base cables.
• For best results, clean the cable surface before attaching labels.
• Use this kit exclusively with Modicon Momentum I/O bases.
• Additionally, it supports Modicon Quantum systems when using Momentum adapters.
• No special tools or software needed – simply attach and label.

Typical Applications & Use Cases

• Labeling field wiring for large Momentum I/O panels.
• Organizing cables in crowded control cabinets.
• Reducing downtime during maintenance with clear identification.
• Standardizing cable marking across multiple Momentum racks.
• Improving safety by preventing misconnection of I/O wires.

Diagnostic & Maintenance Benefits

• Clear coding helps technicians find correct wires quickly.
• Reduces human error during module replacement.
• No electronic diagnostics needed – purely mechanical identification.
• Maintains readability even in dusty or humid environments (up to 95% RH).
• Coding stays intact across the full 0°C to +60°C range.

Packaging, Warranty & Shipping

• Package includes: One Schneider 170XCP10000 cable coding kit with full set of labels and clips.
• Warranty: 12 months against manufacturing defects from invoice date.
• Shipping carriers: FedEx, UPS, DHL for fast worldwide delivery.
• Typical delivery: 2 to 5 business days for stocked items.
• Each kit ships in a sealed anti-static bag inside a protective carton.

Selection & Purchasing Guide (Expert Advice)

• Order one 170XCP10000 kit per standard Momentum I/O base.
• For large projects with many racks, buy multiple kits to maintain consistent coding.
• Compare with generic label makers – this kit provides pre-sized coding specific to Momentum cables.
• Keep a spare kit in your maintenance stock to avoid delays during emergency repairs.
• Ask about bundle pricing when purchasing 5 or more kits for system integrators.

Frequently Asked Questions (Professional & Practical)

• Q: Does the 170XCP10000 work with any I/O base other than Momentum?
  A: No, this kit is specifically designed for Modicon Momentum I/O bases only. For Quantum bases, use a different coding solution.
• Q: Can I use this kit outdoors or in wet areas?
  A: The kit tolerates 95% humidity but avoid direct water contact. Keep it inside a control cabinet with at least IP20 protection.
• Q: How long do the labels last under high temperature (60°C)?
  A: The coding material remains legible for years at 60°C. However, avoid direct sunlight or chemical exposure.
• Q: Is the 170XCP10000 compatible with Modicon Quantum via an adapter?
  A: Yes, when using a Modicon Quantum to Momentum adapter, this kit can code the connecting cables.
• Q: Does the CE certification matter for my installation?
  A: CE compliance means the kit meets EU safety and environmental standards. This is often required for machines exported to Europe.
• Q: What is the altitude limit for this coding kit?
  A: The 170XCP10000 works up to 1000 meters (3,280 feet) without performance loss. Above that, air cooling becomes less effective.
• Q: Do I need special training to install this kit?
  A: No, any electrician can attach the coding clips. No software or configuration is needed.

Compliance & Safety Reminder

• CE certification confirms RoHS and low voltage directive compliance.
• Natural cooling means no moving parts – zero maintenance for the kit itself.
• Store the kit in a dry place when not in use (max 95% RH non-condensing).
• Do not exceed 60°C ambient temperature to prevent label adhesive failure.

Note: The 170XCP10000 is a passive mechanical coding kit. It does not require power, configuration, or software. Simply attach and label.
