Schneider 170ADM35010C Discrete I/O | 16 Inputs 16 Outputs

Description

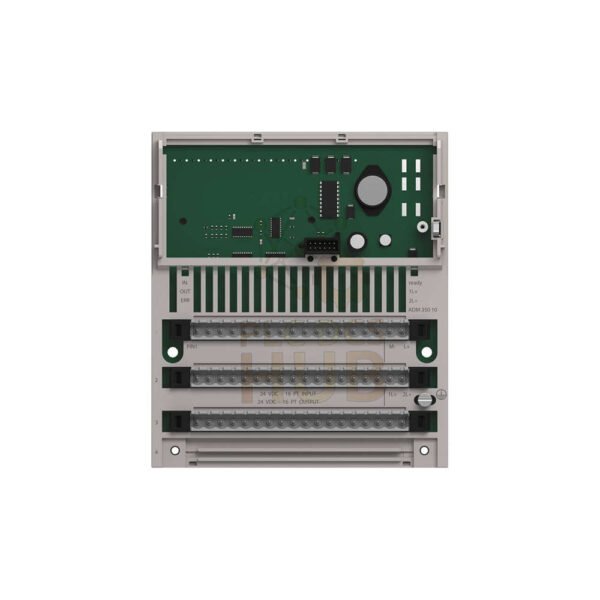

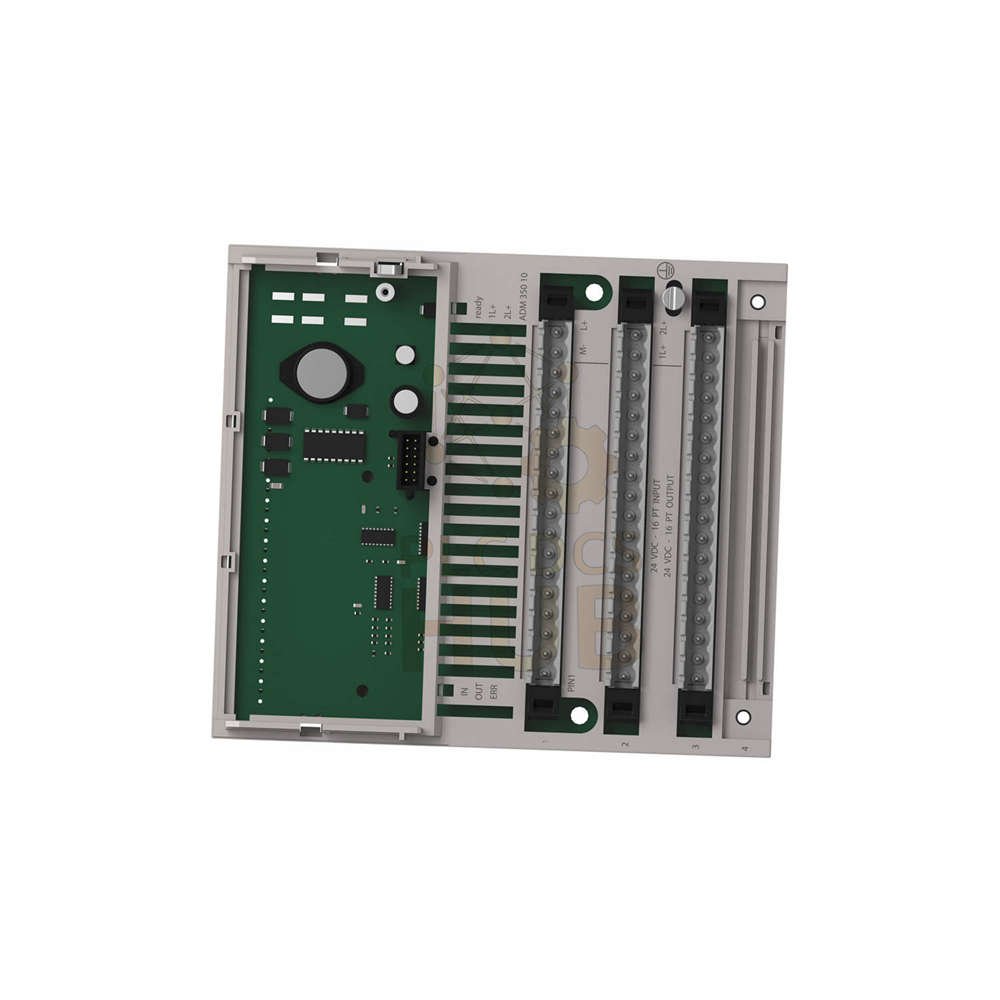

Schneider Electric 170ADM35010C – Discrete I/O Module for Modicon Momentum Series

The Schneider Electric 170ADM35010C is a discrete I/O module. It belongs to the Modicon Momentum product line. This unit provides 16 digital inputs and 16 digital outputs. Consequently, it handles many field devices like sensors, switches, relays, and indicators. The module operates at 24V DC input voltage.

Key Features & Benefits

• High density: 16 inputs + 16 outputs in one compact module.
• Wide temperature range: Works from -40°C to +70°C for harsh environments.
• Conformal coating: Humiseal 1A33 protects against moisture and dust.
• Solid state outputs: Reliable switching with 0.5A per channel.
• Global certifications: CE marked for European and international use.

Technical Data (Hierarchical View)

 Brand & Series
• Manufacturer: Schneider Electric
• Product Line: Modicon Momentum
• Part Number: 170ADM35010C
• EAN: 3595863798319
• Product Type: Discrete I/O Module

Input Specifications (16 Channels)
• Input Voltage: 24V DC
• Input Resistance: 4 kΩ
• Input Logic: Positive (sourcing)
• Network Frequency Range: 47-63 Hz

 Output Specifications (16 Channels)
• Output Type: Solid State Switch
• Output Voltage: ≤ 30V DC
• Current Rating per Channel: 0.5A
• Output Logic: Positive (sourcing)

 Environmental & Physical Protection
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Maximum Operating Humidity: 80% RH (non-condensing)
• Maximum Storage Humidity: 80% RH (non-condensing)
• Protective Treatment: Humiseal 1A33 Conformal Coating
• Coating protects against moisture, dust, and chemical contaminants.

◆ Certifications & Compliance
• CE certified for European market.
• Meets RoHS requirements.
• Designed for industrial control panels.

Installation & Compatibility

• Mount the 170ADM35010C on a Momentum backplane or I/O adapter.
• Use standard 24V DC power supply for the module and field devices.
• This module works with all Momentum communication adapters (Ethernet, Modbus, etc.).
• Furthermore, it integrates with Modicon Quantum PLCs via the appropriate Momentum adapter.
• Positive logic means the input turns ON when voltage is applied to the terminal.

Typical Applications

• Factory automation lines with many discrete sensors and actuators.
• Packaging machines requiring 24V DC I/O control.
• HVAC systems with distributed I/O points.
• Material handling conveyors and sortation systems.
• Outdoor or unheated facilities where temperature drops below freezing.

Diagnostic Capabilities & Maintenance

• Check LED status indicators on the module front for each I/O point.
• Use PLC software to read input states and force outputs for testing.
• A common issue: blown output due to overcurrent. Therefore, use external fuses.
• The solid state outputs have no moving parts, so they last longer than relays.
• Conformal coating reduces failure risk from humidity. Consequently, maintenance intervals can be longer.

Packaging, Warranty & Shipping

• Package includes: One Schneider 170ADM35010C module, user manual, and terminal block (if ordered separately).
• Warranty: 12 months against manufacturing defects from invoice date.
• Shipping carriers: FedEx, UPS, DHL for fast worldwide delivery.
• Typical transit time: 2 to 5 business days for stocked items.
• Each unit ships in anti-static packaging with bubble wrap protection.

Selection & Purchasing Guide (Expert Advice)

• Choose the 170ADM35010C when you need 16 inputs AND 16 outputs in one slot.
• For more outputs, consider adding a separate output module like 170ADO35000.
• If your environment has no extreme cold or moisture, the non-coated version 170ADM35010 may suffice.
• Always verify your backplane power budget: this module draws current from 5V and 24V rails.
• Order a spare for critical production lines to avoid extended downtime.
• Ask for bulk pricing when purchasing 5 or more modules.

Frequently Asked Questions (Professional & Practical)

• Q: What is the difference between 170ADM35010 and 170ADM35010C?
  A: The “C” suffix means conformal coating (Humiseal 1A33). It adds protection against humidity and dust. Use the coated version for harsh or outdoor environments.
• Q: Can this module sink or source current?
  A: The 170ADM35010C uses positive logic. Therefore, inputs and outputs are sourcing (supply voltage to the load).
• Q: What happens if I apply 30V DC to an input?
  A: The input is rated for 24V nominal. Sustained 30V may damage the input circuit. Use a voltage regulator or proper power supply.
• Q: Is this module hot-swappable?
  A: No. Always power down the Momentum rack before removing or inserting the 170ADM35010C. Otherwise, you risk damaging the backplane.
• Q: How do I wire the outputs to a small solenoid?
  A: Connect the solenoid positive wire to the output terminal. Connect the solenoid negative wire to 0V common. Each output handles up to 0.5A at ≤30V DC.
• Q: Does this module work with Modicon Quantum PLCs?
  A: Yes. Use a Momentum adapter like 170ENT11000 or 170BNP67100. Then connect to Modicon Quantum via the appropriate network (Ethernet or Modbus Plus).
• Q: What is the typical input current at 24V?
  A: Input current = voltage / resistance = 24V / 4kΩ = 6mA per channel. This is well within most sensor drive capabilities.

Compliance & Safety Reminder

• The module has no IP rating. Install it inside a control cabinet (minimum IP20).
• Do not exceed 0.5A per output channel. Otherwise, the solid state switch may fail.
• Use external fast-blow fuses (0.5A) on each output for protection against shorts.
• Follow local electrical codes when wiring 24V DC circuits.
• This product is CE marked and RoHS compliant for industrial use only.

Note: The 170ADM35010C replaces older 170ADM35010 modules with improved conformal coating. For new designs, always choose the “C” version for better environmental protection.
