Schneider 170BSM01600 Input Simulator | Momentum 16-Channel

Description

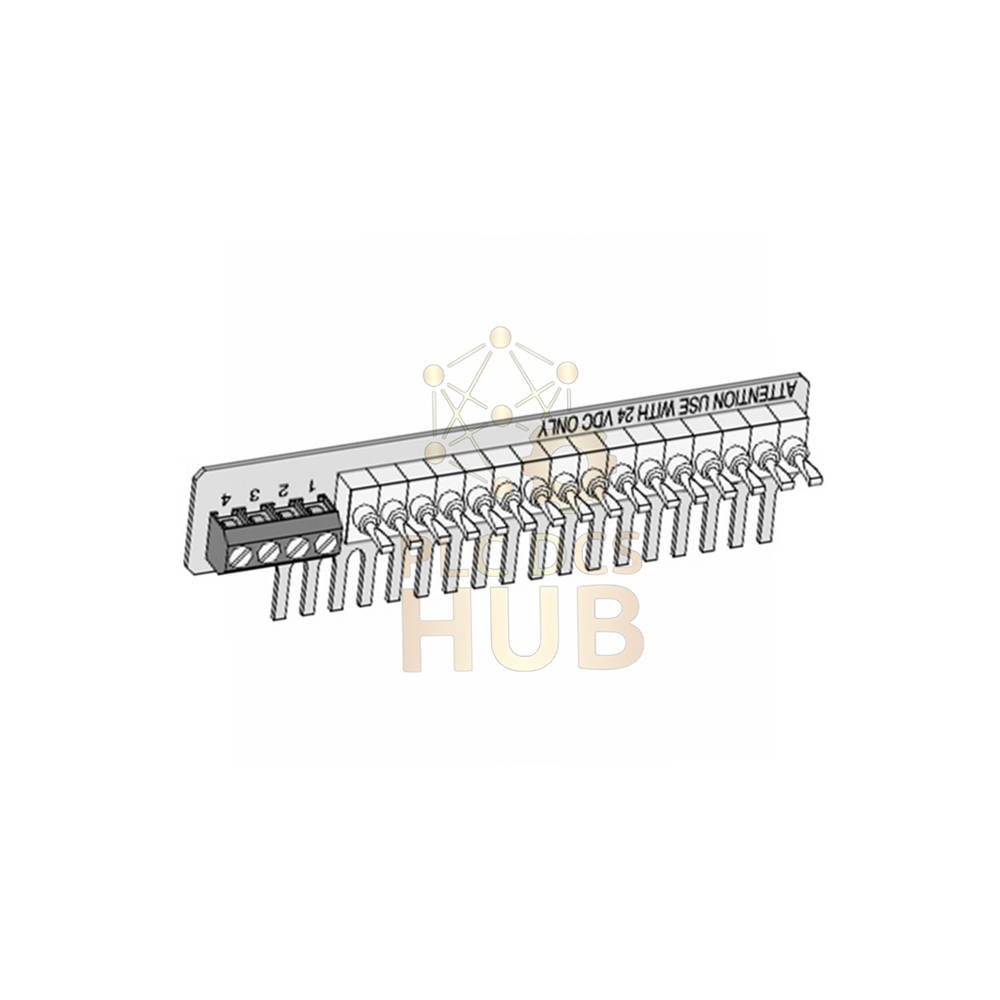

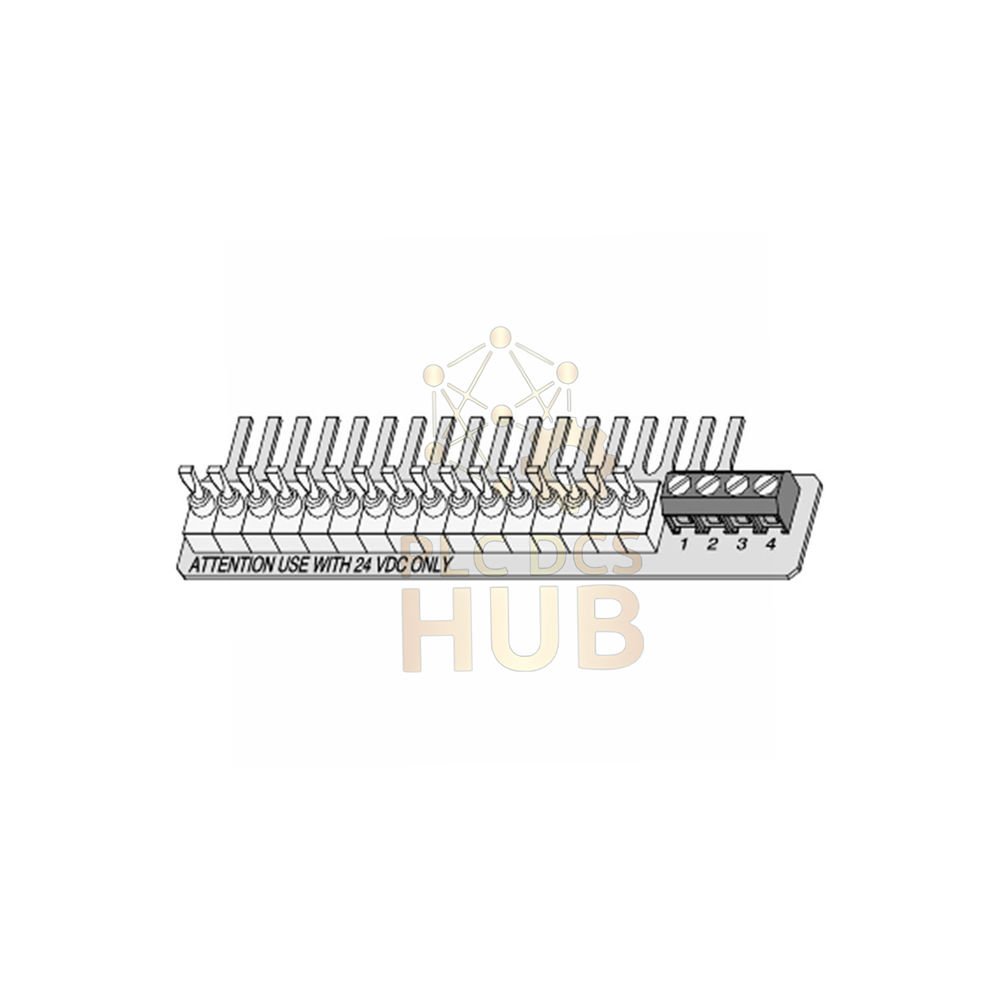

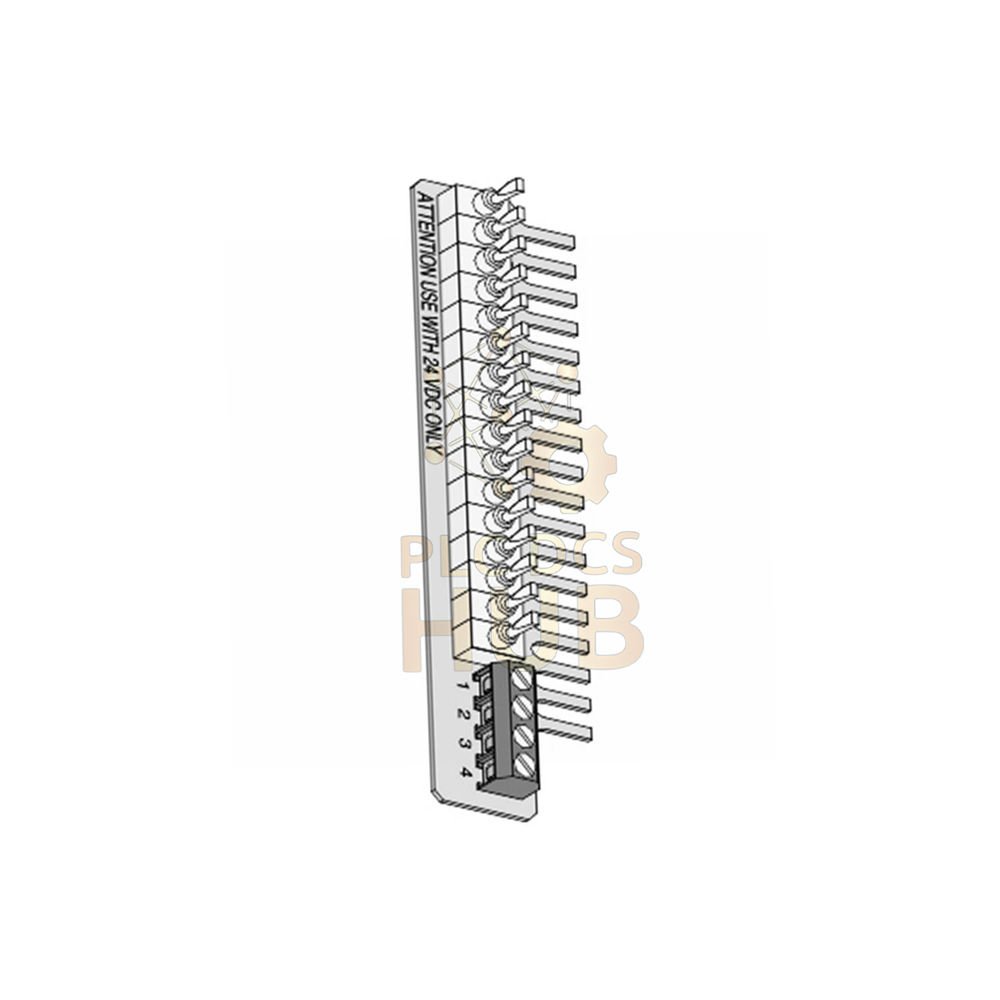

Schneider Electric 170BSM01600 – 16-Channel Discrete Input Simulator for Modicon Momentum

The Schneider Electric 170BSM01600 is a discrete input simulator. It belongs to the Modicon Momentum automation platform. This device provides 16 channels at 24 VDC. Use it to test discrete I/O bases without live field devices. Consequently, it saves time during commissioning and troubleshooting.

Why Choose This Input Simulator

• 16 discrete input channels: Simulate up to 16 field signals at once.
• Clear visual feedback: Seven LED indicators show status at a glance.
• Wide temperature range: Operates from -20°C to 55°C for harsh environments.
• Easy DIN rail mounting: Installs quickly in any control cabinet.
• High humidity tolerance: Handles 95% RH (non-condensing) without issues.

Technical Data (MECE Hierarchical Classification)

◆ Brand & Product Identity
• Manufacturer: Schneider Electric
• Product Line: Modicon Momentum
• Part Number: 170BSM01600
• Product Type: Discrete Input Simulator
• Accessory Destination: Discrete I/O Base

◆ Input Specifications
• Number of Channels: 16
• Input Type: Discrete (digital)
• Discrete Input Voltage: 24 VDC
• Voltage Type: DC

 Indicators & User Interface
• Total LED Indicators: 7
• Local Signaling: Provides immediate visual feedback for each channel group

 Environmental & Operating Conditions
• Min. Operating Temp: -20°C (-4°F)
• Max. Operating Temp: 55°C (131°F)
• Min. Storage Temp: -40°C (-40°F)
• Max. Storage Temp: 75°C (167°F)
• Relative Humidity: 95% or less (non-condensing)
• Environment Restriction: No corrosive gases – avoid chemical exposure

 Mechanical & Mounting
• Mounting Type: DIN rail mounting
• Weight: 0.45 kg (1 lb)
• Single package weight: 168 g (5.9 oz)
• Package dimensions: 21.0 x 15.5 x 5.0 cm (8.3 x 6.1 x 2.0 in)

 Logistics & Compliance
• GTIN: 3389110116601
• Country of Origin: Germany (DE)
• Discount Schedule: PC31
• Returnability: No (non-returnable item)
• Category: 18206-MOMENTUM PROCESSORS, I/O BASES, CONN.

Installation & Compatibility Guide

• Mount the 170BSM01600 on a standard DIN rail inside a clean cabinet.
• Connect it directly to a Momentum discrete I/O base for testing.
• Use 24 VDC supply from the same backplane or an external source.
• This simulator works with all Momentum I/O bases that accept 24 VDC discrete inputs.
• For larger systems, combine it with Modicon Quantum controllers via an adapter.

Typical Applications & Use Cases

• Testing discrete input channels before connecting field devices.
• Simulating sensor signals during PLC program debugging.
• Training maintenance staff on Momentum I/O systems safely.
• Validating control logic in factory acceptance tests (FAT).
• Replacing physical pushbuttons and switches in simulation panels.

Diagnostic Capabilities & Troubleshooting

• The seven LED indicators show which input groups are active.
• If an LED fails to light, check the 24 VDC supply to the simulator.
• No response on any channel? Verify the connection to the I/O base.
• Intermittent behavior often means a loose DIN rail or oxidized contacts.
• Use a multimeter to confirm the simulator outputs the correct 24 VDC signal.

Packaging, Warranty & Shipping

• Package includes: One Schneider 170BSM01600 input simulator, quick start guide, and warranty leaflet.
• Warranty: 12 months against manufacturing defects from invoice date.
• Shipping carriers: FedEx, UPS, DHL for fast worldwide delivery.
• Typical transit: 2 to 5 business days for stocked units.
• Each simulator ships in anti-static packaging inside a labeled carton.

Selection & Purchasing Guide (Expert Advice)

• Choose the 170BSM01600 when you need to test 16 discrete inputs at once.
• For smaller tests (8 channels), consider the 170BSM00800 model instead.
• Avoid using this simulator in areas with corrosive gases like chlorine or ammonia.
• Order a spare unit for critical production lines to minimize downtime.
• Ask about bulk discounts when purchasing 5 or more simulators for training labs.
• Check that your Momentum base uses 24 VDC input – not 120 VAC or other voltages.

Frequently Asked Questions (Professional & Practical)

• Q: What exactly does the 170BSM01600 simulate?
  A: It simulates 16 discrete (on/off) field devices like pushbuttons or limit switches. Each channel provides a clean 24 VDC signal to the I/O base.
• Q: Can I use this simulator with Modicon Quantum PLCs?
  A: Yes, but you need a Momentum to Quantum adapter. The simulator itself connects only to Momentum I/O bases.
• Q: Why are there only 7 LEDs for 16 channels?
  A: Each LED represents a group of channels (e.g., 2 or 3 channels per LED). This design saves space while still providing useful status feedback.
• Q: What happens if I accidentally apply 230VAC to the simulator?
  A: Permanent damage will occur. This device accepts only 24 VDC. Always double-check your voltage source.
• Q: Does this simulator work during a PLC program’s online debug?
  A: Absolutely. Use it to force inputs while monitoring logic in real time. It behaves exactly like real field devices.
• Q: What is the typical lifespan of the 170BSM01600?
  A: With proper use (no corrosive gases, correct voltage), it lasts over 10 years. LEDs may dim after 50,000 hours of continuous operation.
• Q: Can I daisy-chain two simulators for 32 inputs?
  A: Yes, as long as your Momentum backplane supports multiple I/O modules. Each simulator occupies one physical slot.

Compliance & Safety Reminder

• Do not use in environments with corrosive gases – this voids the warranty.
• Keep relative humidity below 95% and avoid condensation.
• Disconnect power before installing or removing the simulator.
• The device meets RoHS standards and German (DE) manufacturing quality.

Note: The 170BSM01600 is a test tool, not a standard I/O module. It does not receive data from field sensors. Instead, it sends simulated signals to the PLC. Therefore, remove it after testing and replace with real I/O modules for normal operation.
