Schneider 171CCC96020C Processor | Modicon Momentum

Description

📦 Product at a Glance

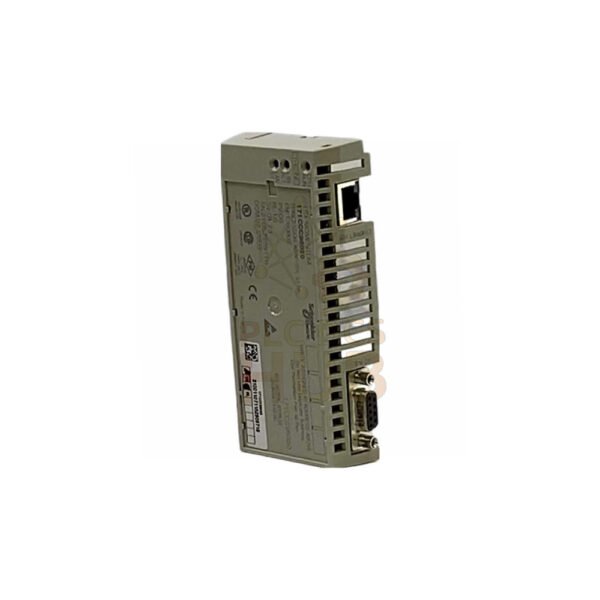

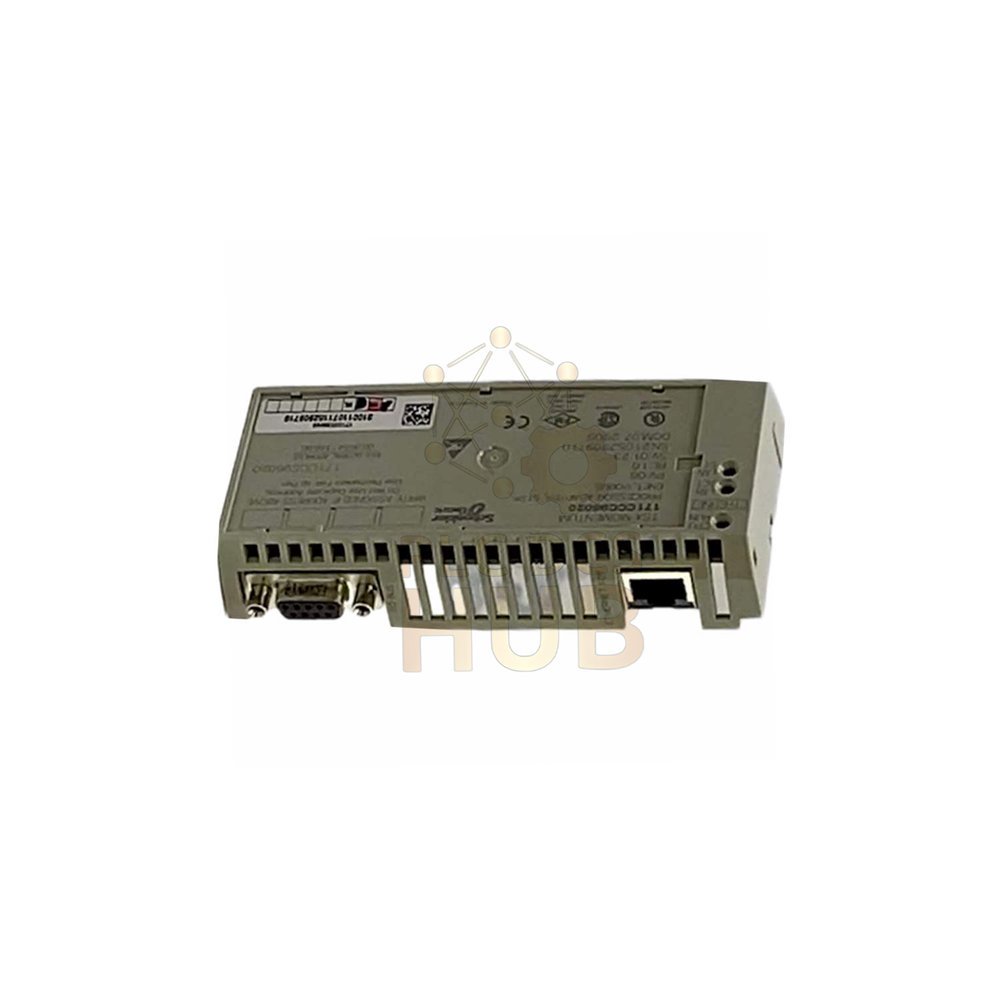

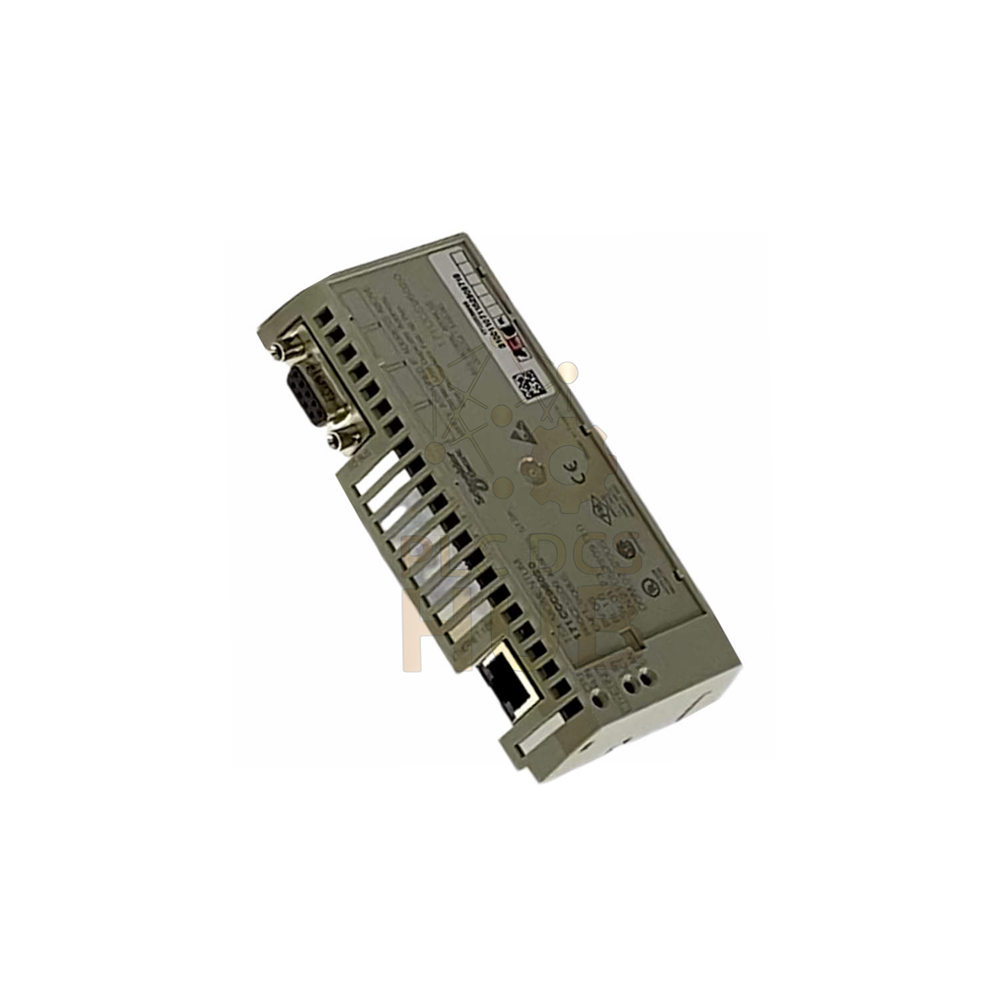

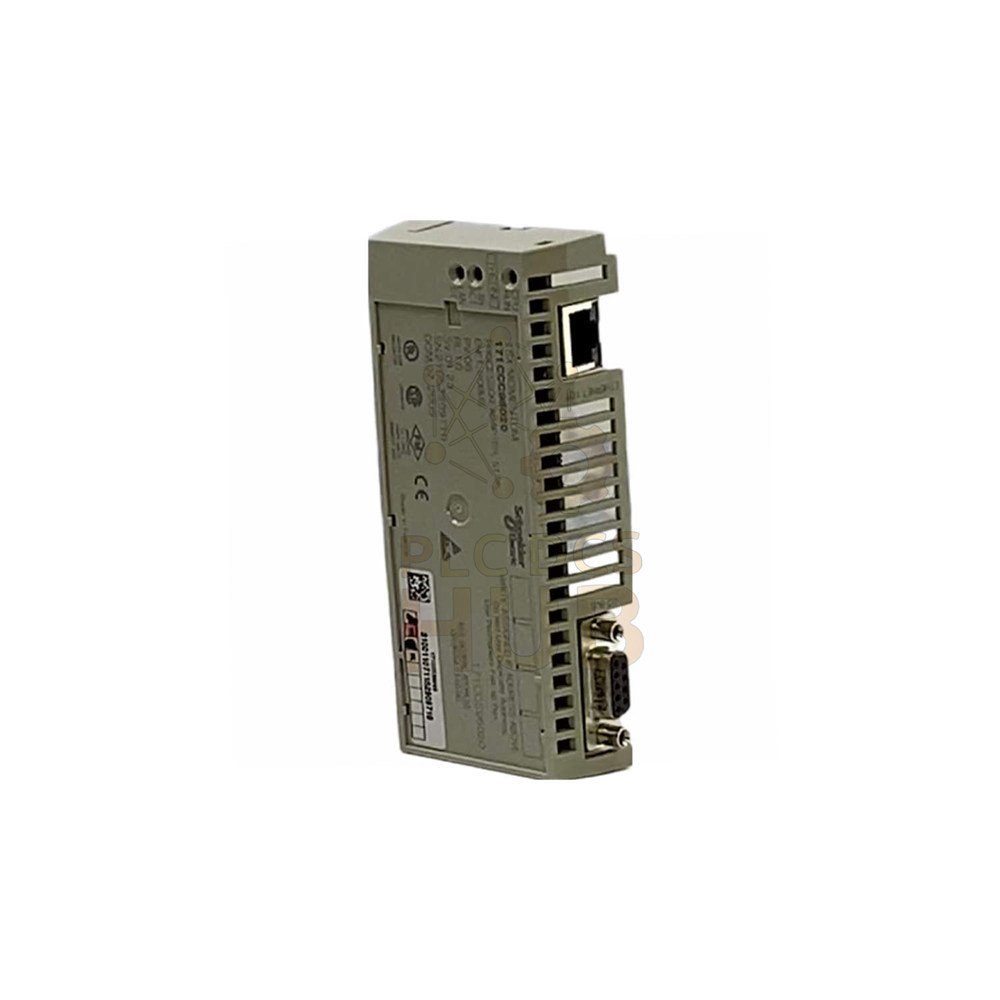

• The Schneider Electric 171CCC96020C is a processor adaptor for the Modicon Momentum series.
• It mounts directly onto a Momentum I/O base.
• Runs on a 50 MHz x86 CPU – fast and reliable.
• Has 512 KB Flash and 544 KB RAM memory.
• Includes 1 Ethernet port (Modbus TCP) and 1 I/O bus.
• Works from 0°C to 60°C with a protective coating.

📊 Technical Data – Tree Structure

• Manufacturer: Schneider Electric
  • Product Line: Modicon Momentum
  • Type: Processor Adaptor
  • Part Number: 171CCC96020C
• Processor & Memory:
  • CPU architecture: x86-based, 50 MHz
  • Word length: 16-bit
  • Flash memory: 512 KB
  • RAM: 544 KB
  • Program memory (LL984): 18 KB
  • Data memory: 24 KB
• Power Supply:
  • Supply voltage: 5 VDC ±5%
• Communication:
  • Ports: 1 Ethernet, 1 I/O bus
  • Protocols: Ethernet (Modbus TCP, I/O scan)
• I/O Capacity:
  • Discrete inputs: up to 8192
  • Discrete outputs: up to 8192
  • Register inputs: up to 26048
  • Register outputs: up to 26048
• Environmental Protection:
  • Protective coating: Conformal (Humiseal 1A33)
  • Operating temp: 0°C to +60°C
• Mounting:
  • Mounts on: Momentum I/O base

🔌 Installation & Setup Made Simple

• Snap the processor onto a Momentum I/O base.
• Connect 5 VDC power to the base.
• Plug Ethernet cable for Modbus TCP communication.
• Use LL984 programming software to write your logic.
• Green LED shows power and run status.

✅ Compatibility Notes

• Made for Modicon Momentum I/O bases only.
• Works with any Modbus TCP master (HMI, SCADA, other PLCs).
• Also compatible with Modicon Quantum systems via Ethernet – see Modicon Quantum series.
• Replaces older 171CCC96020 models directly.

📦 What’s in the Box

• 1x 171CCC96020C processor adaptor
• Quick start guide
• Protective cap for Ethernet port
• No I/O base included – order separately.

🛡️ Warranty & Fast Shipping

• 12-month warranty against defects.
• Express delivery: FedEx, UPS, DHL worldwide.
• Same‑day dispatch for orders before 2 PM (GMT+8).
• Delivery in 3‑7 business days to most regions.
• Tracking number provided by email.

🏭 Typical Applications

• Small to medium machine control (packaging, labeling).
• Remote I/O handling via Modbus TCP network.
• Data collection from many sensors and actuators.
• Upgrading old Momentum systems with Ethernet.
• Distributed control in water or HVAC systems.

💡 Pro Buying Advice & Experience Tips

• Buy a spare 171CCC96020C for critical machines.
• Check your I/O base – this processor only fits Momentum bases.
• Use shielded Ethernet cable for noisy environments.
• Keep ambient temperature below 60°C – add cabinet cooling if needed.
• The conformal coating helps in humid or dusty areas.
• LL984 is an older language – ensure your team knows it.
• Order from trusted sources to avoid fake units.

❓ 5 Professional FAQs

• Q1: Can I use this processor without an I/O base?
• A1: No. It must mount on a Momentum I/O base to work.
• Q2: What programming software do I need?
• A2: Use Schneider’s ProWORX 32 or Concept LL984 editor.
• Q3: Can I expand I/O beyond 8192 points?
• A3: No. 8192/8192 is the absolute maximum for this processor.
• Q4: Does the Ethernet port support both Modbus TCP and I/O scan?
• A4: Yes. You can use both features simultaneously.
• Q5: What happens if power drops below 5V?
• A5: The processor may reset or behave unpredictably. Use a stable 5V supply.
