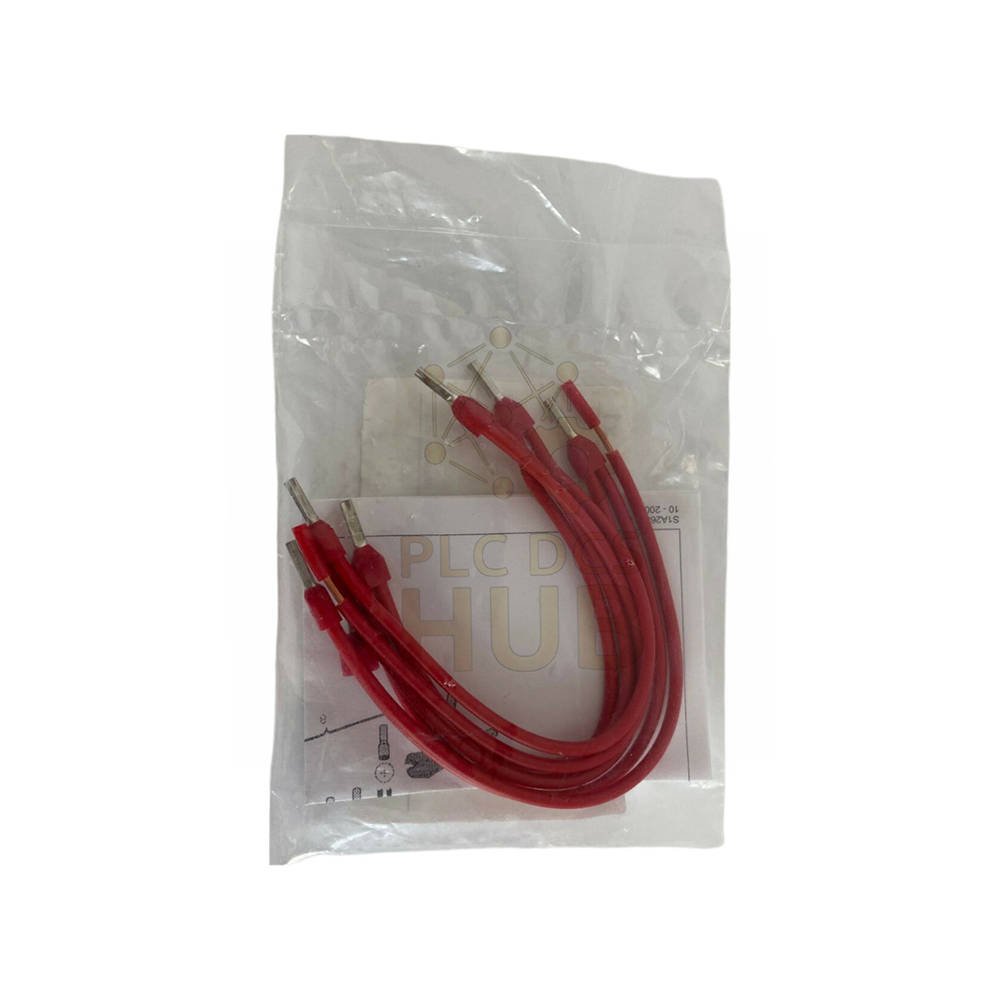

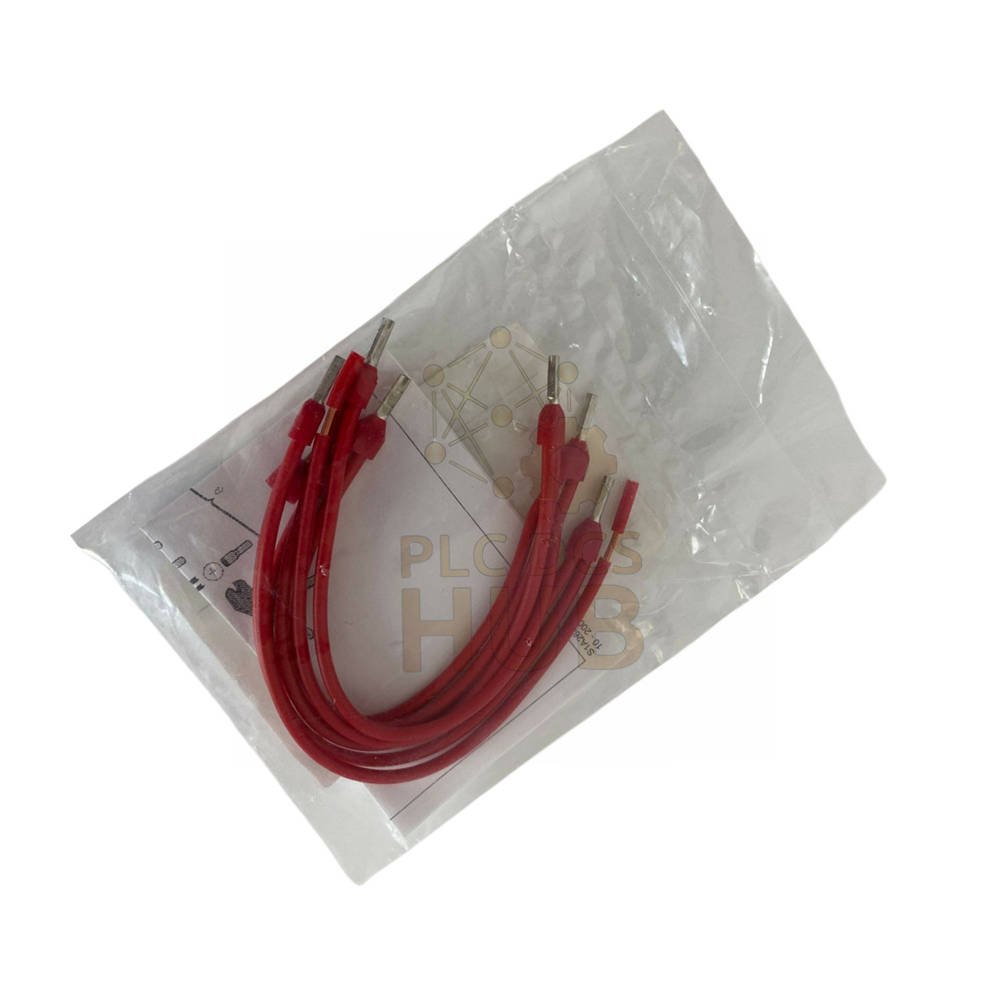

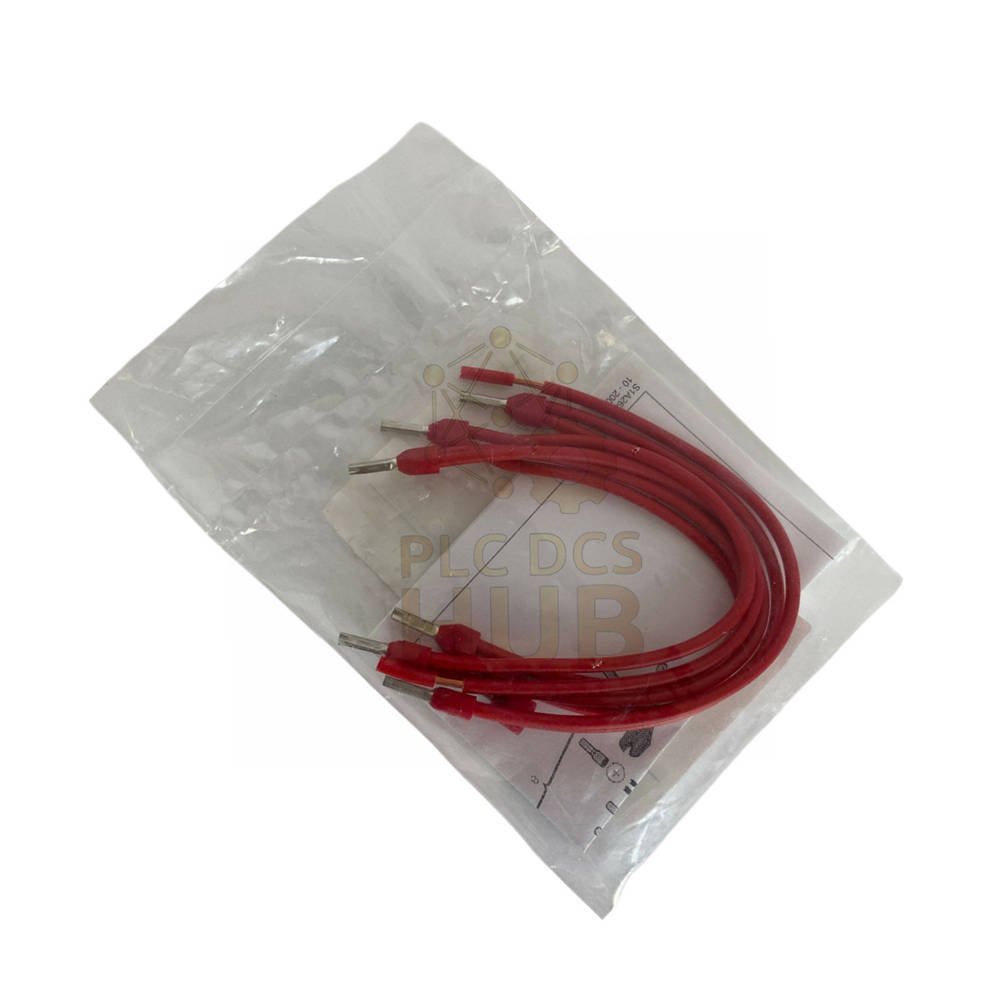

Schneider Electric ABFC08R12R – Commoning Link for Modicon Momentum Series

The Schneider Electric ABFC08R12R is a commoning link. It belongs to the Modicon Momentum product line. This compact link simplifies electrical connections inside automation panels. Its bright red color makes it easy to spot among other components.

Why Choose This Commoning Link

• Compact size: Fits tight spaces (3.15 x 2.76 x 0.31 inches).
• Very lightweight: Only 0.02 kg for easy handling.
• High humidity tolerance: Works at 95% non-condensing RH.
• Wide temperature range: Operates from 0°C to 60°C.
• CE certified: Meets European safety and quality standards.

Technical Data (Hierarchical View)

 Brand & Series
• Manufacturer: Schneider Electric
• Product Line: Modicon Momentum
• Part Number: ABFC08R12R
• EAN: 3389110449273
• Product Type: Commoning link

Physical Dimensions
• Color: Red (high visibility)
• Height: 0.31 inches (7.9 mm)
• Width: 2.76 inches (70 mm)
• Length: 3.15 inches (80 mm)
• Net Weight: 0.02 kg (20 grams)

 Environmental Ratings
• Minimum Ambient Temperature: 0°C (32°F)
• Maximum Ambient Temperature: 60°C (140°F)
• Max Operating Humidity: 95% (non-condensing)
• Max Storage Humidity: 95% (non-condensing)
• Max Altitude: 1000 meters above sea level
• Standard Compliance: CE

Installation & Compatibility Notes

• Mount the ABFC08R12R directly onto terminal blocks or I/O modules.
• Use it to create common potential groups (e.g., 0V or 24V) across multiple points.
• This link works with all Modicon Momentum I/O modules and terminal bases.
• Additionally, it is compatible with Modicon Quantum systems using appropriate adapters.
• Keep the link away from high vibration areas. Otherwise, secure it with additional clips.

Typical Applications & Use Cases

• Connecting common 24V DC power to multiple input channels on a Momentum module.
• Linking 0V references across several analog input cards for shared ground.
• Creating bridge circuits between adjacent terminal block sections.
• Simplifying wiring for groups of sensors that share a return line.
• Replacing loose jumper wires for a cleaner, more professional panel layout.

Diagnostic & Maintenance Tips

• Visually check the red link for cracks or discoloration. Heat damage may indicate overcurrent.
• Measure continuity between all connected points. A good link shows near zero ohms.
• If a connection fails, the link itself is rarely the cause. First, check terminal tightness.
• Keep the link dry. Although it tolerates 95% humidity, direct condensation causes corrosion.
• No special tools needed for removal. Simply pull it off or use a small screwdriver to lift.

Packaging, Warranty & Shipping

• Package includes: One Schneider ABFC08R12R commoning link, product data sheet.
• Warranty: 12 months against manufacturing defects from invoice date.
• Shipping carriers: FedEx, UPS, DHL for fast global delivery. Typical transit: 2 to 5 business days.
• Each link ships in a small anti-static bag inside a padded envelope.

Selection & Purchasing Guide (Expert Advice)

• Choose the ABFC08R12R when you need 8 common connection points (8-way link).
• For smaller groups (2, 4, or 6 points), look for other ABFC variants like ABFC04R12R.
• Always match the link length to the terminal block width. This 3.15-inch version fits standard Momentum blocks.
• Order a spare ABFC08R12R for each panel. They are cheap and useful for future modifications.
• Ask about bulk discount when buying 20 or more links for large projects.

Frequently Asked Questions (Professional & Practical)

• Q: What is the current rating of the ABFC08R12R?
  A: Schneider does not specify a single current rating. As a copper busbar, it easily handles typical I/O currents up to 10A. For higher loads, use thicker wire instead.
• Q: Can I cut the ABFC08R12R to make shorter links?
  A: Yes, but you will lose the factory insulation. If you cut it, cover the exposed metal with heat shrink tubing.
• Q: Is this link reusable after removal?
  A: Absolutely. The ABFC08R12R has no moving parts. You can reuse it many times unless bent or damaged.
• Q: Does the ABFC08R12R work with Modicon Quantum I/O modules?
  A: No, Quantum uses different terminal blocks. This link only fits Momentum. However, Modicon Quantum systems have their own commoning links (e.g., ABE7 or ABR7 series).
• Q: Why is the link red? Does color affect performance?
  A: No performance difference. The ABFC08R12R uses red color for easy visual identification. This helps technicians quickly find common connections.
• Q: Can I use this link outdoors?
  A: Only inside a protected enclosure. The temperature range (0-60°C) and humidity (95%) suit indoor industrial cabinets but not direct weather exposure.
• Q: What is the pitch (distance between pins) of this link?
  A: The ABFC08R12R matches the standard Momentum terminal block pitch of 5.08mm. It fits all Momentum I/O modules and bases.

Compliance & Safety Reminder

• The ABFC08R12R is CE certified for low voltage equipment (2014/35/EU).
• Do not exceed 60°C ambient temperature. Higher temperatures may degrade insulation.
• Keep the link away from corrosive gases or liquids. The metal surface lacks special coating.
• Install this link only in non-hazardous, dry locations (IP20 minimum).

Note: The ABFC08R12R is a passive copper link. It does not contain electronic components or software. Therefore, no configuration or firmware updates are ever needed.
