Description

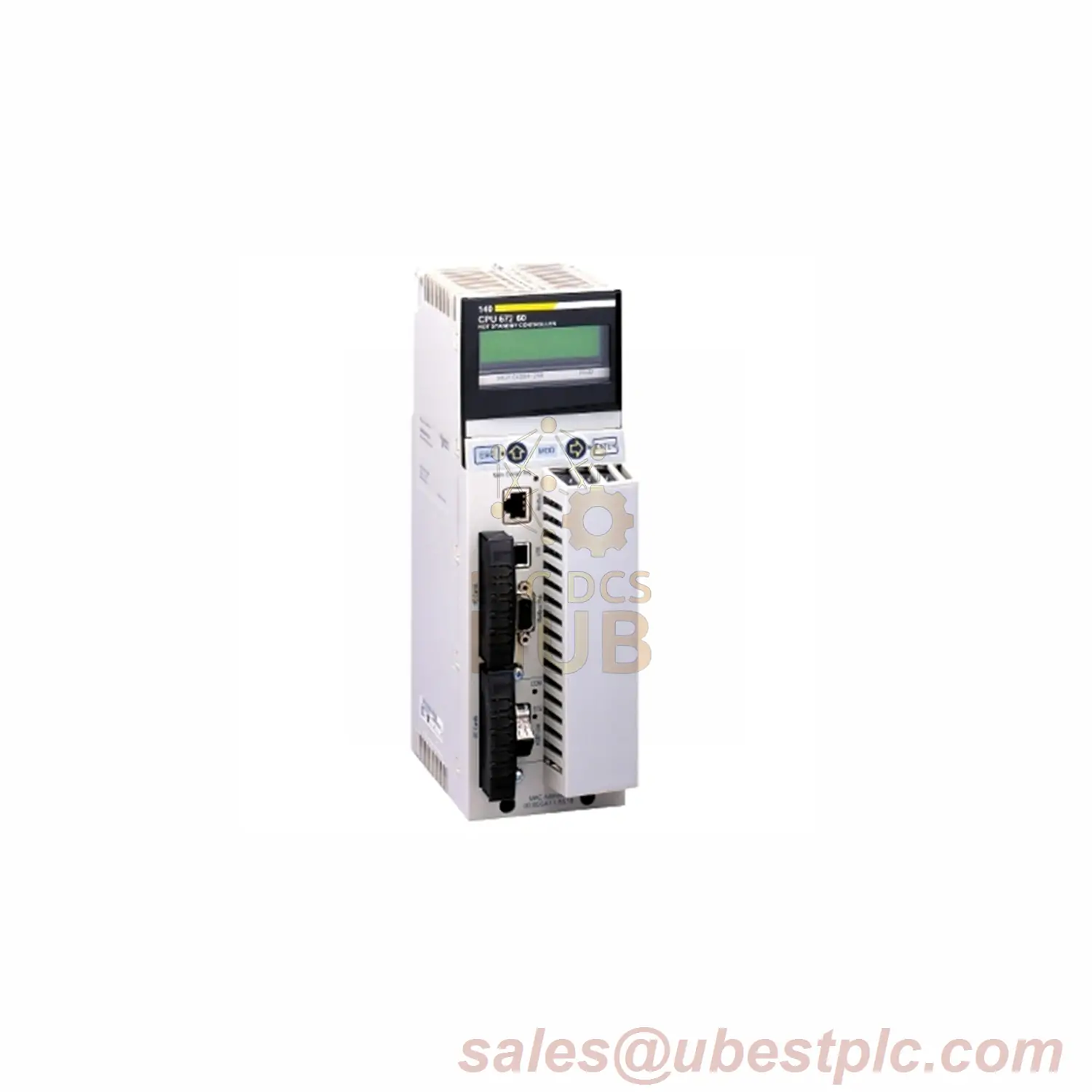

Modicon Quantum Automation Platform – Industrial Control Powerhouse
High-performance automation solution for complex industrial systems. Features multi-protocol support, massive I/O capacity, and hot standby reliability. Perfect for critical control applications.
???? Technical Specifications
| Brand | Schneider Electric |
| Model | Quantum Unity Processor |
| Series | Modicon Quantum |
| Clock Frequency | 266 MHz |
| Bus Current | 2760 mA |
| Max Racks | 2 local + 63 distributed |
| Temperature Range | -20°C to 60°C |
| Certifications | UL, CE, CSA, GOST, HazLoc |
Massive I/O Capacity
- Discrete I/O:
- 31,744 remote inputs/outputs
- 8,000 per Modbus Plus network
- Analog I/O:
- 1,984 remote inputs/outputs
- 500 per Modbus Plus network
Advanced Communication
- Integrated Ports:
- USB, Ethernet TCP/IP
- Modbus Plus, RS232/485
- Fiber optic (4 km range)
- Max Connections:
- 6 Ethernet TCP/IP
- 6 Profibus DP
- 6 Modbus Plus
High-Speed Performance
- 10.28K instructions/ms (Boolean)
- Task Management:
- 128 I/O interrupt tasks
- 32 timer interrupt tasks
- 4 auxiliary tasks
- System overhead: 0.2ms (fast tasks)
Installation Guide
- Mount in Quantum-compatible rack
- Connect via SUB-D9, RJ45, or fiber
- Maintain 5cm clearance for cooling
- Verify 24VDC power stability
Packaging Information
- Unity processor module
- Mounting hardware
- Documentation set
- Dimensions: 33 x 19 x 11 cm
- Weight: 1.446 kg
Global Shipping
FedEx | UPS | DHL – Express delivery worldwide
FAQ
Q: Memory expansion options?
A: Up to 7168 kB program + 8 MB storage via PCMCIA
Q: Redundancy support?
A: Yes – hot standby for continuous operation
Q: Fiber optic capabilities?
A: MT-RJ connector supports 4 km range
