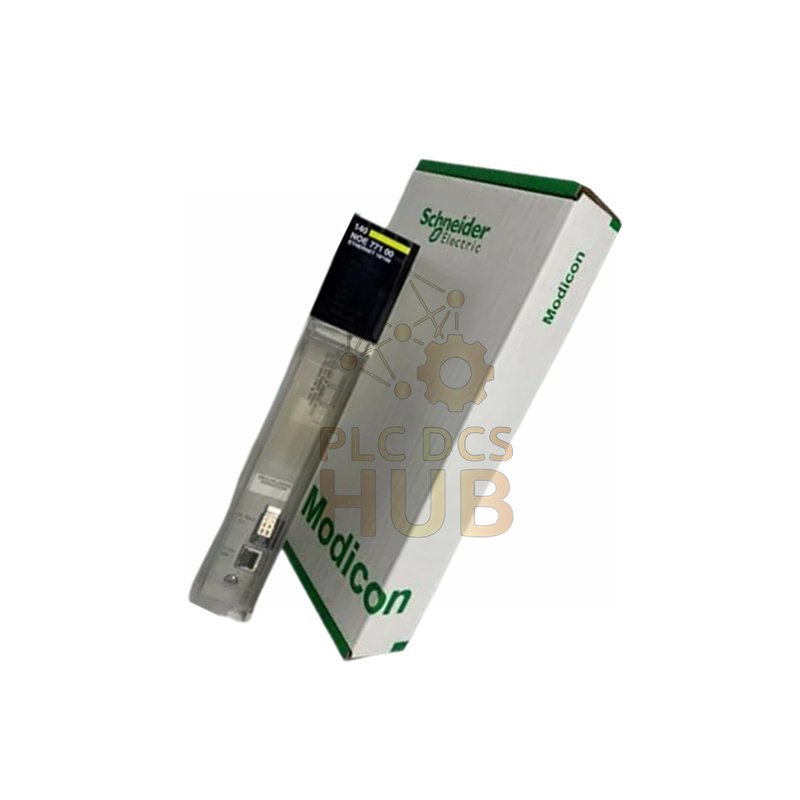

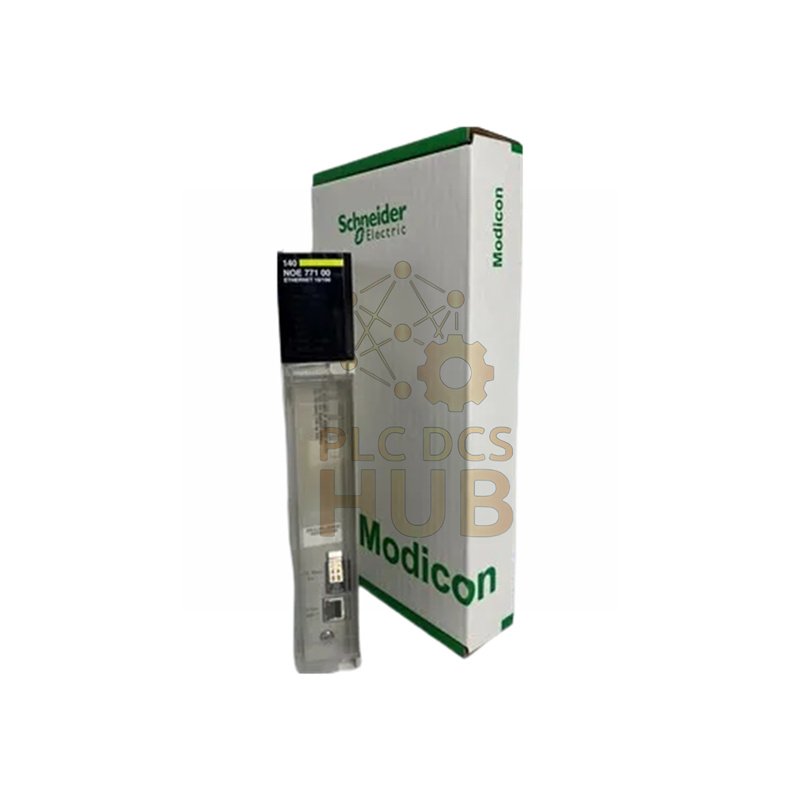

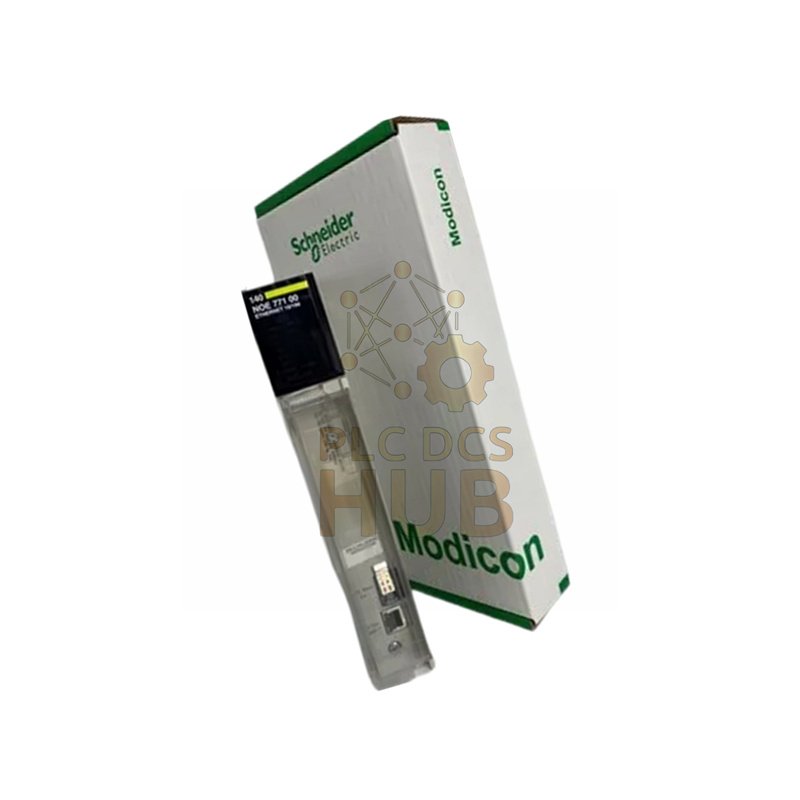

Schneider Electric 140NOE77100: Advanced Ethernet Module
Upgrade your PLC network with the Schneider Electric 140NOE77100. This Ethernet module offers fast TCP/IP communication. It includes a web server for remote monitoring. Perfect for modern industrial networks.
Main Benefits
- Fast Ethernet: 10/100 Mbit/s speed
- Web Server: Remote monitoring via browser
- Dual Connectivity: RJ45 and fiber optic ports
- Redundancy Ready: Hot standby support
- Multiple Protocols: Modbus TCP and TCP/IP
Technical Specifications
Brand & Model: Schneider Electric 140NOE77100
Series: Modicon Quantum
Type: Ethernet TCP/IP Module
Speed: 10/100 Mbit/s auto-negotiation
Ports: RJ45 copper and MT/RJ fiber
Protocols: Modbus TCP, TCP/IP
Web Features: Data Editor, Rack Viewer
Redundancy: Hot standby architecture
Power: 750 mA at 5V DC
Weight: 0.345 kg
Temperature: 0°C to 60°C
Protection: IP20 rating
Certifications: UL, cUL, FM Class 1 Div 2
Network Setup
Install in Quantum rack. Connect to network switch. Configure IP settings. Access web interface from any browser. Technical questions? Support, Inquiry, Contact: +86 158 8020 0923.
FAQ
- Q1: What network speeds does it support?
A: Both 10 Mbit/s and 100 Mbit/s Ethernet. - Q2: Can I monitor remotely?
A: Yes, via built-in web server and rack viewer. - Q3: What ports are available?
A: RJ45 for copper and MT/RJ for fiber optic. - Q4: Is redundancy supported?
A: Yes, hot standby for critical applications. - Q5: What protocols are included?
A: Modbus TCP and standard TCP/IP.
Warranty & Shipping
12-month warranty. Worldwide shipping via FedEx, UPS, DHL.
Download Documentation
Get complete information:
- Installation guide
- Network configuration
- Web interface tutorial
- Troubleshooting tips
Download 140NOE77100 manual here
