Description

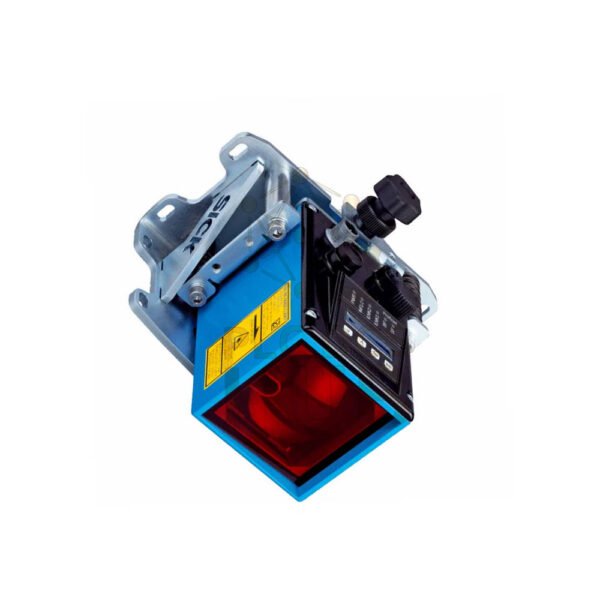

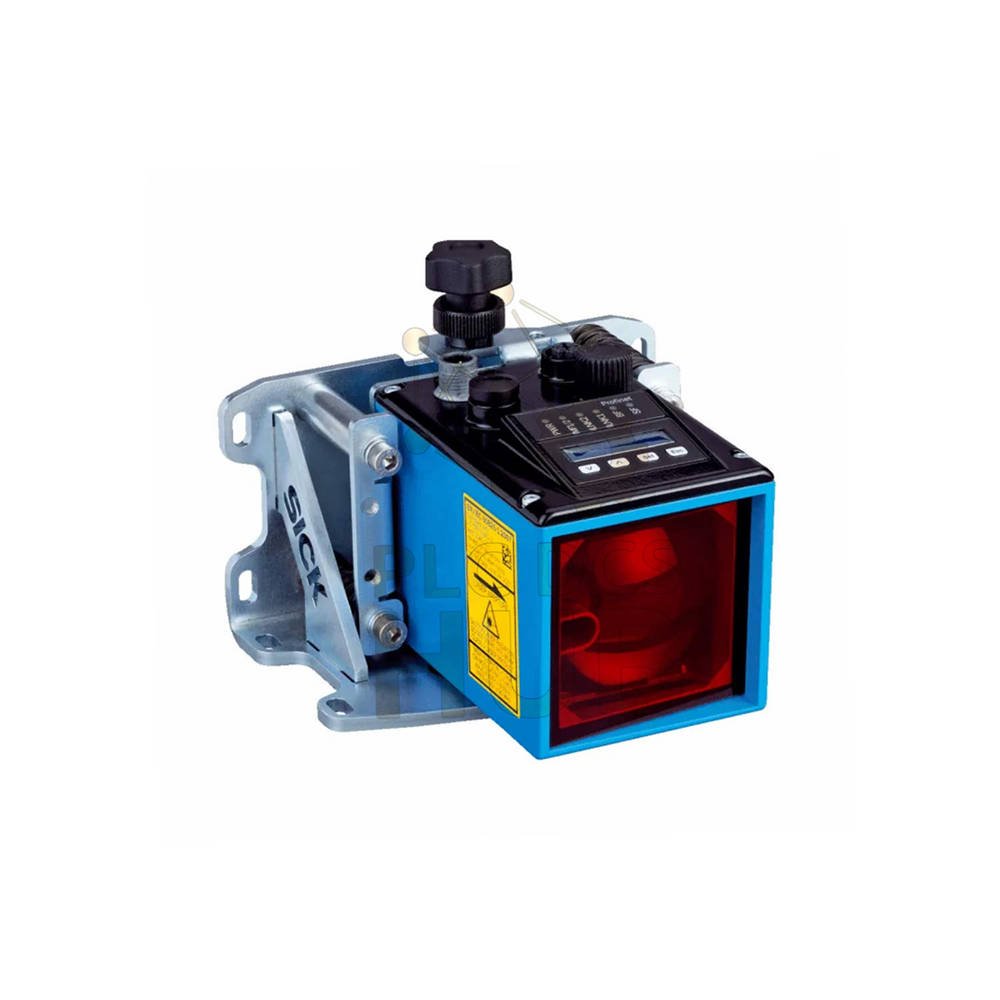

The SICK DL100-21AA2212 measures distance up to 100 meters. It uses a red laser on reflective tape. This sensor delivers very fine resolution from 0.1 mm upward. Response time is only 2 ms. The device connects via PROFINET network. It suits high-speed positioning and crane control.
Need compatible PLC parts? Check Versamax systems.
For questions, contact us on WhatsApp: +86 158 8020 0923.
Key Features at a Glance
Range: 0.15 m to 100 m on diamond grade tape
Resolution: 0.1 mm to 100 mm (freely adjustable)
Accuracy: ± 2 mm
Repeatability: 0.5 mm
Response time: 2 ms
Max speed: 15 m/s
Laser class 2 (safe for eyes)
Technical Specifications
General
Brand: SICK
Model: DL100-21AA2212
Series: Dx100
Type: Long Range Distance Sensor
Target: Reflector (diamond grade tape)
Scope: High Feature
Measurement Performance
Measuring range: 0.15 m to 100 m
Resolution options: 0.1 / 0.125 / 1 / 10 / 100 mm
Repeatability: 0.5 mm
Measurement accuracy: ± 2 mm
Response time: 2 ms
Measurement cycle time: 1 ms
Output time: 1 ms
Laser Data
Light source: Red laser
Wavelength: Visible red light
Laser class: 2 (IEC 60825-1:2014)
Typical spot size: 5 mm + (2 mm x distance in meters)
Maximum movement speed: 15 m/s
Maximum acceleration: ≤ 15 m/s²
Safety & Reliability
MTTFD: 101 years
Interfaces
PROFINET: Yes (Network load class III)
Digital outputs: 2 pieces
Output type: Push-pull (PNP/NPN)
Functions available:
Distance switching output
Speed output
Warning messages (aging, contamination, temperature, plausibility error, laser not ready, heating on)
Laser off
Preset
Max output current: IA ≤ 100 mA
Multifunctional input: 1 x MF1
Electrical Data
Supply voltage: DC 18 V to 30 V (limit values)
Current consumption: < 250 mA at 24 V DC
Ripple: 5 Vpp
Modulation frequency: Fixed
Initialization time: Typ. 1.5 s
Display & Indicators
Display: 6-digit 5×7 dot matrix
Additional LEDs
Environmental Ratings
Enclosure rating: IP65
Protection class: III
Connection
Type: Male connector
Mechanical Data
Dimensions (W x H x D): 69.4 mm x 82.5 mm x 100.2 mm
Housing material: Metal (aluminum die cast)
Window material: Plastic (PMMA)
Weight: ~800 g (with bracket ~1600 g)
Ambient Conditions
Operation temperature: –20°C to +55°C
Operation with cooling case: –20°C to +75°C
Storage temperature: –40°C to +75°C
Air pressure effect: 0.3 ppm/hPa
Air temperature effect: 1 ppm/K
Temperature drift: Typ. 0.1 mm/K
Ambient light immunity: ≤ 100,000 lx
Mechanical & EMC Tests
Shock: EN 60068-2-27
Sine vibration: EN 60068-2-6
Noise: EN 60068-2-64
EMC: EN 61000-6-2, EN 61000-6-4
Installation Notes
Mount on stable surface to avoid vibration
Point laser toward diamond grade reflective tape
Keep window clean for accurate readings
Use shielded cable for noisy environments
Provide 18-30V DC power (24V typical)
Commissioning & Maintenance
Power up sensor. Wait 1.5 seconds for initialization.
Set resolution via PROFINET or display buttons.
Check laser spot alignment on target.
Monitor display for warnings (aging, contamination).
Clean PMMA window with soft cloth only.
No internal parts need user service.
Compatibility
PROFINET network any PLC (Siemens, Rockwell, CODESYS)
Push-pull outputs work with PNP or NPN inputs
Multifunctional input accepts 18-30V signals
Works with all SICK reflectors and diamond grade tape
Certifications
CE marked
Laser class 2 (IEC 60825-1:2014)
IP65 tested
EN 61000-6-2 and EN 61000-6-4 (EMC)
Typical Applications
Crane and hoist positioning
Stacker crane height control
Automated guided vehicles (AGV)
Storage and retrieval systems
Steel coil positioning
Port and container handling
Diagnostic Capabilities
Self-check for laser aging
Damping value monitoring (detects lens contamination)
Internal temperature monitoring
Plausibility check on measured values
Warning output before complete failure
Heating status indication
Packaging & Warranty
Includes: Sensor, mounting bracket, quick start guide
Warranty: 12 months from delivery
Shipping Carriers
FedEx
UPS
DHL
FAQ
What reflective tape do I need for 100m range?
Use SICK diamond grade reflective tape. Standard white tape gives shorter range.
Can I measure to any surface without tape?
No. This model needs a reflector for 100m range. Without tape, range drops significantly.
Why does my reading jump randomly?
Check for strong ambient light or dirty window. Also verify target is larger than laser spot size.
What is the smallest object I can detect?
At 10m distance, spot size is 5 + (2×10) = 25mm diameter. Target must be larger than this.
How do I set resolution to 0.1mm?
Use PROFINET parameter or display menu. Higher resolution increases output stability time slightly.
My sensor shows “damping value exceeded”. What does that mean?
The window is dirty or internal laser is aging. Clean the PMMA window first. If warning stays, plan replacement.
Can I use this outdoors in rain or snow?
Yes, IP65 protects against water jets. However, heavy rain may block laser beam temporarily.
What is the difference between response time and cycle time?
Response time (2ms) is when output changes after target moves. Cycle time (1ms) is how often it measures internally.
Selection Guide
Follow these steps to pick the right SICK Dx100 sensor.
Choose your measurement range
Need 100m: DL100 model
Need 200m or more: DL200 series
Select interface type
PROFINET: code 21AA2212 (this unit)
Ethernet/IP or PROFIBUS: different model code
Check ambient temperature
Normal factory: -20°C to +55°C is fine
Hot environment above 55°C: need cooling case option
Decide on resolution
This model adjusts from 0.1mm to 100mm
For sub-0.1mm precision: choose shorter range sensor
Verify target type
Reflective tape: this model works perfectly
Natural surface: choose SICK DT series instead
Common mistake: Mounting sensor on a moving part that vibrates. Acceleration cannot exceed 15 m/s². Use fixed mounting.
Cost tip: The high feature version includes PROFINET and all outputs. Basic models save money but lose network capability.
