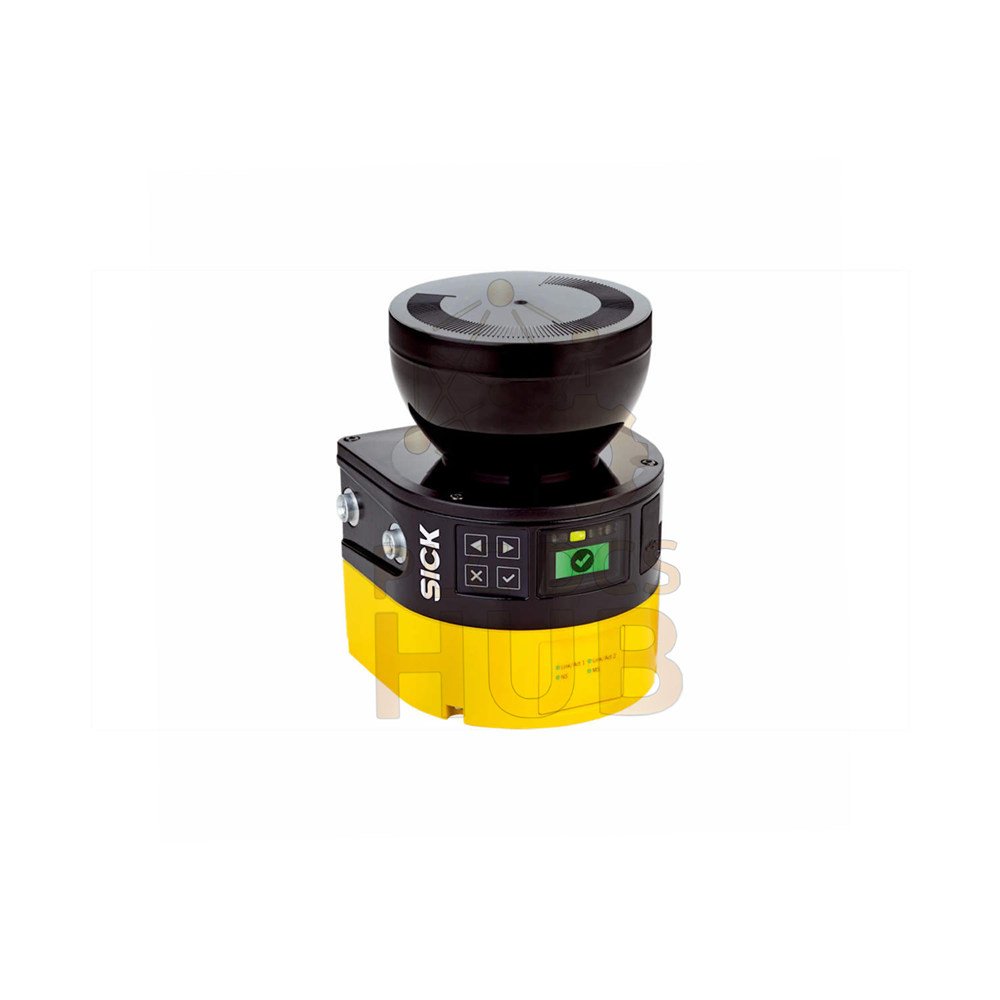

SICK MICS3-ABAZ55IZ1P01 microScan3 EtherNet/IP Safety Scanner

Description

Brief Introduction

The SICK MICS3-ABAZ55IZ1P01 is a safety laser scanner from the microScan3 Core series. It uses EtherNet/IP with CIP Safety for reliable communication. This device monitors indoor areas for people and objects. It has a protective field up to 5.5 meters. The scanner comes with a pre-mounted system plug.

Technical Specifications

• Brand: SICK
• Model Number: MICS3-ABAZ55IZ1P01
• Product Series: microScan3 Core – EtherNet/IP
• Application: Indoor use
• Protective Field Range: 5.5 m
• Warning Field Range: 40 m
• Max Simultaneous Fields: 4
• Total Fields: 8
• Monitoring Cases: 8
• Scanning Angle: 275°
• Configurable Resolutions: 30, 40, 50, 70, 150, 200 mm
• Angular Resolution: 0.39°
• Response Time: 95 ms
• Protective Field Supplement: 65 mm
• Type: Type 3 (IEC 61496)
• SIL: SIL 2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance Level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸
• Mission Time (TM): 20 years
• Protection Class: III (EN 61140)
• Supply Voltage: 24 V DC (16.8 to 30 V DC)
• Power Consumption: 7.2 W typical
• Dimensions (W x H x D): 112 x 150.7 x 111.1 mm (without plug)
• Weight: 1.45 kg
• Housing Material: Aluminum
• Housing Color: RAL 1021 (yellow) and RAL 9005 (black)
• Optics Cover: Polycarbonate with scratch-resistant coating
• Enclosure Rating: IP65
• Ambient Light Immunity: ≤40 klx
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -25°C to +70°C
• Laser Class: 1 (eye safe)
• Wavelength: 845 nm

Ordering Code Breakdown (Tree View)

• MICS3 = microScan3 safety laser scanner family
  • ABAZ55IZ1P01 = Specific configuration
    • AB = microScan3 Core
    • A = EtherNet/IP with CIP Safety
    • Z55 = 5.5 m protective field
    • I = Indoor use
    • Z1 = Standard version
    • P01 = System plug included

Safety Features

• Restart interlock prevents automatic restart after stop.
• Multiple sampling reduces false trips.
• Monitoring case switching changes field sets on the fly.
• Simultaneous monitoring watches multiple areas at once.
• Static protective field switching adapts to machine states.
• Safe contour detection keeps people safe near moving parts.
• Contour as a reference allows dynamic field shaping.
• Integrated configuration memory stores all settings inside.

Interfaces & Connections

• Voltage supply: M12 male connector, 4-pin, A-coded
• EtherNet/IP: 2 x M12 female connectors, 4-pin, D-coded
• Safety outputs via network: 4
• Configuration: PC with Safety Designer software
• Diagnostics interface: USB 2.0 (Mini-USB) and Ethernet
• Display: Graphic color display with LEDs

Network Protocols Supported

• EtherNet/IP with CIP Safety
• CoLa 2 (for Safety Designer configuration)
• DHCP for automatic IP assignment
• SNMP for network monitoring
• SNTP for time synchronization
• DLR (Device Level Ring) topology support

Installation Guide

• Mount the scanner on a stable surface.
• Keep the scanning angle clear of obstacles.
• Connect 24V DC power to the M12 A-coded connector.
• Plug Ethernet cables into the two M12 D-coded ports.
• Use Safety Designer software on a PC for setup.
• Connect via USB or Ethernet for configuration.
• Configure protective and warning fields for your area.
• Test the system before putting it into service.

Environmental Tolerance

• IP65 rating keeps dust and water jets out.
• Works under bright light up to 40 klx.
• Operates from -10°C to +50°C.
• Survives storage from -25°C to +70°C.
• Handles vibration per IEC 60721-3-5 Class 5M1.
• Withstands continuous shock of 100 m/s² for 16 ms.
• EMC compliant with IEC 61496-1 and IEC 61000-6-2/4.

Compatibility

• Works with any EtherNet/IP safety controller.
• CIP Safety ensures safe communication over standard Ethernet.
• Safety Designer software runs on Windows PCs.
• Outputs safety signals via network. No hardwired OSSD pairs.

Packing List

• 1 x SICK MICS3-ABAZ55IZ1P01 microScan3 scanner
• 1 x System plug (pre-mounted on underside)
• Original SICK factory packing

Warranty & Shipping

• 12-month warranty covers defects.
• Fast worldwide shipping with FedEx, UPS, or DHL.
• Tracking number provided for all orders.

Typical Applications

• Stationary machine guarding (robots, conveyors, presses)
• AGV collision avoidance and person detection
• Autonomous mobile robot safety
• Access protection for hazardous areas
• Mobile platform navigation and safeguarding

Diagnostic Capabilities

• Graphic color display shows real-time field status.
• LEDs indicate power, fault, and output states.
• Safety Designer software provides detailed diagnostics.
• USB connection allows local troubleshooting.
• Ethernet interface supports remote monitoring.
• Measured data output via Ethernet for analysis.

Professional FAQ

• Q: Can I use this scanner outdoors?
• A: No. This model is for indoor use only. Sunlight may affect performance.
• Q: How many safety outputs does this model have?
• A: Four safety outputs via EtherNet/IP network. It has zero hardwired OSSD pairs.
• Q: What happens if the Ethernet cable fails?
• A: The scanner goes to a safe state. Safety outputs become logic 0.
• Practical tip from engineers:
• Always clean the optics cover weekly. Dust and dirt can reduce the effective field range.
• Selection guide for buyers:
• Choose MICS3-ABAZ55IZ1P01 for indoor EtherNet/IP systems needing Type 3, PL d, SIL 2 safety.
• Need a longer protective field? Look for models with 6.5m or 9m range.
• Need hardwired OSSD outputs? Select a different microScan3 variant with OSSD pairs.
• Outdoor use? Choose the outdoor version with higher ambient light immunity.
• Confirm your safety controller supports CIP Safety over EtherNet/IP before buying.
