SICK TIM150-3010300 TiM 2D LiDAR Sensor | 10m Range 200° Angle TIM150

Description

Product Description

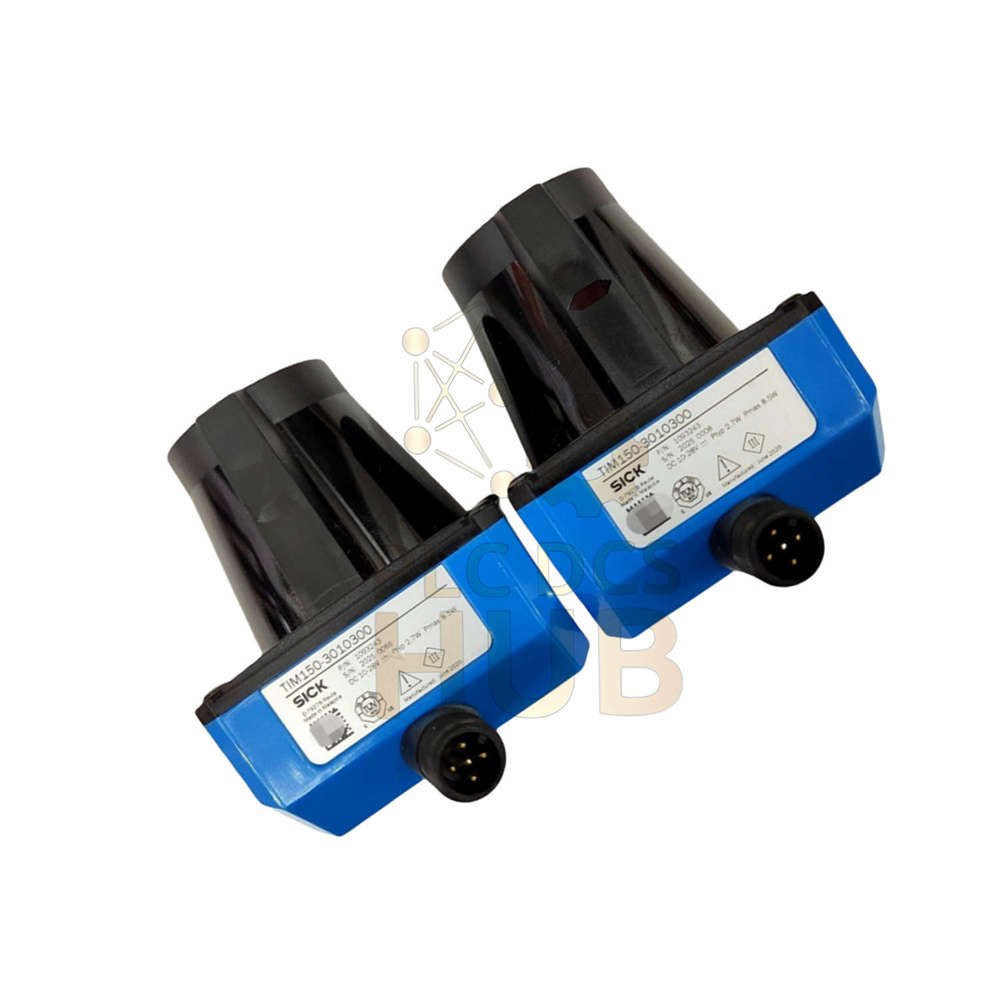

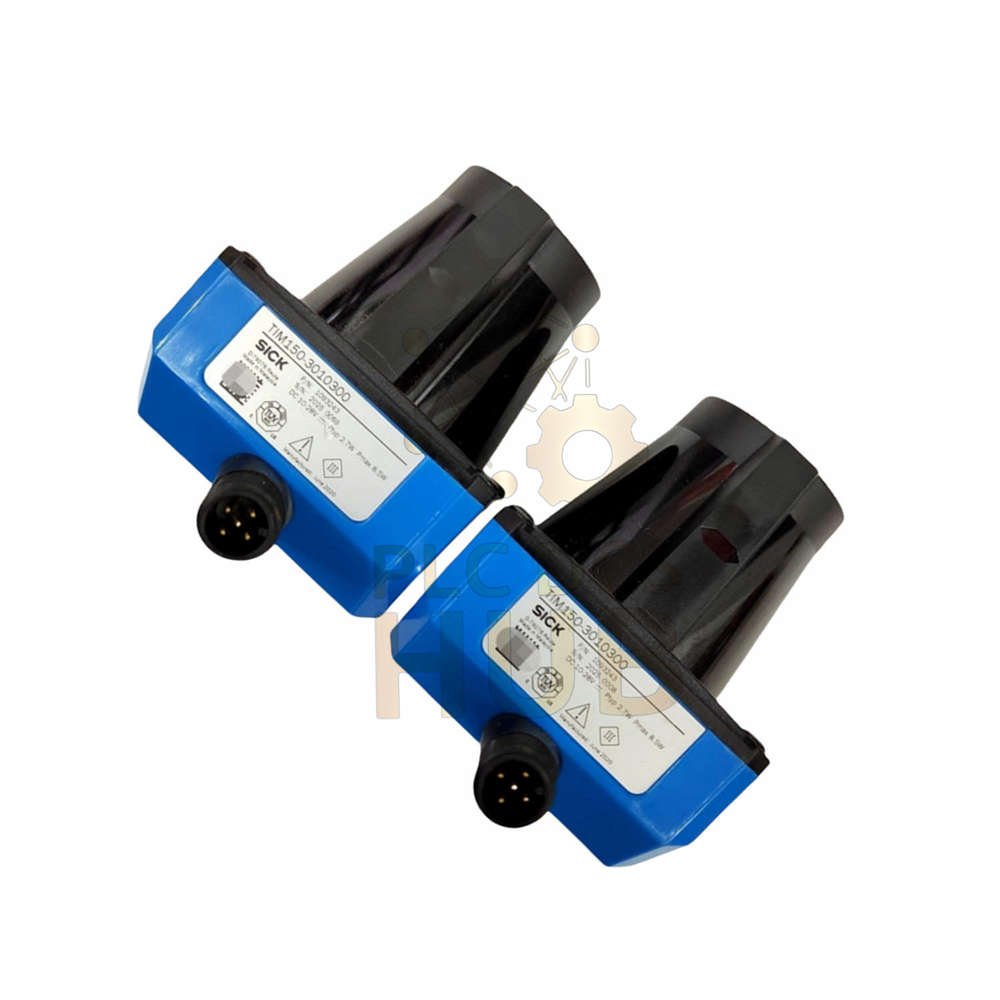

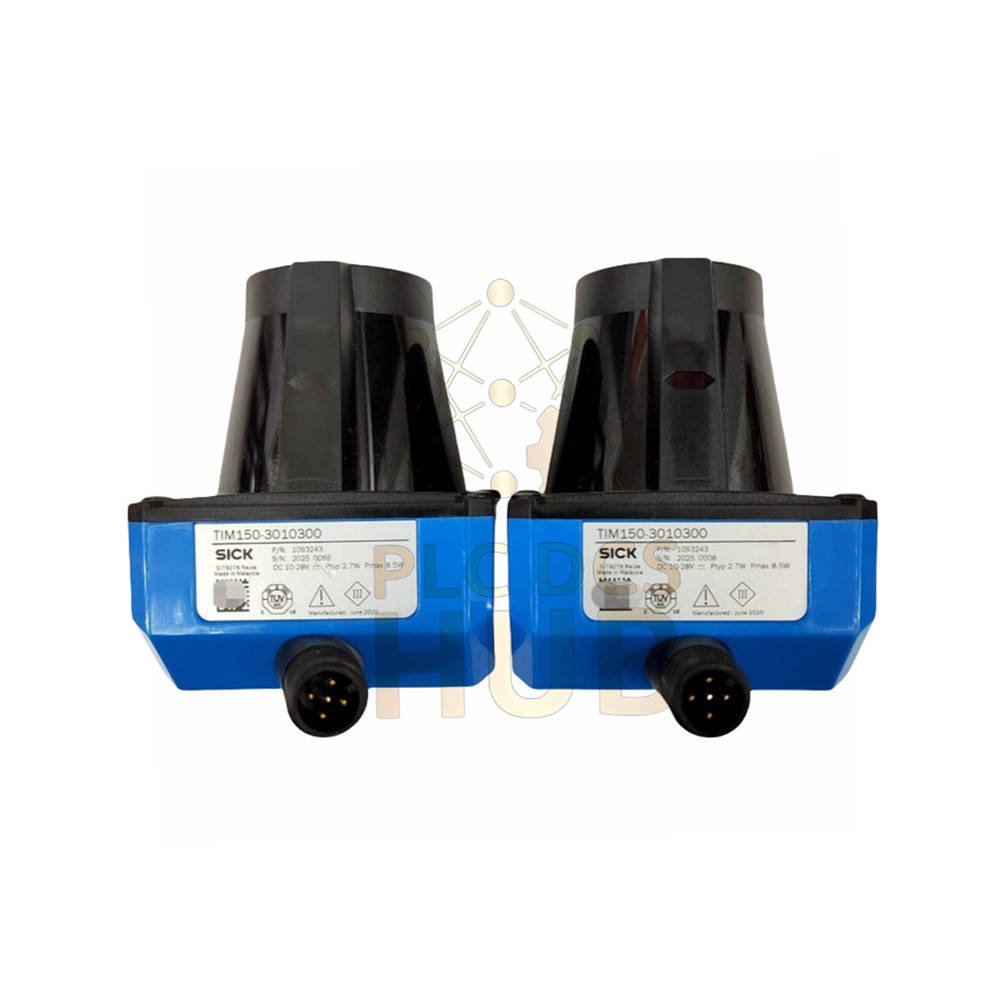

The SICK TIM150-3010300 is a TiM series 2D LiDAR sensor. It scans a 200 degree horizontal angle for indoor applications. The sensor detects objects from 0.05 to 10 meters away. Angular resolution is 1 degree for precise detection. Laser class 1 makes it safe for human exposure. The housing has IP65 rating for dust and water protection. Each unit ships with a 12-month warranty.

Model Number Breakdown

• TIM150 = TiM series 2D LiDAR sensor model
• 3010300 = Specific configuration code (10m range, 200°, 1° resolution)

Quick Specs at a Glance

• Brand: SICK
• Model: TIM150-3010300
• Series: TiM 2D
• Product type: 2D LiDAR sensor (Laser scanner)
• Application: Indoor use
• Measurement principle: HDDM+ (High Definition Distance Measurement)
• Light source: Infrared 850 nm
• Laser class: 1 (eye safe)
• Horizontal aperture angle: 200°
• Scanning frequency: 14.5 Hz
• Angular resolution: 1° horizontal
• Working range: 0.05 m to 10 m
• Weight: 122 g (without cable)
• Dimensions (L x W x H): 60 x 60 x 75.8 mm
• MTBF: 82 years
• MTTFD: > 100 years

Scanning Performance

• Range at 10% remission: 2.8 to 3 meters (depends on angle)
• Systematic error: ± 40 mm
• Statistical error: 30 mm
• Response time: 70 ms typical
• Detectable object shape: Almost any shape
• Object remission range: 4% to 1000% (reflectors)

Electrical & Connections

• Connection type: 1 x 5-pin M12 male (rotatable)
• Supply voltage: 10 to 28 V DC
• Power consumption: 2.7 W typical
• Output current: ≤ 100 mA
• Protection class: III (IEC 61140)
• Digital inputs: 1
• Digital outputs: 2 (push-pull)
• Delay time: 69 ms to 30,015 ms (configurable)
• Dwell time: 69 ms to 30,015 ms (configurable)

Field Evaluation & Applications

• Integrated application: Field evaluation
• Number of field sets: 1 field set
• Simultaneous evaluation cases: 1 (2 fields)
• Configure monitoring fields for object detection
• Use for area monitoring and collision avoidance

Interfaces & Indicators

• IO-Link: Yes (service interface and parameterization)
• Optical indicators: 2 LEDs (ON and switching status)
• Parameterize via IO-Link for easy setup
• LEDs show power and output status clearly

Environmental Ratings

• Housing color: Light blue (RAL 5012)
• Enclosure rating: IP65 (dust tight, water jets)
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +70°C
• Humidity: ≤ 95% non-condensing
• Ambient light immunity: 30,000 lx
• EMC compliance: IEC 61000-6-3 and IEC 61000-6-2

Vibration Resistance

• Sine resonance scan: 10 Hz to 1000 Hz
• Sine test: 10 to 150 Hz, 1 g, 1 frequency cycle
• Noise test: 10 to 200 Hz, 5 g RMS, 2 hours
• Suitable for industrial vibration environments

Installation Guide

• Mount on stable surface using M12 connector
• Rotate connector for flexible cable routing
• Connect 10-28V DC power supply (2.7W min)
• Use IO-Link for parameter configuration
• Keep lens clean for accurate measurements
• Avoid direct sunlight above 30,000 lx

Typical Applications

• Indoor area monitoring and intrusion detection
• AGV collision avoidance in factories
• Robot workspace safety monitoring
• Conveyor object detection and counting
• Door opening automation and presence detection

Important Note

• This sensor is NOT a safety component
• Do not use for machine safety applications
• Use only for non-safety detection tasks

Warranty & Shipping

• Warranty: 12 months from shipment date
• Condition: New & original factory packing
• FedEx – Priority shipping available
• UPS – Express worldwide
• DHL – International freight

Package Contents

• 1 x TIM150-3010300 TiM 2D LiDAR sensor
• M12 male connector (on device)
• No cable included (order separately)
• No mounting bracket included
• Quick start guide available from SICK

Professional FAQ

• What does HDDM+ measurement principle mean? HDDM+ means High Definition Distance Measurement plus. It gives stable measurements even with low reflectivity objects or ambient light.
• Can I use this sensor outdoors? The sensor has IP65 rating but operating temperature is only -10°C to +50°C. Outdoor use is possible in mild weather but not recommended for extreme conditions.
• Why is the range shorter at 10% remission? Dark objects (10% remission) reflect less light. The sensor only sees them at 2.8-3 meters. White objects (90% remission) work up to 10 meters.
• What is the difference between systematic and statistical error? Systematic error (±40mm) is the average offset from true distance. Statistical error (30mm) is the variation between consecutive measurements.
• Can I use this as a safety laser scanner? No. This is not a safety component. Do not use for personnel protection or machine safety. Use only for non-safety detection like presence or positioning.

Buying Guide – Selection Advice

• Need indoor monitoring? TIM150 works well in factories
• Range requirement up to 10m? This model fits
• Need 200 degree scan angle? Yes (1° resolution)
• For outdoor or longer range, consider TIM series with higher range
• Order M12 cable separately (straight or angled)
• Add mounting bracket for easy installation
• Use IO-Link master for parameter setup
• Keep spare sensor for critical production lines
• Check ambient temperature: Must stay within -10°C to +50°C
• Download SICK SOPAS software for configuration
