SICK V2D611D-MMSCE4 Lector61x Image Reader – 1.2MP Auto-Switching

Description

Product Summary

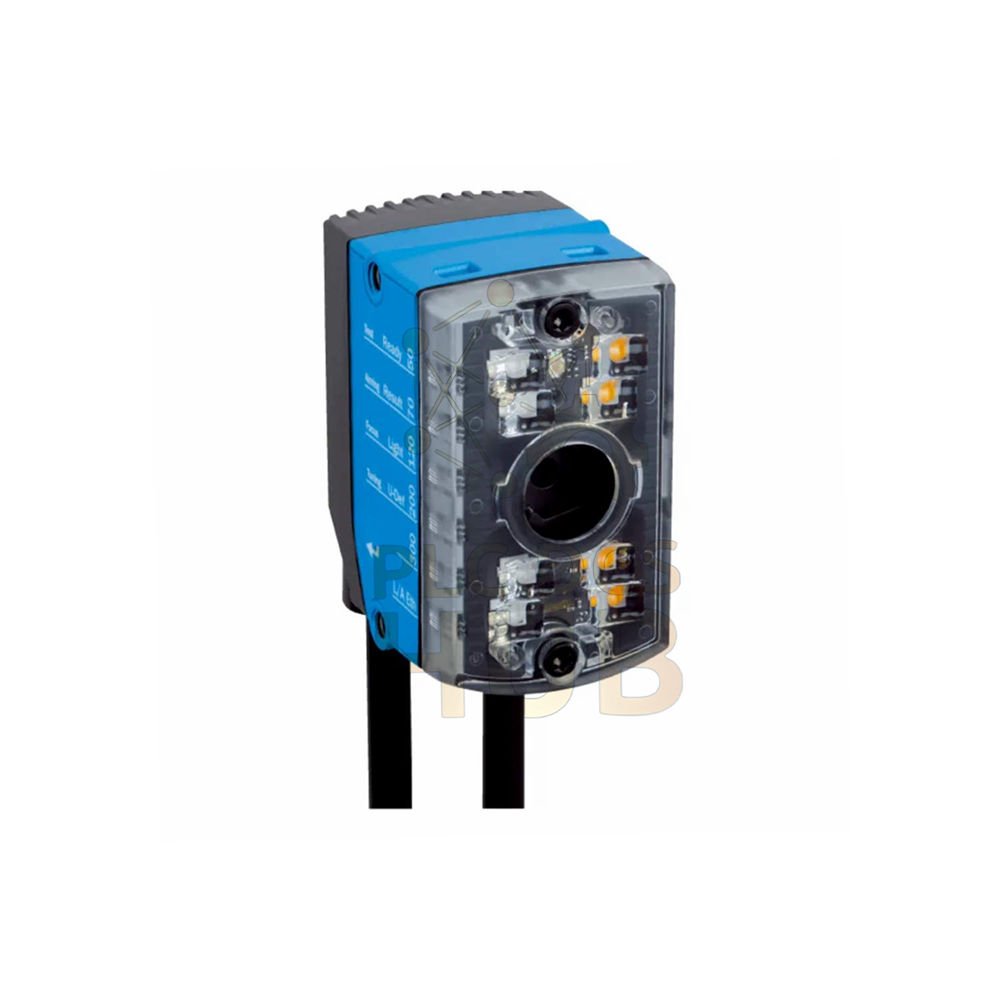

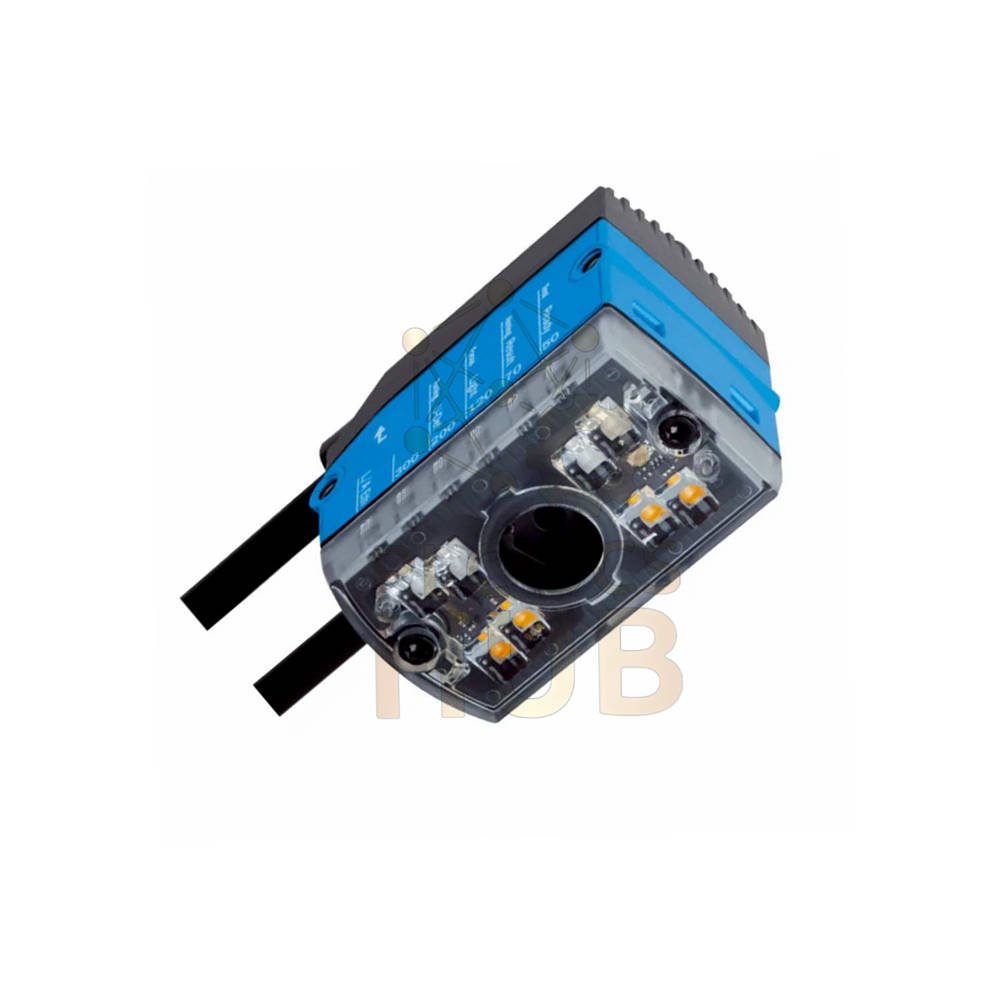

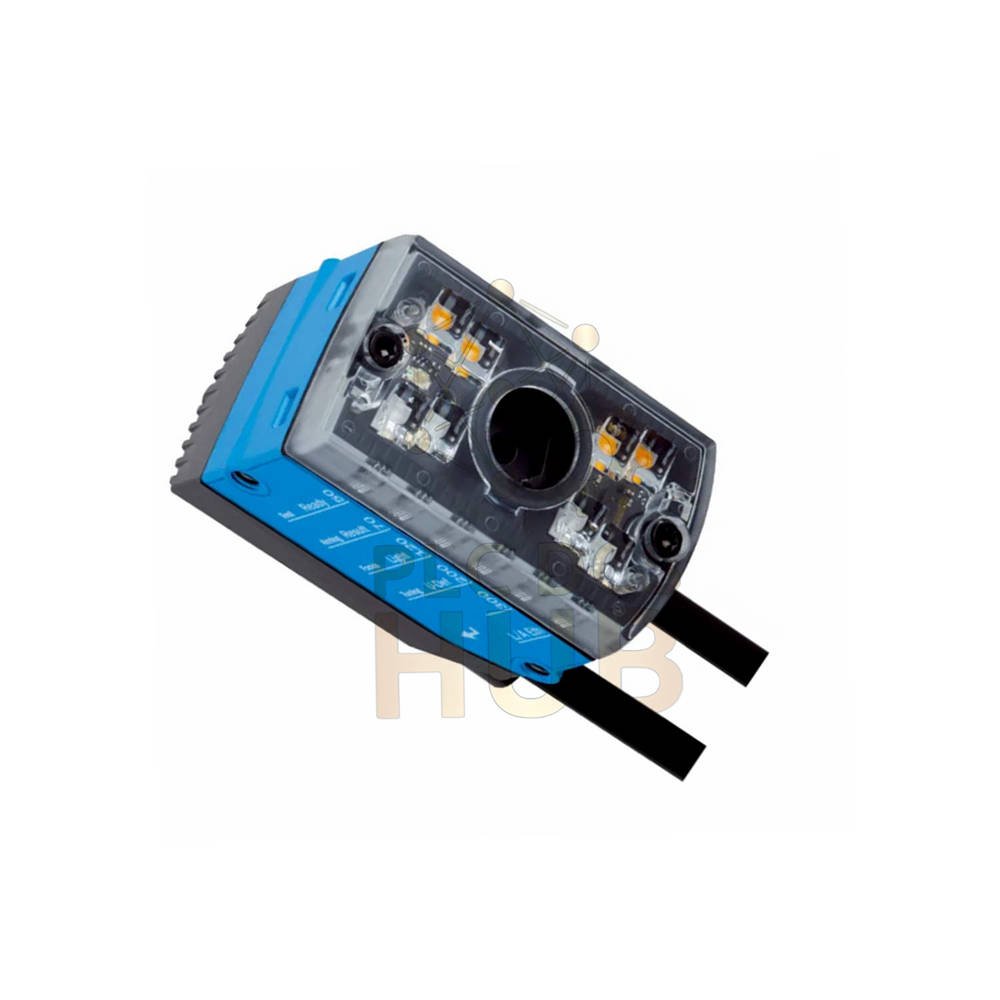

The SICK V2D611D-MMSCE4 is a Lector61x image-based code reader. It reads 1D, 2D, and direct-marked codes. The complete device has adjustable focus. Use it for factory automation and tracking.

Core Features

• Complete device – ready to use out of the box
• Manual adjustable focus – set it for 50 to 300 mm range
• CMOS monochrome sensor – 1.2 MP (1280 x 960 px)
• Scanning frequency: 40 Hz
• Integrated amber + blue illumination LEDs
• Green feedback spot and red alignment laser (Class 1)

Technical Data Tree

• SICK V2D611D-MMSCE4 – Lector61x
  • Optics
    • Focal length: 12 mm
    • Code resolution: 0.02 mm
    • Working range: 50 mm to 300 mm
  • Lighting
    • Amber LED: 617 nm ±15 nm
    • Blue LED: 470 nm ±15 nm
    • LED Class 1 – safe for eyes
  • Read Performance
    • Readable codes: 1D, 2D, stacked, DPM
    • Codes per read: 1 to 50
    • Characters per read: up to 500 (CAN mode)
    • Exposure time: ≥ 60 µs
  • Interfaces
    • Ethernet TCP/IP (10/100 MBit/s)
    • PROFINET Single Port
    • EtherNet/IP
    • RS-232 (0.3 to 115.2 kBaud)
    • CAN / CANopen (20 kbit/s to 1 Mbit/s)
  • I/O & Indicators
    • 2 digital inputs (Sensor 1, Sensor 2)
    • 3 digital outputs (Result 1 to 3)
    • 9 LEDs for status and alignment
    • 1 pushbutton for start/stop
  • Power & Mechanics
    • 12 to 24V DC ±15%
    • Power: 3.5 W typical
    • Output current: ≤50 mA
    • Size: 50 x 40.3 x 29.6 mm
    • Weight: 165 g
    • Housing: Zinc diecast, light blue RAL 5012

Code Types Supported

• 1D codes: GS1-128, UPC/EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
• 2D codes: Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
• Code grading: ISO/IEC 16022, 15415, 15416, 18004

Environment & Durability

• Enclosure: IP54
• Operating temperature: 0°C to +40°C
• Storage temperature: -20°C to +70°C
• Humidity: 90% non-condensing
• Vibration and shock tested per EN 60068
• EMC: EN 61000-6-3 and EN 61000-6-2

Software & Configuration

• Web server for easy setup via browser
• SOPAS ET configuration software
• Automated parameter switching – change settings on the fly
• Image and data storage via external FTP
• Reading pulse modes: digital input, serial, Ethernet, CAN, auto, presentation

Professional FAQ

• Question: Can this read codes on shiny metal surfaces?
  Answer: Yes. Use blue illumination (470 nm) for DPM on metal. Works well.
• Question: What is automated parameter switching?
  Answer: The reader changes settings automatically for different products. No manual stop needed.
• Question: How do I aim the reader at small codes?
  Answer: Turn on the red alignment laser. Move the unit until the spot hits the code.
• Question: What is the warranty period?
  Answer: 12 months warranty covers factory defects. Contact us for claims.
• Question: Which shipping carriers do you use?
  Answer: We ship express with FedEx, UPS, or DHL. Tracking provided.

Buying Guide & Experience Tips

• Check your code size. Minimum resolution is 0.02 mm. Smaller codes need closer mounting.
• For fast moving lines (>300 Hz encoder), use external trigger input.
• Keep the plastic window clean. Dust or scratches lower read rates.
• Use the green feedback spot to confirm a good read. Saves time on troubleshooting.
• Experienced users: store images to FTP. Great for quality audits and traceability.
• Common mistake: placing reader too close (<50 mm) or too far (>300 mm). Adjust focus first.
• Tip: Use automated parameter switching for mixed product lines. No reprogramming needed.
• For Versamax PLC integration, connect via Ethernet/IP or PROFINET.

Interface Quick Reference

• Ethernet – best for fast data and FTP images
• PROFINET – for Siemens PLC environments
• EtherNet/IP – for Rockwell/Allen-Bradley systems
• RS-232 – simple serial connection to older equipment
• CAN/CANopen – for SICK sensor networks and multiplexing

Shipping & Support

• Express shipping: FedEx, UPS, DHL worldwide
• Same-day dispatch for orders before 2 PM
• Technical questions? Use SOPAS ET or web server for diagnostics
