SICK NAV350-3232 LiDAR | 360° Navigation | 250m Range

Description

Product Overview

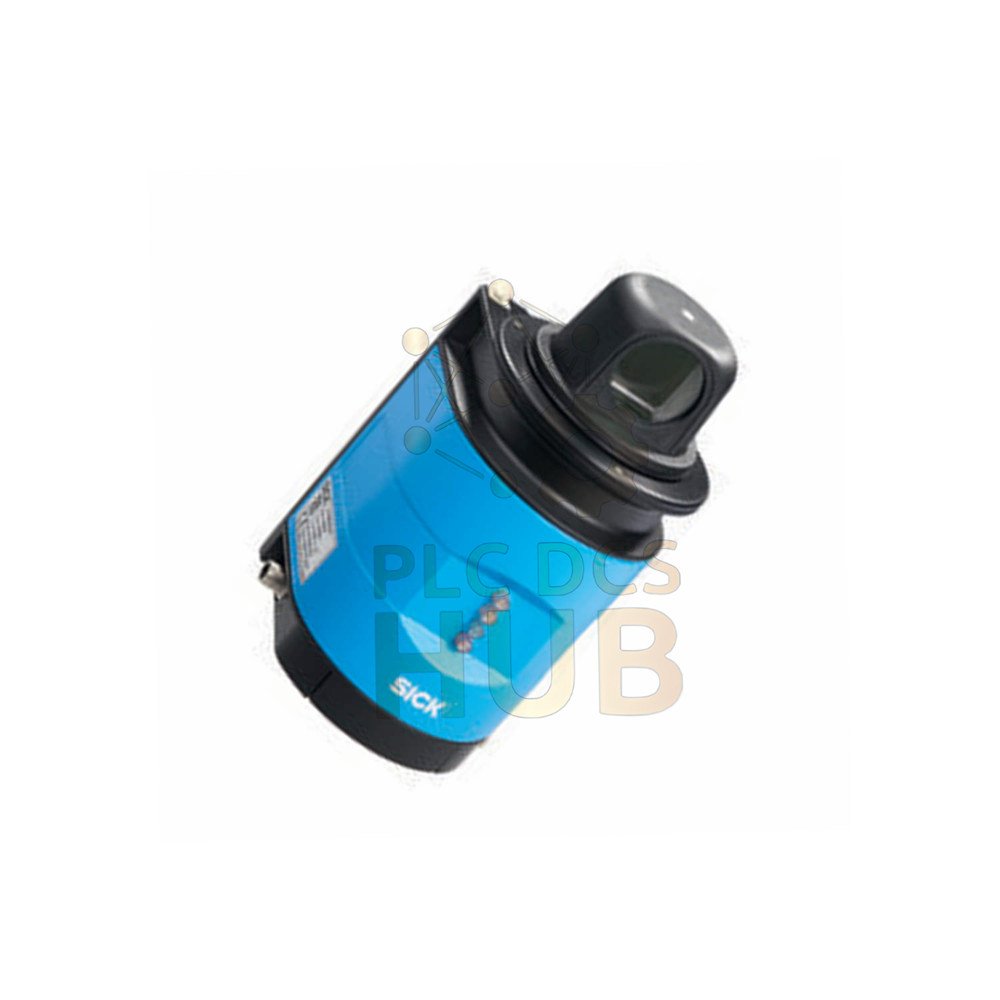

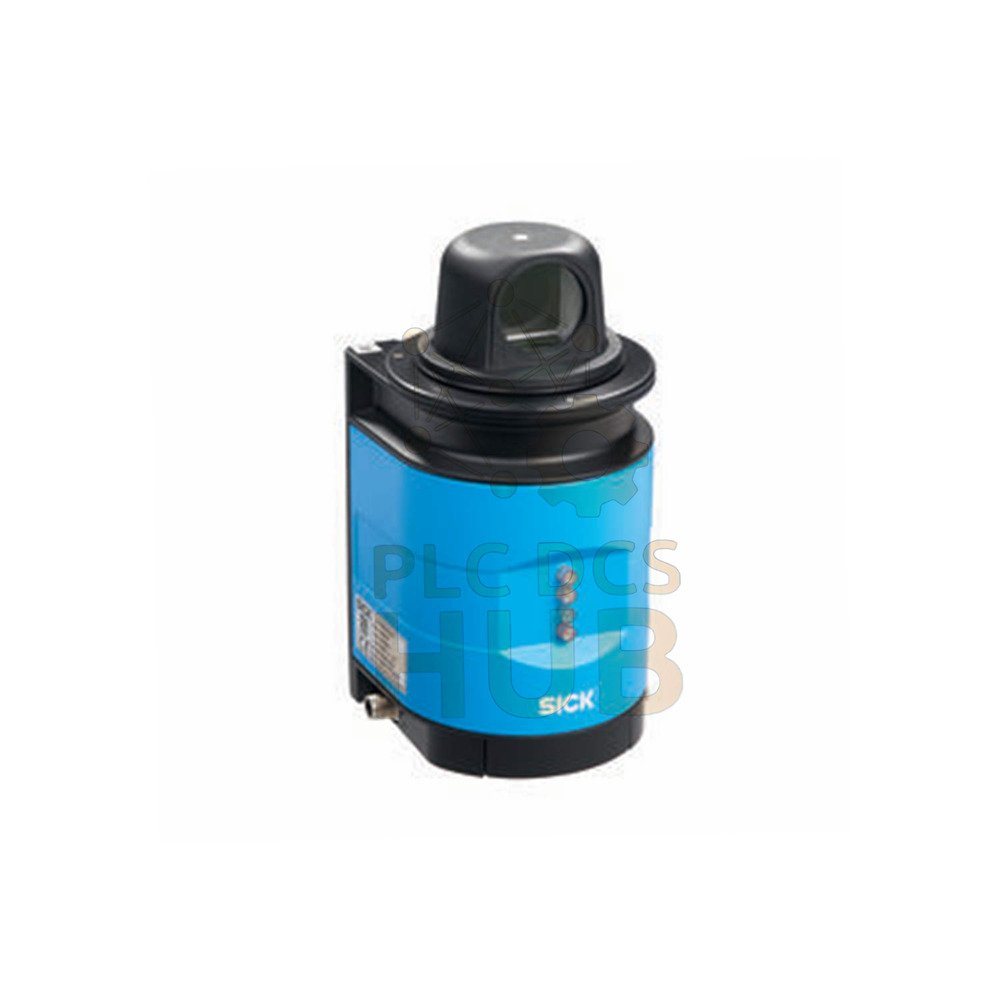

• SICK NAV350-3232 is a 2D LiDAR sensor for indoor use.
• It scans a full 360° horizontal angle.
• Working range: 0.5 m to 250 m (70 m on reflectors).
• Laser class: Class 1 (eye-safe) at 905 nm.
• Scanning frequency: 8 Hz.
• Angular resolution: 0.25°.
• Housing: aluminum die cast, IP65 rated.
• Weight: 2.4 kg.
• Dimensions: 115 mm x 120.5 mm x 222 mm.

Key Features at a Glance

• Application: Indoor navigation
• Light source: 905 nm laser
• Laser class: Class 1 (IEC 60825-1:2014)
• Aperture angle: Horizontal 360°
• Scanning frequency: 8 Hz ± 5%
• Angular resolution: Horizontal 0.25°
• Working range: 0.5 m to 250 m (70 m on reflectors)
• Scanning range at 10% remission: 35 m
• Scanning range at 90% remission: 100 m

Technical Specifications

• Supply voltage: 24 V DC ± 15%
• Power consumption: 36 W
• Housing material: Aluminum die cast
• Housing color: Light blue (RAL 5012)
• Enclosure rating: IP65
• Protection class: Class III
• Connectors: 3 x M12 (male/female)
• MTBF: 86 years
• MTTFD: > 100 years

Measurement Performance

• Detectable object shape: Almost any shape
• Systematic error (RDI): ± 10 mm
• Systematic error (Contour): ± 15 mm
• Statistical error (Contour): 15 mm
• Reflector memory: 12,000 reflectors
• Positioning accuracy: ± 4 mm
• Integrated application: Navigation

Interfaces & Connectivity

• Ethernet: TCP/IP, 100 Mbit/s
• Serial: RS-232 (19.2 kBaud to 115 kBaud)
• Digital outputs: 1 digital output
• Optical indicators: 4 LEDs for status

Environmental Ratings

• Operating temperature: 0 °C to +50 °C
• Storage temperature: –20 °C to +80 °C
• Humidity: 85% non-condensing
• Recommended reflector marks: Stripes ≥ 80 mm wide, cylinders ≥ 80 mm diameter

Important Note

• Not a safety component as defined by machine safety laws.
• Use for navigation only, not for personnel protection.

Mounting & Installation

• Use M12 connectors for power and data.
• Mount with clear 360° view for best results.
• Aluminum housing is tough and durable.
• IP65 rating protects against dust and water jets.
• Install in indoor environment (0 to 50°C).

Configuration & Maintenance

• Integrated navigation application ready to use.
• Stores up to 12,000 reflectors in memory.
• Ethernet allows easy remote setup.
• 4 LEDs show operational status clearly.
• Long MTBF of 86 years means low maintenance.

Compatibility

• Works with most industrial control systems.
• Connects via Ethernet TCP/IP or RS-232 serial.
• Integrates with Versamax automation platforms: https://www.ubestplc.com/collections/ge-versamax
• Outputs data for AGV and robot navigation.

Package Contents

• 1 x SICK NAV350-3232 2D LiDAR sensor
• Quick start guide
• M12 connectors (cables sold separately)
• No mounting bracket included

Warranty & Shipping

• 12 months warranty from shipment date.
• Covers factory defects and material faults.
• Ship worldwide via FedEx, UPS, or DHL.
• Tracking number sent within 24 hours.

Typical Applications

• Automated guided vehicles (AGV) navigation
• Mobile robot positioning
• Warehouse mapping and localization
• Indoor container tracking
• Factory floor obstacle detection (non-safety)

Diagnostic Capabilities

• 4 status LEDs show power, data, and error states.
• Ethernet interface enables remote monitoring.
• Reflector memory can be checked via software.
• Statistical error data available in output.

Professional FAQ

• Can I use NAV350-3232 outdoors?
• No. It is designed for indoor use only (0 to 50°C).
• Does this replace a safety laser scanner?
• No. This is NOT a safety component. Do not use for personnel protection.
• Experience: How many reflectors does it store?
• 12,000 reflectors. Enough for large warehouses and factory floors.
• Buying guide: What reflector size do I need?
• Use stripes ≥80 mm wide or cylinders ≥80 mm diameter for best results.
• Buying guide: NAV350 vs NAV310 – which to choose?
• Choose NAV350-3232 for 360° scanning and longer 250m range. NAV310 has narrower angle.
