SICK OLM200-1009 Linear Measurement Sensor – 10km Range PROFINET

Description

Product Introduction

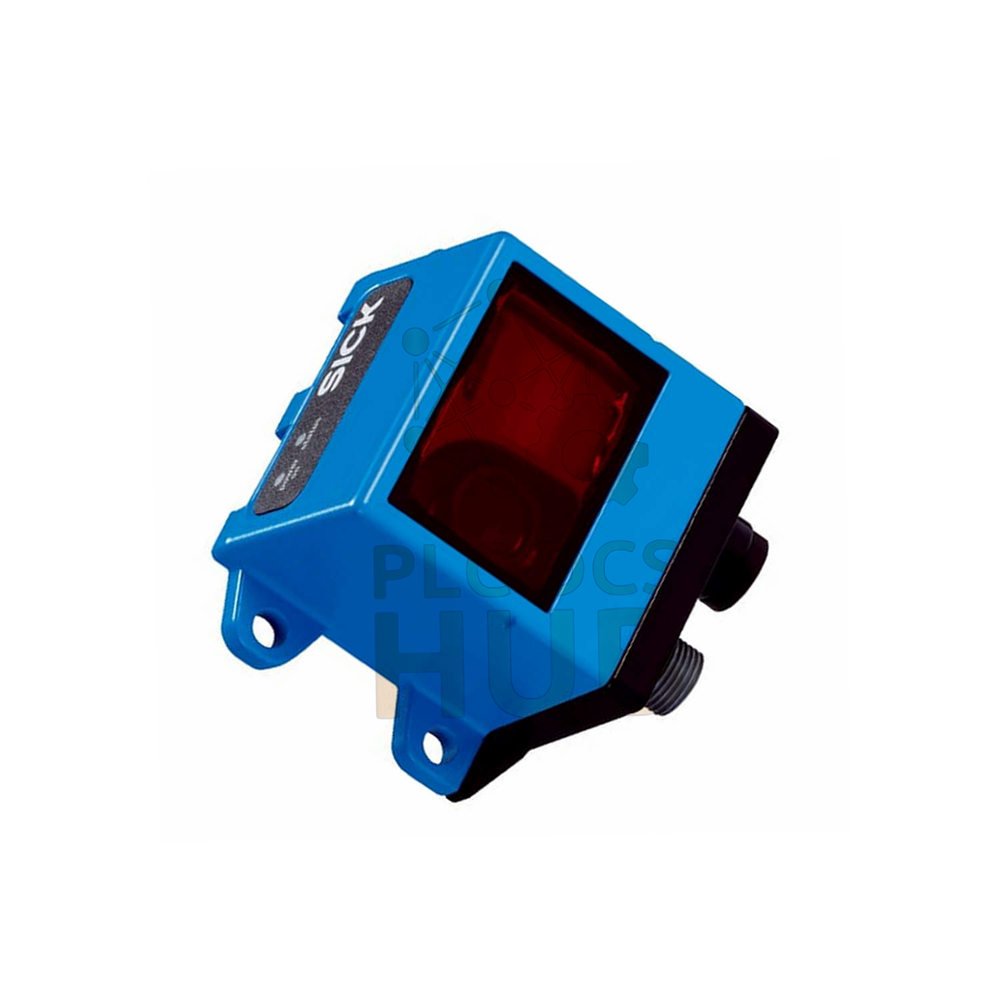

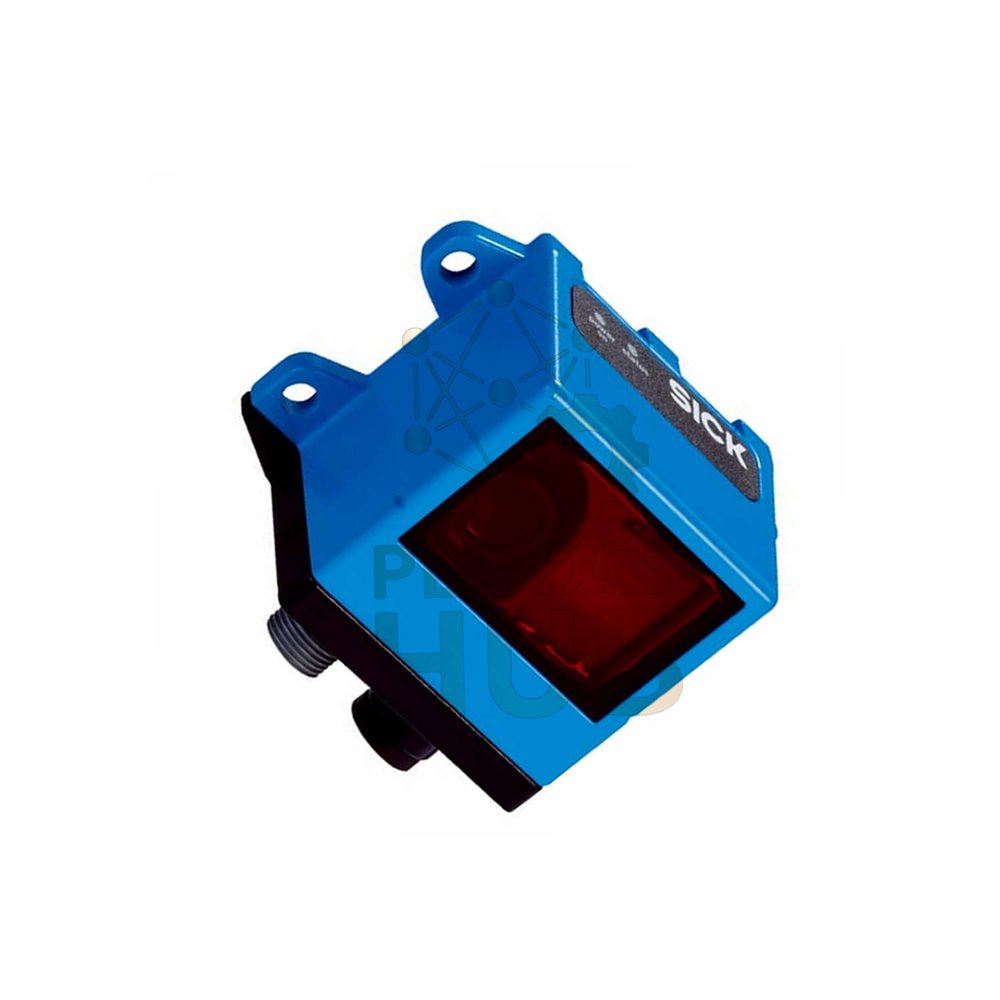

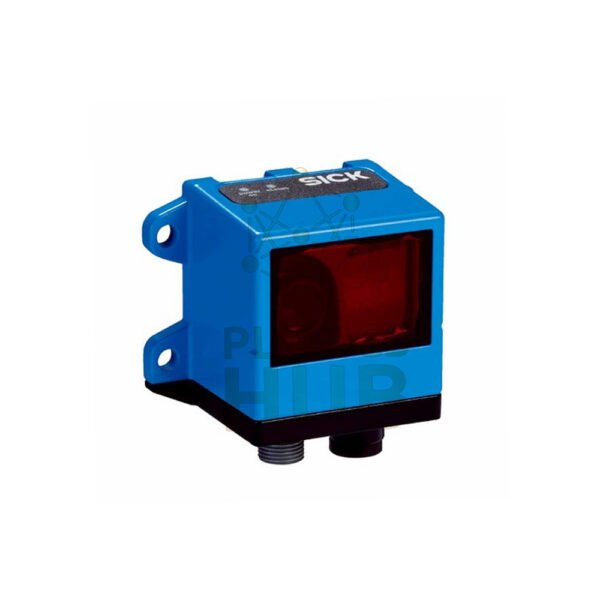

The SICK OLM200-1009 is a linear measurement sensor. It belongs to the OLM200 series. This sensor reads a barcode tape to measure position. It works over very long distances up to 10 km. Use it for cranes, monorails, and automated guided vehicles.

Model Number Breakdown

• OLM200-1009
• OLM200 = Series and model family
• 1009 = Specific variant with PROFINET interface

Key Features

• Extremely long measuring range – up to 10,000 meters
• Selectable resolution – 0.1 mm to 100 mm
• High speed tracking – up to 7 m/s
• PROFINET interface – direct PLC connection
• Wide temperature range – -30°C to +60°C operation
• IP65 rated – dust tight and water resistant

Performance Specifications

• Measuring range: 0 m to 10,000 m
• Resolution options: 0.1 mm, 1 mm, 10 mm, 100 mm
• Repeatability: 0.15 mm
• Response time: 10 ms
• Output time: 2.5 ms
• Max movement speed: 7 m/s
• Accuracy of speed output: ±5 mm/s
• Reading distance: 100 mm ±20 mm
• Barcode width: 30 mm

Optical Specifications

• Light source: LED, red
• Typical ambient light immunity: ≤5,000 lx

Electrical Specifications

• Supply voltage Vs DC: 18 V to 30 V
• Ripple: ≤5 Vpp
• Power consumption: Below 5.5 W
• Initialization time: 10 seconds
• Enclosure rating: IP65 (EN 60529)
• Protection class: III

Interfaces

• PROFINET: Standard (included)
• Digital output: 1 output (PNP/NPN configurable, max 100 mA)
• Multifunctional input MF2: 1 input

Digital Output Functions

• Position output
• Speed output
• Control mark Q00 (off) and Q01 (on)
• Illumination on/off control
• Service alerts – dirt detection or LED life warning
• No barcode tape detected
• Over or under temperature warning
• Out of measuring range (0 km to 10 km)
• Internal error indication

Mechanical Specifications

• Housing material: Not specified (typical aluminum for OLM series)
• Weight: Not specified
• Dimensions: Not specified in provided data

Ambient Conditions

• Operating temperature: -30°C to +60°C
• Storage temperature: -40°C to +75°C
• Typical ambient light immunity: ≤5,000 lx
• Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
• Shock resistance: DIN/EN 60068-2-27
• EMC compliance: EN 61000-6-2, EN 61000-6-4

Installation Guidelines

• Mount sensor at 100 mm distance from barcode tape.
• Keep ±20 mm tolerance during installation.
• Use 30 mm wide barcode tape matching SICK specification.
• Supply clean 18-30 V DC power.
• Connect to PROFINET network directly.
• Do not exceed 7 m/s movement speed.
• Need help? Contact us on WhatsApp +86 158 8020 0923

Maintenance & Care

• Keep front window clean for best performance.
• Check barcode tape for dirt or damage regularly.
• Monitor digital output for dirt detection warnings.
• No routine calibration needed.
• Replace barcode tape when contrast drops.

Compatibility

• Connects directly to PROFINET networks.
• Works with all major PLC brands including Siemens, Rockwell, and Versamax systems.
• Digital output connects to standard PNP or NPN inputs.
• Requires SICK barcode tape (sold separately).

Packing List

• One SICK OLM200-1009 sensor
• No barcode tape included – order separately
• No cables or mounting bracket included
• Manual available online

Warranty & Shipping

• 12-month warranty against defects
• Ships via FedEx, UPS, or DHL worldwide

Typical Applications & Diagnostic Ability

• Stacker crane positioning in warehouses
• Monorail system position tracking
• Automated guided vehicle (AGV) navigation
• Long conveyor positioning in ports
• Diagnose via digital output service alerts
• Monitor for dirt or barcode tape damage
• Check temperature warnings before failure

Professional FAQ

• What barcode tape works with OLM200-1009? Use SICK OLM barcode tape with 30 mm width. Do not use standard printed barcodes.
• Can I change the resolution after installation? Yes. Select 0.1 mm, 1 mm, 10 mm, or 100 mm via PROFINET parameters.
• What happens if the sensor loses the barcode tape? The digital output sends a “no barcode tape” error. Position data becomes invalid.
• Experience: My position jumps sometimes during operation. Check for dirt on the front window or barcode tape. Also verify reading distance is exactly 100 mm ±20 mm.
• Selection guide: OLM200-1009 or OLM100 series for short range? Pick OLM200-1009 for long range up to 10 km. Pick OLM100 for ranges under 1 km with lower cost.
