Description

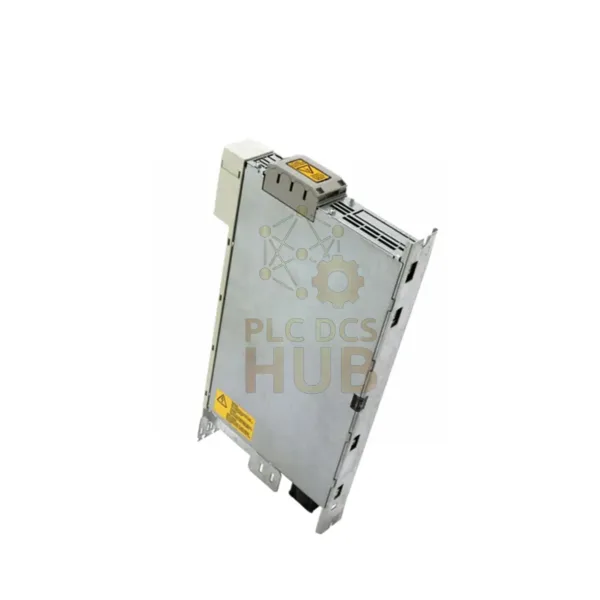

Siemens 6SE7012-0TP70-Z Frequency Converter
Precision Motor Control Unit
Compact Plus inverter for industrial motion control. 0.75kW power rating with DC 510-650V operation. IP20 protection. Ideal spare for legacy MASTERDRIVES systems.
Electrical Specifications
- Power Input: 3AC 380V-480V (±10%)
- DC Link Voltage: 510-650V
- Output Current: 2.0A continuous
- Overload Capacity: 3.2A short-time
- Switching Loss: 0.066 kW @ 5kHz
- DC Link Current: 2.4A rated
Physical Details
- Dimensions: 39.5 x 30.0 x 17.0 cm
- Weight: 3.00 kg
- Protection: IP20 (indoor use)
- Cooling: Natural convection
Performance Data
- Pulse Frequency: 5kHz standard
- Control Method: Vector control
- Brake Response: <5ms
- Efficiency: >97% at full load
- Harmonic Distortion: <3% THD
Industrial Applications
- Precision CNC machine tools
- Pharmaceutical mixing equipment
- Semiconductor wafer handlers
- Robotic arm positioning systems
- Glass manufacturing conveyors
Installation Notes
- Min clearance: 100mm top/bottom
- Ambient temp: 0-40°C operation
- Altitude: <1000m without derating
- Vibration: <0.6g (5.9m/s²)
Compatibility
- Replaces older 6SE7012-0TP70-Z
- Works with 3-phase AC motors
- Compatible with Siemens S7 PLCs
- Requires external EMC filter
Shipping & Support
- Global express shipping
- Tested before dispatch
Common Questions
Q: What motor size works best?
A: Optimized for 0.75kW 4-pole motors
Q: Can it handle regenerative braking?
A: Requires external braking unit
Q: Programming interface?
A> Uses Siemens Drive ES software
Q: Certifications?
A> CE, UL, cUL approved
