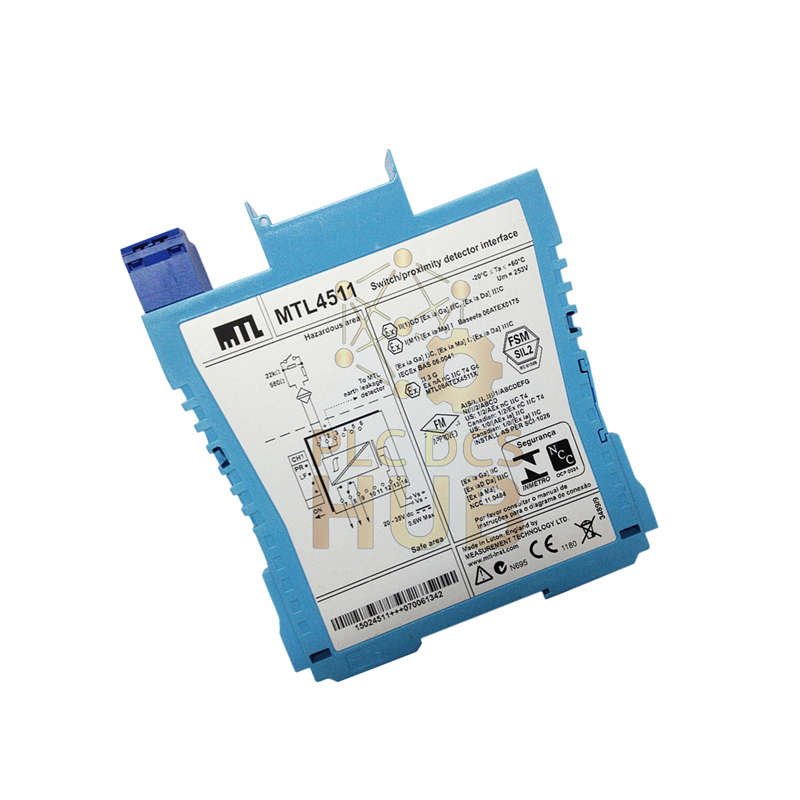

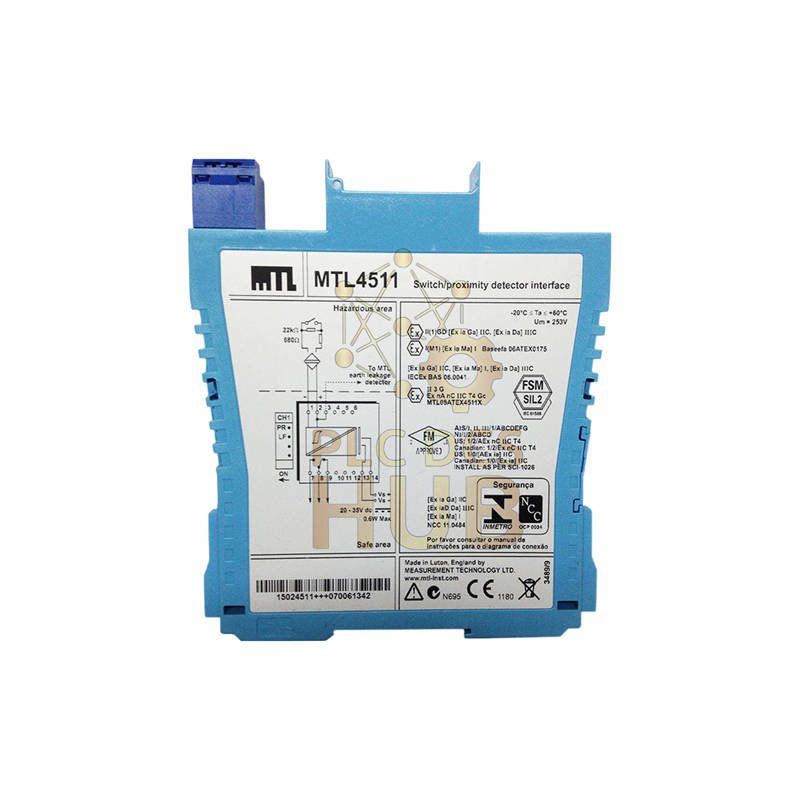

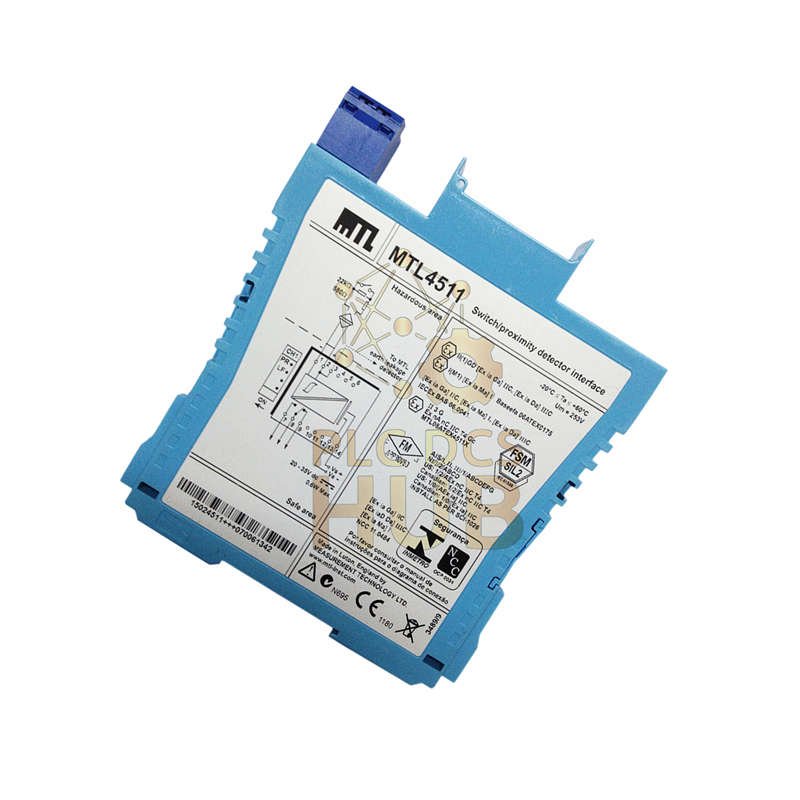

MTL4511 Switch Interface: Safe Control from Hazardous Areas

The MTL4511 lets you use a simple switch or sensor in a dangerous area to safely control equipment in a safe area. It detects wiring problems and has a relay output for easy connection to your systems.

Technical Specifications

Brand & Model: MTL MTL4511 Switch Interface
Input Type: Switches or NAMUR proximity sensors
Sensor Voltage: 7-9V DC
Output Type: Relay changeover contacts
Contact Rating: 0.5A, 35V DC
Response Time: < 10ms
Line Fault Detection: Open circuit & short circuit alarms
Power Supply: 20-30V DC
Power Consumption: 25mA at 24V
Hazardous Location Rating: Zone 0, IIC, T6 / Div 1, Group A
Operating Temperature: -20°C to +60°C

Simple Installation

Connect your hazardous-area switch or sensor. Wire the relay output to your safe-area equipment. Use the switches on the side to set phase reversal and fault detection. The MTL4511 is ready to work.

Frequently Asked Questions

• Q1: What is a NAMUR sensor?
  A1: It is a type of proximity sensor designed for safe use in hazardous areas.
• Q2: How does it detect wiring problems?
  A2: It monitors the current. Very low current means a broken wire; very high current means a short circuit.
• Q3: Can I use a simple push button switch?
  A3: Yes, the MTL4511 works with both basic switches and electronic sensors.
• Q4: What does the relay output do?
  A4: It provides isolated contacts that can turn other equipment on or off based on the switch status.
• Q5: What do the LED lights show?
  A5: Green for power, yellow for output status, and red for wiring faults.

Shipping & Package

Includes one MTL4511 unit. Shipped quickly worldwide via FedEx, UPS, and DHL.

Your Guarantee

This product comes with a 12-month warranty for quality assurance.
