Description
Product Overview

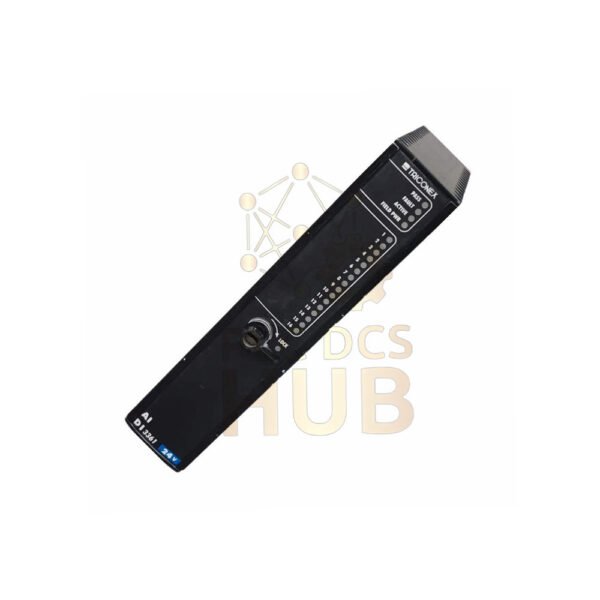

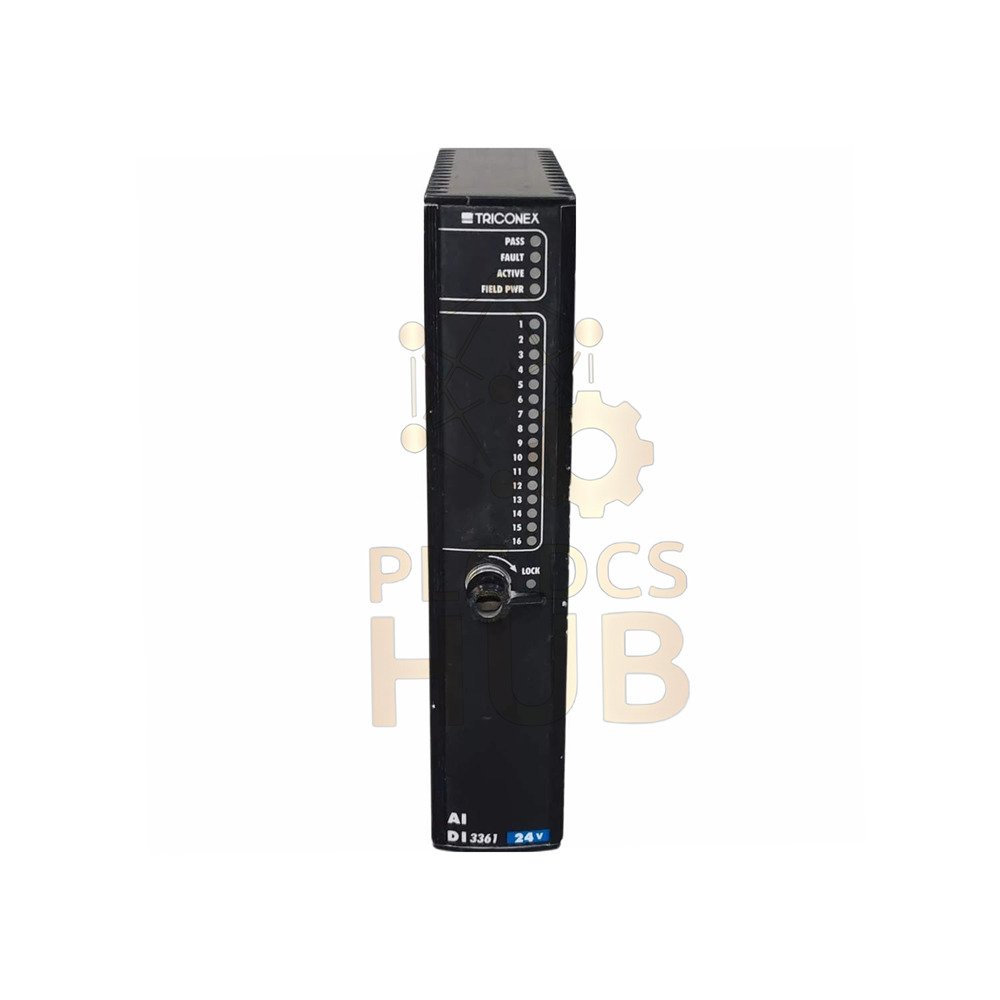

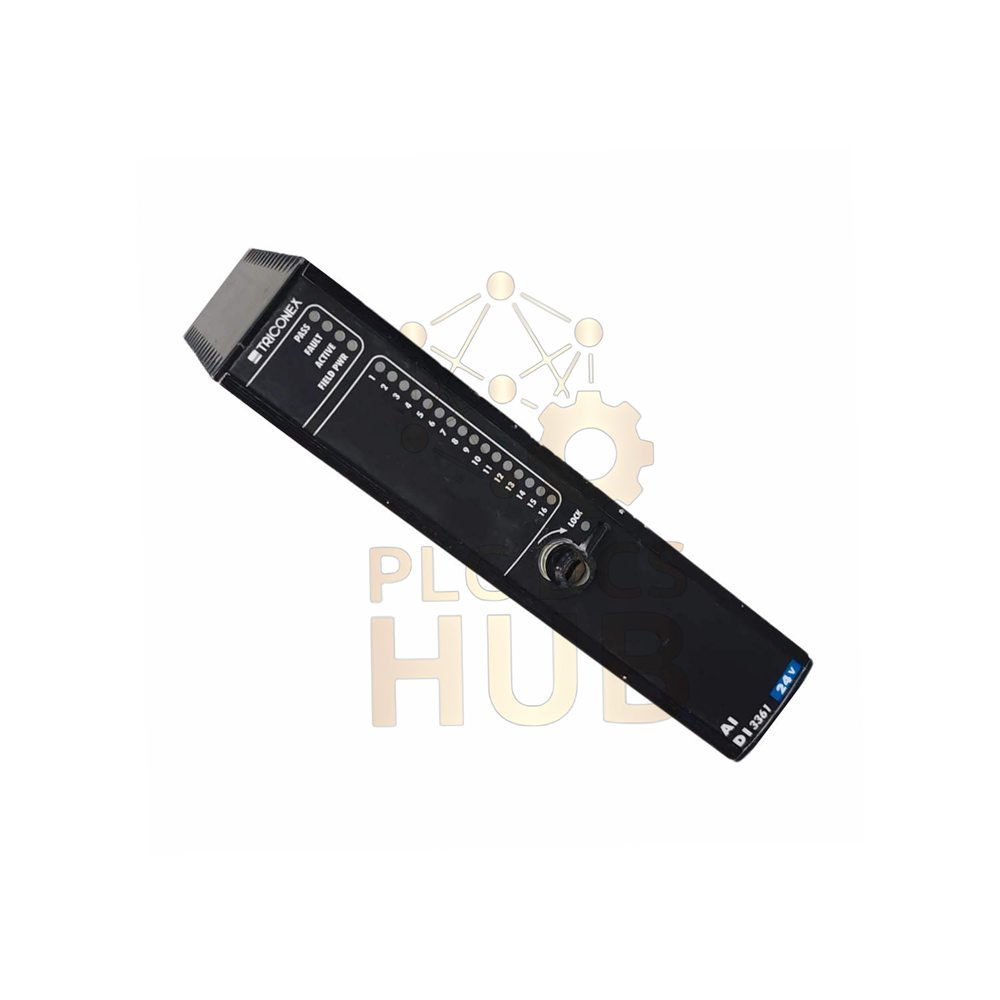

The Triconex 3361 is a hybrid Analog Input/Digital Input Module. It gives you 32 total points in one module. Points 1 to 16 are digital inputs. Points 17 to 32 are analog inputs. Three isolated channels process all field data independently. The MPs vote the data before sending it to your control program.
Module Highlights
- Brand: Triconex
- Model: 3361
- Type: Analog Input / Digital Input Combo Module
- Total Points: 32 (commoned)
- Digital Points: 16 (points 1-16)
- Analog Points: 16 (points 17-32)
- Voting Mode: Mid-value (TMR) or Average (dual mode)
Analog Input Specifications
- Nominal input current: 4-20 mA DC
- Operational range: 2-22 mA DC
- Maximum field voltage: 33 VDC
- Maximum reverse voltage: -0.6 VDC
- Maximum input current: 50 mA DC
- Input bandwidth (3dB): 16 Hz
- Source impedance: 180 Ω
- Input impedance (with baseplate): 250 Ω
- I to V resistor: 100 Ω ±0.01%
- Resolution: 12 bits
- Absolute error: 0.15% of full scale (20 mA)
- Diagnostic: Force-to-value (FVD)
- Scan time: <1 ms for all 32 points
Digital Input Specifications
- Nominal input voltage: 0-24 VDC
- Operational voltage range: 15-30 VDC
- Maximum input voltage: 33 VDC
- Maximum reverse voltage: -0.6 VDC
- Input delay: <10 ms (On to Off, Off to On)
- Input impedance without baseplate: >100 kΩ
- Input impedance with baseplate: ~3 kΩ
- Input power: 0.2 W/point @24 VDC, 0.5 W/point @33 VDC
- Off region: 0-5 VDC
- Transition region: 6-14 VDC
- On region: 15-30 VDC
- Diagnostic (loss of view): Force-to-value (FVD), <2 ms/test
- Max input toggle rate for diagnostic coverage: <20/sec
- FVD Off state glitch duration: <2 ms
- FVD Off state glitch magnitude: up to 36% of test voltage
- Output impedance during FVD Off state: 0-5 VDC, >100 kΩ
- ADC scan time: <1 ms for all DI points
Isolation Ratings
- Functional earth to protective earth: 500 VDC minimum
- Functional earth to logic functional earth: 800 VDC minimum
Fault Tolerance & Diagnostics
- Complete ongoing diagnostics for each channel
- Fault indicator turns on for a channel failure
- Fault means one channel problem, not full module failure
- Module works correctly with a single fault
- May continue working with multiple faults
- System alarm activates when diagnostics find a failure
Hot-Spare & Reliability
- Supports hot-spare module for online replacement
- Mechanically keyed to prevent wrong installation
- Triple Modular Redundancy (TMR) for high availability
Compatible Baseplates
- Model 2361 – AI/DI Baseplate (standard)
- AI/DI External Termination Baseplate – for external termination panels
Installation Guide
- Choose Model 2361 or AI/DI External Termination Baseplate
- Install the baseplate into your Tricon chassis
- Slide the 3361 module into the baseplate
- The keying mechanism prevents wrong insertion
- Tighten the front panel screws
- Connect analog field wiring to points 17-32
- Connect digital field wiring to points 1-16
Debugging & Maintenance
- Watch the Fault indicator LED for channel problems
- A Fault LED does not mean the whole module is bad
- Use the hot-spare module for online replacement without shutdown
- Use Force-to-value (FVD) diagnostics to test each channel
- Scan time is <1 ms for all points – great for fast troubleshooting
Compatibility
- Works with all Tricon systems supporting AI/DI modules
- Compatible with Modicon Quantum PLCs via system integration
- Use Model 2361 baseplate for standard applications
- Use External Termination Baseplate for remote field wiring
Typical Applications
- Process control needing both analog sensors and digital switches
- Oil and gas safety systems with TMR fault tolerance
- Power plants with mixed signal types
- Chemical facilities requiring high reliability
- Space-constrained panels (one module does both jobs)
Professional FAQ
- What is the difference between Triconex 3361 and 3351?
The 3351 has 32 analog inputs only. The 3361 has 16 analog plus 16 digital inputs in one module. - Can I replace a faulty 3361 module while the system runs?
Yes. The hot-spare feature allows online replacement. No need to shut down the system. - What does the Fault LED mean on a 3361?
It means one of the three internal channels has a problem. The module still works correctly with one fault. - Do I need a special baseplate for the 3361?
Yes. Use Model 2361 or the AI/DI External Termination Baseplate. Standard analog baseplates do not work. - What is the input delay for digital points?
Less than 10 ms for both On to Off and Off to On transitions.
Experience-Based Q&A
- Our digital input toggles faster than 20 times per second. Is that a problem?
Yes. The module may lose diagnostic coverage above 20 Hz. Slow down your signal or use a different module. - We see a Fault LED but all readings look fine. Should we replace the module now?
Not immediately. The module tolerates one fault. Schedule replacement during next planned shutdown. - Our analog input reads 4 mA but shows a small error. How accurate is the 3361?
The absolute error is 0.15% of full scale. At 20 mA full scale, error is ±0.03 mA. This is normal. - Can we mix 3361 modules with 3351 modules in the same chassis?
Yes, as long as your system firmware supports mixed I/O types. Check compatibility first. - Our digital input stays On even after the field switch opens. What is wrong?
Check if the input voltage drops below 5 VDC (Off region). Voltages between 6-14 VDC are undefined and may cause erratic readings.
Selection Guide
- Choose Triconex 3361 when you need both analog and digital inputs in one module
- Pick 3351 if you need 32 analog inputs only
- Pick 3351 with AI/DI variant if you need 16 analog + 16 digital but different specs
- Need HART communication? The 3361 does not support HART. Use 3351 with baseplate 2354/2354A instead
- For hazardous locations, check if you need the External Termination Baseplate option
- Need fast digital toggling? Ensure your signal rate stays below 20 Hz for full diagnostic coverage
Warranty & Shipping
- Warranty: 12 months from shipment. Covers manufacturing defects.
- Shipping: FedEx, UPS, DHL. Tracking number provided.
