Triconex 3481 TMR Module | Reliable 4-20mA Analog Output

Description

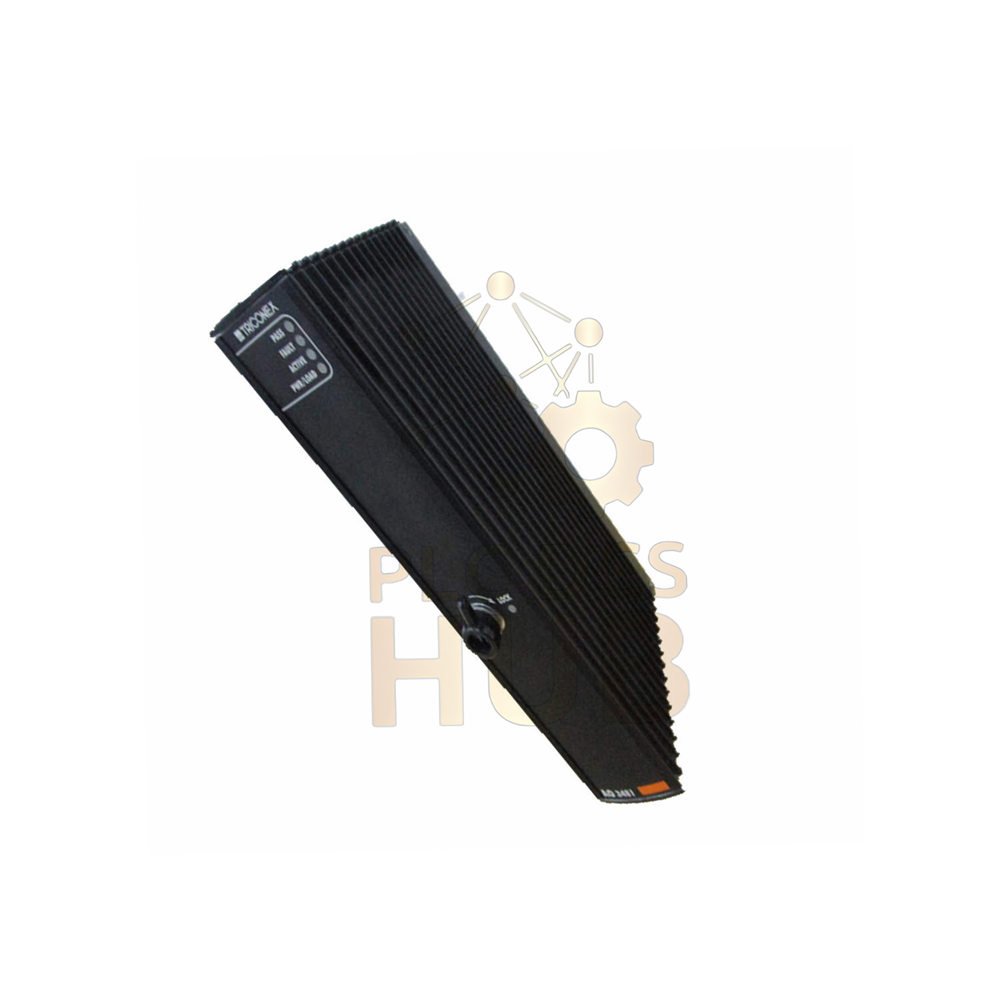

What Is the Triconex 3481?

The Triconex 3481 Analog Output Module is a TMR (Triple Modular Redundant) module. It has three isolated electronic sets called channels. Each channel takes data from its own MP. Then voter circuitry picks one channel to drive the output. Special circuits shunt the other channels. This stops them from affecting the output. The module runs ongoing diagnostics for every channel. If one channel fails, the Fault LED turns on. This also triggers the system alarm. The Fault LED shows a channel fault, not a full module failure. The Triconex 3481 works correctly with one fault. It may even work with multiple faults. The module supports a hot-spare unit. A mechanical key prevents wrong installation in the baseplate.

For inquiries: +86 158 8020 0923 (WhatsApp)

Technical Specifications

Main Features (Points 1 & 2)

• Brand: Triconex
• Model: 3481
• Type: TMR (Triple Modular Redundant)
• Points: 4, commoned-return, DC-coupled
• Isolated Points: None
• Resolution: 12 bits
• Diagnostic: Forced-switch diagnostic (FSD)

Output Current Range (Points 1 & 2)

• Normal output: 4 to 20 mA
• Over-range: 0 to 22 mA (controlled)
• 0 mA capability: Yes, step function less than 2 mA
• Output accuracy: Less than 0.25% of FSR (0-22 mA) from 0°C to 70°C (32°F to 158°F)

Special Output for Points 3 & 4

• Normal output: 4 to 40 mA
• Over-range: 0 to 44 mA (controlled)
• 0 mA capability: Yes, step function less than 4 mA
• Output accuracy: Less than 0.25% of FSR (0-44 mA) from 0°C to 50°C (32°F to 122°F)

Power & Protection

• External loop power: 32 VDC max, 24 VDC nominal (reverse voltage-protected)
• Over-range protection: 36 VDC continuous, 0 VDC continuous
• Switch time on leg failure: 1 ms typical, 3 ms maximum

Load Requirements for Points 1 & 2

• 300 ohm at more than 16 VDC (needs 1 A minimum)
• 500 ohm at more than 20 VDC (needs 1 A minimum)
• 700 ohm at more than 24 VDC (needs 1 A minimum)
• 800 ohm at more than 28 VDC (needs 1 A minimum)

Load Requirements for Points 3 & 4

• 125 ohm at more than 16 VDC (needs 1 A minimum)
• 210 ohm at more than 20 VDC (needs 1 A minimum)
• 295 ohm at more than 24 VDC (needs 1 A minimum)
• 340 ohm at more than 28 VDC (needs 1 A minimum)

Compatible Baseplates

• Model 2481: For typical applications
• Model 2483: Enables HART communication between field devices and asset management software on a PC
• Model 2483A: For hazardous locations. Also enables HART communication
• DO External Termination Baseplate: Use with Model 9863-610 ETP in hazardous locations (DO is correct, not a typo)

Environmental Data

• Operating temperature: 0 to 70°C (32 to 158°F) for points 1 & 2
• Operating temperature: 0 to 50°C (32 to 122°F) for points 3 & 4
• Storage temperature: -40 to 85°C (-40 to 185°F)
• Humidity: 5% to 95% non-condensing
• Noise immunity: Meets IEC 61000-4 standards

Installation Guide

• First, pick the right baseplate for your needs (2481, 2483, 2483A, or DO type).
• Then, slide the Triconex 3481 into the baseplate. The mechanical key prevents wrong installation.
• Connect your field devices to the output terminals.
• For HART devices, use baseplate 2483 or 2483A.
• For hazardous locations, choose baseplate 2483A or the DO baseplate with 9863-610 ETP.
• Power up the system. Check the PASS LED.

Debugging & Maintenance

• The module runs forced-switch diagnostics (FSD) on every channel.
• A Fault LED means one channel has a problem. The module may still work.
• Use a hot-spare module for online replacement. No system shutdown needed.
• Check loop power (24 VDC nominal) if output is wrong.
• Verify load resistance matches the requirements above.

Compatibility

• Works with Triconex main processors (MPs) on three channels.
• Also compatible with Modicon Quantum systems via network communication.
• HART communication requires baseplate 2483 or 2483A.
• Hot-spare support is included.

Certifications

• CE marked
• UL listed for industrial control
• Suitable for Class I, Division 2 hazardous locations (with 2483A or DO baseplate)
• Meets IEC 61131-2

Package Contents

• 1 x Triconex 3481 Analog Output Module
• Quick start guide
• Warranty card (12 months)
• Note: Baseplate sold separately. Choose model 2481, 2483, 2483A, or DO type.

Warranty & Shipping

• Warranty: 12 months from delivery. Covers factory defects.
• Shipping: FedEx, UPS, DHL express worldwide.
• Tracking number sent within 24 hours.

Typical Applications

• Controlling 4-20 mA actuators and valves
• Connecting to HART smart field devices (use baseplate 2483 or 2483A)
• Process control in oil, gas, and chemical plants
• Safety-critical analog output applications needing TMR reliability
• Hazardous area installations (with correct baseplate)

Diagnostic Capabilities

• Forced-switch diagnostic (FSD) tests each channel
• Ongoing background diagnostics run automatically
• Fault LED points to a specific channel issue
• System alarm triggers on any fault
• Module works with one fault. May work with multiple faults.

Frequently Asked Questions (FAQ)

Can I replace the module without stopping the system?

Yes. The Triconex 3481 supports a hot-spare module. Install the spare first. Then remove the faulty one. The system keeps running.

What baseplate do I need for HART communication?

Use model 2483 for normal areas. Use model 2483A for hazardous locations. Both enable HART between field devices and PC software.

The Fault LED is on but my output still works. Is this normal?

Yes. The Fault LED shows a single channel fault. The module still works correctly with one fault. Plan to replace the module later. Hot-spare makes this easy.

What happens if I use the wrong baseplate?

The mechanical key prevents wrong installation. You cannot insert the module into an incorrect baseplate. This protects your system.

Expert Experience Q&A

My 4-20 mA output reads zero. What should I check first?

First, check the loop power. It should be 24 VDC nominal. Then check the load resistance. For points 1-2, 300 ohm needs 16 VDC. Also verify your wiring to the baseplate terminals.

How do I know if my module needs replacement?

If the Fault LED stays on after power cycling, one channel has failed. The module still works. But order a replacement soon. Use a hot-spare to swap it online.

Can I use this module with a 2-wire HART transmitter?

Yes. Use baseplate 2483 or 2483A. The module provides loop power. Connect the HART transmitter to the output terminals. The asset management software can then communicate.

What is forced-switch diagnostic (FSD)?

FSD is a built-in test. It forces each output switch to turn on and off briefly. This checks if the switch works. The test happens automatically. You will not see any output change.

The switch time says 1 ms typical. What does this mean?

When one channel fails, the module switches to a good channel. This takes about 1 millisecond. Your process will not notice the switch. Maximum time is 3 ms.

Selection Guide

• Choose Triconex 3481 for 4-20 mA TMR analog output needs.
• Pick baseplate 2481 for basic applications without HART.
• Pick baseplate 2483 if you need HART communication in normal areas.
• Pick baseplate 2483A for HART in hazardous locations.
• Pick DO baseplate with 9863-610 ETP for hazardous areas without HART.
• Use points 3 and 4 if you need 4-40 mA output range.
• Always order a hot-spare module for critical processes.
