Description
Product Introduction
High Integrity TMR Digital Input for Safety Systems

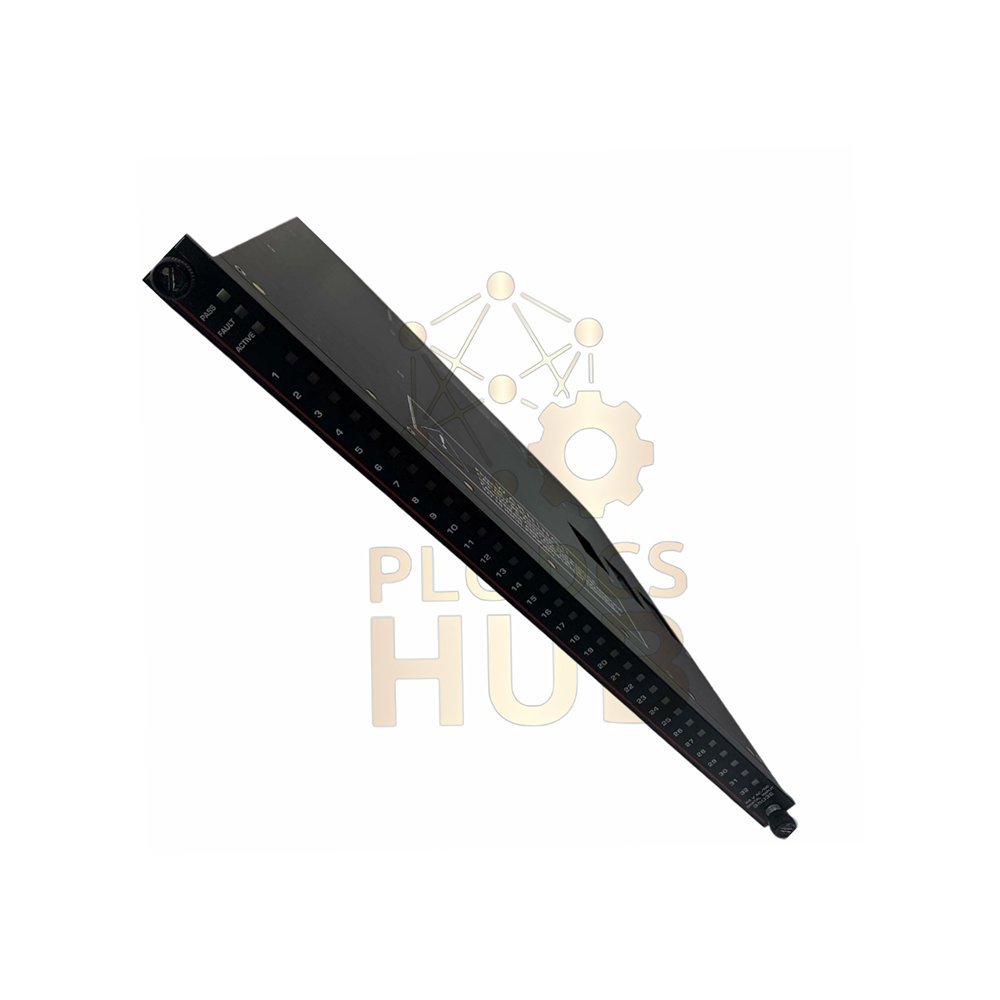

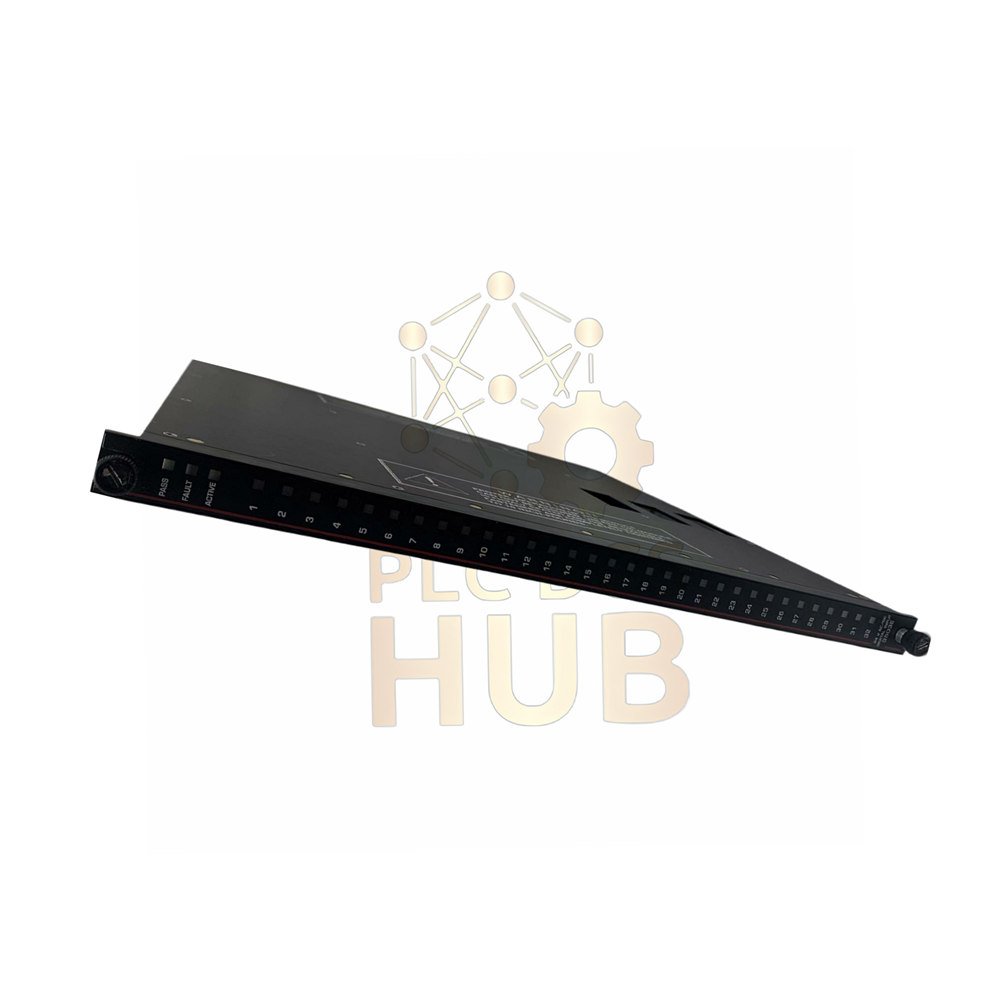

The Triconex 3503E is a Triple Modular Redundant (TMR) digital input module. It serves critical safety applications requiring de-energize-to-trip logic. Each of the 32 inputs processes data through three isolated channels. Main processors vote on all input data before execution. This design ensures highest integrity and maximum availability. All critical signal paths are 100% triplicated. The module supports hot-spare capability for non-stop operation. A separate external termination panel (ETP) connects via cable to the Tricon backplane. Mechanical keying prevents incorrect installation.
Built-in Stuck-ON Self-Test
The Models 3502E, 3503E, and 3505E can self-test for stuck-ON conditions. A switch inside the input circuitry closes to read a zero (OFF) state. The I/O communication processor freezes the last data during this test. This feature is vital for systems set up with de-energize-to-trip capability.
Diagnostic Capability & Fault Handling
Each channel runs complete, ongoing diagnostics. Any channel diagnostic failure activates the module Fault indicator. The chassis alarm signal then turns on. The Fault indicator points to a specific channel fault, not a whole module failure. The module operates properly with a single fault. It may continue to operate with certain multiple faults.
Technical Specifications (MECE Structured)
Brand & Model
– Manufacturer: Triconex – Product No.: 3503E – Model Number: .3503E – Alternate Code: 3503EN2 (EDI 5909) – Type: TMR with Self-Test – Color Code: Dark red
Input Ratings
– Input Points: 32, commoned in groups of 8 – Voltage Type: 24 VAC/VDC – Recommended Range: 20 to 42.5 VAC/VDC – Maximum Voltage: 42.5 VAC/VDC – Frequency Range: DC or 47 to 63 Hz – Nominal Turn-On Current: 6 to 9 mA – Nominal Input Impedance: > 1.25 KΩ
Switching Levels & Hysteresis
– Off to On Threshold: > 18 VAC/VDC – On to Off Threshold: < 6 VAC/VDC – Typical Hysteresis: 4 VAC/VDC
Response & Delay
– OFF to ON Delay: < 8 ms – ON to OFF Delay: < 15 ms
Isolation & Protection
– Point Isolation: 1,500 VDC – Optical Isolation between field and Tricon – Each channel conditions signals independently
Power Consumption
– Load per ON point: 0.5 watts nominal – Load at max field voltage: 1.5 watts
Environmental & Tolerance
– Temperature Range: Standard industrial chassis environment – Environmental耐受性: Designed for harsh industrial control rooms – Noise Immunity: Optical isolation and TMR voting reject common-mode noise
Compliance & Certification
– Designed for safety-critical systems (SIL-rated TMR architecture) – Meets Triconex standards for high availability and fault tolerance
Installation & Mechanical
Mounting & Keying
– Mechanically keyed to prevent wrong insertion – Requires a configured Tricon chassis – Hot-swappable with hot-spare support
Termination & Cabling
– Needs a separate External Termination Panel (ETP) – Cable interface connects to the Tricon backplane
Commissioning & Maintenance Convenience
Easy Commissioning
– Module status LEDs (PASS, FAULT, ACTIVE) give clear startup feedback – One input status LED per point simplifies wiring checks
Maintenance Friendly
– Fault LED pinpoints a channel fault, not just module failure – Hot-spare allows replacement without system shutdown – Self-test can run online without tripping processes
Compatibility
System Compatibility
– Fits directly into Tricon TMR chassis – Works with all Tricon main processors – Compatible with standard ETPs for field wiring
Partner Product References
– For similar safety I/O needs, see Modicon Quantum series from our partner.
Packaging List & Warranty
What’s in the Box
– 1 x Triconex 3503E TMR Digital Input Module – Mechanical keying insert (pre-installed) – No ETP or cable included (order separately)
Warranty & Shipping
– 12 months warranty from date of shipment – Covers manufacturing defects and component failures – Shipping carriers: FedEx, UPS, DHL (door-to-door) – Tracking number provided within 24 hours
Typical Applications
Where to Use the 3503E
– Emergency Shutdown (ESD) systems – Fire & Gas (F&G) detection panels – Burner Management Systems (BMS) – High-integrity pressure protection (HIPPS) – Turbine control safety functions – Any de-energize-to-trip field input
FAQ (Frequently Asked Questions)
Q1: Can the 3503E replace an older 3503E without changing wiring?
Yes. It has the same form, fit, and function. Use the same ETP and backplane.
Q2: How do I know if a specific channel has a stuck-ON fault?
Run the onboard self-test. The module will report the fault via the I/O communication processor. No external tool is needed.
Q3: What happens if one channel fails during operation?
The other two channels continue to vote correctly. The module stays fully operational. This is the TMR advantage.
Q4: Can I use this module with 48 VDC field devices?
No. Maximum voltage is 42.5 VAC/VDC. Exceeding this may damage the module.
Q5: Why does the module need an external termination panel?
The ETP provides field wiring termination and filtering. It keeps the backplane clean and simplifies maintenance.
Q6 (Experience-based): We see intermittent channel faults in a hot environment. What should we check?
Check chassis cooling first. High temperature can cause marginal opto-isolator drift. Also inspect the ETP for loose ground connections.
Q7 (Selection Guide): Should I pick 3503E or 3502E for a 24 VDC ESD system with 16 inputs?
Pick 3503E if you need 32 points and self-test for stuck-ON. Pick 3502E if you need fewer points and no AC capability. The 3503E gives better diagnostics for de-energize-to-trip.
Q8 (Selection Guide): We use both 24 VDC and 120 VAC inputs in one system. Which module?
Use 3503E for 24 VDC/AC. Use a separate Triconex 3504E (120 VAC) for high-voltage inputs. Never mix voltages on the same commoned group.
