Triconex 3664 Dual Digital Output Module | 24 VDC 32-Channel

Description

Product Overview

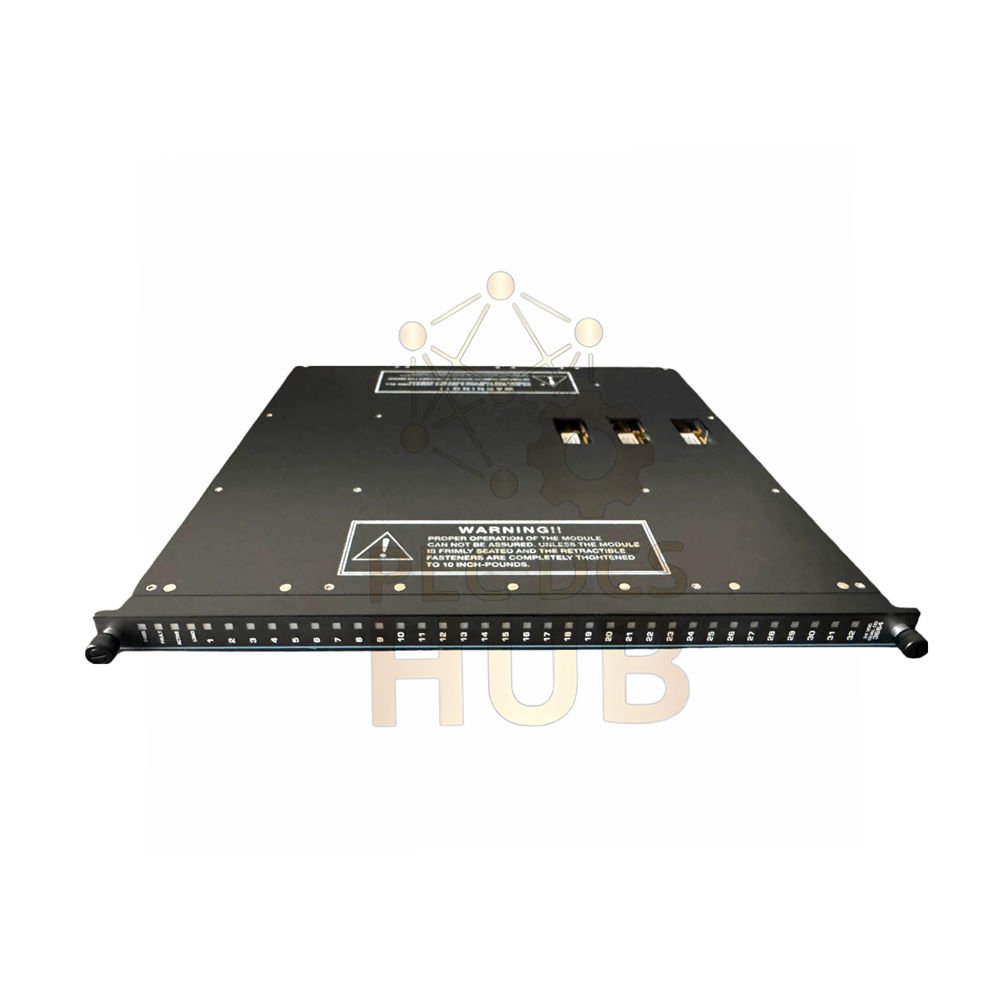

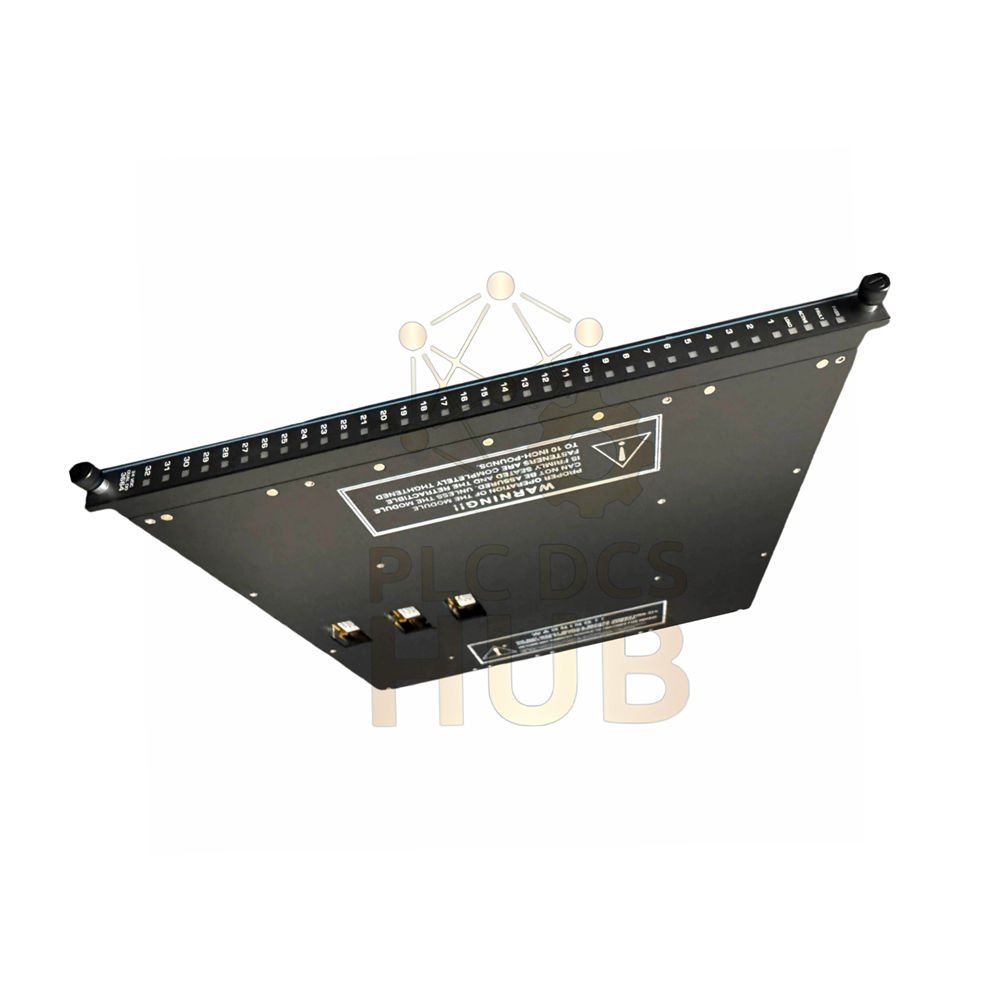

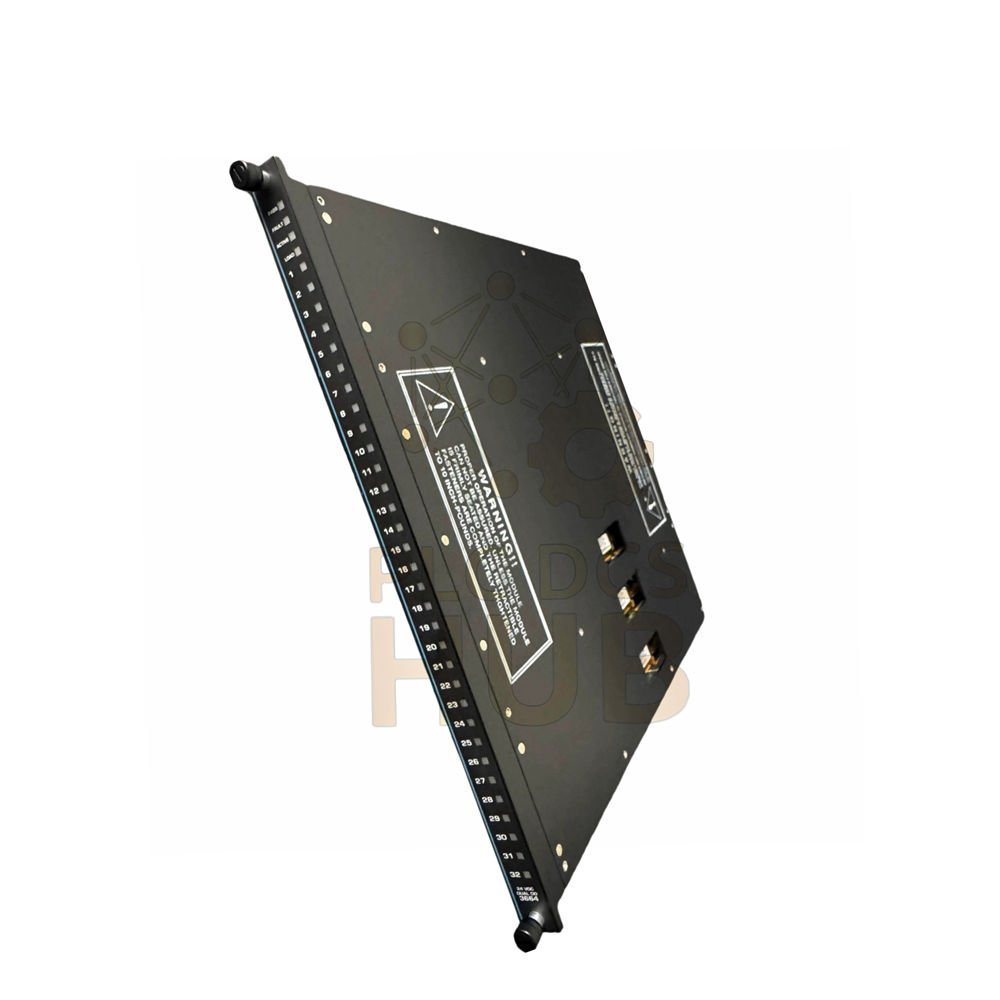

The Triconex 3664 is a Dual Digital Output (DDO) Module. It receives signals from main processors via a single path. The module applies a 2-out-of-3 voting process to each switch. This design ensures safe operation for safety-critical control programs. It prioritizes low cost over maximum availability. Ideal for de-energize-to-trip control programs.

Key Features

• Voltage Loopback Circuit – Verifies each output switch without a load.
• Latent Fault Detection – Identifies hidden faults automatically.
• Hot-Spare Capability – Replace faulty modules online.
• Ongoing Diagnostics – Tests each channel and circuit continuously.
• Mechanical Keying – Prevents improper installation.
• Self-Protecting – No external fuses required.

Technical Specifications

• Brand: Triconex
• Model Number: 3664
• Product Type: Dual Digital Output Module
• Color Code: Dark Blue
• Nominal Voltage: 24 VDC
• Voltage Range: 16-30 VDC
• Maximum Voltage: 36 VDC
• Typical Voltage Drop: Less than 1.5 VDC
• Power Module Load: Less than 10 watts
• Output Signals: 32, commoned
• Maximum Current per Point: 2A
• Surge Current: 10A for 10ms
• Maximum Load Leakage: 2 mA
• Point Isolation (Minimum): 1500 VDC
• Fuses: Not applicable (self-protecting)

Diagnostic Indicators & Alarms

• ON or OFF State – 1 indicator per point
• Module Status – PASS, FAULT, ACTIVE
• Field Alarm (LOAD/FUSE) – Activates when field voltage mismatches commanded state
• Stuck-ON Alarm (3664) – One stuck-ON point, others follow commanded state
• Stuck-OFF Alarm – One stuck-OFF point, others follow commanded state

Installation & Compatibility

• Requires a separate External Termination Panel (ETP)
• Uses a cable interface to the Tricon backplane
• Outputs source current to field devices
• Field power must connect to each output point on the termination panel
• Mechanically keyed for correct chassis placement
• Compatible with de-energize-to-trip safety programs
• For Modicon Quantum systems, check compatibility separately: Modicon Quantum Series

Maintenance & Diagnostic Capability

• Ongoing diagnostics run on every channel
• Any diagnostic failure activates the FAULT indicator
• FAULT indicator then activates the chassis alarm signal
• Module works with most single faults
• May work with some multiple faults
• Exception: Stuck-OFF fault – Output goes OFF. A glitch may occur during switch-over to a hot-spare module.

Typical Applications

• Safety-critical control programs with budget constraints
• Emergency shutdown (ESD) systems using de-energize-to-trip logic
• Process automation requiring dual redundancy instead of TMR
• Industrial field device control (sourcing current to loads)

Environmental & Electrical Tolerances

• Voltage Range Tolerance: 16-30 VDC continuous
• Maximum Survival Voltage: 36 VDC
• Point Isolation: 1500 VDC minimum – high noise immunity
• Load Leakage: 2 mA maximum – low off-state power drain
• Surge Capability: 10A for 10ms – handles inrush currents

Frequently Asked Questions (FAQ)

• What happens if one output switch fails OFF?
  The output goes to OFF state. A glitch may appear during hot-spare switch-over.
• Does this module work without a load connected?
  Yes. The voltage-loopback circuit verifies switch operation independently of load presence.
• Why choose dual module over TMR?
  Lower cost. Provides just enough redundancy for safe operation. Best when high availability is not critical.
• How do I know if a latent fault exists?
  The voltage-loopback circuit detects latent faults. It compares field voltage to commanded state.
• Can I replace a module while the system runs?
  Yes. Hot-spare capability supports online replacement.
• What does the LOAD/FUSE alarm mean?
  Detected field voltage does not match the commanded output state.

Experience-Based Buying Guide & Selection Advice

• Choose 3664 dual module when budget is tighter than uptime requirements.
• For maximum availability, use TMR modules instead of dual.
• Select this module for de-energize-to-trip control programs. The manufacturer recommends serial connection for this use.
• Avoid using dual modules in continuous high-speed switching applications. Stuck-OFF faults may cause glitches.
• Always pair with the correct External Termination Panel (ETP) and cable.
• Verify field power wiring per point – outputs source current, they do not sink.
• If your system requires stuck-ON detection only, review model 3674 specifications separately.

Certification & Compliance

• Manufactured by Triconex for safety-critical systems
• Designed for use in Tricon backplane environment
• Color code Dark Blue – ensures correct module identification
• Point isolation 1500 VDC minimum – meets industrial isolation standards

Package Contents

• 1 x Triconex 3664 Dual Digital Output Module
• Documentation not included – refer to Triconex manual
• External Termination Panel (ETP) sold separately
• Cable interface sold separately

Warranty & Shipping

• 12-month warranty from date of shipment
• Shipping carriers: FedEx, UPS, DHL
• Tracking number provided for all orders
