Description
Product Overview

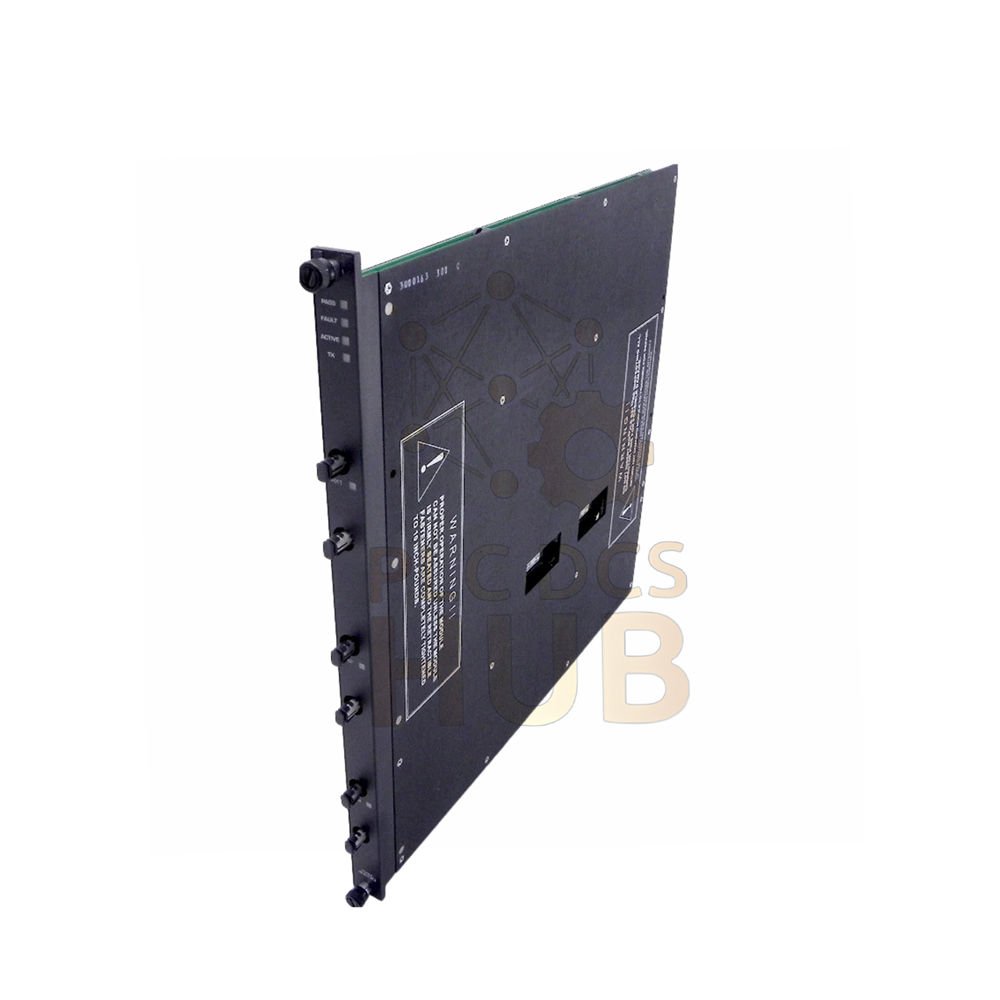

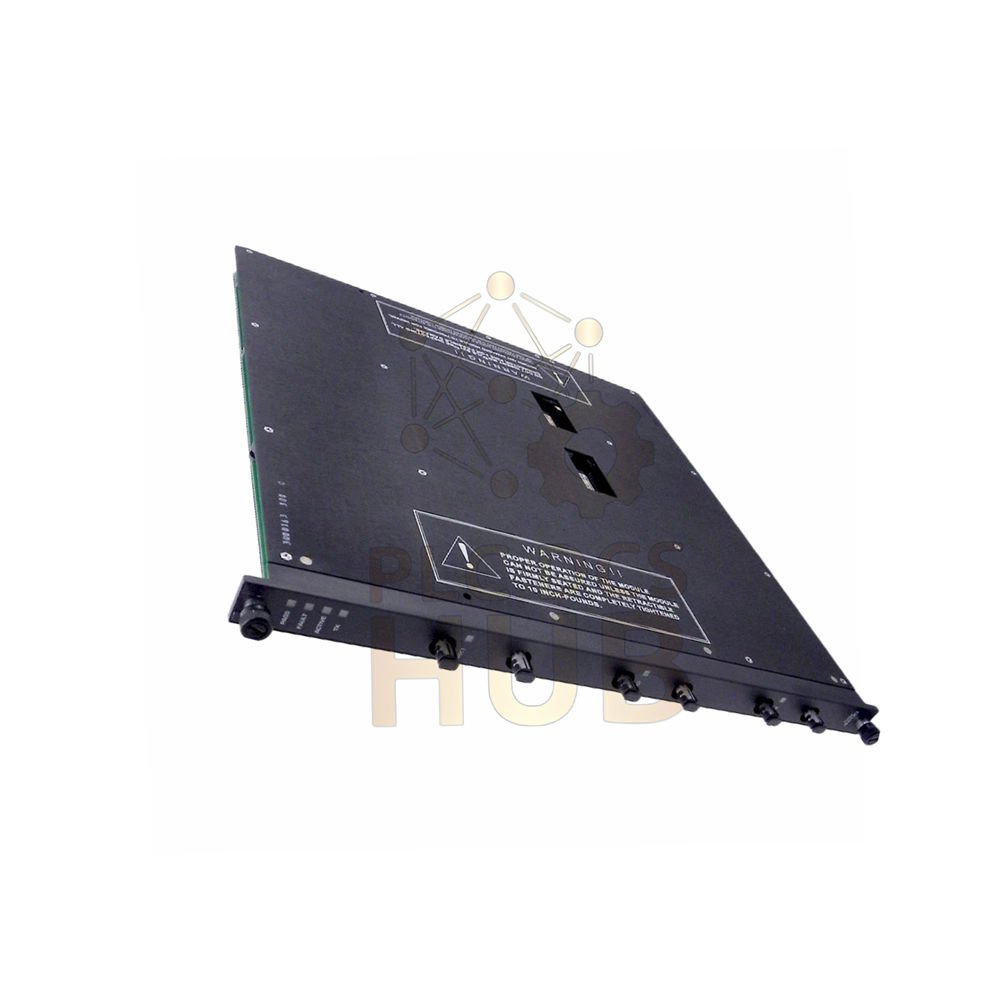

- Triconex 4200 RXM is a Remote Extender Module.
- It lets you place I/O modules kilometers away from the main chassis.
- Three identical modules form one RXM set.
- Each set works as a repeater and extender for the Tricon I/O bus.
- Provides ground loop isolation for reliable remote communication.
Key Specifications
- Brand: Triconex
- Model: 4200
- Series: RXM (Remote Extender Module)
- Type: Fiber Optic I/O Bus Extender
- Communication rate: 375 kbps
- Cable type: Multi-mode fiber optic
- Max distance: 7.5 miles (12 kilometers)
- Remote sites supported: 3
- Connectors per remote site: 6 (2 per channel)
- Modem ports: Fiber optic with ST connectors
System Configuration
- Primary RXM set connects to three remote RXM sets.
- Each remote RXM set lives in a remote chassis.
- Each channel uses two fiber cables (one send, one receive).
- Three channels per remote site = 6 cables total per site.
- Cabling is uni-directional for reliable data flow.
Key Benefits
- Maximum protection against electro-static and electro-magnetic interference
- Supports optical modems and point-to-point fiber cabling
- Ideal for remote locations up to 12 km away
- Works seamlessly with Modicon Quantum systems via standard I/O integration
Diagnostic Indicators
- PASS – Module self-test passed
- FAIL – Internal fault detected
- ACTIVE – Module is operating normally
- TX – Data transmitting on fiber
- RX1, RX2, RX3 – Data receiving on channels 1, 2, and 3
Frequently Asked Questions
- Can I use single-mode fiber instead of multi-mode with Triconex 4200?
No. The 4200 RXM is designed for multi-mode fiber only. Single-mode will not work correctly. - What happens if one fiber cable breaks?
That channel loses communication. The system may trigger a fault. Use the TX and RX LEDs to find which cable failed. - Do I need three RXM modules for every remote site?
Yes. Each remote site needs one full RXM set (3 modules). The primary site also needs one RXM set. - My site is 15 km away. Will this work?
No. Maximum distance is 12 km (7.5 miles). For longer distances, use signal boosters or fiber converters. - Can I connect more than 3 remote sites to one primary RXM set?
No. The design supports exactly 3 remote sites per primary set. For more sites, add another primary RXM set.
Selection Guide
- Buy Triconex 4200 RXM if your I/O needs to be over 1 km from the main chassis
- For distances under 1 km, standard I/O cables may work – no RXM needed
- Each remote chassis requires 6 fiber cables with ST connectors – order separately
- Verify you have multi-mode fiber already installed before buying
- Need ground loop isolation? This module provides it – choose RXM over copper extenders
Packing & Warranty
- Each Triconex 4200 RXM set includes 3 identical modules
- Fiber cables and ST connectors not included
- 12-month warranty covers manufacturing defects
- Warranty excludes damage from wrong fiber type or improper installation
Shipping
- Worldwide shipping via FedEx, UPS, or DHL
- Tracking provided within 24 hours
- Delivery in 3-7 business days typically
