Description

Product Overview

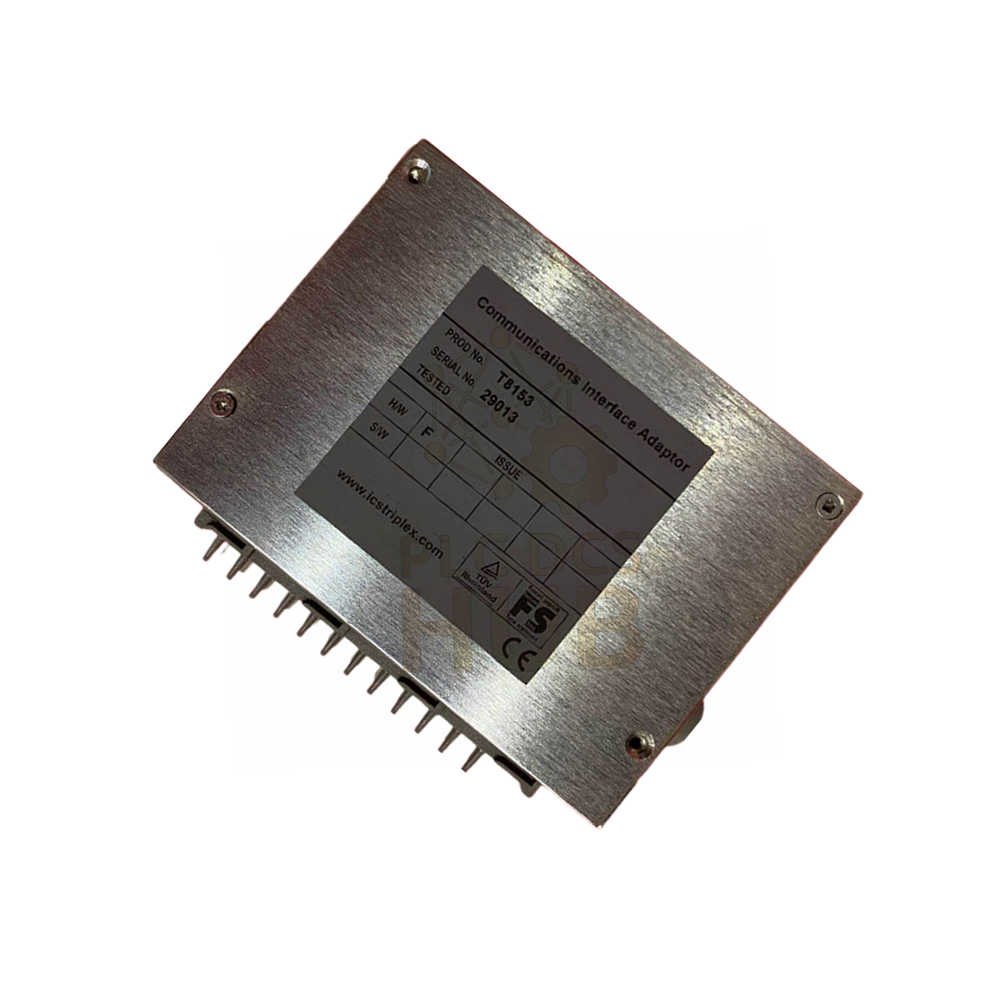

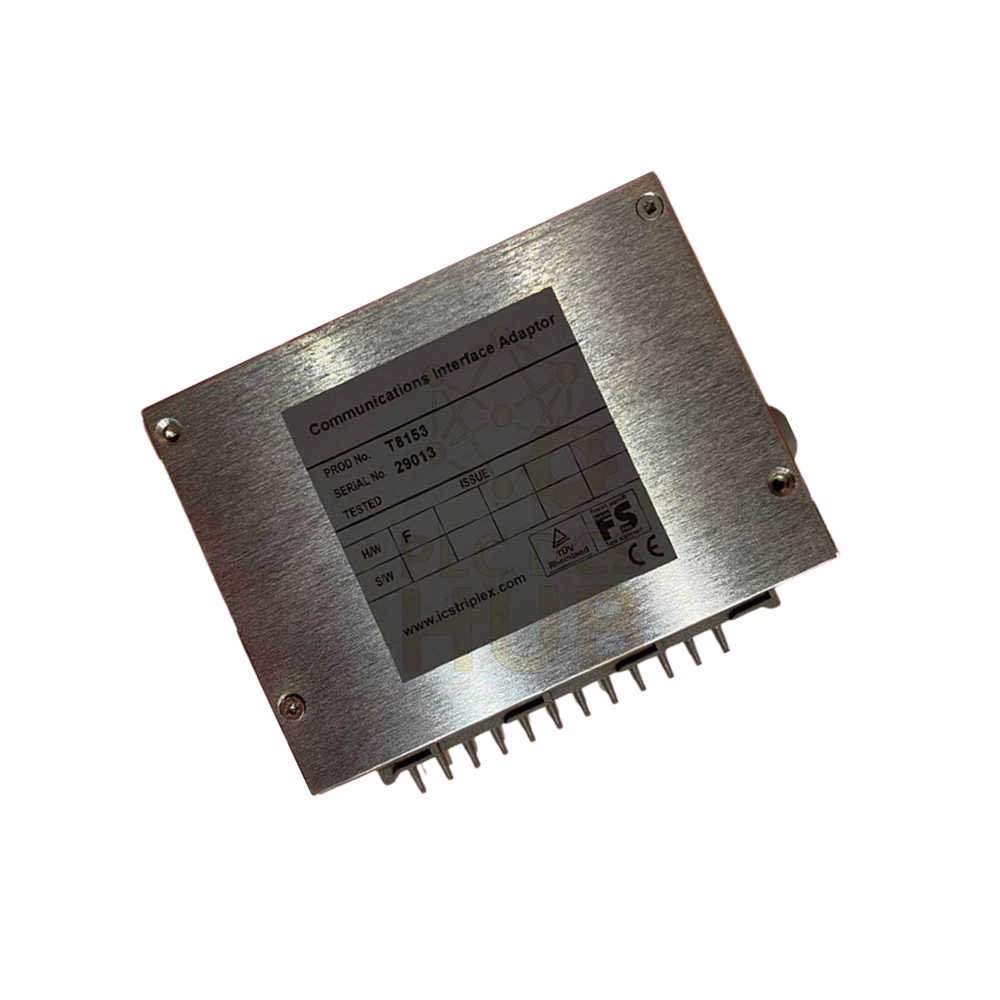

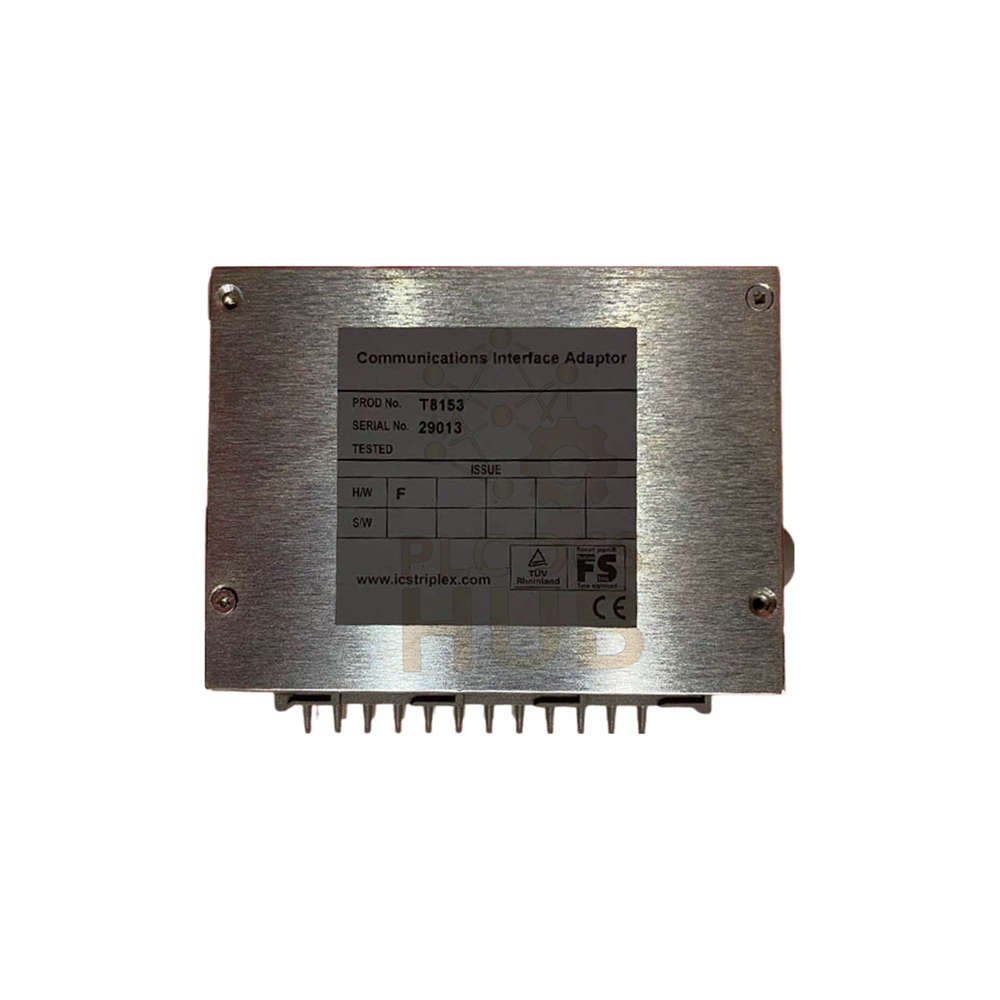

• ICS Triplex T8153 is a Comms Interface Adaptor for Trusted TMR System.
• It gives easy access to processor communication ports.
• Use it for DCS connections, MODBUS Master, or IRIG-B time sync.
• This unit connects directly to the rear of a Trusted Controller Chassis.

Key Features

• Easy install – clips onto chassis rear, no extra tools
• Two RS422/485 ports (2 or 4 wire configurable)
• One RS422/485 2-wire port
• Fault/fail outputs for Active and Standby processors
• Processor diagnostic connection
• PSU shutdown monitor
• Optional IRIG-B122 / B002 time sync input
• Optional MODBUS Master enable for Trusted Comms Interface

Technical Data

• Model: T8153
• Brand: ICS Triplex
• Series: Trusted TMR System
• Type: Communications Interface Adapter
• Supply Ratings: N/A
• Certification: Ordinary / HazLoc / ATEX / IECEx
• Origin: United States (US)
• Connectors: Two 48-way DIN41612 E-type (SK1)
• Ports: Port1 (2-wire RS422/485), Port2 & Port3 (2 or 4-wire RS422/485)
• Earth point: Required for ESD safety and equipotential bonding

Installation & Compatibility

• Fits Trusted Controller Chassis T8100
• Works with Trusted TMR Processors T8110B and T8111
• Two release buttons let you disconnect the adapter easily
• Metal enclosure protects the PCB
• Chassis earth connects to adapter shell and rack earth

5 Professional FAQs

• What happens if I lose equipotential bonding?
• You risk ESD damage and unsafe operation. Always maintain earth connection.
• Can I use this adapter with non-Trusted systems?
• No. It is designed only for Trusted TMR Processor chassis T8100.
• How do I set ports 2 and 3 to 4-wire mode?
• Configuration is done via DIP switches inside the adapter. See manual for details.
• Does this adapter support hot swapping?
• No. Power down the chassis before installing or removing T8153.
• My system shows no sync with IRIG-B. What to check?
• Verify the adapter has the IRIG-B option fitted. Then check wiring and signal level.

Buying Guide & Support

• Warranty: 12 months from shipment date
• Shipping: FedEx, UPS, or DHL – worldwide express
• Genuine ICS Triplex T8153 – avoid counterfeit units
• Check your chassis model: must be T8100
• Need MODBUS Master? Confirm the option is enabled before ordering
• For IRIG-B time sync, specify the T8153 with IRIG option
• Contact for RMA or support: +86 158 8020 0923 (WhatsApp)
