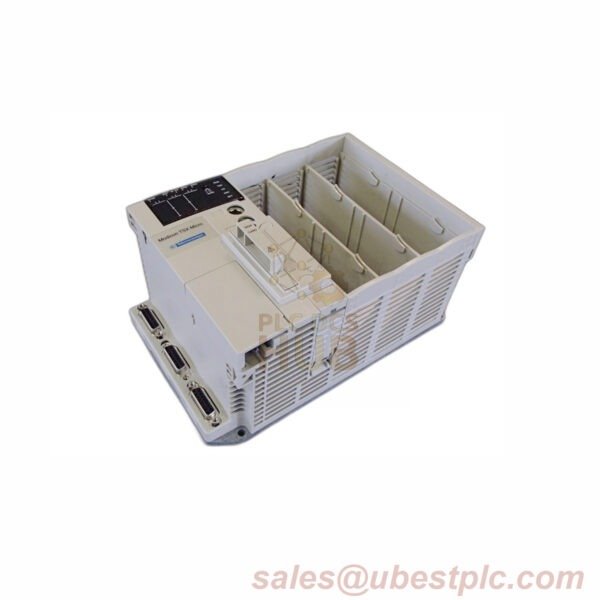

TSX3721101 Schneider Electric Modular Base Controller

Description

Overview

The Modicon TSX3721101 TSX Micro modular base controller offers robust performance and flexibility for various automation applications. With a primary voltage of 24 V DC, it features fast execution times, ample memory, and a range of integrated connections for efficient control and monitoring. The controller is designed for environments requiring high reliability and performance, including a wide range of protection and electromagnetic compatibility features.

Key Features

• Platform: Modicon TSX Micro automation platform
• Product Type: Modular base controller
• Primary Voltage: 24 V DC (19.2 to 30 V)
• Input Current: 2 mA / 60 A
• Immunity to Microbreaks: 10 ms
• Number of Slots: 3
• Realtime Clock: Included
• Integrated Connections:
  • 1 serial link (TER/AUX), Uni-Telway at 19.2 kbit/s
  • 1 Modbus RTU at 19.2 kbit/s

Memory & Storage

• Flash Memory: 15 Kwords data
• Internal RAM: 20 Kwords data
• Internal RAM with PCMCIA: 128 Kwords for program and data storage
• Data Storage RAM: 128 Kwords

Execution Time

• Boolean Instruction:
  • 0.13 µs without PCMCIA card
  • 0.19 µs with PCMCIA card
• Arithmetic REAL Floating Instruction:
  • 4.5 µs without PCMCIA card
  • 4.5 µs with PCMCIA card
• 1K Instruction Execution:
  • 5.88 ms for 100% Boolean without PCMCIA
  • 4 ms for 100% Boolean with PCMCIA

Application Structure

• Fast Task: 1
• Event Tasks: 16
• Master Task: 1

System Overhead

• Master Task Overhead: 1.6 ms

Protection & Power

• Protection Types: Short-Circuit and Overload Protection
• Total Useful Secondary Power: 16 W

Physical Dimensions

• Width: 13.4 in (341.4 mm)
• Height: 5.9 in (151 mm)
• Depth: 6.0 in (152 mm)
• Net Weight: 3.79 lb (1.72 kg)
