TTL Negative Logic Output Module | IC693MDL752 GE Fanuc Series 90-30

Description

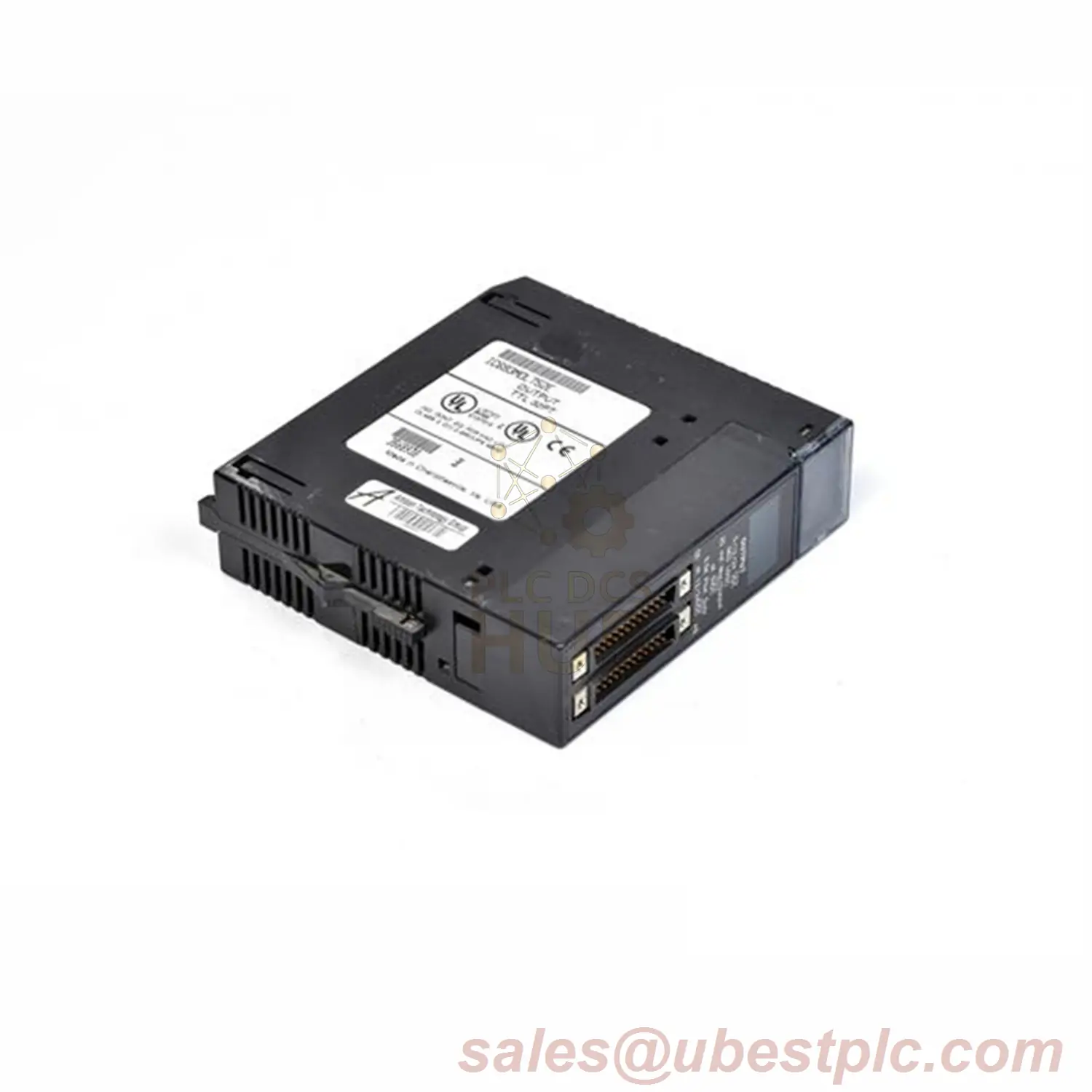

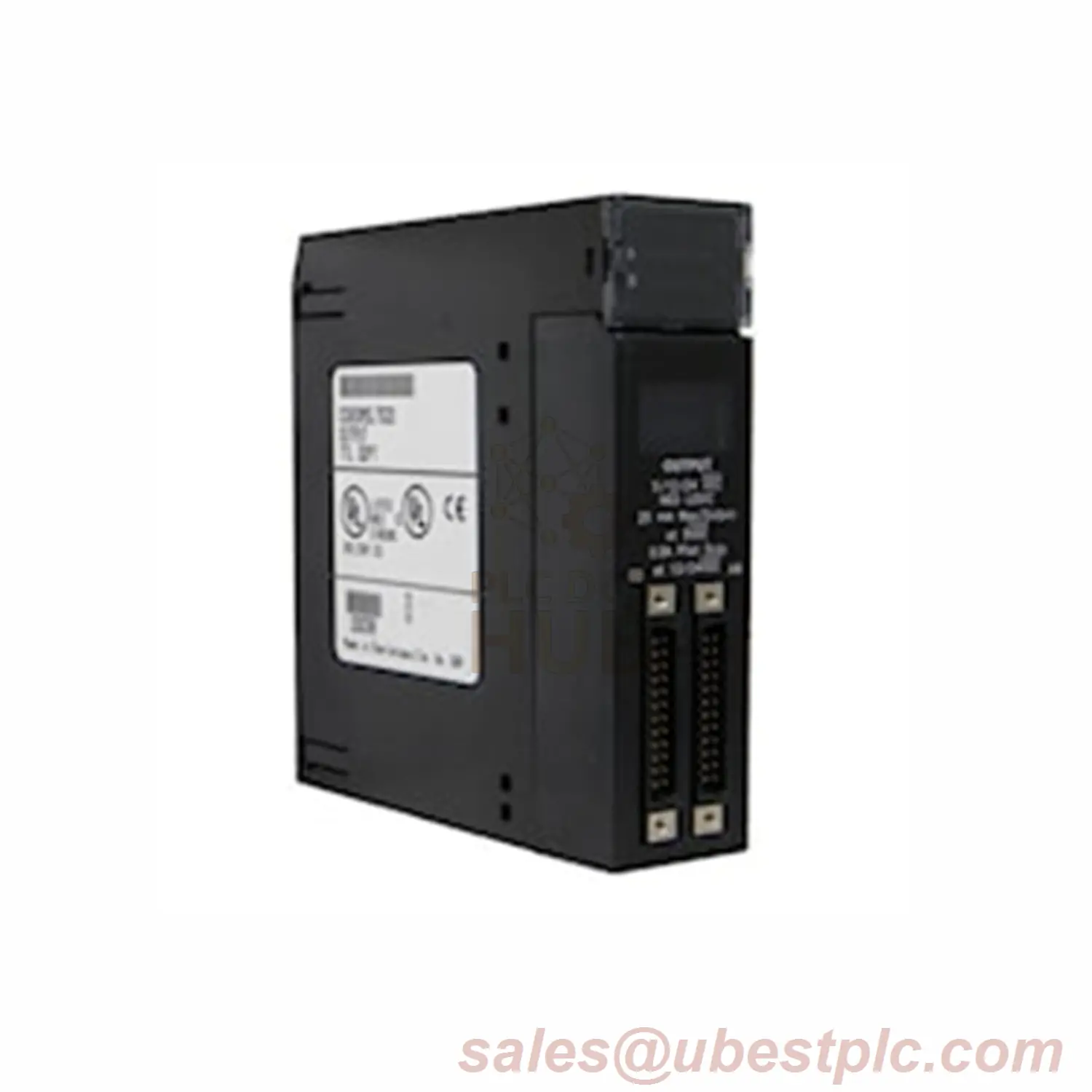

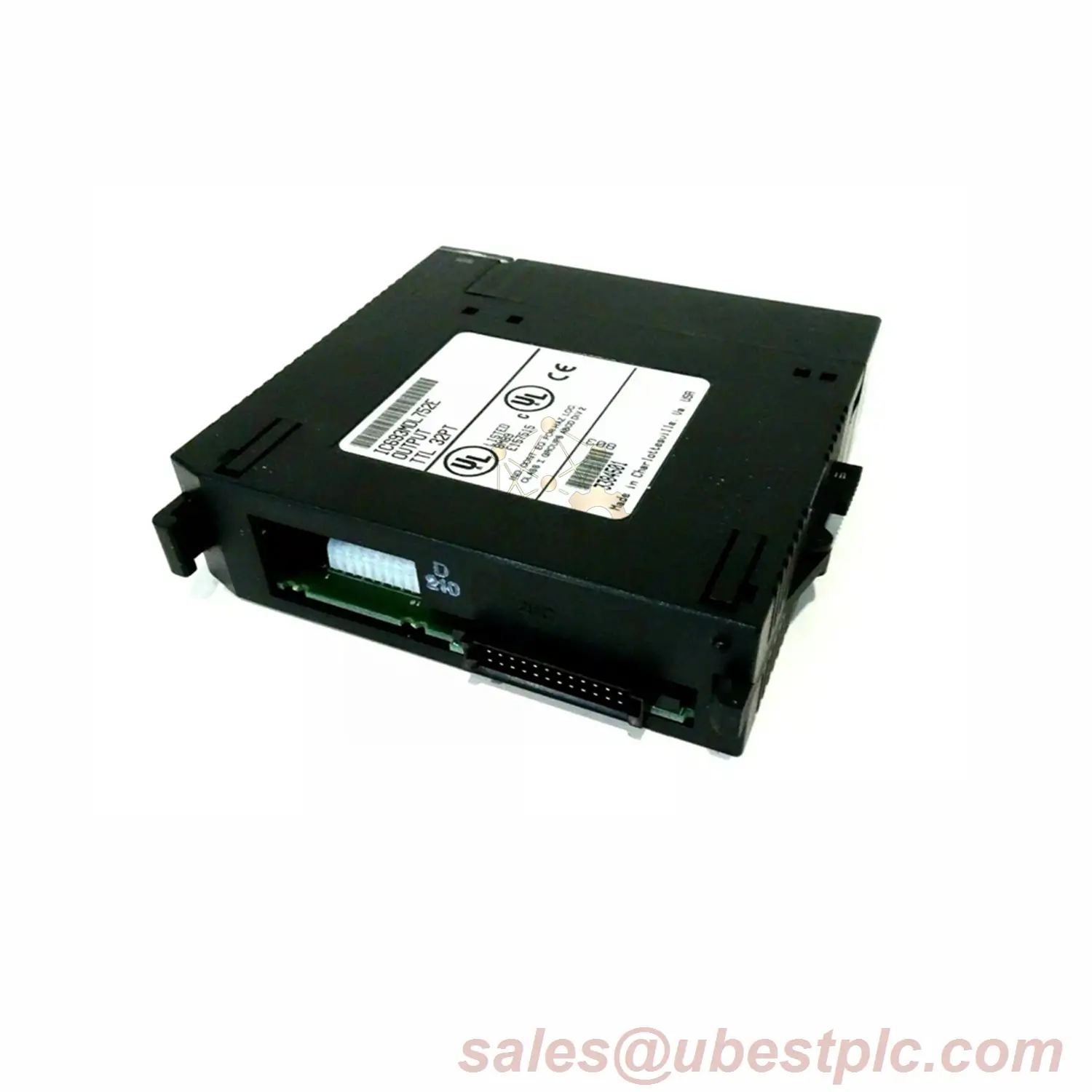

GE Fanuc IC693MDL752 Discrete Output Module

Control 32 devices with one module. Switch between 5V TTL and 24VDC modes. For Series 90-30 PLCs. Discontinued product – limited stock.

POWER SPECS

• 32 outputs in 4 isolated groups
• 24VDC mode: 10.2-28.8V range | 0.5A per point
• TTL mode: 4.75-5.25V range | 0.25mA per point
• Ultra-fast: 0.5ms response time

SAFETY & CONNECTIONS

• 1500V isolation (field/logic sides)
• 250V isolation between groups
• Dual 24-pin Fujitsu connectors
• LED status lights for every output

INSTALL STEPS

1. Power OFF PLC before install
2. Mount in any non-CPU slot
3. Select mode per output group
4. Use IC693CBL327/328 cables

PACKAGE INCLUDES

• IC693MDL752 module
• Quick-start guide
• 12-month warranty
• No certificates

SHIPPING OPTIONS

FedEx | UPS | DHL – 3-day global delivery

COMMON QUESTIONS

Q: Still supported by Emerson?
A: No. Discontinued but tested working.

Q: Can I use 12V devices?
A: Yes. Set group to 12/24VDC mode.

Q: Max current per group?
A: 3A per common pin in 24VDC mode
