Description
Product Overview

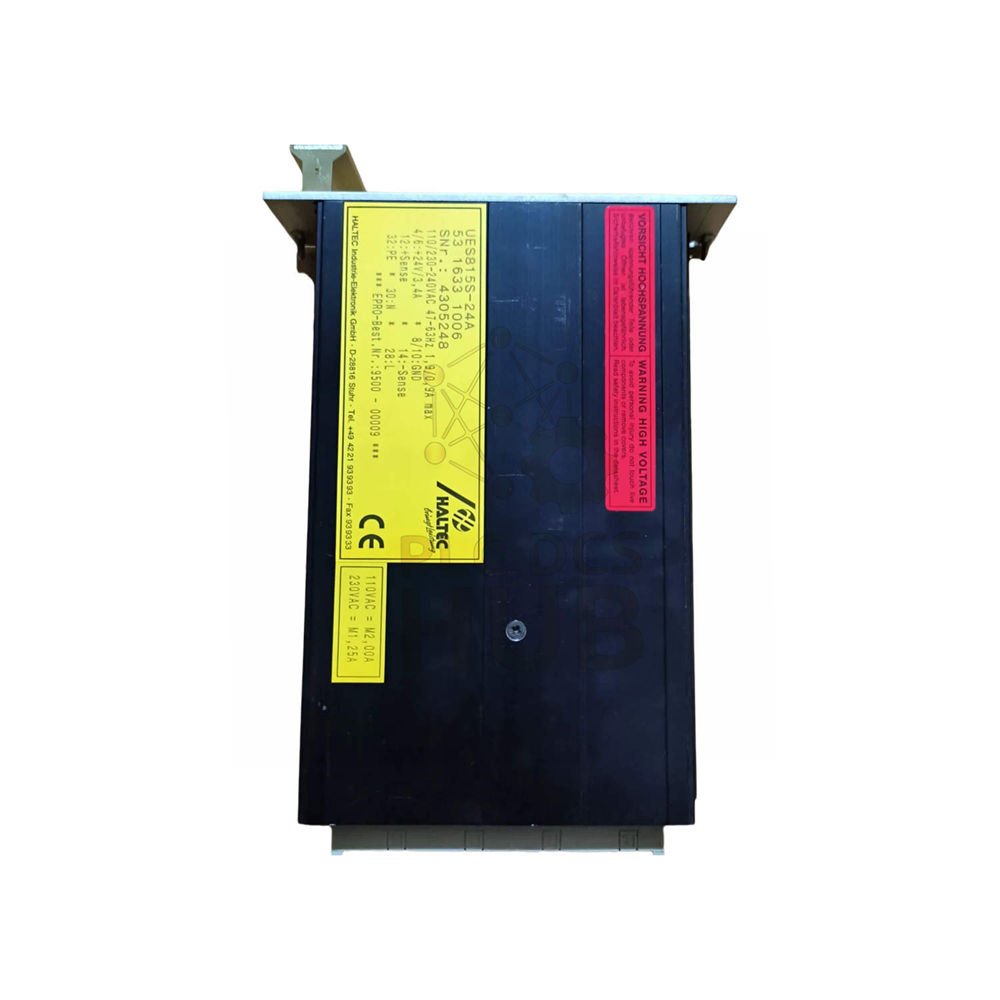

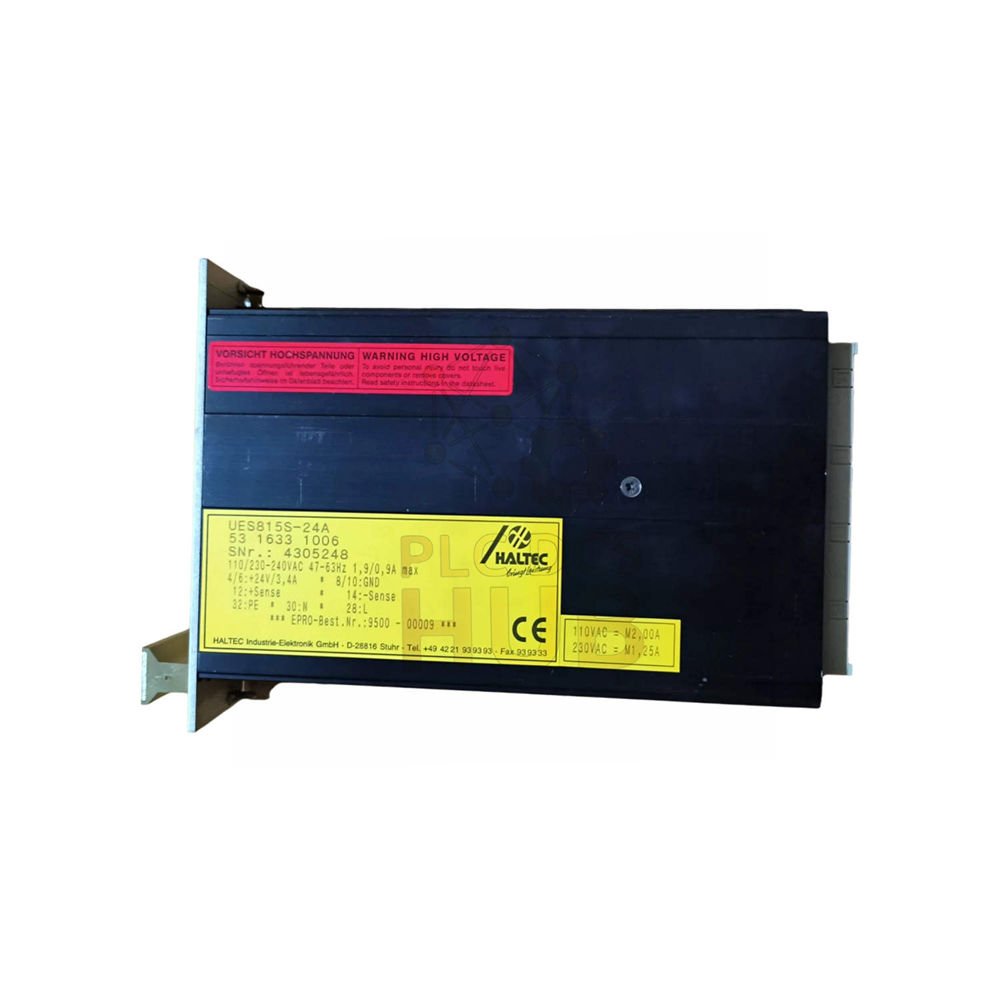

- UES815S-24A is an Emerson Epro monitoring module for power and signal supervision.
- Designed for industrial automation and protection systems.
- Supports precise voltage and pulse signal detection.
- Two independent differential input channels improve monitoring reliability.
- Compact design fits easily in control cabinets.
- Stable electronics allow continuous system operation.
Key Functional Benefits
- Dual-channel signal monitoring increases system safety.
- Wide voltage input range supports many sensors.
- High input impedance protects connected devices.
- Pulse detection allows accurate signal analysis.
- Fast counting capability supports industrial diagnostics.
- Strong resistance to electrical interference.
- Flexible installation with DIN rail or panel mount.
Module Architecture
- Device Identification
- Brand: Emerson Epro
- Model: UES815S-24A
- Module Type: Power Supply Monitoring Module
- Signal Channel Layout
- Total monitoring channels: 2
- Independent differential inputs
- Designed for stable signal acquisition
- Input Voltage Structure
- Measurement range: ±10 V
- High impedance input: 1 MΩ
- Improves signal stability and accuracy
Signal Processing Capability
- Pulse Monitoring
- Frequency range: 0 to 10 kHz
- Minimum detectable pulse width: 50 μs
- Maximum pulse width: 1 second
- Counting Function
- Maximum pulse count: 65,535 per channel
- High accuracy signal counting
- Supports industrial event monitoring
- Signal Stability
- Low noise analog front end
- High reliability signal detection
Electrical Characteristics
- Power Requirement
- Input supply: 24 VDC
- Allowed tolerance: ±10%
- Signal Response
- Fast detection for real-time monitoring
- Stable measurement performance
- Protection Design
- Industrial electronic protection
- Improved resistance to electrical noise
Environmental Operating Range
- Operating Temperature
- -20°C to 60°C
- Mechanical Structure
- Robust industrial enclosure
- Suitable for control cabinet installation
- Industrial Durability
- Stable operation under demanding conditions
- Designed for continuous plant monitoring
Physical Dimensions
- Length: 25 cm
- Width: 22 cm
- Height: 7.8 cm
- Weight: 0.74 kg
Installation Options
- DIN rail mounting for automation cabinets.
- Panel mounting for equipment racks.
- Simple wiring design speeds installation.
- Suitable for new systems or upgrades.
Typical Industrial Applications
- Power supply monitoring systems
- Industrial turbine monitoring
- Process plant protection systems
- Equipment health diagnostics
- Signal monitoring in automation lines
Shipping Options
- FedEx international express
- UPS worldwide shipping
- DHL priority logistics
- Protective industrial packaging included
Warranty Policy
- 12-month warranty from delivery date.
- Covers manufacturing defects during normal use.
- Technical support available during warranty.
Professional FAQ
- What signals can this module monitor?
- The module monitors voltage signals and pulse signals.
- Why is differential input useful in monitoring systems?
- Differential inputs reduce noise and improve signal accuracy.
- How can engineers improve measurement stability?
- Use shielded cables and proper grounding.
- What should be checked before selecting this module?
- Confirm voltage range, pulse frequency, and installation method.
- Where is this monitoring module commonly used?
- It is used in turbines, power systems, and industrial monitoring platforms.
