Description

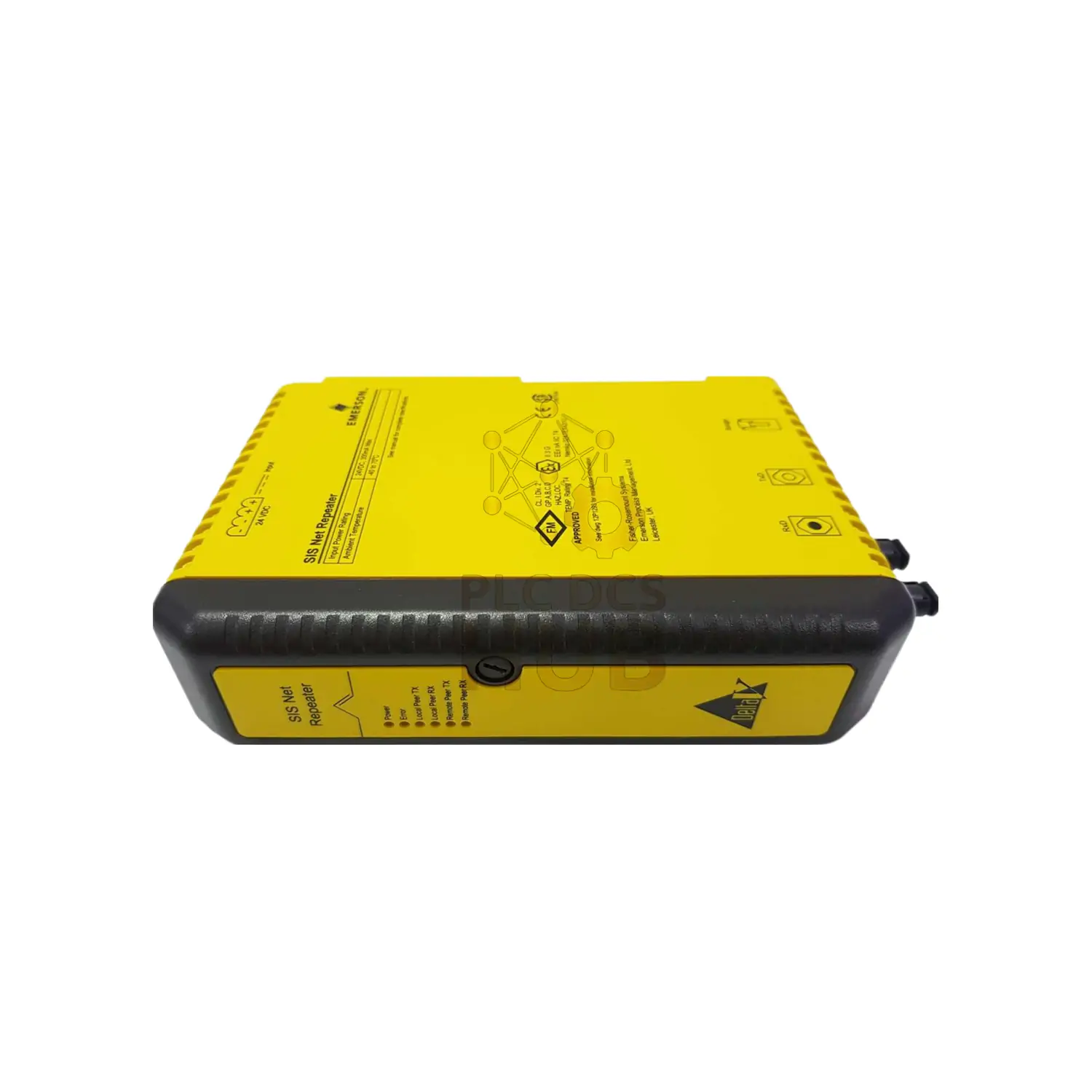

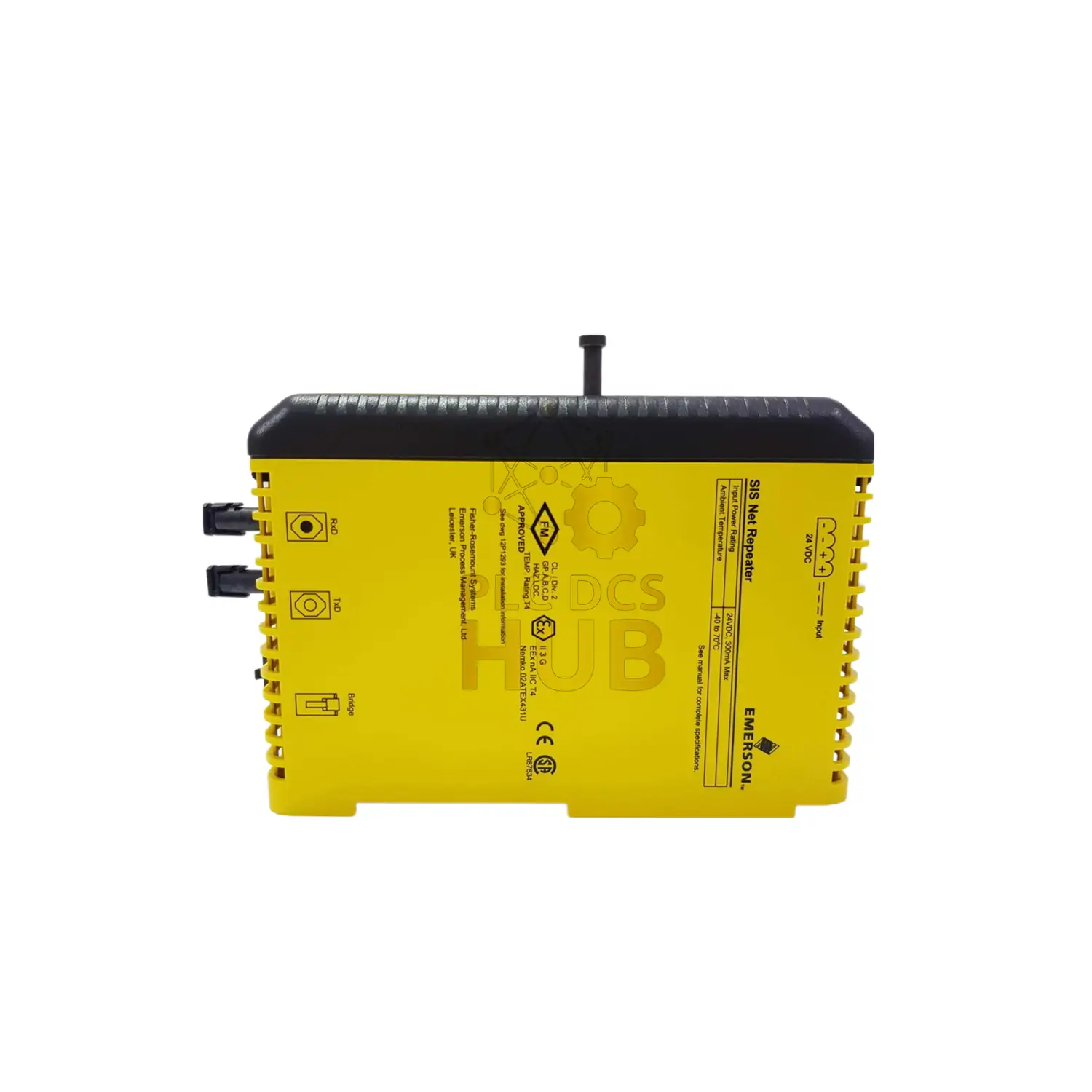

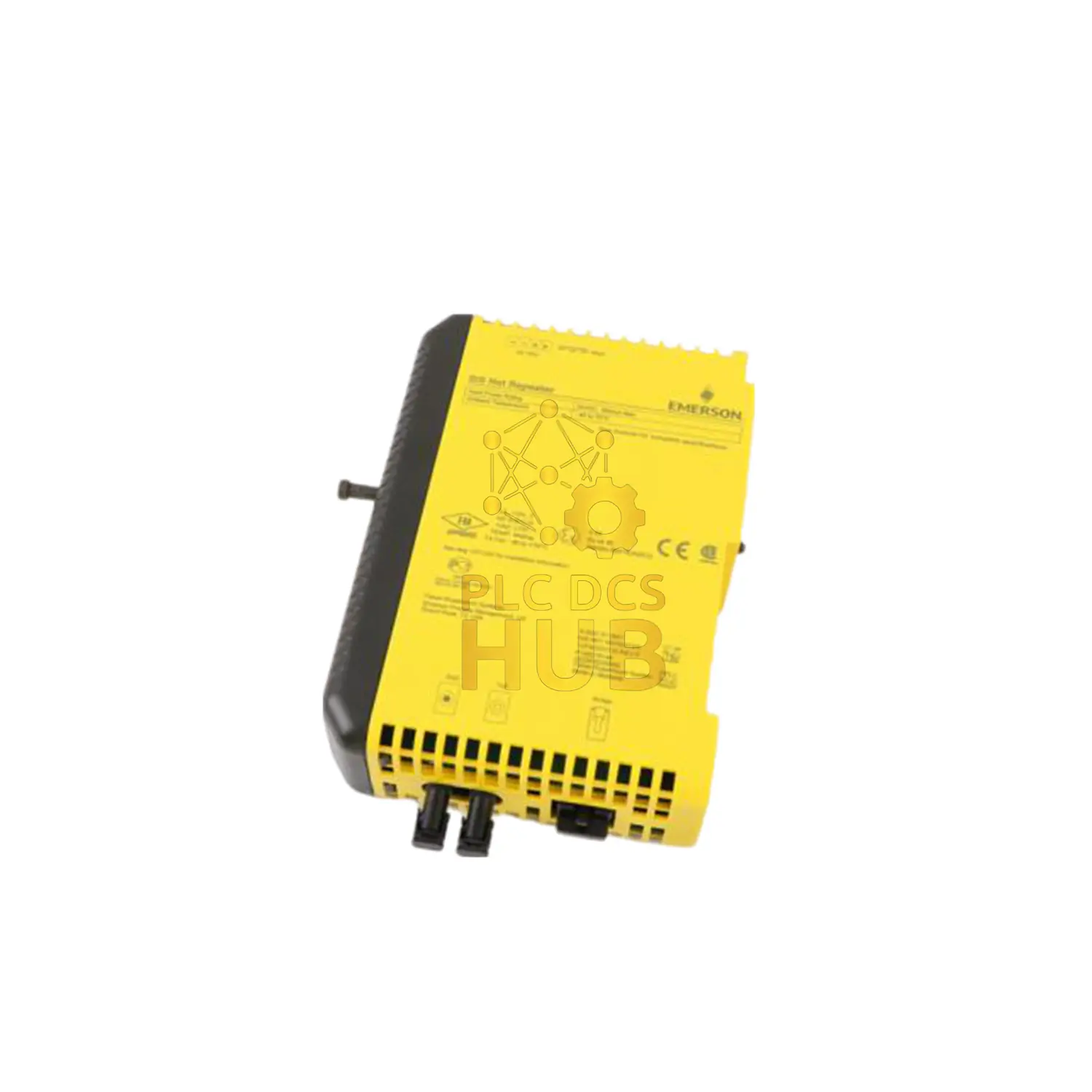

VS6002 KJ2221X1-EA1 12P3241X012 Redundant SISNet Repeater
???? Core Specifications
- ⚡ Safety-Rated Fiber Repeater: SIL-compliant redundant communication
- ⏱️ 50ms network update time
- ???? Supports up to 32 nodes per network ring
???? Environmental Ratings for VS6002
????️ -40°C to 70°C Operating Temp
???? 5-95% Non-condensing RH
????️ IP20 + ISA G3 Coating
???? 1mm vibration (5-16Hz)
???? 10g shock resistance
???? 24VDC ±20% Input
???? Fiber Optic Performance
| Cable Type | 62.5/125μm (11dB) 50/125μm (8dB) |
| Max Distance | 2km one-way |
⚖️ Physical Details
- Weight: 0.795kg (repeater) + 0.20kg (terminator)
- Power: 8W heat dissipation
- Termination: 4-position screw terminal (12AWG max)
