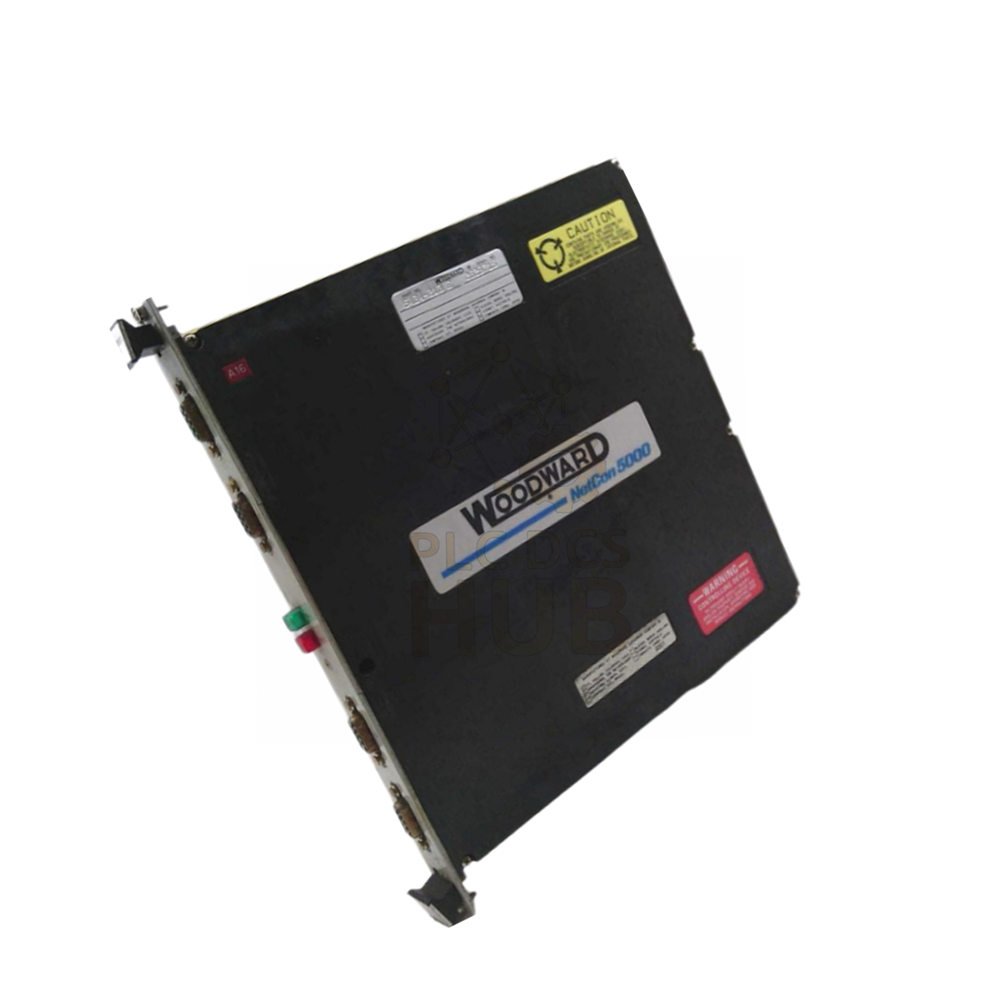

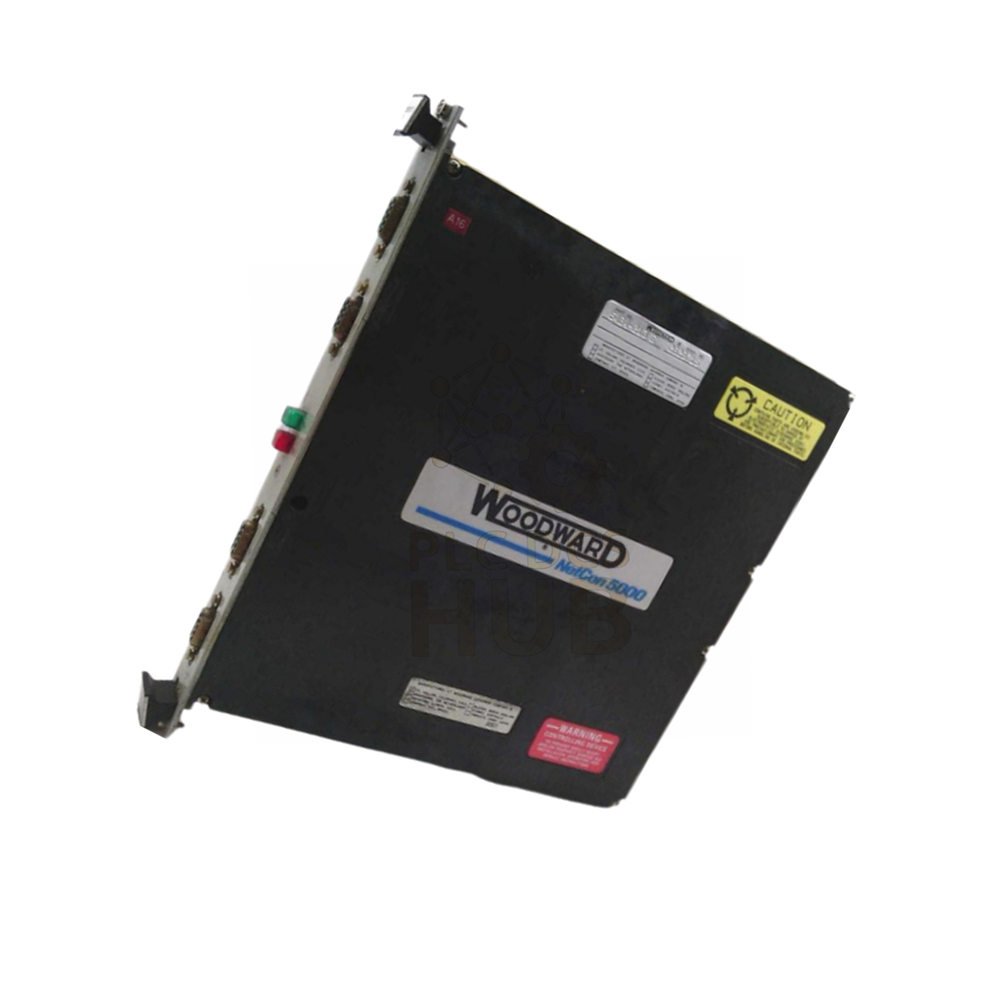

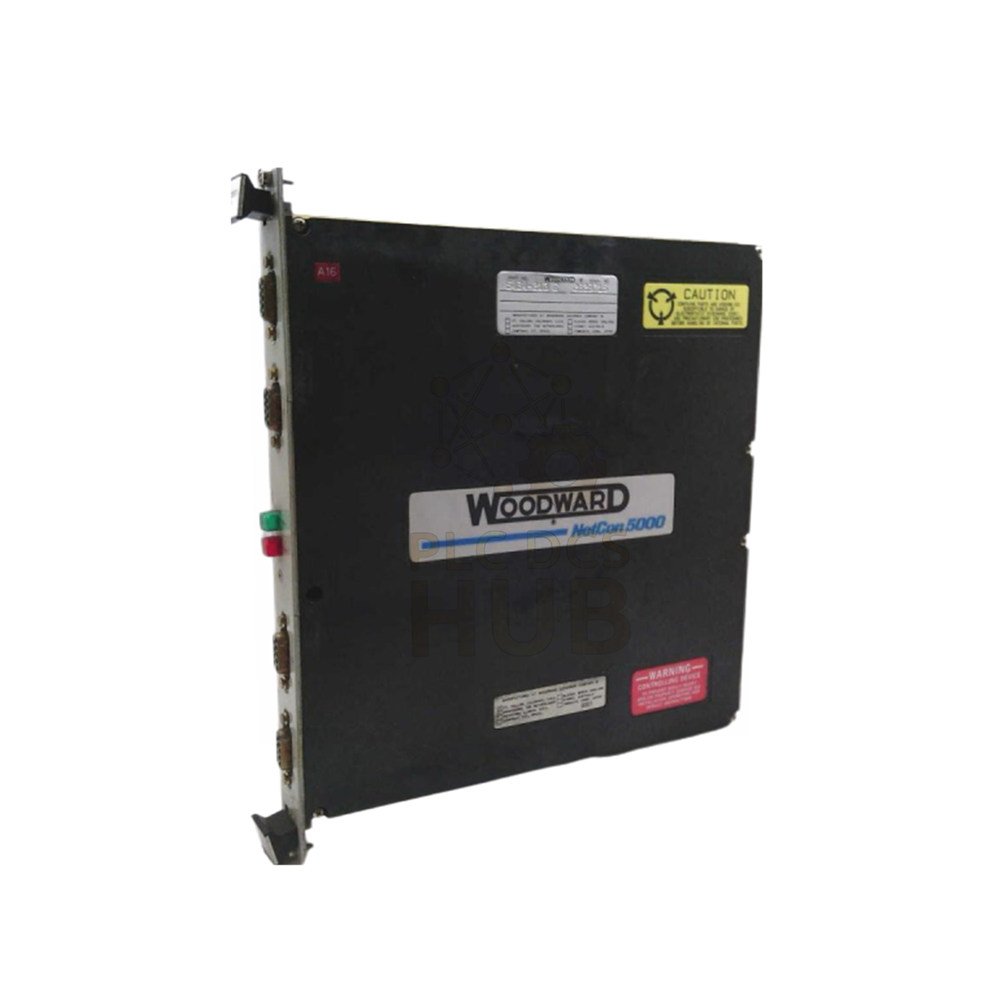

Woodward 5464-213 Netcon Serial IO Module – 4-Port RS232/485

Description

Product Description

Product Overview

• ■ The Woodward 5464-213 is a Netcon Serial I/O Module.
• ■ It is part of the 5400 Series for turbine control systems.
• ■ This module connects the VME bus to four serial ports.
• ■ It manages data transfer between serial devices and the system.

Technical Specifications

• ■ Part Number: 5464-213
• ■ Brand: Woodward
• ■ Product Type: Netcon Serial Input/Output Module
• ■ Input Voltage: 24 Vdc
• ■ Power Supply Range: 10 to 60 VDC
• ■ Maximum Operating Current: 12 V
• ■ Operating Temperature: -25°C to +70°C
• ■ Size: 30 cm x 20 cm x 25 cm
• ■ Weight: 0.73 kg
• ■ Country of Origin: United States (USA)

Port Configuration

• ■ Ports A (J1) and B (J2): RS-232 only
• ■ Ports C (J3) and D (J4): RS-232, RS-422, or RS-485
• ■ Baud rate for Ports A & B: 110 to 38.4 Kbaud
• ■ Baud rate for Ports C & D: Must match if using 38.4 or 57.6 Kbaud
• ■ Software Support: Modbus RTU and Modbus ASCII

Hardware Details

• ■ Processor: 68030
• ■ Dual-Port RAM: Up to 4 KB
• ■ PROM: 64 KB
• ■ LED indicators: One FAULT LED only
• ■ Switches: None on this module

What This Module Does

• ■ It links serial devices to the VME bus system.
• ■ The 68030 processor handles all data movement.
• ■ You can connect up to four serial devices at once.
• ■ It works with Modbus RTU and ASCII protocols.
• ■ This module is plug-and-play with no switches to set.

Key Features

• ■ Multiple serial standards: RS-232, RS-422, RS-485
• ■ Configurable baud rates: Match your device speed
• ■ Modbus support: Talks to most industrial gear
• ■ Error detection: Finds and handles communication problems
• ■ Remote access: Monitor serial devices from afar
• ■ SCADA ready: Works with central control rooms
• ■ Modular design: Add more modules as needed

Interface Module Label Info

• ■ NETCON 5000B SIO
• ■ Panel mount design
• ■ 4-port serial interface
• ■ Includes LED indication

Compatibility

• ■ Designed for Woodward turbine control systems.
• ■ Works with Modicon Quantum via Modbus connection.
• ■ Fits into 5400 Series rack systems.
• ■ Connects to RTUs, PLCs, and serial instruments.

Installation Tips

• ■ Mount in a clean, dry panel.
• ■ Keep temperature between -25°C and +70°C.
• ■ Use proper serial cables for each port type.
• ■ Match baud rates on Ports C and D if using high speeds.
• ■ No switch configuration needed.

Maintenance & Debugging

• ■ Watch the FAULT LED for problems.
• ■ No switches means less to go wrong.
• ■ Check serial cable connections first if a port fails.
• ■ Verify baud rate settings match your device.
• ■ Use Modbus test tools to verify communication.

Typical Applications

• ■ Connecting turbine sensors to VME bus
• ■ Serial data logging from multiple devices
• ■ Modbus gateway for legacy instruments
• ■ Remote monitoring of generator sets
• ■ SCADA system integration in power plants

Professional FAQ

• Q1: Can I use Ports C and D at different baud rates?
  Yes, but only if both are below 38.4 Kbaud. At 38.4 or 57.6 Kbaud, both ports must use the same speed.
• Q2: What does the FAULT LED tell me?
  The LED lights up when the module finds an error. Check power and connections first. Then check the serial device on each port.
• Q3: Can this module talk to a Modicon Quantum PLC?
  Yes. Use Modbus RTU over RS-232 or RS-485. Connect to Modicon Quantum serial ports.
• Q4: Why are there no switches on this module?
  Woodward designed it for simplicity. All settings go through software. This reduces failure points.
• Q5: How many serial devices can I connect?
  Up to four devices, one per port. Use RS-485 on Ports C or D to connect multiple devices on one line.

Buying Guide & Experience Tips

• ■ Count your ports: Need 4 serial connections? This module fits. Need more? Add a second unit.
• ■ Check your protocol: This module does Modbus RTU and ASCII. Not Profibus or DeviceNet.
• ■ Baud rate planning: Keep Ports C and D at the same speed if running 38.4 Kbaud or higher.
• ■ Spare recommendation: Keep one spare module for critical turbine systems.
• ■ Warranty: 12 months from shipment. Covers defects and normal use failures.
• ■ Shipping: FedEx, UPS, or DHL express. Tracking sent within 24 hours.
• ■ Storage: Keep in anti-static bag. Store between 0°C and 40°C.

Packing List

• ■ 1x Woodward 5464-213 Netcon Serial I/O Module
• ■ 1x Terminal connector kit
• ■ 1x Quick reference guide

Warranty & Support

• ■ 12 months warranty from delivery date.
• ■ Covers manufacturing defects.
• ■ Fast replacement for dead-on-arrival units.
• ■ Technical support available via WhatsApp.
