Description
Quick Overview

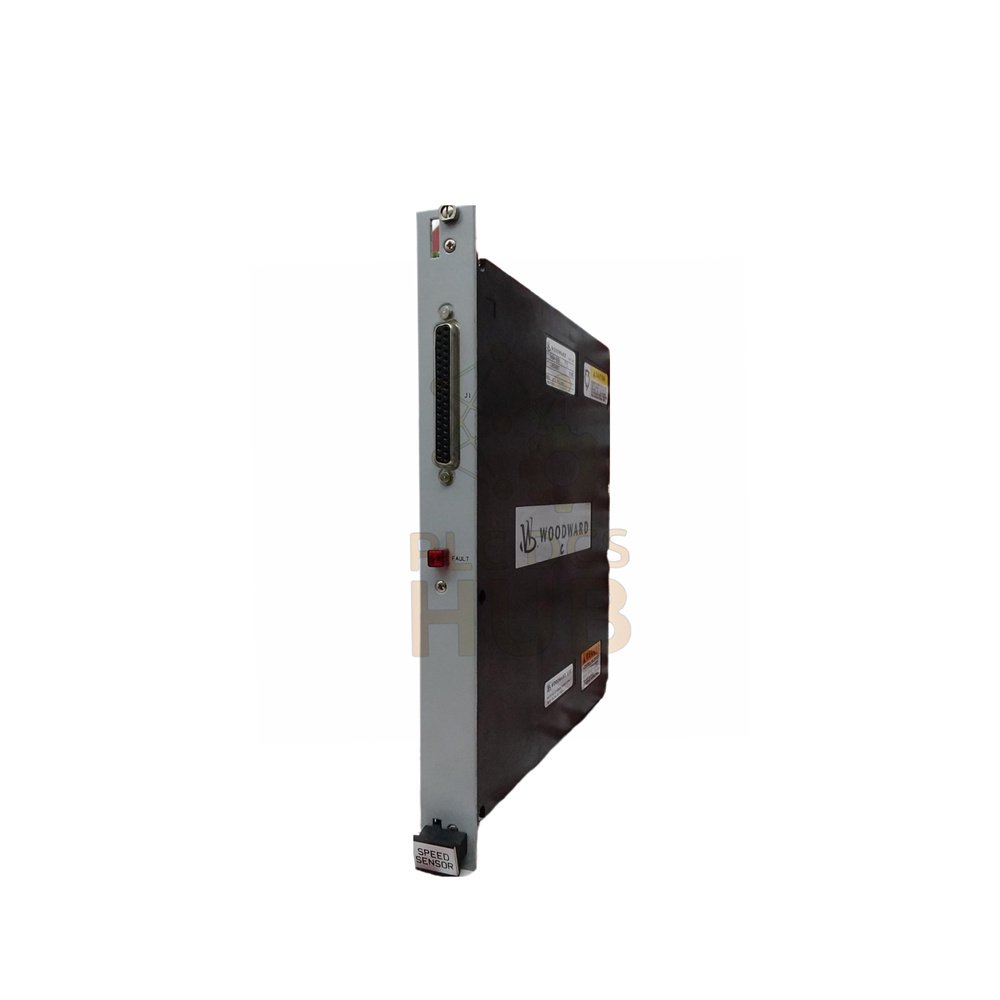

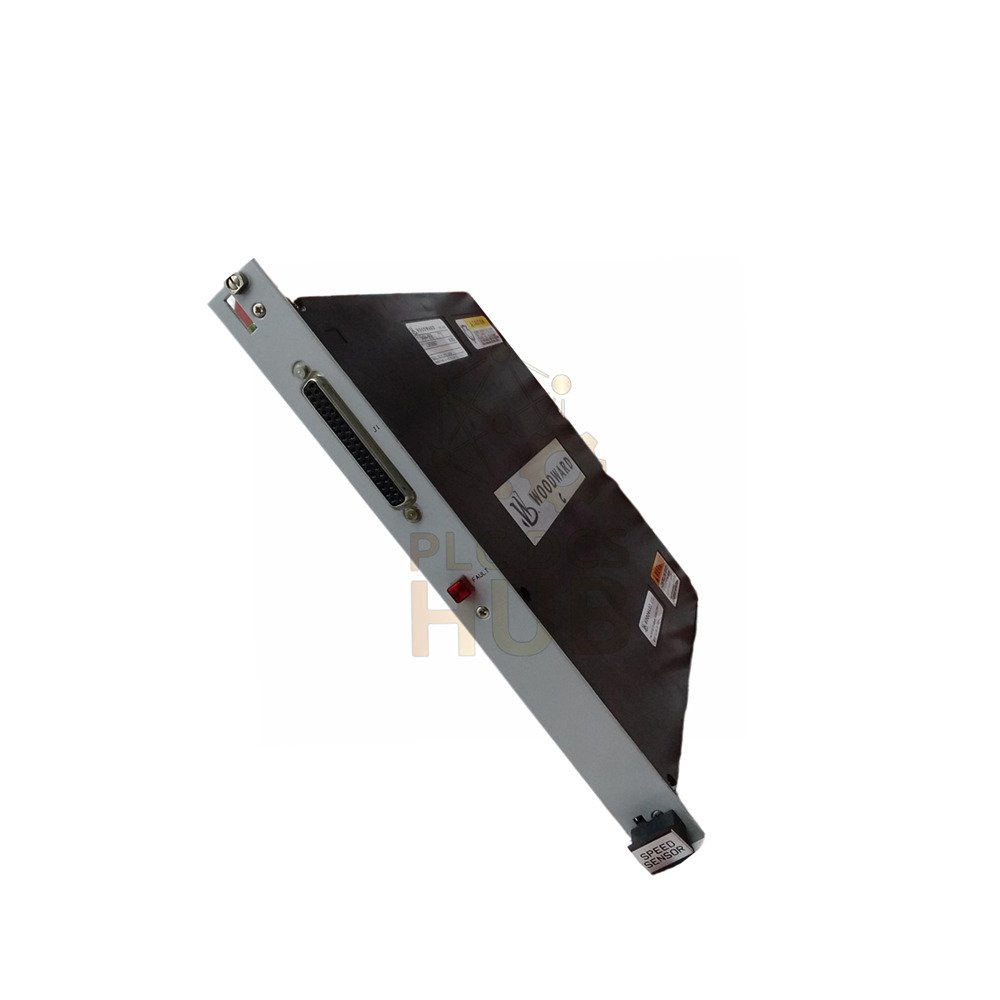

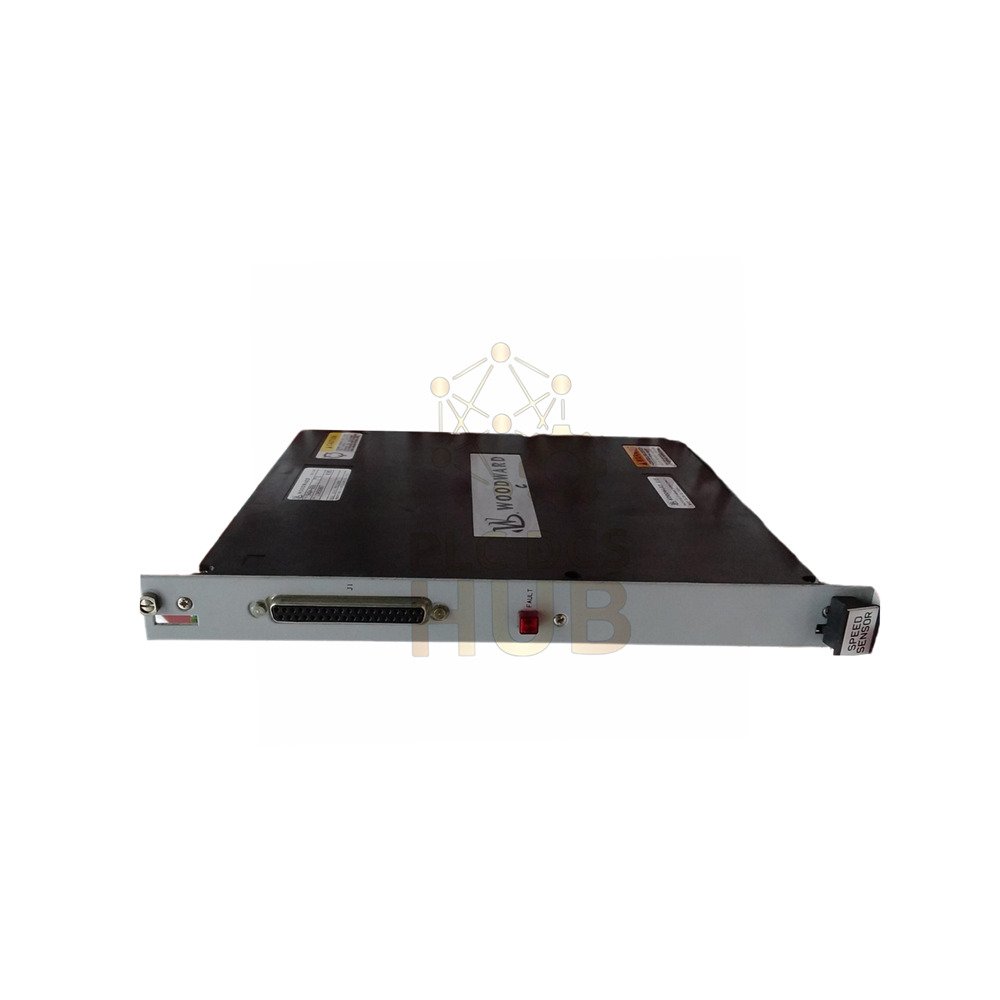

The Woodward 5464-659 is a smart digital speed sensor. It belongs to the MicroNet Digital Control series. This module has its own onboard microcontroller. As a result, it runs self-tests and auto-calibration. Use it for actuator control and speed sensing.
Key Details (Tree Structure)
Identity
Manufacturer: Woodward
Model: 5464-659
Series: MicroNet Digital Control
Type: Digital Speed Sensor
Origin: United States (US)
HS Code: 85389091
Physical Size & Weight
Dimension: 16cm x 16cm x 12cm
Weight: 0.8 kg
Smart I/O Features
Onboard microcontroller for each module
LED turns off after self-test passes
LED lights up to show an I/O fault
CPU broadcasts a “key” to all I/O cards
Each module handles its own rate-group scheduling
Minimal CPU work required
Fault Detection & Calibration
Each input channel has its own precision voltage reference
Microcontroller reads this reference once per minute
It checks for fault detection
It also does automatic temperature compensation
Limits are preset for expected readings
Reading outside limits means a channel, A/D, or reference is bad
Then the microcontroller marks a fault condition
The CPU then follows the engineer’s program
Output & Fuse Protection
Smart output module checks voltage or current on each channel
It alerts the system if a fault is found
Each I/O module has a visible fuse
Change the fuse through a cutout in the plastic cover
Replace with same type and size
Actuator Driver Details (Two-Channel)
Controls two actuators (integrating or proportional type)
Works with hydromechanical or pneumatic actuators
Each actuator can have up to two position feedback devices
Several versions exist based on max output current
Must use MicroNet low-density discrete (gray) cable
Do not use analog (black) cable
Gets digital info from CPU
Generates four proportional actuator driver signals
Signal range: 0 to 25 mAdc or 0 to 200 mAdc
Actuator Driver Details (Four-Channel)
System writes output values to dual-port memory
Uses VME-bus interface
Microcontroller scales values with calibration constants stored in EEPROM
Schedules outputs at the correct time
Monitors output voltage and current of each channel
Alerts system for any channel or load faults
System can disable current drivers individually
FAULT LED lights up if module cannot operate
Compatibility Note
This module works with Modicon Quantum systems via standard integration.
Frequently Asked Questions (FAQ)
Q1: How do I know if my module has a blown fuse?
Look through the cutout in the plastic cover. If the fuse looks broken, replace it. Use the same type and size only.
Q2: What does the green LED mean when it stays off?
First, check power supply. Then check if CPU initialized the module. If both are fine, the module may have an internal fault.
Q3: Can I mix gray and black cables on the same system?
No. Use only gray MicroNet low-density discrete cables. Black analog cables will cause errors.
Q4: My actuator driver shows a fault but the fuse is fine. What next?
Check each channel’s voltage reference reading. If one is outside limits, that channel is bad. The CPU will flag it automatically.
Q5: How often does the module calibrate itself?
Once per minute while not reading inputs. This keeps measurements accurate across temperature changes.
Expert Buying Advice (Experience-based)
Always buy Woodward 5464-659 from trusted sources. Counterfeit units fail faster.
Keep one spare module for critical generators. Downtime costs more than the part.
Check your cable type before ordering. Gray cables are mandatory.
Store the module at room temperature before installation. This prevents condensation damage.
Request the latest EEPROM calibration data from your supplier.
Selection Guide (Which Model You Need)
Need two actuator channels? Choose the two-channel version of 5464-659.
Need four actuator channels? Choose the four-channel version.
Output current 0-25 mAdc? Check part number suffix.
Output current 0-200 mAdc? Check part number suffix.
For Modicon Quantum PLC systems? This module works directly.
Warranty & Shipping
12 months warranty from invoice date.
Covers manufacturer defects only.
Shipping methods: FedEx, UPS, DHL.
Express delivery worldwide in 3-5 business days.
