Description

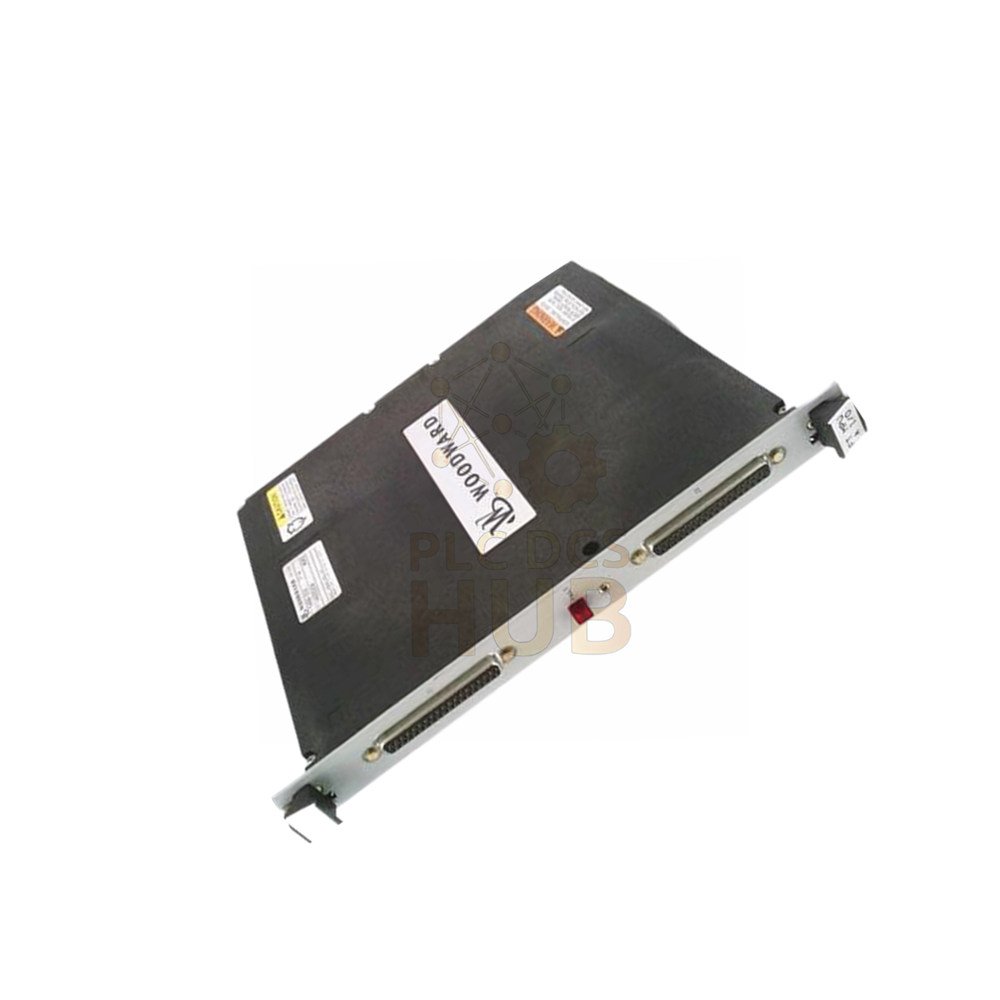

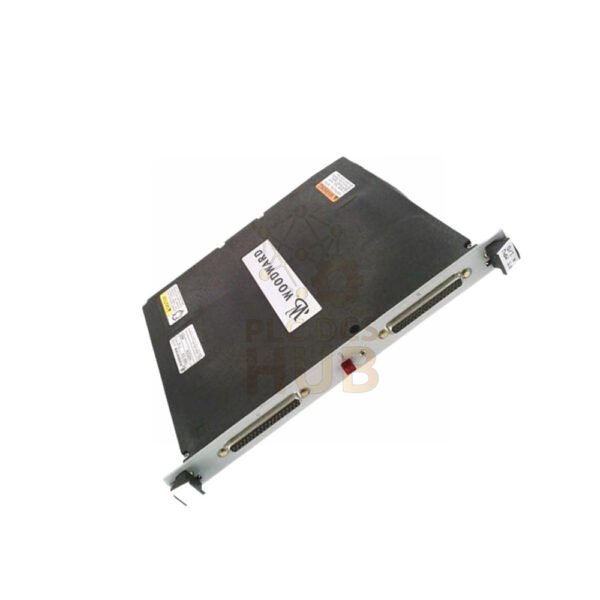

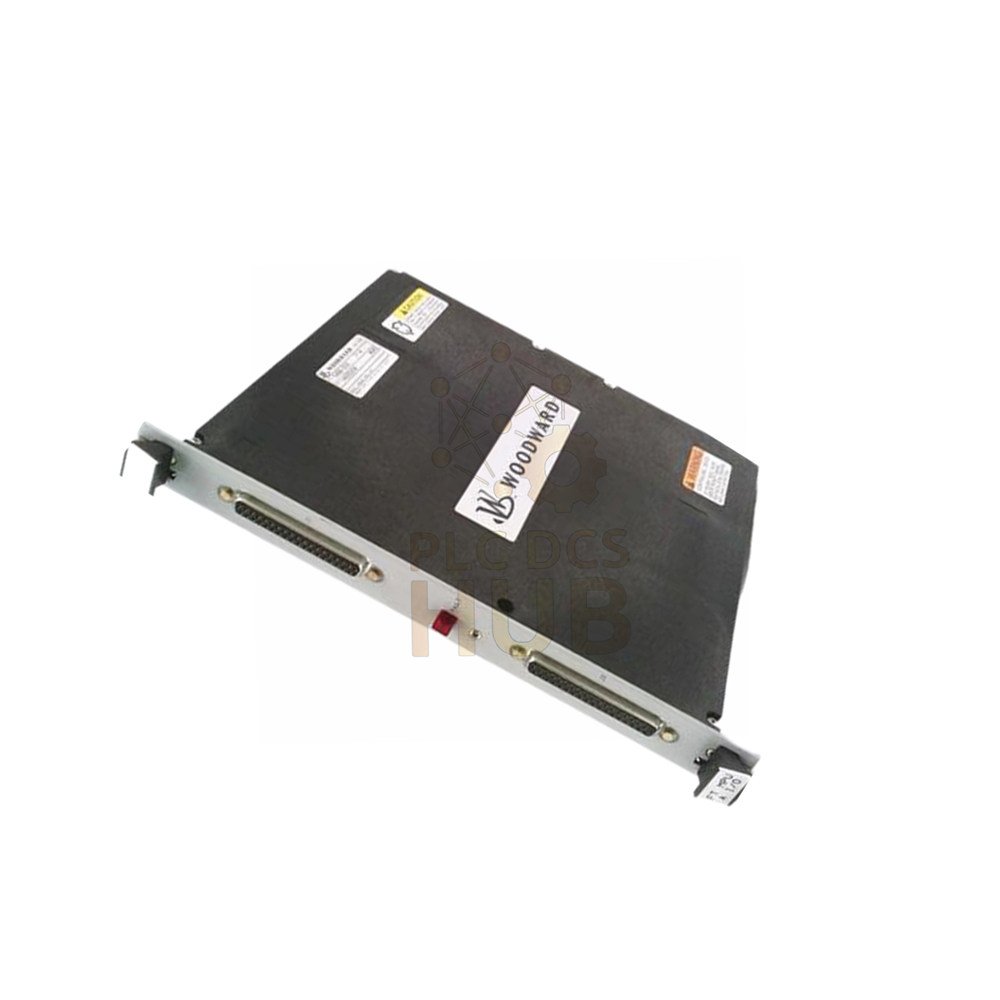

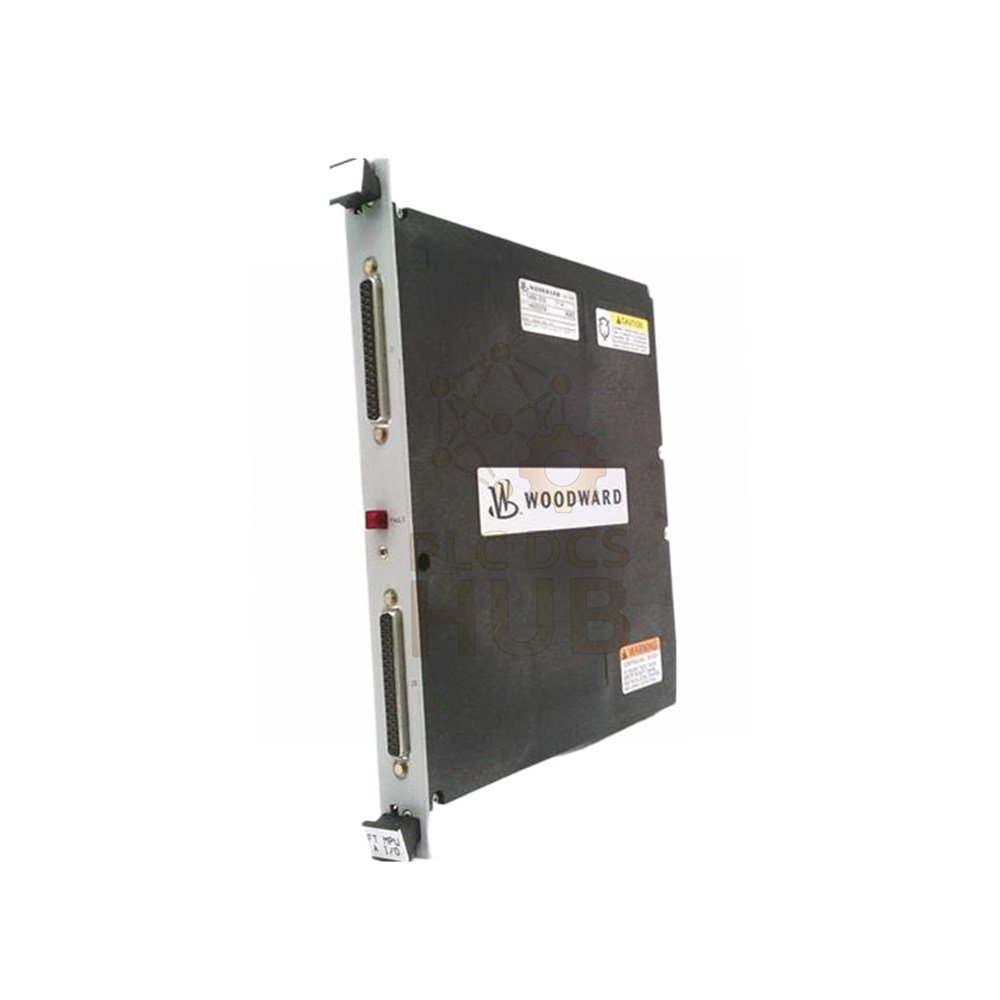

Woodward 5466-253 Analog Combo Module
Product at a Glance
The Woodward 5466-253 is an analog combo module. It belongs to the MicroNet series. This unit combines many functions in one slot. It saves space and reduces wiring. Made in the USA. In stock now.
Core Identity
– Part Number: 5466-253 – Manufacturer: Woodward – Product Type: Analog Combo Module – Country of Origin: United States (USA) – Availability: In Stock
Channel Configuration (Tree View)
– Total channels and speed – 4 speed sensor inputs – Update time: 5 ms – Analog inputs – 8 channels – Update time: 5 ms – Input range: 0-25 mA – Analog outputs – 4 channels – Actuator driver outputs – 2 proportional outputs – Configurable for 4-20 mA or 20-160 mA
Input Details for Speed Sensors
– Works with magnetic pick-up sensors. – Works with proximity probes. – Supports different rotating machines. – Gives precise speed readings. – Updates every 5 milliseconds.
Analog Input Features
– Accepts 4-20 mA signals from sensors. – Uses 200 ohm resistors across inputs. – Provides 200 Vdc common mode rejection. – Reduces noise and ground loop errors. – Use two-wire loop powered transducers. – Or use isolated self-powered transducers. – For non-isolated devices over 200 Vdc, add a loop isolator. – This stops return current paths and wrong readings.
Actuator Output Flexibility
– Two driver outputs for proportional control. – Set each one to 4-20 mA for small actuators. – Set each one to 20-160 mA for large actuators. – Controls valves, motors, and proportional devices. – Provides precise positioning.
Hardware Uniformity
– All modules use the same cable type. – All modules use the same FTM (Fault Tolerant Module). – Easy to order spare cables. – No confusion with different parts.
Benefits for Engineers
– One module does the work of many. – Less wiring means fewer failure points. – Saves chassis slots for other cards. – Simple system design. – Reliable in power plants, oil & gas, and petrochemicals. – Works with Modicon Quantum PLC systems via analog links.
Warranty & Shipping
– Warranty: 12 months from shipment date. – Covers manufacturing defects only. – Does not cover wrong wiring or field damage. – Shipping options: FedEx, UPS, DHL Express. – Fast dispatch from USA stock. – Tracking number provided for all orders.
FAQ – Practical Answers
What is the update time for analog inputs?
5 milliseconds for all 8 analog inputs.
Can I mix 4-20 mA and 20-160 mA on the two outputs?
Yes. Each actuator output is independent. Set one to 4-20 mA and the other to 20-160 mA.
My device is non-isolated. What should I do?
Add a loop isolator between the device and the module. This blocks return current paths above 200 Vdc.
Does this module work with the older MicroNet chassis?
Yes. It fits any MicroNet chassis using the same FTM and cables. Check your manual first.
What is the lead time for a replacement 5466-253?
In-stock units ship within 24 hours via FedEx, UPS, or DHL. Express delivery takes 2-5 days worldwide.
Selection Guide
– Choose 5466-253 if you need speed sensing plus analog I/O. – Pick this module to save chassis slots (combo design). – Order this unit for 5 ms fast update on 8 inputs. – Select this card for both 4-20 mA and 20-160 mA actuator drives. – Need only analog inputs? A simpler module may cost less. – For non-isolated field devices, buy a loop isolator separately. – Have magnetic pickups or proximity probes? This module supports both.
Pro Tip from Field Experience
Always ground your non-isolated transducer power supply to the same point as the control common. If readings drift, install a loop isolator on each suspect channel. This solves 90% of analog noise issues.
